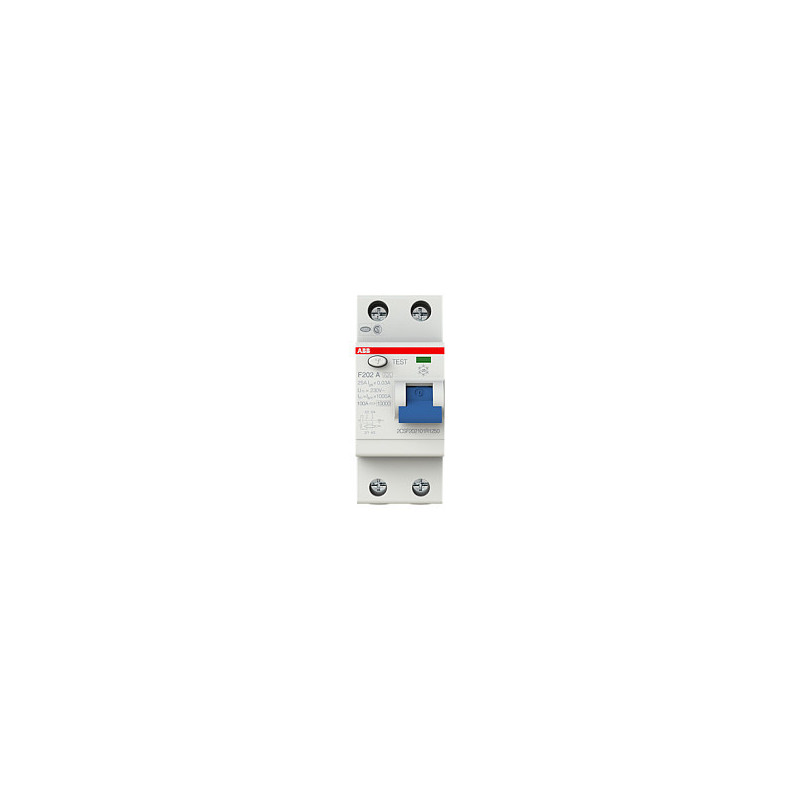

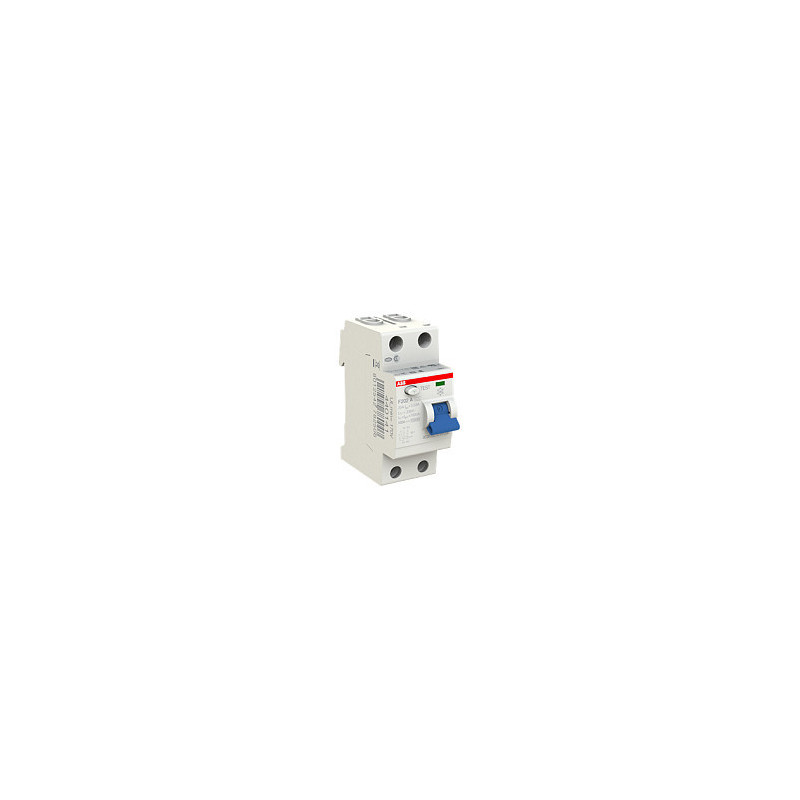

ABB F 202A-25 / 0.03 circuit breaker

ABB F 202A-25/0,03. Rated current: 25 A, Input voltage: 230 - 400 V. Circuit breaker type: Residual-current device, Type: Type A, Product colour: White. Width: 35 mm, Depth: 69 mm, Height: 85 mm. Package width: 41 mm, Package depth: 96 mm, Package height: 78 mm
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Power

Input voltage: 230 - 400 V
Rated current: 25 A

Features

Circuit breaker type: Residual-current device
Type: Type A
Number of poles: 2
Product colour: White
Certification: IEC/EN 61008UL 1053

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Weight dimensions

Width: 35 mm
Depth: 69 mm
Height: 85 mm
Weight: 200 g

Packaging data

Package width: 41 mm
Package depth: 96 mm
Package height: 78 mm
Package weight: 225 g

Technical details

Compliance certificates: RoHS
