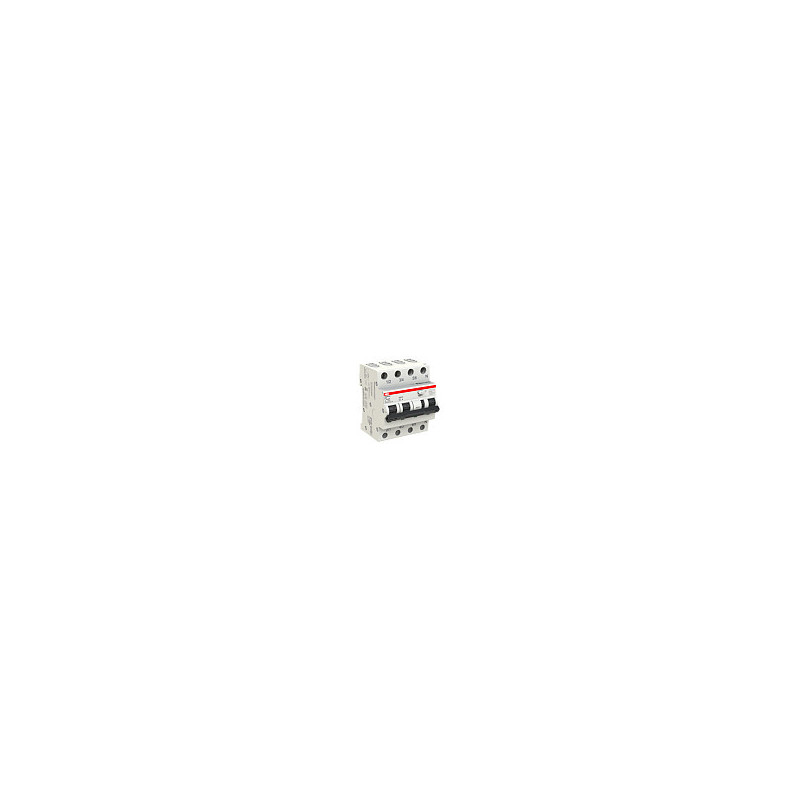

ABB DS203NC circuit breaker

ABB DS203NC. Rated current: 13 A, Input frequency: 50/60 Hz, Total power loss: 7.2 W. Circuit breaker type: Residual-current device with overcurrent protection (RCBO), Type: Type A, Trip curve type: Type B. Width: 71 mm, Depth: 69 mm, Height: 85 mm
DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts.

Power

Input frequency: 50/60 Hz
Rated current: 13 A
Total power loss: 7.2 W

Features

Circuit breaker type: Residual-current device with overcurrent protection (RCBO)
Type: Type A
Trip curve type: Type B
Breaking capacity: 6000 A
Number of poles: 4
Modules quantity (max): 1 module(s)
International Protection (IP) code: IP2X
Installation type: Screws
Protection class: III
Product colour: Grey

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Weight dimensions

Width: 71 mm
Depth: 69 mm
Height: 85 mm
Weight: 480 g
