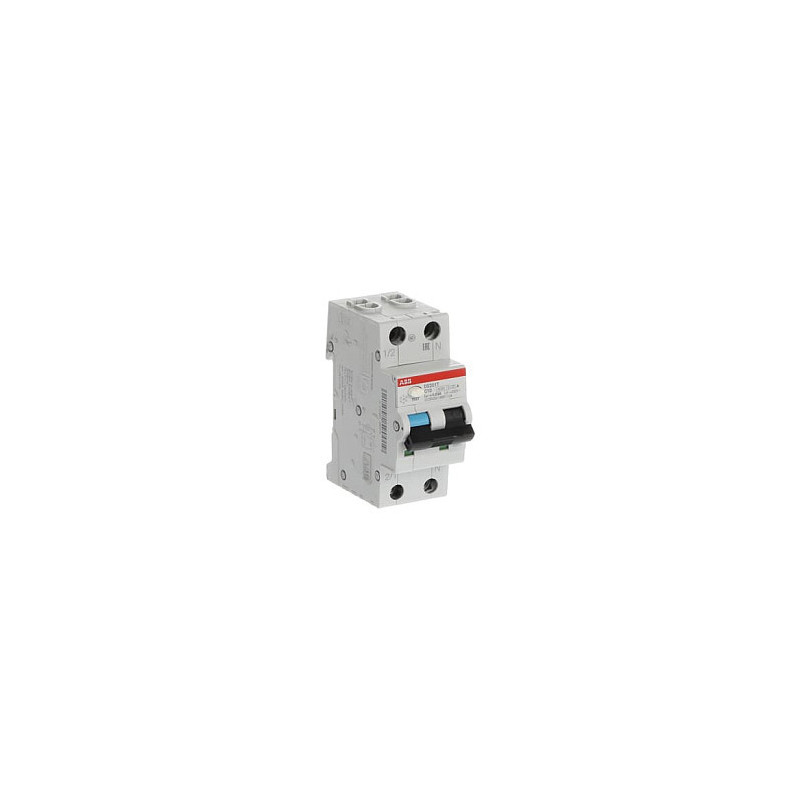

ABB DS201 circuit breaker

ABB DS201. Rated current: 16 A, Input frequency: 50/60 Hz, Rated voltage: 230 V. Circuit breaker type: Residual-current device, Trip curve type: Type B, Residual-current type: Type A. Width: 35 mm, Depth: 69 mm, Height: 85 mm. Package width: 40 mm, Package depth: 80 mm, Package height: 106 mm

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).

Power

Input frequency: 50/60 Hz
Rated current: 16 A
Rated voltage: 230 V
Total power loss: 3.3 W

Features

Circuit breaker type: Residual-current device
Trip curve type: Type B
Residual-current type: Type A
Breaking capacity: 10000 A
Number of poles: 2
International Protection (IP) code: IP20, IP40
Pollution degree: 2
Installation type: DIN-rail
Product colour: Grey
Certification: IEC/EN 61009-1, IEC/EN 61009-2-1

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Weight & dimensions

Width: 35 mm
Depth: 69 mm
Height: 85 mm
Weight: 200 g

Packaging data

Package width: 40 mm
Package depth: 80 mm
Package height: 106 mm
Package weight: 225 g

Technical details

Feature: Sustainability compliance
Compliance certificates: RoHS, VDE, WEEE
