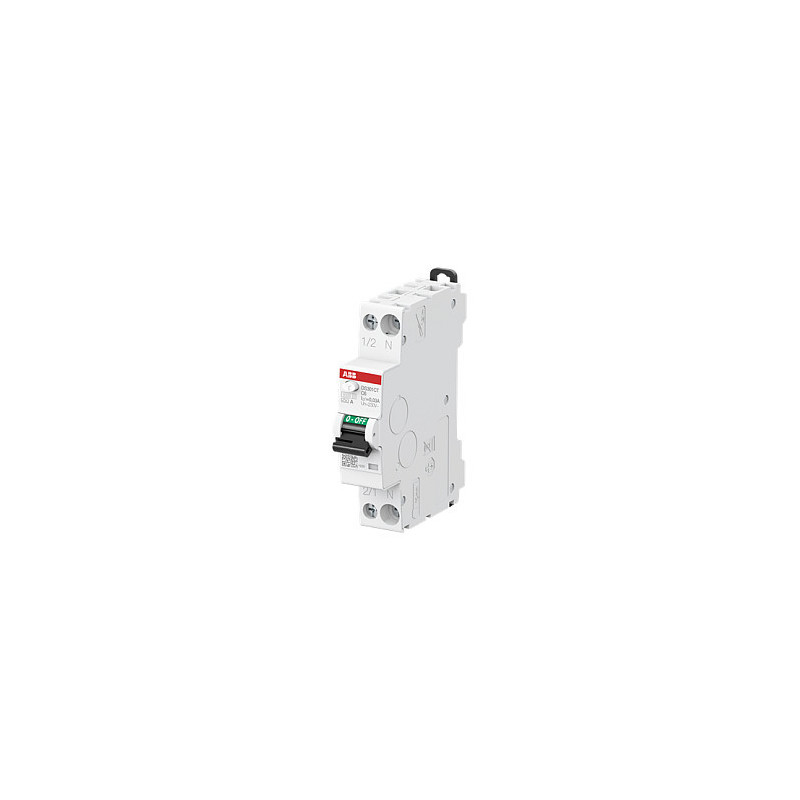

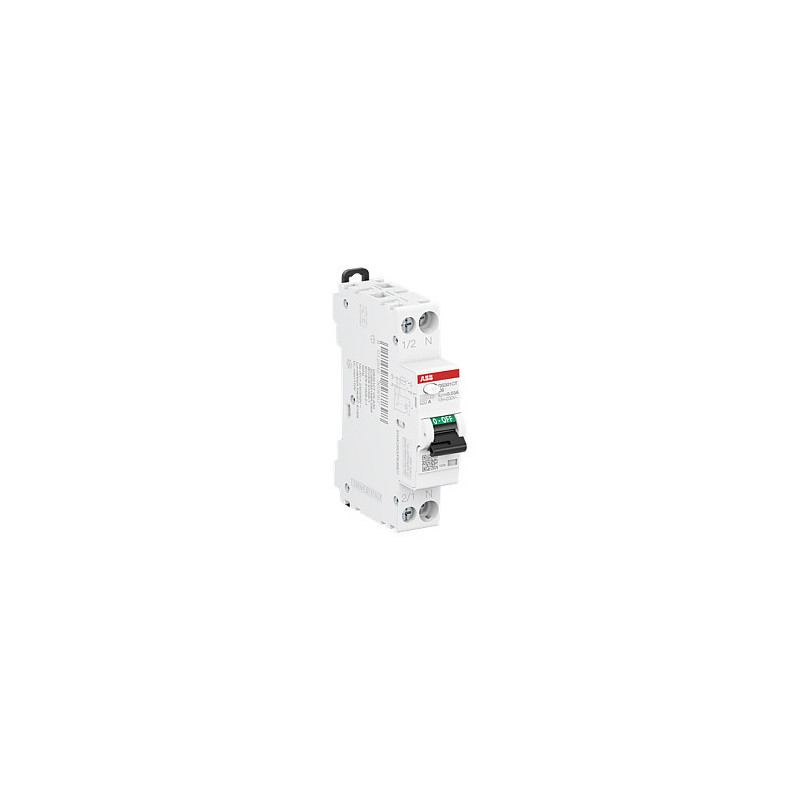

ABB 2CSR255165R1165 circuit breaker

ABB 2CSR255165R1165. Rated current: 6 A, Input voltage: 240 V, Input frequency: 50/60 Hz. Circuit breaker type: Residual-current device with overcurrent protection (RCBO), Type: Type A, Trip curve type: Type C. Width: 17.6 mm, Depth: 68 mm, Height: 92 mm. Quantity per pack: 1 pc(s)
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts Show Less

Power

Input voltage: 240 V
Input frequency: 50/60 Hz
Rated current: 6 A
Rated voltage: 4000 V
Total power loss: 1.56 W

Features

Circuit breaker type: Residual-current device with overcurrent protection (RCBO)
Type: Type A
Trip curve type: Type C
Breaking capacity: 6000 A
Number of poles: 1
International Protection (IP) code: IP20
Pollution degree: 2
Energy limiting class: 3
Installation type: DIN-rail
Protection class: III
Product colour: Grey
Material: Plastic

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Weight dimensions

Width: 17.6 mm
Depth: 68 mm
Height: 92 mm
Weight: 110 g

Packaging data

Quantity per pack: 1 pc(s)
