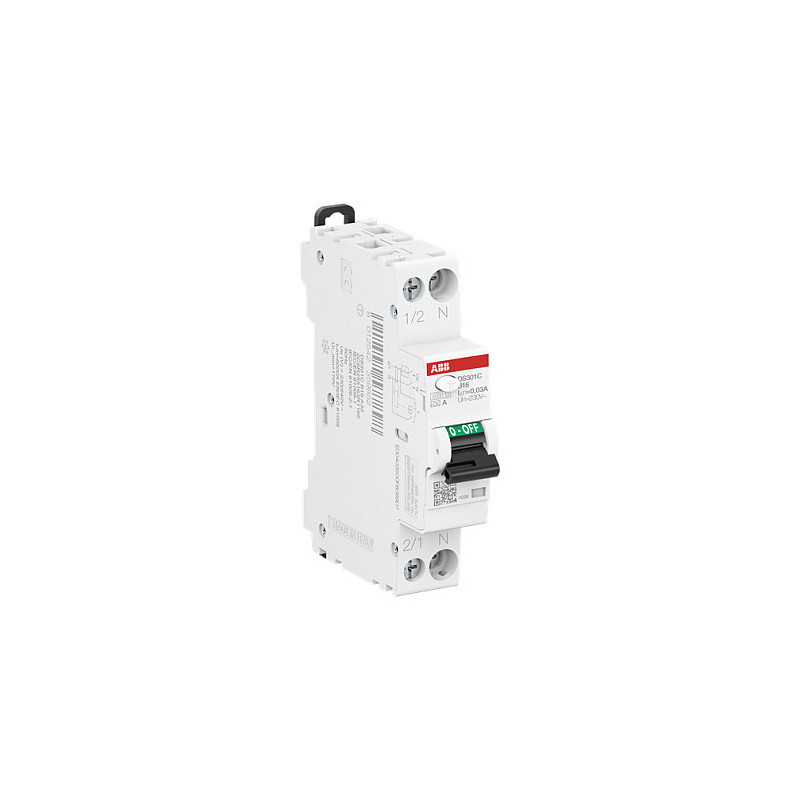

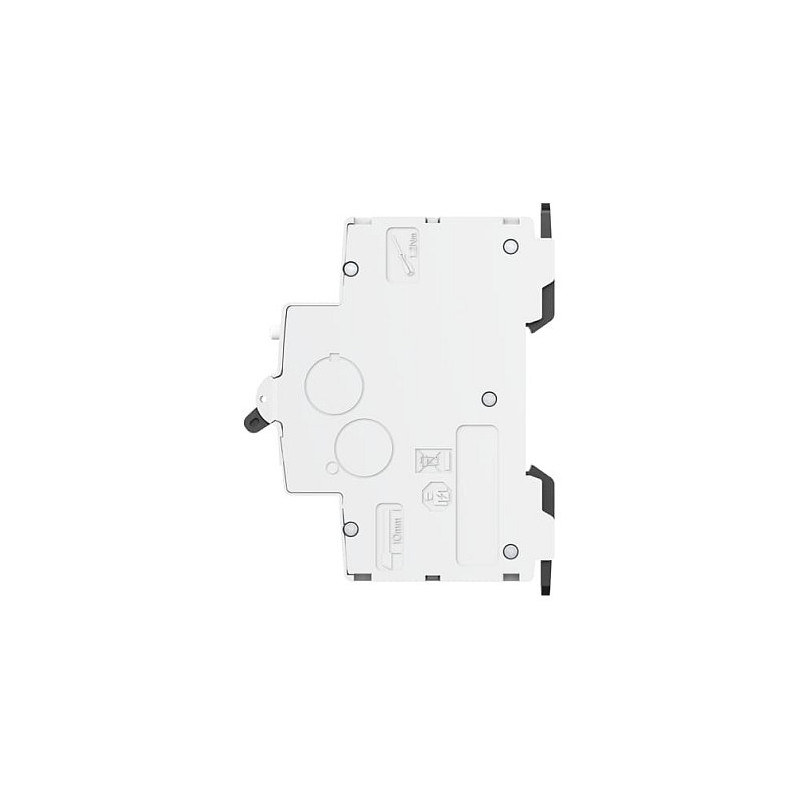

ABB 2CSR255163R1165 circuit breaker

ABB 2CSR255163R1165. Input current: 16 A, Input frequency: 50 - 60 Hz, Rated voltage: 230 V. Circuit breaker type: Miniature circuit breaker, International Protection (IP) code: IP20, IP40, Protection class: III. Width: 17.6 mm, Depth: 68 mm, Height: 92 mm. Quantity per pack: 1 pc(s)
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA)

Power

Input current: 16 A
Input frequency: 50 - 60 Hz
Rated voltage: 230 V

Features

Circuit breaker type: Miniature circuit breaker
Number of poles: 1
International Protection (IP) code: IP20, IP40
Protection class: III
Product colour: White

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Weight dimensions

Width: 17.6 mm
Depth: 68 mm
Height: 92 mm
Weight: 110 g

Packaging data

Quantity per pack: 1 pc(s)
