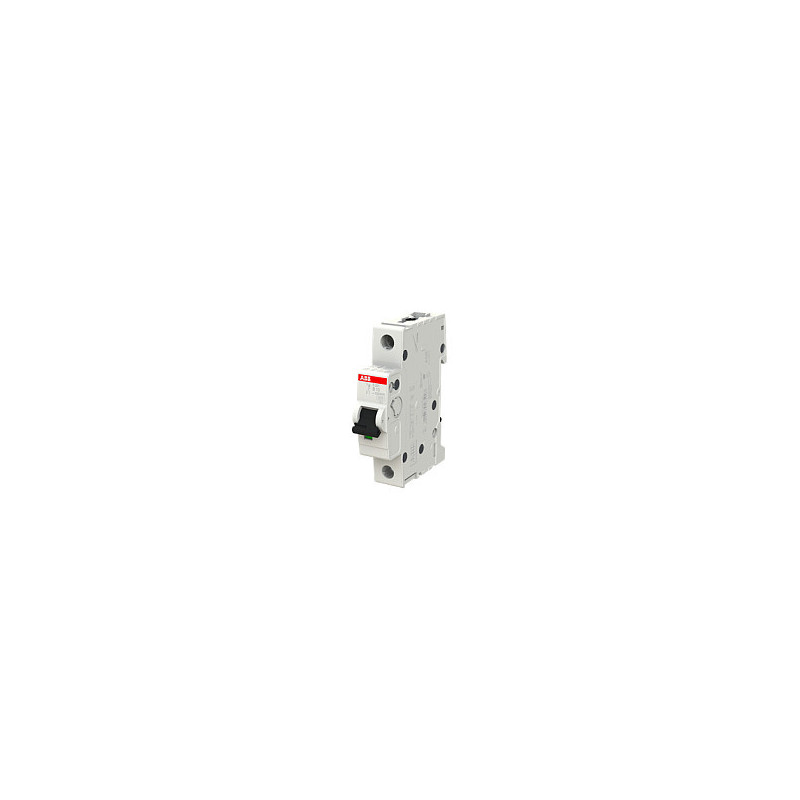

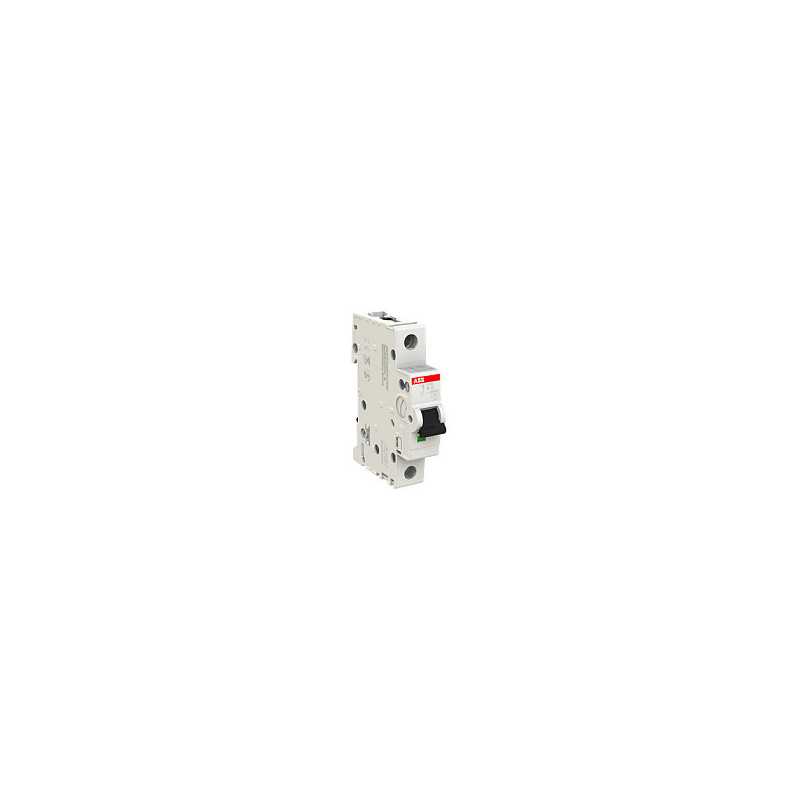

ABB 2CDS251001R0135 circuit breaker

ABB 2CDS251001R0135. Rated current: 13 A, Input frequency: 50 - 60 Hz, Rated voltage: 400 V. Circuit breaker type: Miniature circuit breaker, International Protection (IP) code: IP20, Product colour: White. Width: 17.5 mm, Depth: 69 mm, Height: 88 mm. Quantity per pack: 1 pc(s)
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Power

Input frequency: 50 - 60 Hz
Rated current: 13 A
Rated voltage: 400 V

Features

Circuit breaker type: Miniature circuit breaker
Number of poles: 1
International Protection (IP) code: IP20
Product colour: White

Operational conditions

Operating temperature (T-T): -25 - 55 °C
Storage temperature (T-T): -40 - 70 °C

Weight dimensions

Width: 17.5 mm
Depth: 69 mm
Height: 88 mm
Weight: 125 g

Packaging data

Quantity per pack: 1 pc(s)
