910W solar power plant with battery - 230V power supply, 3000W power + MPPT

We offer an innovative power system based on photovoltaic panels with a total power of 910W, supported by 2 x 200Ah Ultracell gel batteries and an advanced 12V/3000W voltage converter. It's the ideal solution for powering a wide range of devices, such as LED lighting, TVs, radios, laptops, routers, and even water pumps and small refrigerators with power up to 2400W.

The most important features of the set:

This kit powers 230V devices such as LCD TVs, Wi-Fi routers, energy-saving lights, and small home appliances. The built-in inverter provides stable sinusoidal voltage, compatible with sensitive electronics.
Easy assembly for everyone: The system is designed for self-installation. Thanks to the included cables with MC4 connectors and the clear user manual and wiring diagram, installation is quick and intuitive. Required tools are limited to a basic screwdriver and a box wrench.
Energy independence: Integrated Ultracell GEL batteries with a capacity of 200Ah each guarantee reliability and longevity, ideal for photovoltaic systems. They maintain continuous power in the event of a grid failure, ensuring the stability of your devices.

Next-generation technology

Monocrystalline panels, based on half-wave cell technology, offer higher efficiency thanks to reduced internal resistance and lower power losses. This allows the system to operate more efficiently even in challenging lighting conditions.

Benefits for you and the environment

The system provides independence from the power grid, which lowers electricity bills and allows devices to operate in all conditions. It's also an eco-friendly solution, supporting sustainable development through the use of renewable energy sources.
Choose reliability and convenience with our solar power plant – your energy source in any situation!

The set includes:

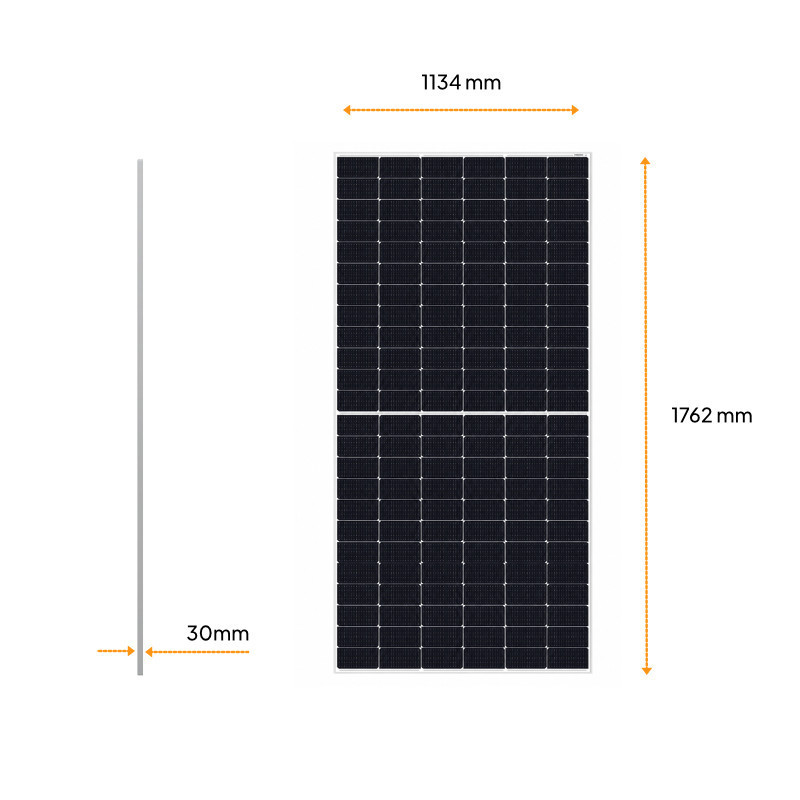

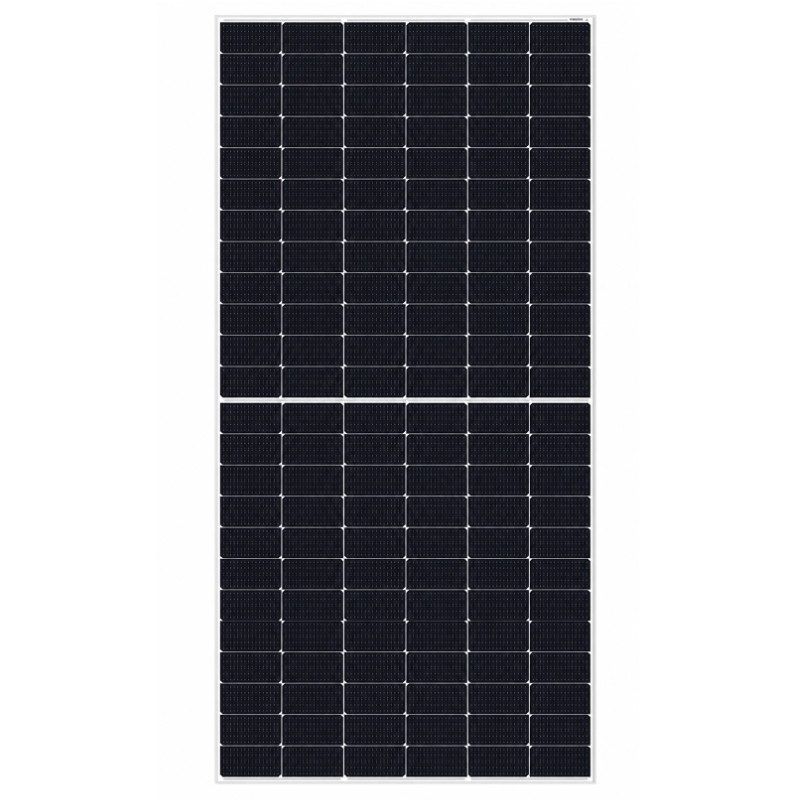

2 x IBC Solar White 455W MS-TA1 solar panel

EPEVER MPPT Tracer 6420AN 60A Charge Controller

Technical Specifications:

• Model: Tracer 6420AN


• Nominal system voltage: 12/24/36/48VDC (automatic)


• Battery type:



  • Lead-acid (sealed/gel/flooded)


  • Lithium (LiFePO4/Li(NiCoMn)O2)


  • User






• Battery input voltage range: 8V-68V


• Rated charging current: 60A


• Rated charging power:



  • 750W (for 12V)


  • 1500W (for 24V)


  • 2250W (for 36V)


  • 3000W (for 48V)






• Maximum conversion efficiency: 98.10%


• MPPT tracking efficiency: ≥99.5%


• Maximum PV open circuit voltage:



  • 200V (at minimum temperature)


  • 180V (under standard conditions)






• MPPT voltage range: Battery voltage +2V to 144V


• Equalizing voltage:



  • Sealed: 14.6V


  • Flooded: 14.8V


  • User: 9-17V






• Increasing the voltage:



  • Gel: 14.2V


  • Sealed: 14.4V


  • Flooded: 14.6V


  • User: 9-17V






• Trickle charge voltage:



  • Gel/Sealed/Flooded: 13.8V


  • User: 9-17V






• Low Voltage Reconnect Voltage:



  • Gel/Sealed/Flooded: 12.6V


  • User: 9-17V






• Low voltage disconnect voltage:



  • Gel/Sealed/Flooded: 11.1V


  • User: 9-17V






• Self-consumption:



  • 98mA (for 12V)


  • 60mA (for 24V)


  • 50mA (for 36V)


  • 46mA (for 48V)






• Temperature compensation (for lead-acid batteries): -3mV/ /2V (default)


• Relative humidity: 5% to 95% (non-condensing)


• Protective barrier: IP20


• Communication interface: RS485 (5VDC/200mA, two RJ45 ports)


• Ground: Common negative


• Dimensions (L x W x H): 340mm x 236mm x 119mm


• Libra: 4.5 kg

is the ideal solution for advanced photovoltaic installations that require reliability, high efficiency and flexibility.

2 x Ultracell GEL 12V 200Ah Battery

Technical specifications:

• Parameters / Model: UCG200-12


• Nominal voltage: 12V


• Nominal capacity (10H): 200.0 Ah


• Standard clamp: F11


• Housing material: ABS


• Nominal capacity:



  • 20hr, 1.80V/cell, 25°C: 206.0Ah / 10.3A


  • 10hr, 1.80V/cell, 25°C: 200.0Ah / 20A


  • 5hr, 1.75V/cell, 25°C: 170.0Ah / 34A


  • 3hr, 1.75V/cell, 25°C: 147.6Ah / 49.2A


  • 1hr, 1.60V/cell, 25°C: 119.4Ah / 119.4A






• Maximum discharge current: 2000A (5s)


• Internal resistance: Approximately 2.9 mΩ


• Discharge characteristics:



  • Operating temperature range:



    • Discharging: -15°C ~ 50°C


    • Charging: 0°C ~ 40°C


    • Storage: -15°C ~ 40°C






  • Nominal operating temperature range: 25±3°C






• Cyclic use: Initial charging current less than 60A. Voltage 14.4V ~ 15.0V at 25°C. Temperature coefficient: -30mV/°C


• Standby use: Initial charging current less than 60A. Voltage 13.5V ~ 13.8V at 25°C. Temperature coefficient: -20mV/°C


• Effect of temperature on capacity:



  • 40°C: 103%


  • 25°C: 100%


  • 0°C: 86%






• Design life in floating maintenance mode at 20°C: 15 years


• Self-discharge: Ultracell batteries can be stored for up to 9 months at 25°C (77°F) before a refresh charge is required. At higher temperatures, the storage life will be shorter.


• Dimensions: ~522 x 240 x 224 mm


• Libra: 62.2 kg

The Ultracell GEL UCG 12V 200Ah battery is a modern energy source that combines durability, efficiency, and environmental friendliness. Thanks to GEL technology, it offers exceptional charging efficiency and high performance, which translates into fast charging and low internal resistance.

EPEVER IPT3000-12-PLUS-T 3000W voltage converter

Technical specifications:

• Model: IP3000-12-Plus


• Continuous output power: 3000W


• Surge power: 6000W (for 5 seconds)


• Overvoltage current at power-up: <100A


• Output voltage: 220VAC (±3%); 230VAC (-7% ~ +3%)


• Output frequency: 50/60Hz (±0.2%)


• Output signal: Pure sine wave


• Output distortion (THD): THD ≤ 3% (resistive load)


• Load power factor: 0.2 ~ 1 (power factor ≤ continuous output power)


• Nominal input voltage: 12VDC


• Input voltage range: 10.8 ~ 16.0VDC


• Nominal output efficiency: > 87.0%


• Maximum output efficiency: > 94.0% (at 30% load)


• Idle current: 0.2A


• No-load current: 1.6A


• Communication port: RS485, 5VDC/200mA


• Input terminal: M10


• Dimensions (L x W x H): 557 × 231.5 × 123 mm


• Mounting dimensions: 532 × 145 mm


• Mounting hole size: Φ6 mm


• Libra: 9.6 kg


• Operating temperature: -20 ~ +60


• Storage temperature: -35 ~ +70


• Relative humidity: ≤ 95% (non-condensing)


• Case: IP20


• Safety standards: EN/IEC62109-1, UL1741, UL458, CSA C22.2#107.1

Converter EPEVER IPT3000-12-PLUS-T It's the ideal choice for users seeking an efficient and safe energy conversion solution for photovoltaic, mobile, and standalone systems. With remote control, high efficiency, and advanced protection features, this device meets all the requirements of modern energy systems.

MC4 ip serial connector solar cable

The kits include a 5-meter cable (black and red) for connecting the solar panel to the controller. An MC4 connector is crimped onto the cable, allowing for efficient connection of the panel to the charge controller.
