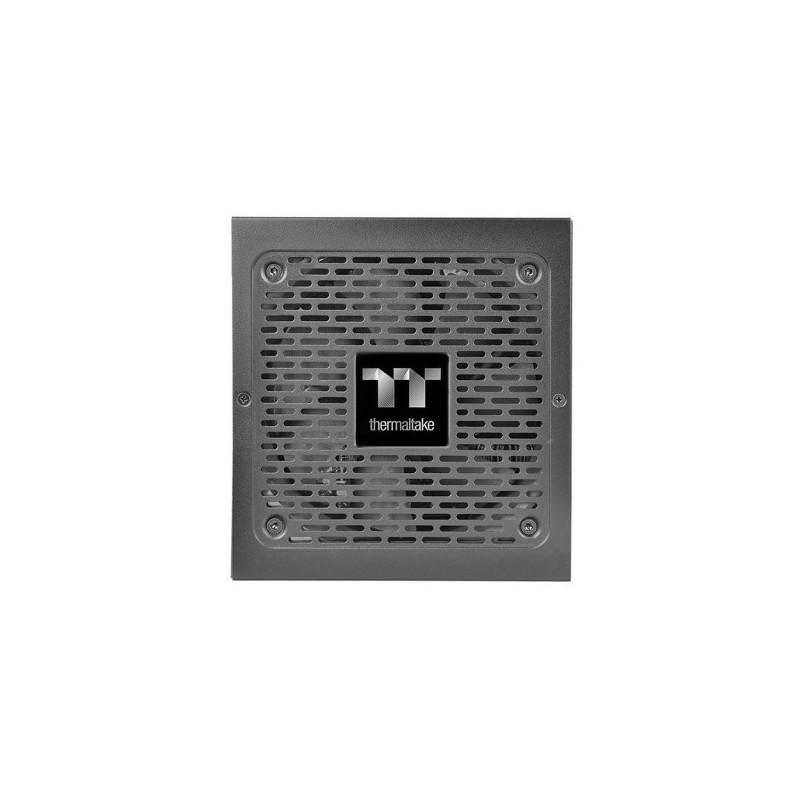

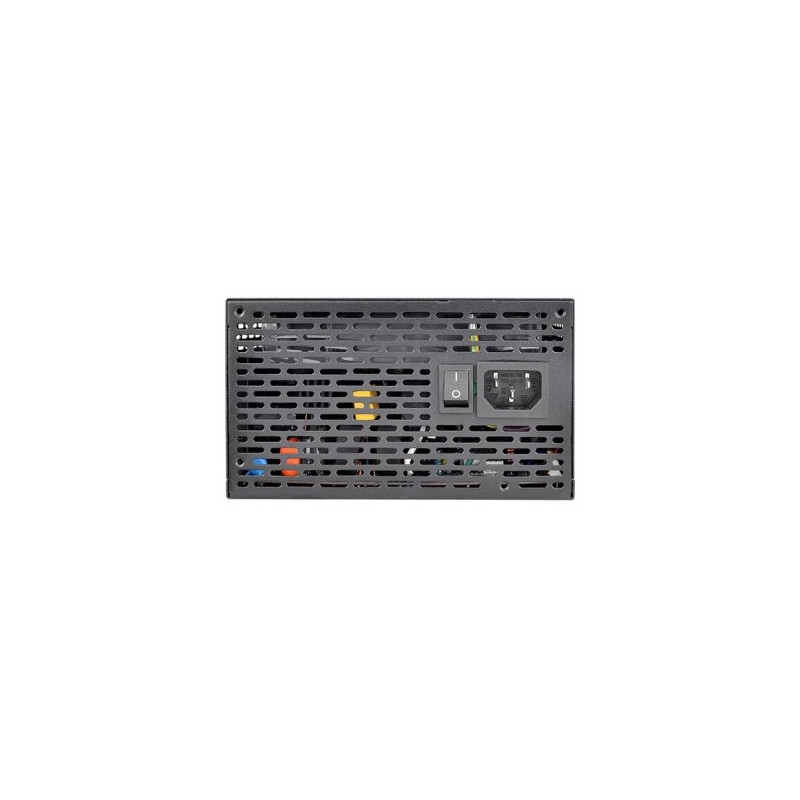

Thermaltake Smart BX3 power supply unit

Thermaltake Smart BX3. Total power: 650 W, AC input voltage: 100 - 240 V, Peak power: 650 W. Peripheral (Molex) power cable length: 150,500 mm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 86 mm, Height: 140 mm

Unmatched Reliability ATX 3.1 Power Supply
The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.

ATX 3.1 Ready
Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

Be Smart, Stay Quiet

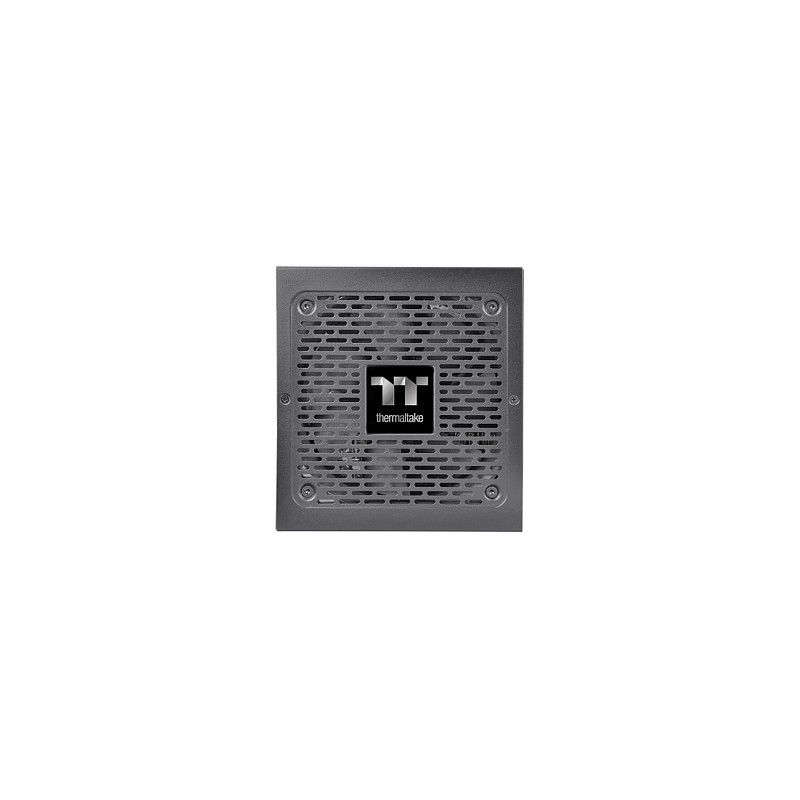

Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.

High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.

High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Non-Modular Flat Cable Design
Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Power

Total power: 650 W
Peak power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 650 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 18 A
Max output current (+12V): 54.2 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 150 ms

Ports & interfaces

Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150,500 mm
PCI Express power connectors (6+2 pin): 2
CPU P4 connector (4-pin): 2
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Feature: Silent mode

Design

Product colour: Black
Fan diameter: 12 cm

Weight & dimensions

Width: 150 mm
Depth: 86 mm
Height: 140 mm
