4x455W solar panel with 60A MPPT charge controller - 24V

This 4x435W solar panel kit with a 60A MPPT charge controller - 24V is the ideal solution for powering a wide range of devices. It can power LED lighting, chargers for smartphones, tablets, and laptops, as well as larger appliances like large LED TVs and refrigerators. With the ability to connect 2x220Ah or 4x220Ah batteries, this kit offers great flexibility in terms of energy needs. Charging the 2x200Ah batteries from a full discharge takes approximately 4 hours, making it a fast and efficient solution.

Simple and quick installation

The photovoltaic kit is designed for self-assembly without the need for advanced tools. The kit includes an instruction manual and installation diagram, making it easy for anyone to connect the system. The wires are already pre-wired, minimizing the need for additional assembly. A screwdriver and a box wrench are all you need for complete installation.

Complete solar kit

The kit includes four 435W monocrystalline solar panels, a 60A EpEver charge controller, and all necessary accessories, such as cables and connectors. The kit is ideal for powering a home solar power plant, enabling the use of devices such as refrigerators, televisions, computers, and water pumps. It also works in conjunction with voltage converters, allowing you to power 230V devices, ensuring complete energy independence.
This 24V photovoltaic kit is the ideal solution for powering a wide range of devices, from LED lighting and chargers to large refrigerators and LED TVs. With the ability to connect high-capacity batteries and fast charging times, it ensures reliability in a variety of conditions. The kit is easy to install and equipped with an advanced MPPT controller that optimizes energy efficiency, increasing system efficiency.

The set includes:

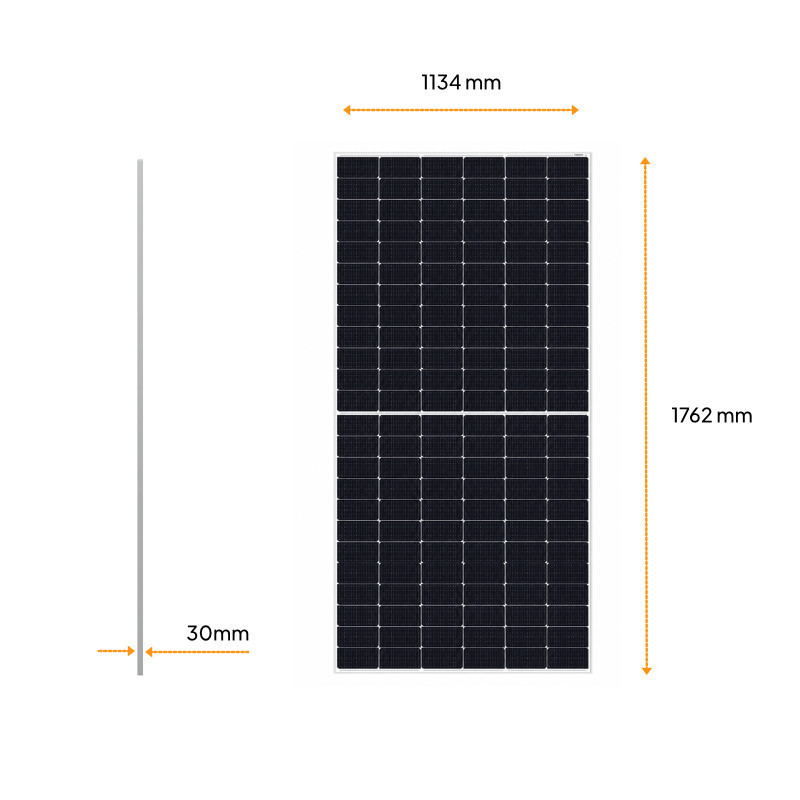

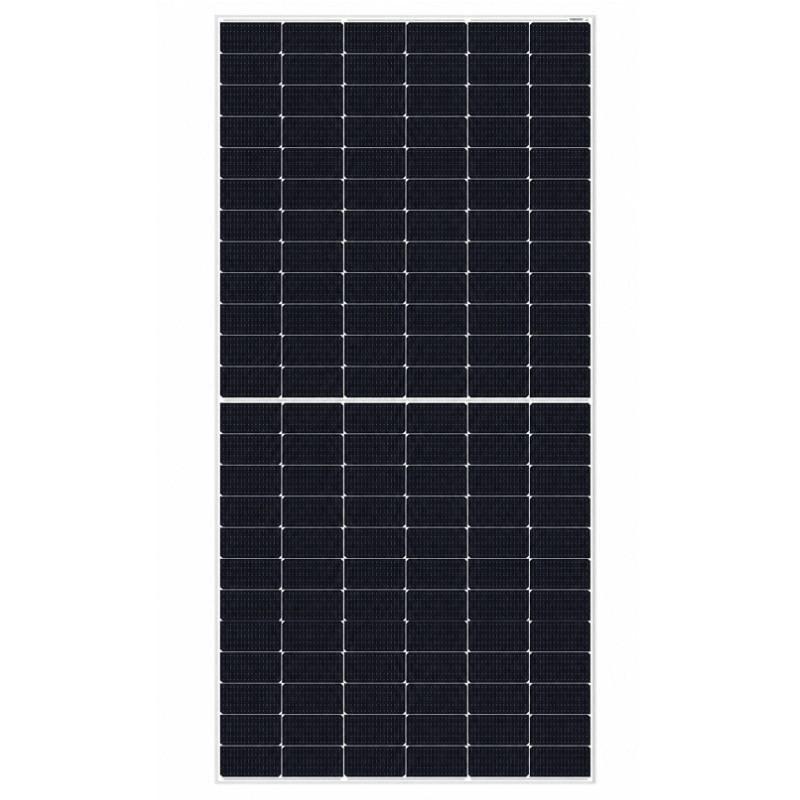

4 x EPEVER Sable Bifacial 435W Solar Panel

Technical specifications

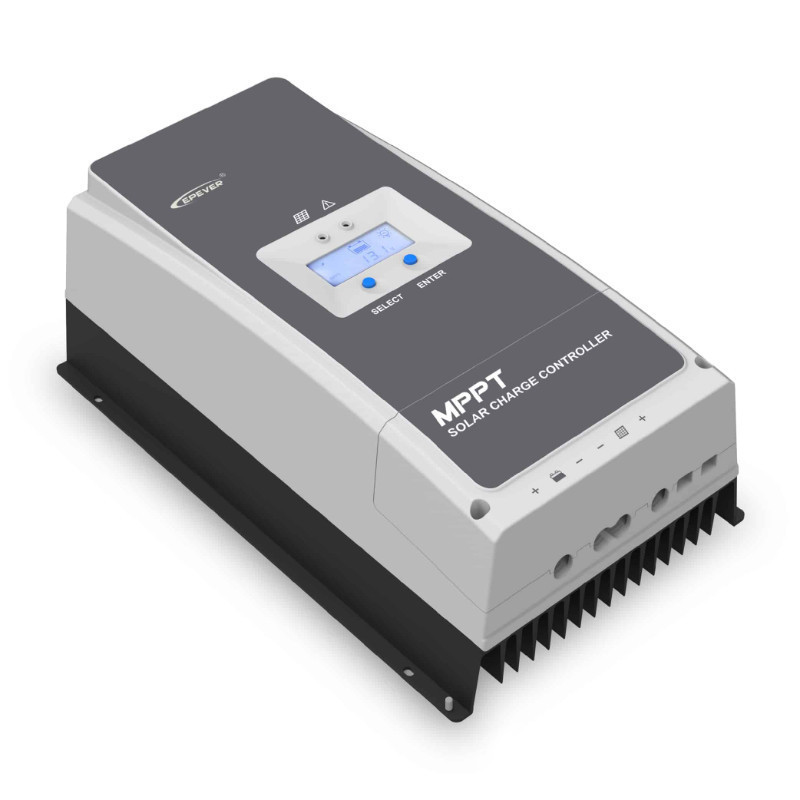

EPEVER MPPT Tracer 6420AN 60A Charge Controller

Technical Specifications:

• Model: Tracer 6420AN


• Nominal system voltage: 12/24/36/48VDC (automatic)


• Battery type:



  • Lead-acid (sealed/gel/flooded)


  • Lithium (LiFePO4/Li(NiCoMn)O2)


  • User






• Battery input voltage range: 8V-68V


• Rated charging current: 60A


• Rated charging power:



  • 750W (for 12V)


  • 1500W (for 24V)


  • 2250W (for 36V)


  • 3000W (for 48V)






• Maximum conversion efficiency: 98.10%


• MPPT tracking efficiency: ≥99.5%


• Maximum PV open circuit voltage:



  • 200V (at minimum temperature)


  • 180V (under standard conditions)






• MPPT voltage range: Battery voltage +2V to 144V


• Equalizing voltage:



  • Sealed: 14.6V


  • Flooded: 14.8V


  • User: 9-17V






• Increasing the voltage:



  • Gel: 14.2V


  • Sealed: 14.4V


  • Flooded: 14.6V


  • User: 9-17V






• Trickle charge voltage:



  • Gel/Sealed/Flooded: 13.8V


  • User: 9-17V






• Low Voltage Reconnect Voltage:



  • Gel/Sealed/Flooded: 12.6V


  • User: 9-17V






• Low voltage disconnect voltage:



  • Gel/Sealed/Flooded: 11.1V


  • User: 9-17V






• Self-consumption:



  • 98mA (for 12V)


  • 60mA (for 24V)


  • 50mA (for 36V)


  • 46mA (for 48V)






• Temperature compensation (for lead-acid batteries): -3mV/ /2V (default)


• Relative humidity: 5% to 95% (non-condensing)


• Protective barrier: IP20


• Communication interface: RS485 (5VDC/200mA, two RJ45 ports)


• Ground: Common negative


• Dimensions (L x W x H): 340mm x 236mm x 119mm


• Libra: 4.5 kg

Solar cable for connecting the installation 4mm² - 2x5m (10m)

MC4 serial connector

Each set comes with a high-quality solar cable With a cross-section of 4 mm² and a length of 10 meters, it is resistant to UV radiation and mechanical damage. Cables equipped with MC4 connectors enable quick and secure connection of the panels to the charge regulator. For maximum installation convenience, the cables are pre-terminated, minimizing the need for additional tools during assembly.
