455W solar panel with 30A MPPT charge controller

This 455W photovoltaic solar panel kit with a 30A MPPT charge controller and a 12V output is ideal for powering outdoor and home devices, such as smartphone, laptop, and tablet chargers. It can also operate LED lighting and larger appliances, such as large LED TVs and refrigerators. The reliable power supply and short charging time of the 130Ah battery (approx. 5 hours) make this kit ideal for both home use and outdoor adventures.

Ease of installation

The kit is designed for easy, do-it-yourself assembly. The kit includes all the necessary components, such as cables and connectors, which are already pre-assembled. Simply follow the included instructions and diagram for quick and hassle-free installation. Only basic tools, such as a screwdriver and a box wrench, are required.

Intelligent MPPT charge controller

The included MPPT controller utilizes advanced maximum power point tracking technology, ensuring optimal system performance even in changing lighting conditions. This allows the system to operate efficiently from sunrise to sunset, even in the shade, resulting in 25% better results compared to traditional PWM controllers. The system is ideal for stable and safe charging of batteries with capacities ranging from 130 Ah to 230 Ah.

Versatile use

The kit can function as a stationary solar power plant, powering not only small devices like phones and tablets, but also larger appliances like refrigerators, computers, and water pumps. When connected to a voltage converter, the kit can also power 230V devices, making it an excellent solution for both home and mobile use.
This 12V photovoltaic kit is ideal for both home and travel users, offering versatile power for a wide range of devices. Its intuitive assembly, supported by pre-assembled components, makes installation quick and efficient. Equipped with an intelligent MPPT controller, the system guarantees efficient use of solar energy in all lighting conditions, ensuring stable and safe battery charging.

The set includes:

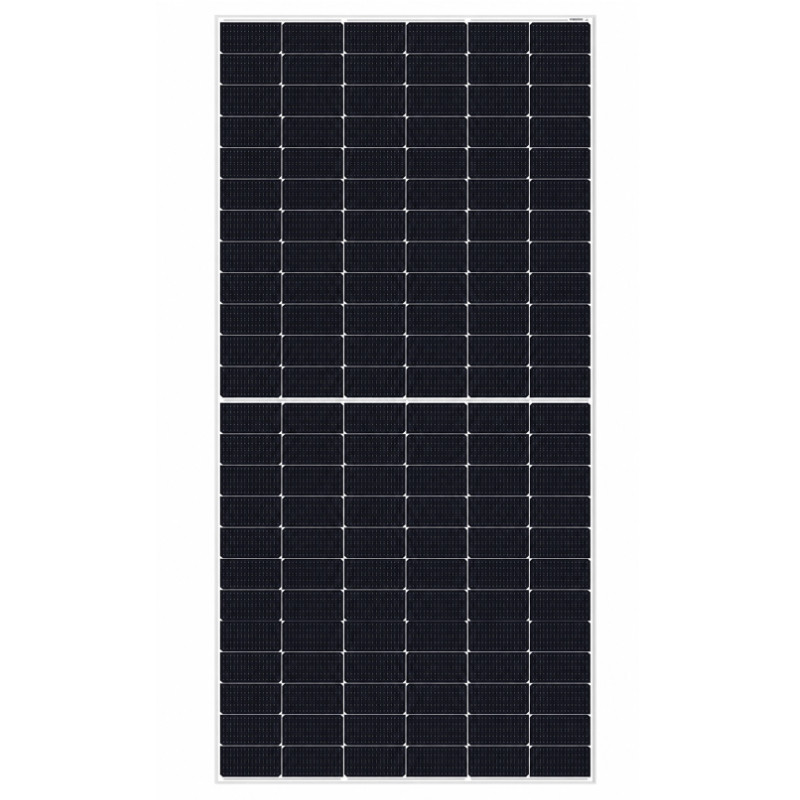

TCL 455W Solar Panel

Technical specifications

• Model: HSM-ND48-GR455


• Module type: N-type TOPCon Bifacial Double Glass


• External dimensions: 1762 x 1134 x 30 mm


• Libra: 24.5 kg


• Solar cells: N-type TOPCon


• Front/Rear Glass: heat-strengthened glass 2.0 mm + 2.0 mm


• Frame: anodized aluminum


• Junction box: IP68, 3 bypass diodes


• Maximum power (Pmax) [W] Front STC / BNPI: 455 / 501


• Open Circuit Voltage (Voc) [V] Front STC / BNPI: 35.76 / 35.86


• Short circuit current (Isc) [A] Front STC / BNPI: 16.13 / 17.71


• Voltage at maximum power (Vmp) [V] Front STC / BNPI: 30.32 / 30.20


• Current at maximum power (Imp) [A] Front STC / BNPI: 15.01 / 16.59


• Module efficiency: 22.8%


• Power tolerance: 0 / +3%


• Maximum system voltage: 1500 V DC


• Maximum series fuse rating: 30 A


• Operating temperature range: from -40°C to +85°C


• Temperature coefficient Pmax: -0.29%/°C


• Temperature coefficient Voc: -0.25%/°C


• Temperature coefficient Isc: +0.045%/°C


• Bifaciality Pmax / Isc: 80% ±5%


• Bifaciality Voc: 98% ±2%


• Mechanical load: snow: 5400 Pa / wind: 2400 Pa


• Bifacial Gain - Pmax Power at 5% / 10%: 478 W / 501 W


• Bifacial Gain - Voc at 5% / 10%: 35.76V / 35.76V


• Bifacial Gain - Isc at 5% / 10%: 16.94A / 17.74A


• Bifacial Gain - Vmp at 5% / 10%: 30.32V / 30.32V


• Bifacial Gain - Imp @ 5% / 10%: 15.76 A / 16.51 A


•
  Temperature coefficients:



  • Nominal operating temperature of the module: 43 ±2°C


  • Temperature coefficient Isc: +0.045%/°C


  • Temperature coefficient Voc: -0.25%/°C


  • Temperature coefficient Pmax: -0.29%/°C

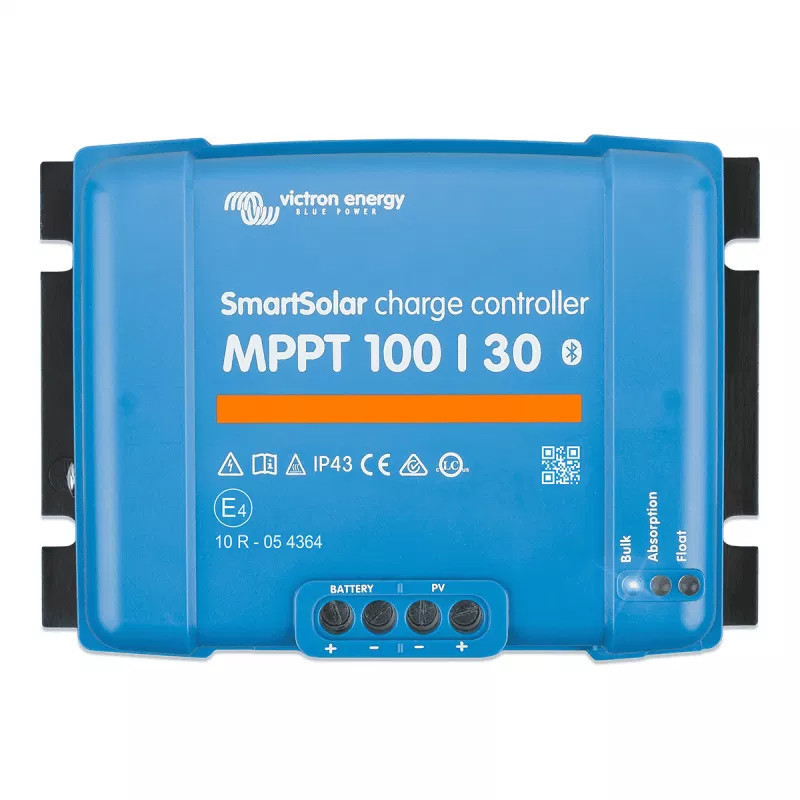

SmartSolar 100V/30A charge controller

Technical Specifications:

• Battery voltage: 12/24V (automatic selection)


• Nominal charging current: 30 A


• Nominal PV power:



  • 12V: 440W


  • 24V: 880 W






• Maximum PV Open Circuit Voltage: 100V


• Maximum PV short circuit current: 35 A


• Maximum performance: 98%


• Own consumption:



  • 12V: 30mA


  • 24V: 20mA






• Absorption charging voltage: 14.4V / 28.8V (regulated)


• Float charging voltage: 13.8V / 27.6V (regulated)


• Loading algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Security:



  • Reverse PV polarity


  • Output short circuit


  • Excessive temperature






• Operating temperature: from -30 to +60 °C (full rated power up to 40 °C)


• Humidity: 95%, non-condensing

Other

• Color: Blue (RAL 5012)


• Power terminals: 16 mm² / AWG6


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 1.3 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm

Security

• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Connectors and wiring

IBC Solar panel kits are assembled from the highest quality solar cables and MC4 connectors, ensuring a safe and efficient connection between the panel, controller, and battery. The cables are UV-resistant and double-insulated, ensuring durability and resistance to weather conditions. The set includes 5 meters of black and red cables, allowing for quick and easy system connection.
