455W solar kit for RENOGY 100Ah 1kW camper

The RENOGY 100Ah 435W solar kit for a camper is a complete power system designed for RVs, campers, trailers, boats, and small off-grid installations. This kit allows you to generate energy from a photovoltaic panel, store it in a LiFePO4 battery, and power 12V and 230V devices while parked without constant grid access.

The kit includes an EPEVER Sable Bifacial 435W solar panel, a Renogy Rover Li 40A MPPT charge controller, a Renogy Core Mini 12V 100Ah LiFePO battery, and a Renogy 1000W 12V pure sine wave power inverter with AC bypass. This makes the system suitable for both short weekend trips and longer stays away from the campsite.

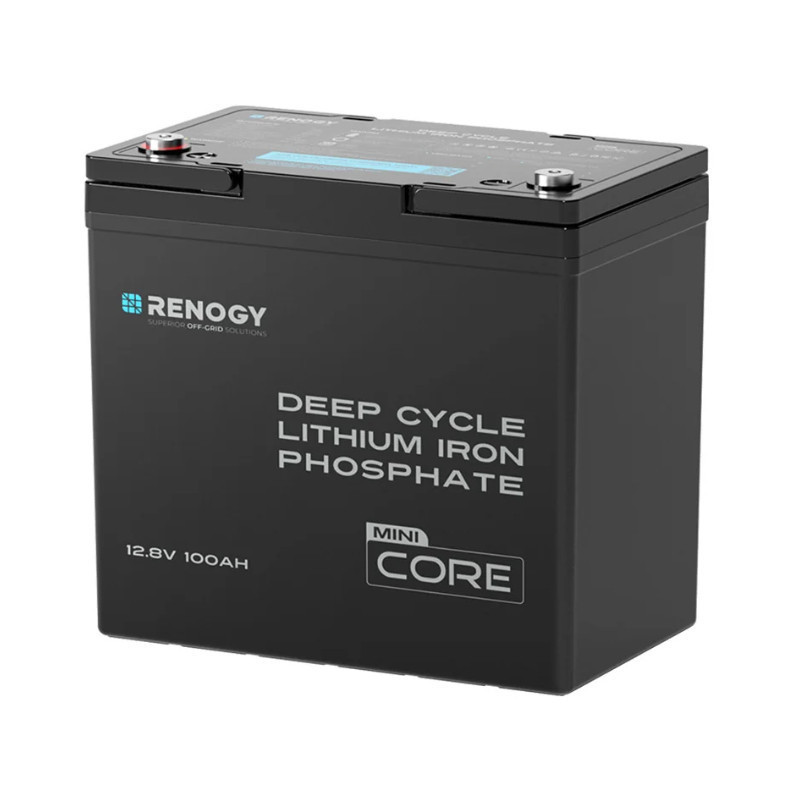

The 100 Ah LiFePO battery provides a stable power source for essential RV equipment. It can power lighting, chargers, a laptop, a water pump, on-board electronics, small household appliances, and other travel devices. Lithium-iron-phosphate technology ensures long life, high efficiency, and significantly lower weight compared to traditional AGM batteries.

• Photovoltaic panel power: 435 W


• Battery capacity: 100 Ah


• Battery technology: LiFePO


• Charge Controller: Renogy Rover Li 40A MPPT


• Voltage Converter: Renogy 1000W 12V


• Output voltage type: pure sine wave


• Product code: 10542


• Category: camper kits

The EPEVER Sable Bifacial 435W solar panel utilizes bifacial technology, which allows it to capture energy from both the front and back sides of the module. This increases energy yield in favorable installation conditions, especially where light reflected from bright surfaces can impact the back of the panel.

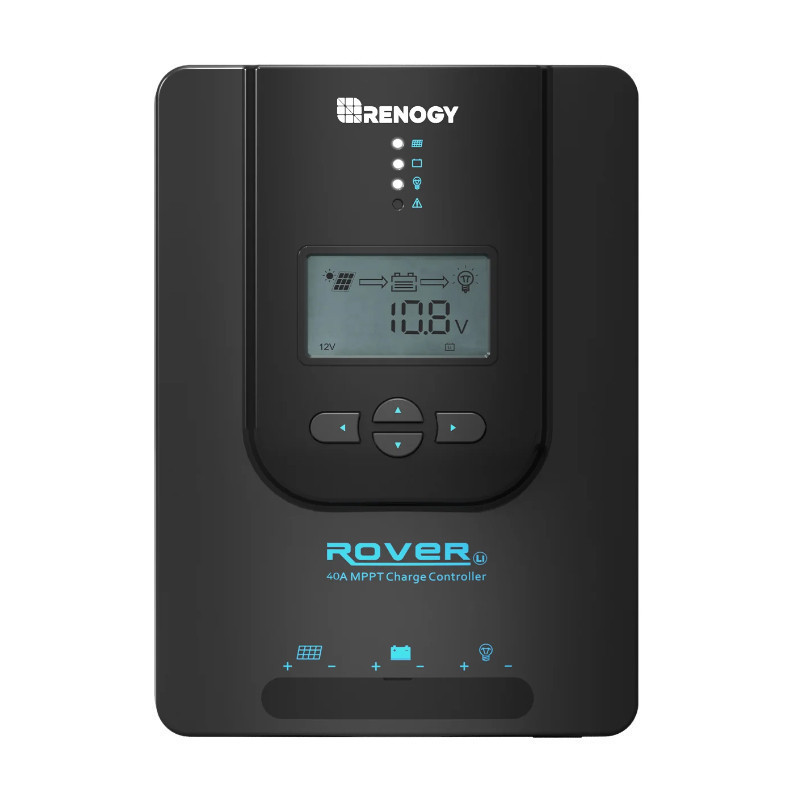

The Renogy Rover Li 40A MPPT controller is responsible for efficient battery charging from the solar panel. MPPT technology continuously finds the panel's optimal operating point, allowing the system to better utilize available sunlight and recharge the battery faster during the day.

The Renogy 1000W 12V inverter allows you to use 230V devices. Its pure sine wave output safely powers sensitive electronics like laptops, chargers, audio equipment, routers, small appliances, and other network devices. Peak power up to 2000W helps with short-term higher power consumption when starting certain appliances.

• EPEVER Sable Bifacial 435 W solar panel: 1 pc.


• Renogy Rover Li 40 Amp MPPT Charge Controller: 1 pc.


• Renogy 1000W 12V voltage converter: 1 pc.


• Renogy Core Mini 12V 100Ah LiFePO battery: 1 pc.


• Busbar Solvian 4 Way 48V 150A: 2 pcs.


• Solar cable for installation connection 4 mm² - 5 m: 1 pc.

The kit was designed for easy installation in a camper. It contains the basic components needed to build an independent power system, including components for wiring and power distribution. It's a good solution for those who want to increase their vehicle's energy independence without having to assemble each component separately.

The inverter's AC bypass feature allows you to conveniently use an external power source when one is available. When connected to the mains or camper power, the system can switch power to the external source, reducing battery drain.

• Independent power supply for the camper when stationary


• Charging the battery from a photovoltaic panel


• Possibility to power 230 V devices


• High efficiency thanks to the MPPT controller


• Long life LiFePO battery


• Low losses during energy conversion


• Overload and short circuit protection


• Possibility of using an external AC power source

The RENOGY 435W kit with a 100Ah battery is a practical choice for those who want to power their camper with solar energy and reduce the need for an external grid connection. It's perfect for everyday use of basic appliances, charging electronics, mobile work, and convenient use of 230V devices while traveling.

By combining a 435W panel, a 40A MPPT controller, a 100Ah LiFePO battery, and a 1000W inverter, the kit creates a complete energy base for a camper. It's a solution for users who want greater independence, convenience, and stable power when traveling beyond the confines of a standard camping infrastructure.
