455W solar kit for a camper - charging two batteries and powering from an alternator

TCL 455W Solar Panel

• Model: HSM-ND48-GR455


• Module type: N-type TOPCon Bifacial Double Glass


• External dimensions: 1762 x 1134 x 30 mm


• Libra: 24.5 kg


• Solar cells: N-type TOPCon


• Front/Rear Glass: heat-strengthened glass 2.0 mm + 2.0 mm


• Frame: anodized aluminum


• Junction box: IP68, 3 bypass diodes


• Maximum power (Pmax) [W] Front STC / BNPI: 455 / 501


• Open Circuit Voltage (Voc) [V] Front STC / BNPI: 35.76 / 35.86


• Short circuit current (Isc) [A] Front STC / BNPI: 16.13 / 17.71


• Voltage at maximum power (Vmp) [V] Front STC / BNPI: 30.32 / 30.20


• Current at maximum power (Imp) [A] Front STC / BNPI: 15.01 / 16.59


• Module efficiency: 22.8%


• Power tolerance: 0 / +3%


• Maximum system voltage: 1500 V DC


• Maximum series fuse rating: 30 A


• Operating temperature range: from -40°C to +85°C


• Temperature coefficient Pmax: -0.29%/°C


• Temperature coefficient Voc: -0.25%/°C


• Temperature coefficient Isc: +0.045%/°C


• Bifaciality Pmax / Isc: 80% ±5%


• Bifaciality Voc: 98% ±2%


• Mechanical load: snow: 5400 Pa / wind: 2400 Pa


• Bifacial Gain - Pmax Power at 5% / 10%: 478 W / 501 W


• Bifacial Gain - Voc at 5% / 10%: 35.76V / 35.76V


• Bifacial Gain - Isc at 5% / 10%: 16.94A / 17.74A


• Bifacial Gain - Vmp at 5% / 10%: 30.32V / 30.32V


• Bifacial Gain - Imp @ 5% / 10%: 15.76 A / 16.51 A


•
  Temperature coefficients:



  • Nominal operating temperature of the module: 43 ±2°C


  • Temperature coefficient Isc: +0.045%/°C


  • Temperature coefficient Voc: -0.25%/°C


  • Temperature coefficient Pmax: -0.29%/°C

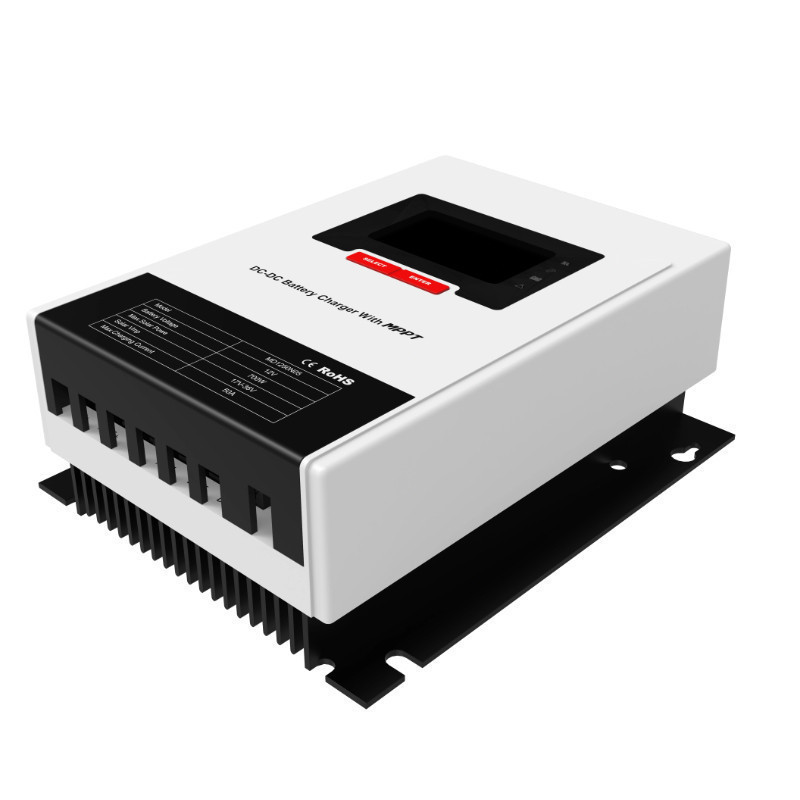

SRNE MPPT 30A DC-DC Charger/Regulator

The SRNE MPPT 30A controller is a reliable device that provides efficient energy management in renewable energy systems, contributing to greater battery performance and longevity. It's an excellent solution for those looking for an efficient and safe way to power off-grid devices.
