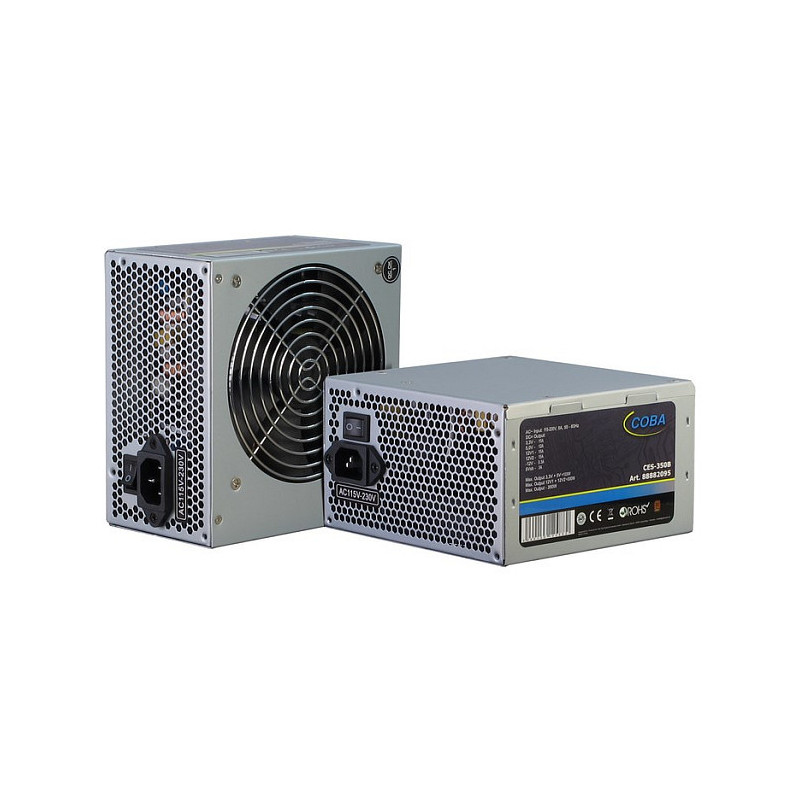

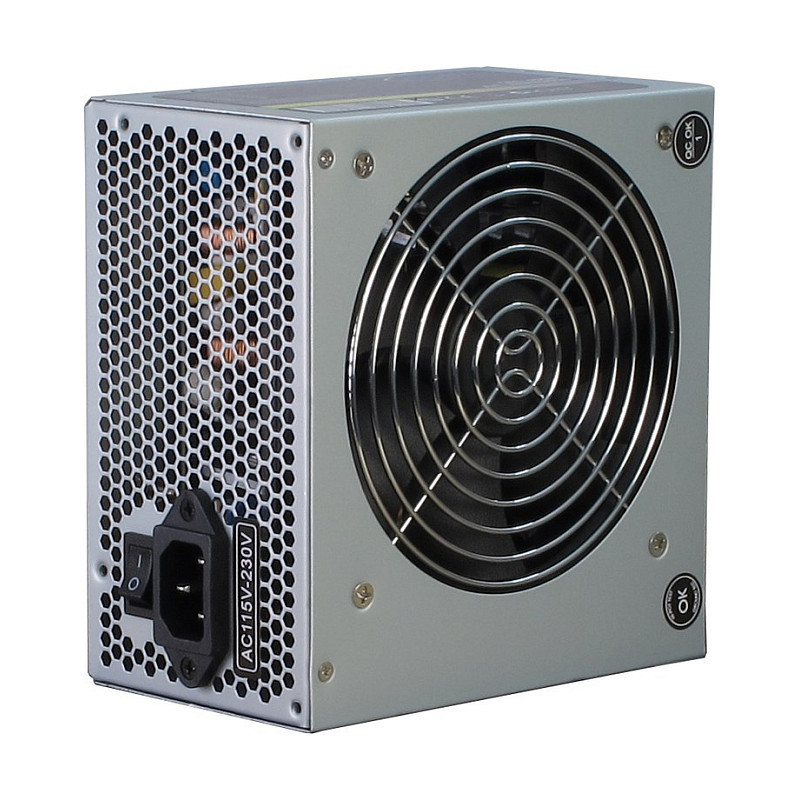

Inter-Tech Coba CES-350B power supply unit

Inter-Tech Coba CES-350B. Total power: 350 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS

The Coba CES-350B 80+ is specifically designed for the demands of assemblers. As a mere bulk product it saves the cost for the retail packages which naturally has a positive effect on the final price.

For the same reason Inter-Tech choose a plain design to place the main priorities on the technical aspects. Whether it is the super silent 120mm fan, the big numbers of connectors (P4+4, PCI-Express etc.) or the two separated 12V-lines, Coba CES-350B 80+ will satisfied all demands.

To prove its high quality standards the power supply has fulfilled all requirements for the 80PLUS® certification. That means that a high efficiency of the power supply is guaranteed and this is not only good for the environment but also helps to safe your money.

Power

Total power: 350 W
AC input voltage: 115 - 230 V
AC input frequency: 50 - 60 Hz
Input current: 8 A
Maximum input current (@110V): +3.3V,+5Vsb,+12V1,-12V,+12V2,+5V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 103 W
Combined power (+5V): 103 W
Max output current (+3.3V): 15 A
Max output current (+12V1): 15 A
Max output current (+12V2): 15 A
Max output current (+5V): 12 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over voltage, Over current, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Noise level: 25 dB

Design

Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Side
Feature: On/off switch

Certificates

Compliance certificates: RoHS

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Logistics data

Harmonized System (HS) code: 84733020
