300W boat solar kit with MPPT controller. 110Ah battery. 230V/300W voltage converter.

This 300W solar boat kit with MPPT controller features a 110Ah battery and a 230V/300W voltage converter, designed for motorboats, yachts, and houseboats, offering a reliable power source in the most demanding conditions. The kit includes two 150W Epever solar panels, a 110Ah AGM battery, an advanced MPPT controller, and a 300W inverter, providing stable power to all onboard devices. Complete wiring and MC4 connectors ensure easy installation and optimal system performance.

The set includes:

2 x Solar Panel EPEVER M12-60-150 150W

Solar panel EPEVER M12-60-150 The 150W solar panel is a technologically advanced device that ensures efficient and reliable solar energy production. Thanks to its high cell efficiency of 22.6% and its robust construction with tempered glass and aluminum frame, the panel is an excellent choice for a variety of applications, both stationary and mobile.
Its compact dimensions and low weight make it easy to install, making it ideal for installations on roofs, campers, boats, and off-grid systems. Equipped with an IP65/IP67-rated junction box, the panel is resistant to harsh weather conditions and moisture, ensuring long-term reliability.
Thanks to compatibility with popular MC4 connectors and high electrical parameters, this panel is ideal for systems with voltages up to 700V, offering stable operation across a wide temperature range. It's an excellent choice for users looking for an efficient and durable source of renewable energy.

Technical specifications:

1. Model: EPEVER M12-60-150


2. Nominal output power (Pmax): 150 W


3. Operating temperature: -45°C ~ +80°C


4. Junction box: IP65/IP67 (water and dust resistance)


5. Cell efficiency: 22.6%


6. Open circuit voltage (Voc): 40.8 V


7. Voltage at maximum power (Vmp): 33.4 V


8. Short circuit current (Isc): 4.77 A


9. Current at maximum power (Imp): 4.50 A


10. Maximum system voltage: 700V


11. Maximum series fuse: 10 A

Connectors and cables:

• Connector: Standard unspecified but compatible with MC4.


• Cable: Not supplied as standard, non-standard application possible.

Smart Solar regulator 75V / 15A / 12V/24V

Technical Specifications:

• Model: Smart Solar 75 | 15


• Battery voltage: 12V or 24V (auto-detect)


• Nominal charging current: 15 A


• Nominal PV power:



  • 12V: 220W


  • 24V: 440W


  • 48V: on






• Maximum PV short circuit current: 15 A


• Automatic load disconnection: Yes


• Maximum PV Open Circuit Voltage: 75V


• Peak performance: 98%


• Standalone energy consumption (under load):



  • 12V: 19 mA


  • 24V: 16 mA






• Independent consumption (no load):



  • 12V: 10mA


  • 24V: 8mA






• Absorption charging voltage: 14.4V / 28.8V (regulated)


• Float charging voltage: 13.8V / 27.6V (regulated)


• Loading algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Maximum continuous load current: 15 A


• Reconnecting the low voltage load:



  • 11.1V/22.2V or 11.8V/23.6V or Battery Life Algorithm






• Reconnecting the load after charging:



  • 13.1V/26.2V or 14V/28V or Battery Life Algorithm






• Security: Output short circuit / over temperature


• Operating temperature: from -30°C to +60°C (full rated power up to 40°C)


• Humidity: 95%, non-condensing


• Data communication port: VE.Direct


• Color: Blue (RAL 5012)


• Power terminals: 6 mm² / AWG10


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 0.5 kg


• Dimensions (H x W x D): 100 x 113 x 40 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

Regulator SmartSolar MPPT 75/15 is the perfect solution for anyone looking for an efficient, reliable and easy-to-use solar energy management device.

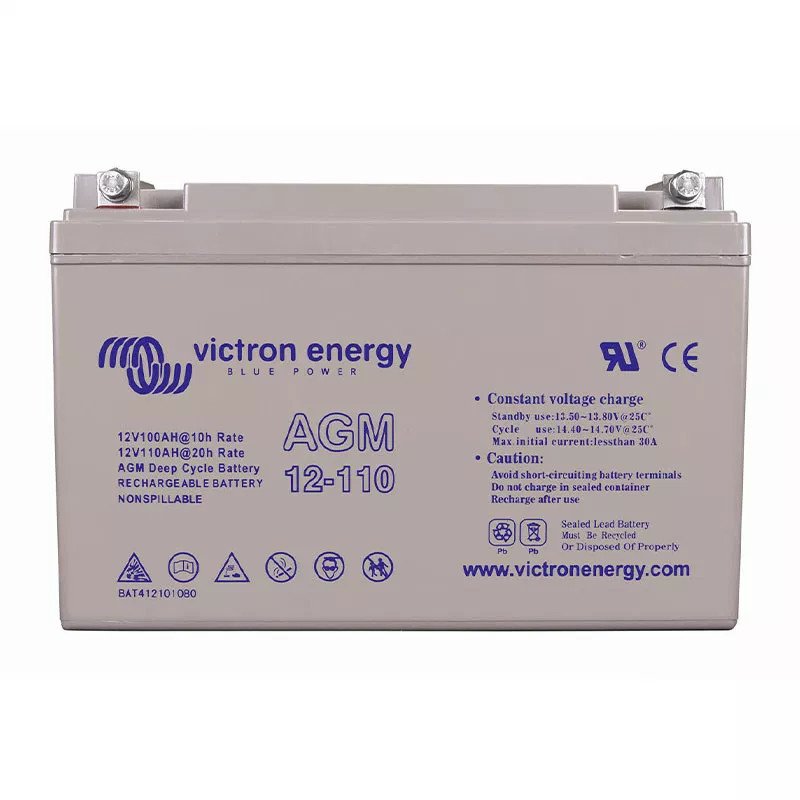

Victron Energy 110Ah 12V AGM battery

Technical Specifications:

• Parameters / Model: AGM 12-110 battery


• Operating voltage [V]: 12V


• Capacity [Ah]: 110 Ah


• Charging voltage (cyclic operation) [V]: 14.2 - 14.6 V


• Charging voltage (standby operation) [V]: 13.5 - 13.8 V


• Storage voltage [V]: 13.2 - 13.5 V

• Dimensions WxHxD [mm]: 330 x 220 x 171 mm


• Weight [kg]: 32 kg

• 1500 cycles at 30% discharge


• 600 cycles at 50% discharge


• 400 cycles at 80% discharge


• Design life: 12 years (FLOAT mode)

Battery Victron Energy AGM 12V/110Ah It's a reliable and durable solution for a wide range of applications, from photovoltaic systems to emergency power supplies. Its high resistance to cyclic discharge and advanced AGM technology guarantee long life and minimal self-discharge. It's the ideal choice for those looking for an efficient, safe, and durable battery that can withstand even the toughest demands.

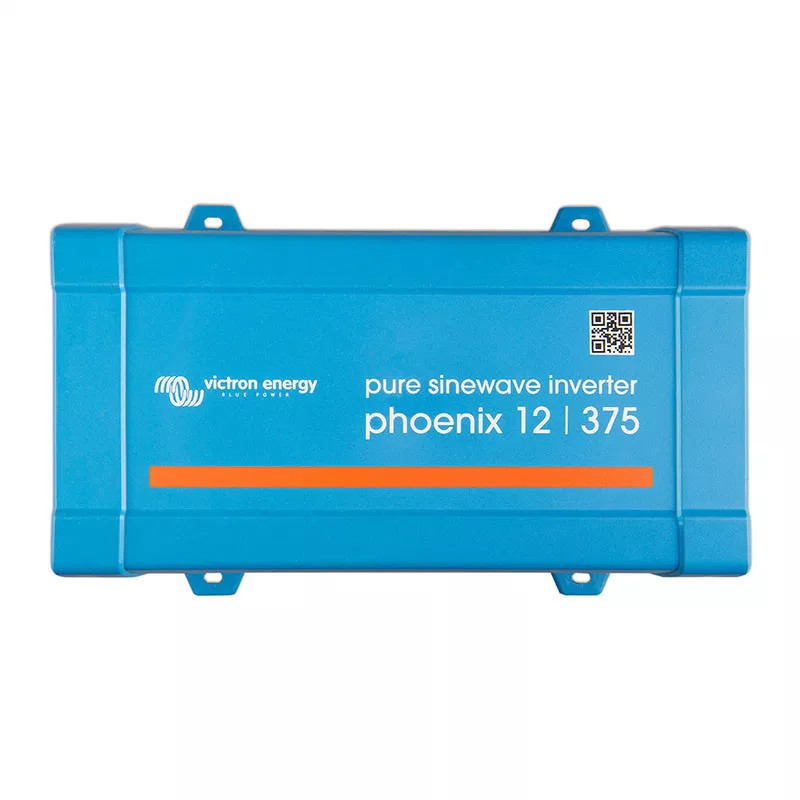

Victron Energy Phoenix 12V/375VA voltage converter

Technical specifications:

• Continuous power at 25°C: 375 VA


• Continuous power at 25°C / 40°C: 300W / 260W


• Peak power: 700 W


• Output AC voltage/frequency (adjustable): 230VAC or 120VAC ± 3%, 50Hz or 60Hz ± 0.1%


• Input voltage range: 9.2 - 17 V


• Low DC voltage shutdown (adjustable): 9.3V


• Restart and Low DC Alarm (adjustable): 10.9V


• Battery charge detector (adjustable): 14.0V


• Maximum performance: 89%


• Zero load power: 5.6 W


• Default power at zero load in ECO mode: 0.9 W


• Power setting in ECO stop and start mode: Adjustable


• Security: a - f


• Operating temperature range: -40 to +65°C (fan-assisted cooling)


• Power reduction by 1.25% for every °C above 40°C


• Humidity (non-condensing): Max 95%


• Material and color: Steel housing and plastic cover (blue RAL 5012)


• Battery connection: Screw terminals


• Maximum wire cross-section: 10mm² / AWG8


• Standard AC outlets:



  • 230V: Schuko (CEE 7/4), IEC-320 (male plug included)


  • UK (BS 1363), AU/NZ (AS/NZS 3112)


  • 120V: Nema 5-15R, GFCI






• Protection category: IP 21


• Libra: 3.0 kg


• Dimensions: 86 x 165 x 260 mm


• Remote on/off: Yes


• Automatic transfer switch: Filax


• Security: EN-IEC 60335-1 / EN-IEC 62109-1

Converter Phoenix 12/375 VE.Direct Schuko This unique device is perfect for anyone who needs a portable, reliable source of energy. Thanks to its advanced technology and energy-saving features, it's perfect for any situation.

MC4 cabling and connectors

The kits include a cable (2 x 5 meters, black and red) for connecting the solar panel to the controller. An MC4 connector is crimped onto the cable, allowing for efficient connection of the panel to the charge controller.

Top performance

The system is equipped with two Epever monocrystalline solar panels with a total power of 300W, which offer excellent energy conversion, even in low sunlight. They are ideal for marine environments where access to energy sources is limited and weather conditions can be variable.

Intelligent MPPT charge controller

The MPPT controller optimizes the battery charging process by dynamically adjusting voltage and current, significantly increasing system efficiency, especially in changing lighting conditions. This technology allows charging even in the shade, making the system extremely efficient.
The set includes a 110Ah AGM battery, characterized by long life and resistance to deep discharge. This is the ideal solution for powering boat devices, guaranteeing reliable operation at all times. Thanks to advanced technology, the battery is resistant to marine conditions, ensuring durability even in harsh environments.

300W voltage converter

This 300W inverter converts 12V DC to standard 230V, allowing you to power common electrical devices like phone chargers, tablets, LED lighting, and even small camping TVs. The device is designed to operate efficiently and reliably, delivering stable power wherever you need it.
This kit is the perfect solution for those looking for a self-contained, easy-to-install power system that will perform well in all water conditions.
