2x455W solar panel with 30A MPPT regulator

This 2x455W solar panel kit with a 30A MPPT controller, based on 435W solar panels, offers reliable 12V DC power. This allows it to power a variety of devices, such as smartphone chargers, tablets, laptops, and even LED lighting. It's an ideal solution for backpackers and those seeking energy independence, enabling hassle-free operation of electronics outdoors, at campsites, or in home installations.

Easy assembly

Designed for DIY installation, the kit is complete and includes all necessary components. A wiring diagram and detailed instructions are included, making the entire installation process quick and easy. The wires are pre-wired, minimizing the need for additional tools, and a screwdriver and a box wrench are all you need for complete installation.

Advanced MPPT charge controller

The included MPPT controller ensures optimal system performance by monitoring the current and voltage generated by the solar panels. This technology allows the system to achieve maximum efficiency even under changing lighting conditions, such as sunrise, sunset, and shade. It achieves up to 25% better results than standard PWM controllers, resulting in longer battery life and greater energy savings.

Power supply for a stationary solar power plant

The kit serves as a stationary power station, perfect for both home and travel. It can successfully power not only small devices like phones and laptops, but also larger appliances like refrigerators, televisions, computers, and water pumps. When connected to a voltage converter, it can power 230V devices, making this kit ideal for those seeking versatile energy systems.
This photovoltaic kit with 2x 455W panels provides versatile and reliable 12V DC power, ideal for both travel and home use. Easy installation, an advanced MPPT charge controller, and the ability to power both small devices and larger appliances make this kit an excellent solution for those seeking an efficient energy system.

The set includes:

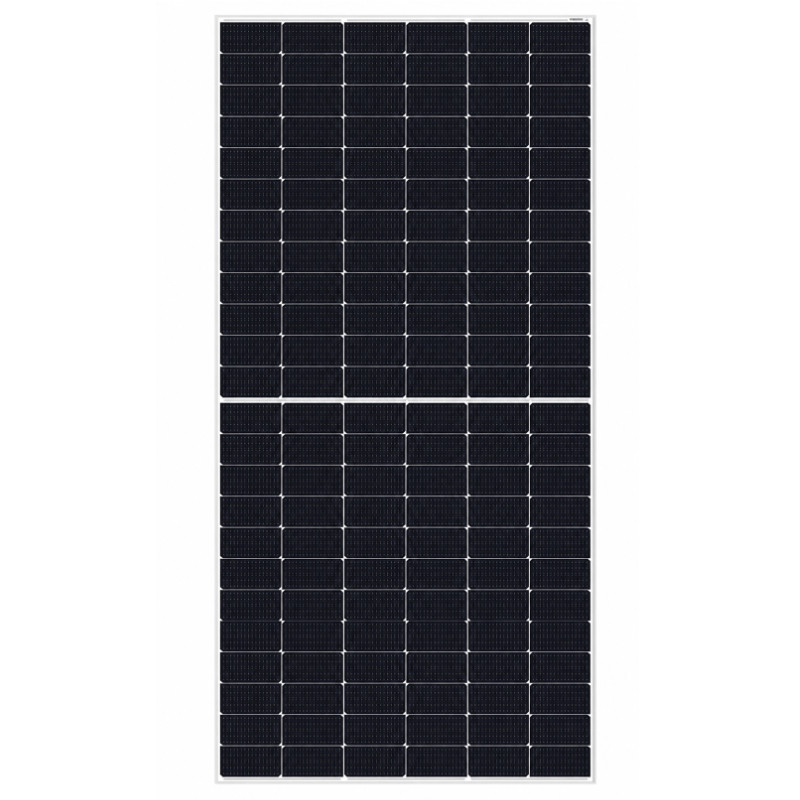

2 x TCL 455W Solar Panel

Technical specifications

• Model: HSM-ND48-GR455


• Module type: N-type TOPCon Bifacial Double Glass


• External dimensions: 1762 x 1134 x 30 mm


• Libra: 24.5 kg


• Solar cells: N-type TOPCon


• Front/Rear Glass: heat-strengthened glass 2.0 mm + 2.0 mm


• Frame: anodized aluminum


• Junction box: IP68, 3 bypass diodes


• Maximum power (Pmax) [W] Front STC / BNPI: 455 / 501


• Open Circuit Voltage (Voc) [V] Front STC / BNPI: 35.76 / 35.86


• Short circuit current (Isc) [A] Front STC / BNPI: 16.13 / 17.71


• Voltage at maximum power (Vmp) [V] Front STC / BNPI: 30.32 / 30.20


• Current at maximum power (Imp) [A] Front STC / BNPI: 15.01 / 16.59


• Module efficiency: 22.8%


• Power tolerance: 0 / +3%


• Maximum system voltage: 1500 V DC


• Maximum series fuse rating: 30 A


• Operating temperature range: from -40°C to +85°C


• Temperature coefficient Pmax: -0.29%/°C


• Temperature coefficient Voc: -0.25%/°C


• Temperature coefficient Isc: +0.045%/°C


• Bifaciality Pmax / Isc: 80% ±5%


• Bifaciality Voc: 98% ±2%


• Mechanical load: snow: 5400 Pa / wind: 2400 Pa


• Bifacial Gain - Pmax Power at 5% / 10%: 478 W / 501 W


• Bifacial Gain - Voc at 5% / 10%: 35.76V / 35.76V


• Bifacial Gain - Isc at 5% / 10%: 16.94A / 17.74A


• Bifacial Gain - Vmp at 5% / 10%: 30.32V / 30.32V


• Bifacial Gain - Imp @ 5% / 10%: 15.76 A / 16.51 A


•
  Temperature coefficients:



  • Nominal operating temperature of the module: 43 ±2°C


  • Temperature coefficient Isc: +0.045%/°C


  • Temperature coefficient Voc: -0.25%/°C


  • Temperature coefficient Pmax: -0.29%/°C





1x Victron Energy SmartSolar MPPT 100/30 Charge Controller

Technical Specifications:

• Model: MPPT Smart Solar 100 | 30


• Battery voltage: 12/24 V (auto)


• Nominal charging current: 30 A


• Nominal PV power for 12V: 440 W


• Nominal PV power for 24V: 880 W


• Maximum PV open circuit voltage: 100V


• Maximum PV short circuit current: 35 A


• Maximum performance: 98%


• Own consumption: 12V: 30mA / 24V: 20mA


• Absorption charging voltage: default setting 14.4V/28.8V, adjustable


• Float charging voltage: default setting 13.8V/27.6V, adjustable


• Charging algorithm: multi-stage adaptive


• Temperature compensation: -16 mV/°C or -32 mV/°C


•
  Security:



  • Reverse PV polarity


  • Output short circuit


  • Excessive temperature






• Operating temperature: from -30°C to +60°C, full rated power up to 40°C


• Humidity: 95%, non-condensing


• Color: blue (RAL 5012)


• Power terminals: 16 mm² / AWG6


• Protection category: IP43 - electronic components, IP22 - connection area


• Libra: 1.3 kg


• Dimensions (H x W x D): 130 × 186 × 70 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2
