2x180W solar panel with 20A LCD charge controller

The Epever 2x180W solar panel kit with a 20A LCD charge controller provides 12V DC power, making it ideal for a wide range of applications. It can effortlessly power outdoor devices like smartphone, laptop, and tablet chargers. It's also suitable for powering LED lighting, large LED TVs, and larger appliances like refrigerators. Its versatility makes it a reliable choice for both home and field use.

Easy assembly and intuitive installation

Designed for DIY installation, the kit is complete and includes all necessary components, including cables and connectors. The included instructions and installation diagram make installation quick and hassle-free. The cables are pre-terminated, minimizing the need for additional tools. A screwdriver and a box wrench are all you need to install the kit yourself.

Efficient operation of a stationary solar power plant

This solar panel kit with a total output of 2x 180W is perfect as a stationary solar power plant. It can successfully power not only small devices like phone chargers but also larger home appliances like large refrigerators, computers, and water pumps. When connected to a voltage converter, the kit can also power 230V devices, making it an extremely versatile solar energy solution.

This solar kit is a versatile and reliable solution, ideal for powering both small and large devices, such as LED TVs, refrigerators, and smartphone and laptop chargers. Thanks to its easy installation and intuitive PWM charge controller, the kit ensures efficient and safe solar energy management.

The set includes:

•


  2x Epever 180W Monocrystalline Solar Panel




Technical specifications:

• Model: EPEVER M12-66-180


• Nominal output power (Pmax): 180 W


• Operating temperature: -45°C ~ +80°C


• Junction box: IP65/IP67 (water and dust resistant)


• Cell efficiency: 22.6% (very high efficiency)


• Open circuit voltage (Voc): 48.8 V


• Voltage at maximum power (Vmp): 39.9 V


• Short circuit current (Isc): 4.78 A


• Current at maximum power (Imp): 4.51 A


• Maximum system voltage: 700V


• Maximum series fuse: 10 A

Connectors and cables:

• Connector: Standard not specified, compatible with MC4.


• Cable: Not included, non-standard use possible.

Temperature coefficients:

• Temperature coefficient Isc: +0.06% / °C


• Temperature coefficient Voc: -0.32% / °C


• Temperature coefficient Pmp: -0.45% / °C

Standard Test Conditions (STC):

• Radiation intensity: 1000 W/m²


• Cell temperature: 25°C


• AM spectrum: 1.5

Material and dimensions:

1. Glass: 3.2 mm tempered glass (resistant to mechanical damage and weather conditions).


2. Dimensions: 1225 x 670 x 28 mm


3. Frame thickness: 25 mm


4. Libra: 9.9 kg

Advantages:

• High performance: With a cell efficiency of 22.6%, it is ideal for systems with limited space.


• Resilience: IP65/IP67 protection classes ensure long life in harsh weather conditions.


• Compact dimensions: Light and relatively small panel with high power.


• Compatibility: Can be connected with popular MC4 connectors.

is an excellent choice for users looking for a reliable, high-performance panel that will meet both current and future energy needs.

•


  PWM charge controller 20A - 12V/24V LCD




Technical specifications:

• Parameters / Model: PWM Light LCD controller 12/24V - 20A


• Battery voltage: With automatic system voltage detection


• Nominal charging current: 20 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: less than 10 mA


• Load Exit: Manual control + low voltage disconnect + timer


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature


  • Overload protection



    • Shutdown after 60 seconds at 130% load


    • Shutdown after 5 seconds at 160% load






  • Short circuit: immediate shutdown






• Ground: Common positive


• Operating temperature range: -35 to +60°C (full load)


• Humidity: Max 95% (non-condensing)

Batteries

• Absorption charging voltage: Factory setting: 14.4V / 28.8V


• Float charging voltage: Factory setting: 13.7V / 27.4V


• Low load voltage disconnect: Factory setting: 11.2V / 22.4V


• Reconnecting the low voltage load: Factory setting: 12.6V / 25.2V

USB

• Tension: 5V


• Current: 2A (including 2 outputs)

Other

• Protection class: IP20


• Clamp size: 6 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 96 x 169 x 36 mm


• Security: EN60335-1, IEC 62109-1

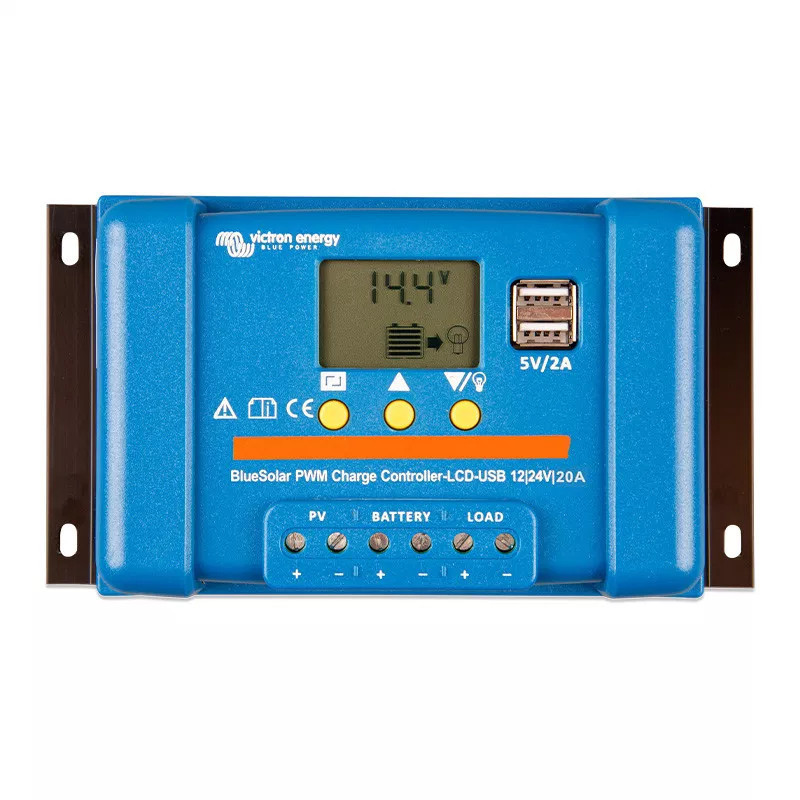

Charge controller BlueSolar PWM-LCDUSB 12/24V-20A is a versatile device for managing energy in photovoltaic systems, offering reliability and safety. Thanks to technology PWM It efficiently charges batteries while protecting them from overcharging and overheating. With a built-in LCD display and 5V 2A USB ports, it's convenient to use and easy to monitor. Its compact design and automatic voltage detection make it an ideal choice for a variety of solar applications.

•


  Solar cable for connecting the installation 4mm² - 2x5m





•


  MC4 serial connector




Thanks to the tightened MC4 connectors The installation process is quick and simple. LGY cables with a cross-section of 2.5 mm² are ideal for smaller panels (up to 50W), while kits with larger panels feature UV-resistant, double-insulated cables for a safe and durable installation. Each kit includes 5 meters of black and red cables, and the option to extend the cables allows you to customize the installation to your individual needs.
