2610Wp Hybrid Solar Power Plant with 880Ah batteries and 4000W inverter

is designed for those requiring high-power power in energy-independent systems. Thanks to four 220Ah gel batteries and a 5000W inverter, the kit provides power for devices with high energy demands, such as refrigerators, water pumps, as well as electronic equipment and lighting.

Powering a wide range of devices

The kit safely powers devices such as TVs, laptops, tablets, phones, and lighting LED ), as well as devices with higher power consumption, including large water pumps, compressors, and household appliances that require up to 5000W . Thanks to its powerful output, the system is also suitable for powering devices in locations far from the traditional electrical grid.
The system is equipped with a modern MPPT charge controller that continuously monitors solar radiation conditions and optimizes the efficiency of the photovoltaic panels. Thanks to this technology, the system ensures efficient battery charging, even in less favorable conditions, such as early morning or late evening, achieving up to 25% higher efficiency than traditional controllers.

Easy Installation and Self-Assembly

The kit is designed for self-assembly, making it an ideal solution for those who value independence. The set includes detailed assembly instructions, as well as the necessary cables and connectors MC4, enabling quick and secure connection of all system components. Assembly requires only a few basic tools, making installation easy and accessible even for novice users.

Emergency Power System

An integrated energy storage system ensures power supply in the event of a grid outage. The 220Ah batteries, charged by both the solar panels and the generator or grid, store energy that is then used to power devices in the event of a power outage. This ensures uninterrupted power supply, which is particularly important in challenging conditions.
The kit includes solar panels made using half-wave cell technology. These monocrystalline panels are characterized by exceptional efficiency and longevity, while lower internal resistance and reduced power losses make the system more efficient than traditional photovoltaic panels.

Ecological Power and Savings

This kit is the perfect solution for those looking for an eco-friendly and cost-effective way to power their electrical devices. Thanks to its solar power, users can reduce their electricity bills and carbon footprint while enjoying energy independence.
Comprehensive Power Kit
The kit includes all the necessary elements to create an efficient solar power plant:

The set includes:

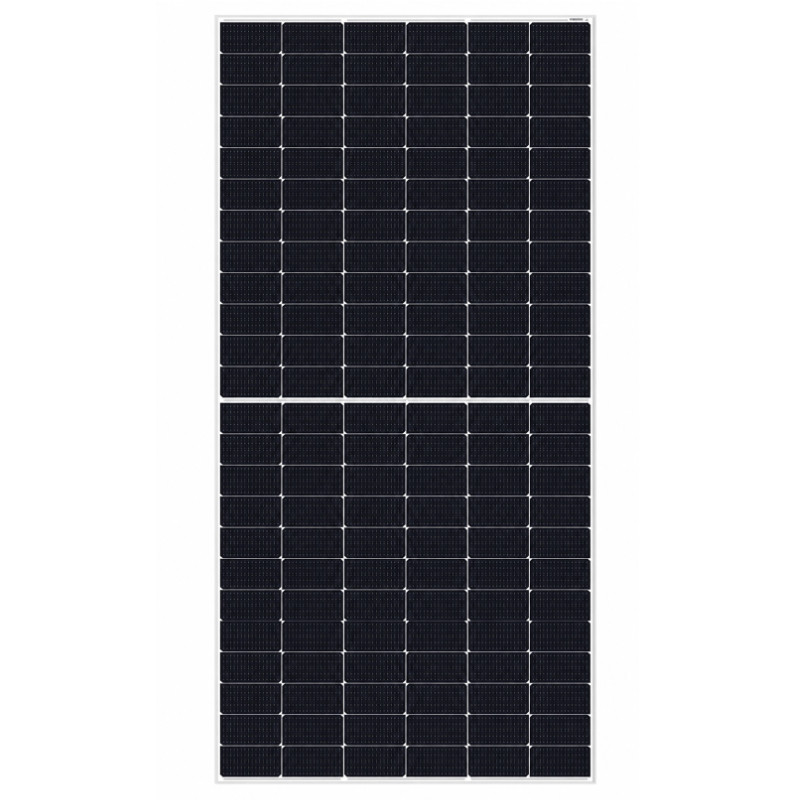

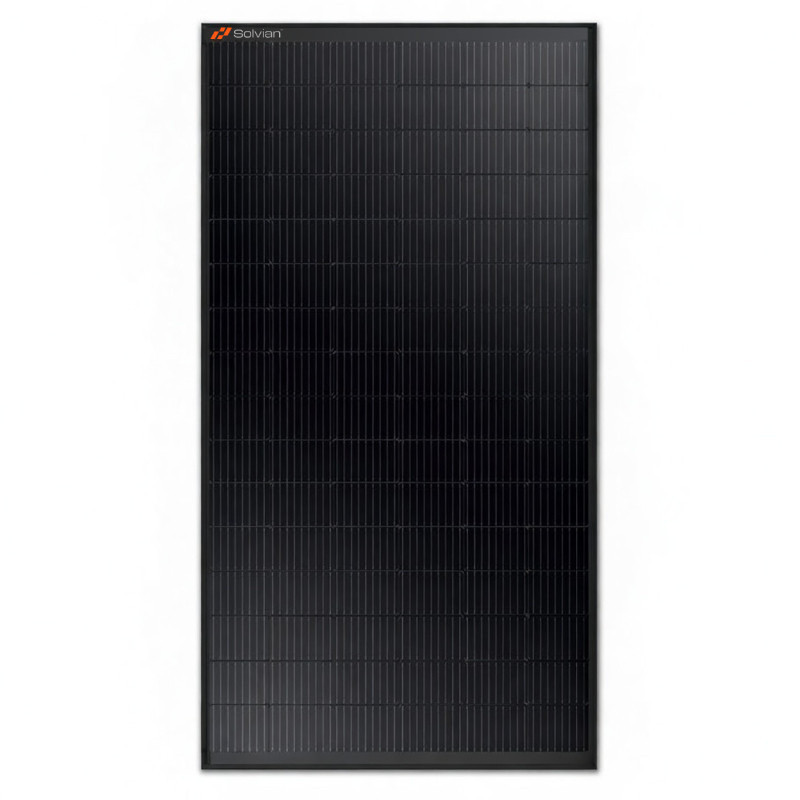

6 x Solar panel Solvian

• Model: AS-7M108N-HC


• Cell technology: Monocrystalline N-type TOPCon 182 × 91 mm


• Number of links: 108 (6 × 18), half-cut


• Maximum power (Pmax): 435 W


• Module efficiency: 22.28%


• Power tolerance: ±3%


• Open Circuit Voltage (Voc): 38.6V


• Short circuit current (Isc): 14.12 A


• Voltage at maximum power point (Vmp): 32.4V


• Current at maximum power point (Imp): 13.43 A


• Power at NOCT conditions: 328 W


• Maximum system voltage: 1000V DC / 1500V DC


• Maximum series fuse: 25 A

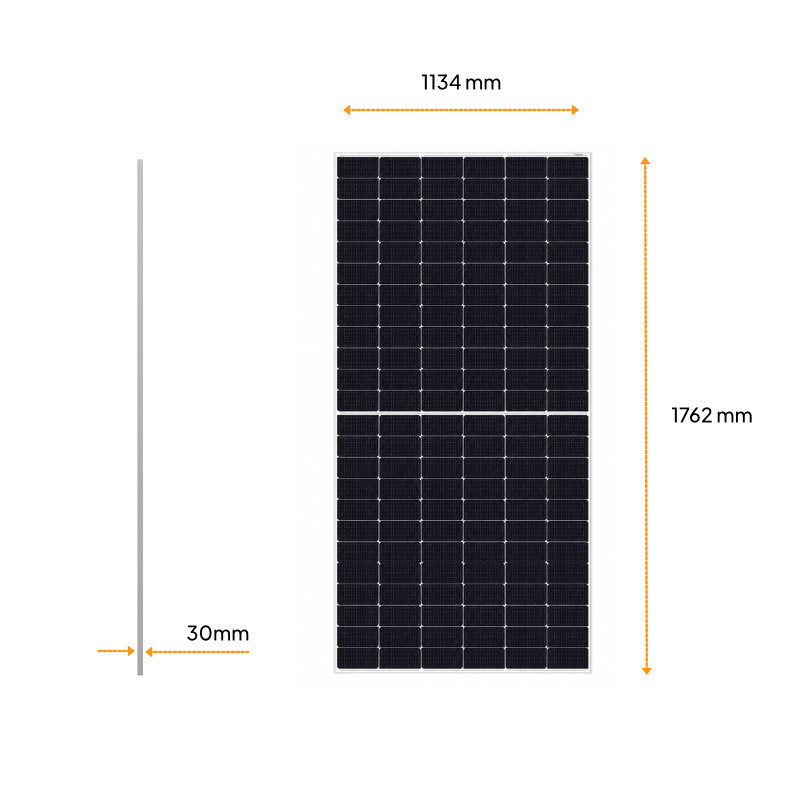

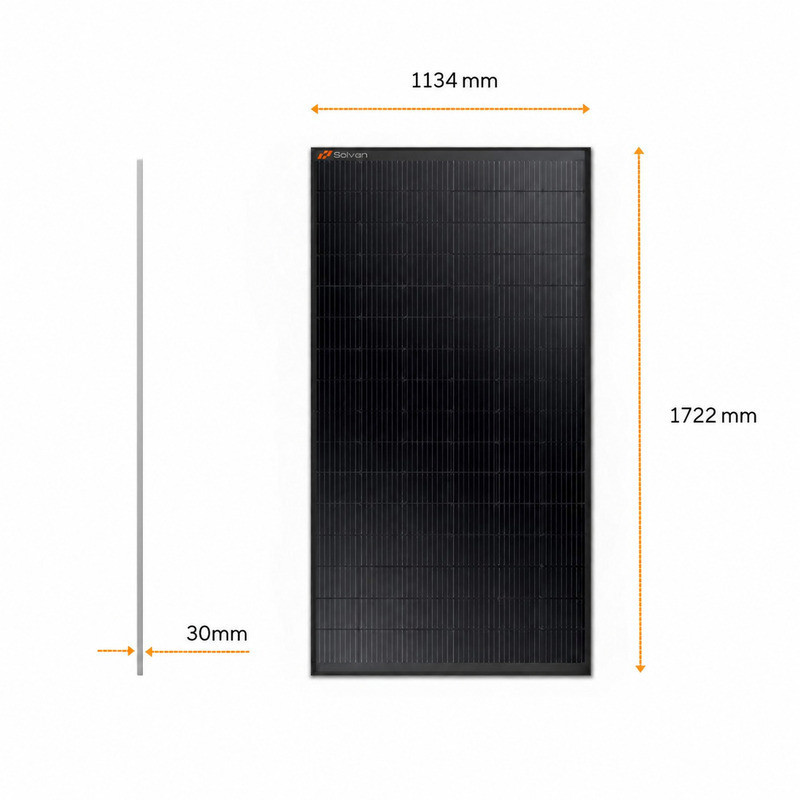

• Dimensions: 1722 × 1134 × 30 mm


• Libra: 20.5 kg


• Windshield: Tempered 3.2 mm with anti-reflective coating


• Frame: Anodized aluminum


• Junction box: IP68, 3 diodes


• Wires: 4 mm² ; vertical 300 mm, horizontal 1200 mm


• Connectors: MC4 or compatible


• Wind load: 2400 Pa


• Snow load: 5400 Pa


• Operating temperature: -40 °C to +85 °C


• NOCT: 43 °C ± 2 °C


• Temperature coefficient Pmax: -0.30%/°C


• Temperature coefficient Voc: -0.25%/°C


• Temperature coefficient Isc: +0.045%/°C


• Fire resistance class: C


• Certificates: IEC 61215, IEC 61730, CE


• Guarantee: 20 years for the product, 30 years for linear power


• Packaging: 36 pcs / pallet


• STC Conditions: 1000 W/m², 25 °C, AM1.5

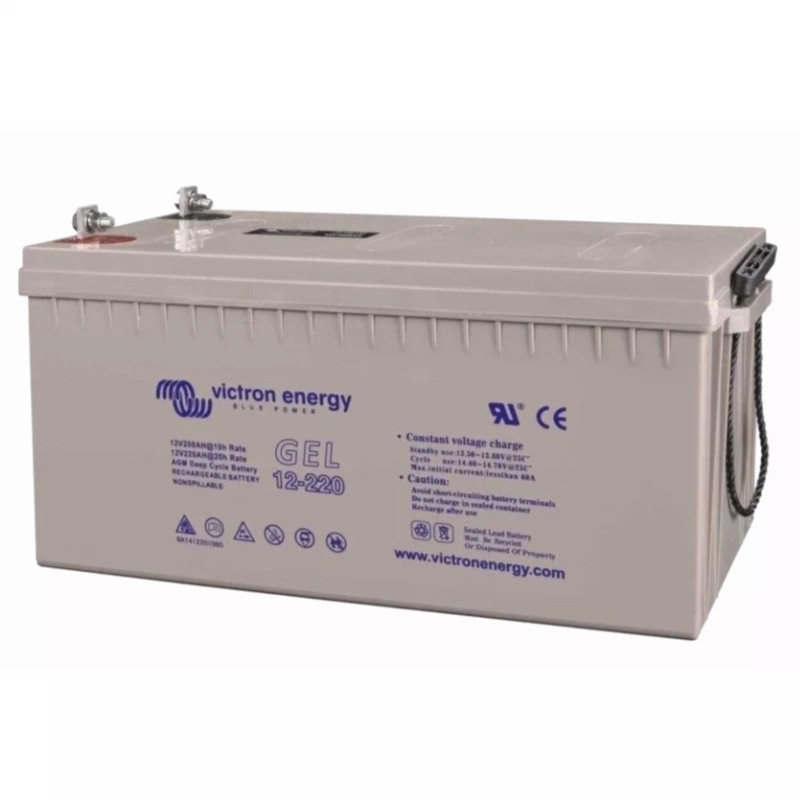

4 x Gel battery Victron Energy 12V/220Ah Gel Deep Cycle Batt.

Technical specifications

• Model: GEL 12-220 battery


• Operating voltage: 12V


• Capacity: 220 Ah


• Charging voltage (cyclic operation): 14.1V - 14.4V


• Charging voltage (standby): 13.5V - 13.8V


• Storage voltage: 13.2V - 13.5V

Installation and dimensions

• Dimensions (WxHxD): 522mm x 238mm x 240 mm


• Libra: 91 kg

Battery life

• 1800 cycles at 20% discharge


• 750 cycles at 50% discharge


• 500 cycles at 80% discharge


• Design lifespan: 12 years (FLOAT mode)

This product is designed for the most demanding users who expect reliability, longevity, and maintenance-free operation. Its advanced VRLA and GEL technology guarantees safe operation, low self-discharge, and durability in all conditions. Perfect for photovoltaic systems, recreational vehicles, and emergency power systems, it provides stable and reliable power for years to come.

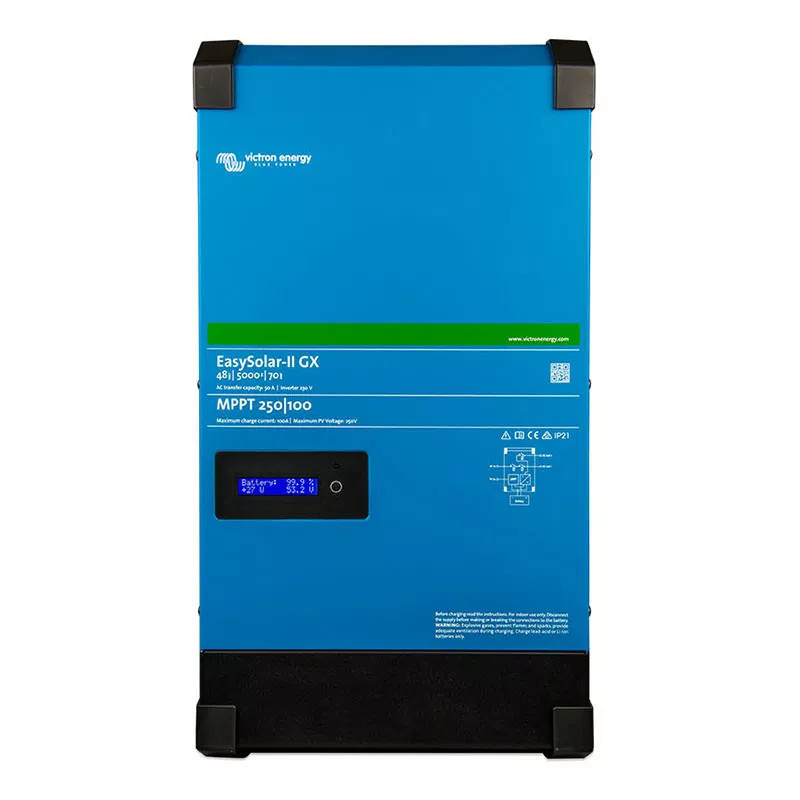

EasySolar-II 48/5000/70-50 MPPT 250/100 GX

Technical specifications:

INVERTER/CHARGER Easy Solar-II GX 48/5000-70-50

• PowerControl and PowerAssist: Yes


• Inter-circuit switch: 50 A


• Maximum input current AC: 50 A


• Reserve output: 50 A

INVERTER

• Input voltage range: 38 - 66 V


• Output voltage: 230 VAC ± 2%


• Frequency: 50 Hz ± 0.1%


• Continuous output power at 25 °C: 5000 VA / 4000 W


• Continuous output power at 40 °C / 55 °C: 3700 W / 3000 W


• Maximum apparent power input: 4400 W / 5000 VA


• Peak power: 9000 W


• Maximum efficiency: 96%


• Zero load power: 18 W


• Zero load power in AES mode: 12 W


• Zero load power in search mode: 2 W

CHARGER

• Entry AC: Input voltage range: 187-265 VAC


• Input frequency: 45 - 65 Hz


• Charging voltage in the absorption phase: 57.6V


• Charging voltage in the floating charge phase: 55.2V


• Storage mode: 52.8V


• Maximum battery charging current: 70 A


• Battery temperature sensor: Yes


• Programmable relay: Yes


• Security: a - g

SMARTSOLAR CHARGING CONTROLLER

• Model: MPPT 250/100-Tr


• Maximum output current: 100 A


• Maximum PV power: 5800 W


• Maximum open circuit voltage of the PV installation: 250V


• Maximum efficiency: 98%


• Own consumption: 20 mA


• Absorption phase charging voltage, default settings: 57.6V


• Float charge voltage, default settings: 55.2V


• Security: a - e


• Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi


• Remote on/off: Yes

GENERAL DATA

• Operating temperature range: -20 to +45 °C (fan cooling)


• Humidity (non-condensing): max. 95%

CASE

• Material and color: Aluminum (blue, RAL 5012)


• Protection class: IP 21


• Battery connection: Pins M8


• PV connection: Pins M6


• 230V connection AC: Screw terminals 13 mm² (6 AWG)


• Mass: 38.6 kg


• Dimensions (H x W x D): 604 x 323 x 253 mm

This device provides comprehensive and efficient energy management in photovoltaic installations, while offering flexibility and ease of use.

Solar cable with connectors MC4 to connect panels and regulator

The kit includes a cable for connecting the solar panel to the controller. A MC4 connector is crimped onto the cable, allowing for efficient connection of the panel to the charge controller.
The 2-pack 610W solar array with 880Ah batteries and 5000W inverter is an advanced solution that offers not only exceptional reliability but also flexibility in use. Thanks to high-quality components, this system ensures long-lasting and stable operation in a variety of conditions, offering a comprehensive power solution for any location.
