190W solar charger

The 190W solar charger is designed to efficiently charge small gel batteries up to 130Ah. It's ideal for mobile and stationary applications requiring a reliable power source, such as powering LED lighting, electronic devices, or summer homes.

Optimized energy efficiency

The system utilizes a high-quality monocrystalline panel that offers excellent performance in a variety of lighting conditions. The combination with a PWM-Light charge controller ensures maximum solar energy utilization and efficient battery charging, ensuring stable and safe system operation even in low-intensity environments.

Full system protection and security

Thanks to the advanced PWM-Light regulator, the entire solar system is protected against overcharging, over-discharging, and overvoltage, ensuring the long life of both the battery and the panel. This regulator automatically adjusts charging parameters, effectively optimizing system efficiency and increasing user safety.

Durability and versatility

The monocrystalline panels used in this kit are extremely durable and resistant to changing weather conditions, making them an ideal choice for applications in campers, vacation homes, and emergency systems. The aluminum panel frame ensures easy installation and structural strength, while the controller's compact size allows for installation even in hard-to-reach places.

Complete photovoltaic kit with 12/24V/10A regulator

The kit includes a 185W Victron Energy solar panel and a 12/24V/10A charge controller, making it ready to use without the need for additional configuration. The charge controller operates maintenance-free, monitoring the battery charging process to prevent damage. Its compact design and expandability with additional panels and batteries provide a flexible and long-lasting solution for powering a variety of devices in various locations.
The 185W solar kit is a reliable and efficient solution for charging small gel batteries up to 130Ah. Thanks to the high-quality monocrystalline panel and PWM-Light charge controller, the system ensures optimal use of solar energy and full protection against overcharging and discharging the battery.

The set includes:

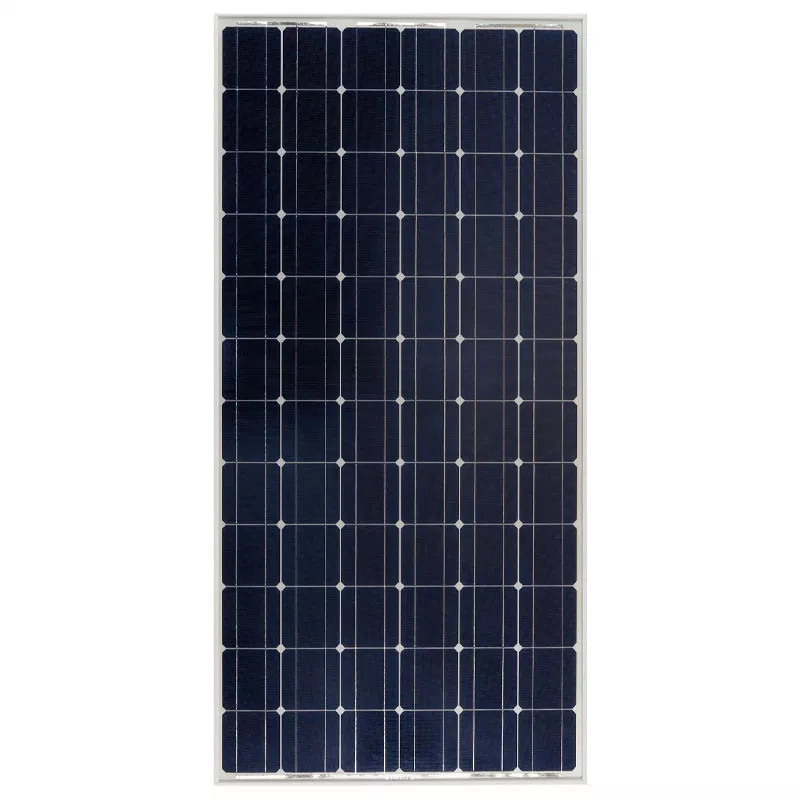

Victron Energy 185W monocrystalline panel

• Parameters / Model: Victron Energy SPM040553603 190W (36 cells Mono)


• Nominal output power (Pmax): 190 W (±3%)


• Vmp (V): 21.8 V


• Imp (A): 8.71 A


• Voc (V): 25.5V


• Isc (A): 9.17 A


• Number of links in series: 39


• Maximum system voltage: 1000V


• Temperature coefficient MPP (Pmp): -0.45%/°C


• Temperature coefficient Voc: -0.35%/°C


• Temperature coefficient Isc: +0.04%/°C


• Operating temperature range: -40°C to +85°C


• Maximum surface load: 200 kg/m²


• Hail Resistance (Allowable Hail Load): 23 m/s, 7.53 g


• Junction Box: PVJH0806


• Cable length / connector type: No cable


• Frame: Aluminum


• Dimensions: 1485 x 668 x 30 mm


• Net weight: 10.5 kg


• Product warranty: 5 years


• Electrical efficiency warranty: 10 years 90% + 25 years 80% output power


• Standard Test Conditions (STC): 1000 W/m², 25°C, AM 1.5

They are an ideal solution for systems powering LED lighting, camping homes, illuminated signs, and devices requiring charging. These panels can be successfully used in systems with a power output exceeding 50W, where the use of a voltage converter allows for obtaining 230V, provided that a gel or AGM battery with a capacity of at least 33Ah is used.

PWM-Light 10A 12V/24V charge controller

• Parameters / Model: PWM-Light 10A 12/24V charge controller


• Battery voltage: Automatic detection of system voltage


• Nominal charging current: 10 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect

Security

• Reverse battery polarity: Fuse


• Output short circuit: Yes


• Excessive temperature: Yes


• Overload protection:



  • Shutdown after 60 seconds at 130% load


  • Shutdown after 5 seconds at 160% load


  • Short circuit: immediate shutdown





Ground

• Grounding type: Common positive

Operating temperature range

• Temperature: -20 to +50°C (full load)

Humidity

• Maximum humidity: 95% (non-condensing)

Batteries

• Absorption charging voltage: 14.2V / 28.4V


• Float charging voltage: 13.8V / 27.6V


• Low voltage load disconnection: 11.2V / 22.4V


• Reconnecting the low voltage load:



  • 12.6V / 25.2V (manual)


  • 13.1V / 26.2V (automatic)





Other

• Protection class: IP20


• Clamp size: 5 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 70 x 133 x 33.5 mm

Security

• Standard: IEC 62109-1

Available in 5A, 10A, and 20A versions, they are an excellent solution for smaller photovoltaic systems operating with a single panel. They regulate the charging process for 12V batteries, with the option of configuring them up to 24V, ensuring efficient and safe operation. A built-in temperature sensor automatically adjusts the voltage, and a three-stage charging characteristic increases the speed and efficiency of the process.
