175W solar panel with MPPT EPEVER 20A regulator

It's the perfect solution for powering 12V devices. It's perfect for travel and home use, with the ability to power LED lighting up to 50W, smartphone chargers, tablets, and laptops. The kit also powers larger devices, such as an LED TV or a small refrigerator. The 80Ah battery takes approximately 6 hours to charge from a full discharge. The kit doesn't include a battery, allowing for flexible configuration based on your needs.

Simple installation

Designed for users who value simplicity and convenience, the photovoltaic kit is ready for self-assembly. The kit includes a detailed instruction manual and a step-by-step installation diagram. Thanks to pre-assembled cables and easy installation, the entire process requires no advanced tools – just a screwdriver and a box wrench. This is an ideal solution for those seeking energy independence while camping or in their home.

Mobile solar power plant

The kit functions as a mobile power station that can power a variety of devices, from smartphones and tablets to LED lighting and small portable coolers. Thanks to the built-in charge controller, solar energy is efficiently converted and stored in a rechargeable battery (not included), which can be used to power devices while traveling or in areas without access to a power grid. Additionally, when the battery is fully charged, the system automatically uses energy directly from the solar panel, allowing for continuous use of the devices.

The set includes:

Solar panel EPEVER 180W solar panel

• Model: EPEVER M12-66-180


• Nominal output power (Pmax): 180 W


• Operating temperature: -45°C ~ +80°C


• Junction box: IP65/IP67 (water and dust resistant)


• Cell efficiency: 22.6% (very high efficiency)


• Open circuit voltage (Voc): 48.8 V


• Voltage at maximum power (Vmp): 39.9 V


• Short circuit current (Isc): 4.78 A


• Current at maximum power (Imp): 4.51 A


• Maximum system voltage: 700V


• Maximum series fuse: 10 A

Connectors and cables:

• Connector: Standard not specified, compatible with MC4.


• Cable: Not included, non-standard use possible.

Temperature coefficients:

• Temperature coefficient Isc: +0.06% / °C


• Temperature coefficient Voc: -0.32% / °C


• Temperature coefficient Pmp: -0.45% / °C

Standard Test Conditions (STC):

• Radiation intensity: 1000 W/m²


• Cell temperature: 25°C


• AM spectrum: 1.5

Material and dimensions:

1. Glass: 3.2 mm tempered glass (resistant to mechanical damage and weather conditions).


2. Dimensions: 1225 x 670 x 28 mm


3. Frame thickness: 25 mm


4. Libra: 9.1 kg

Advantages:

• High performance: With a cell efficiency of 22.6%, it is ideal for systems with limited space.


• Resilience: IP65/IP67 protection classes ensure long life in harsh weather conditions.


• Compact dimensions: Light and relatively small panel with high power.


• Compatibility: Can be connected with popular MC4 connectors.

With a nominal power of 180 W, this modern device is designed with efficiency, durability, and versatility in mind. Thanks to its high cell efficiency of 22.6% and advanced construction materials, such as tempered glass and a weather-resistant frame, this panel is ideal for both off-grid and on-grid systems. Its compact dimensions and low weight make it an ideal choice for rooftop installations, mobile systems (e.g., campers), as well as industrial and agricultural installations. The panel is designed for easy integration with popular photovoltaic systems, offering a high operating voltage (Voc 48.8 V) and compatibility with MC4 connectors. It's a reliable solution for users who value energy efficiency and long-term reliability in diverse climatic conditions.

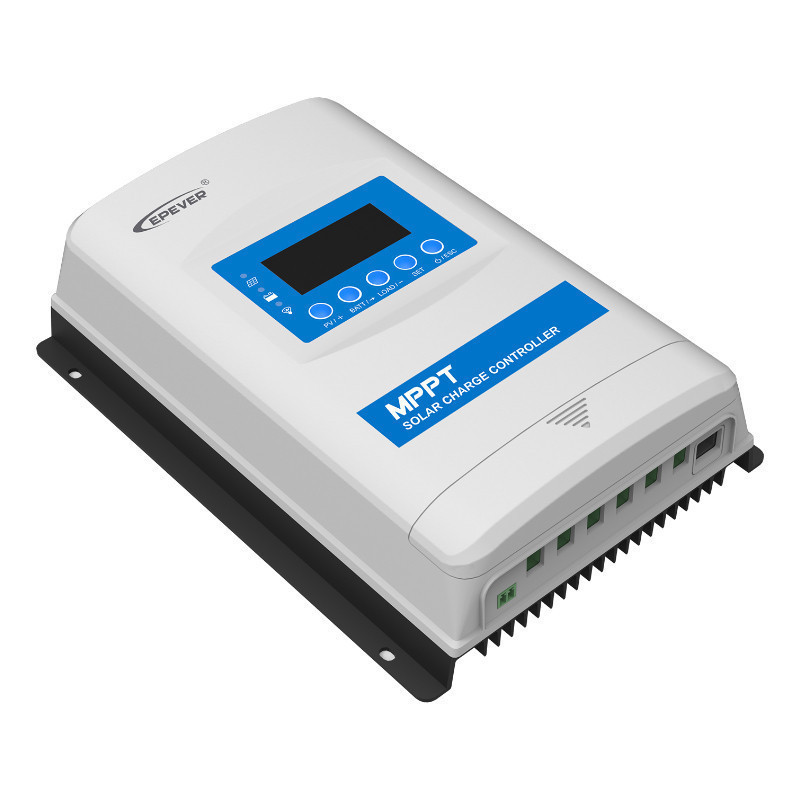

EPEVER MPPT XTRA2210N G3 BLE 20A Charge Controller

Technical Specifications:

• Model: XTRA2210N G3 BLE 20A


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 20A


• Rated discharge current: 20A


• Maximum PV open circuit voltage: 100 V (at minimum operating temperature), 92 V (at 25 )


• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power: 260W/12V, 520W/24V


• Maximum conversion efficiency: 98.30%


• Maximum load efficiency: 96.40%


• Static losses (communication port enabled): ≤ 15mA (12V), ≤ 9mA (24V)


• Static losses (communication port disabled): ≤ 8mA (12V), ≤ 6mA (24V)


• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (default)


• Type of grounding: common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time: default: 60 s, range: 0~999 s (0 s: backlight on all the time)


• Dimensions: 217×158×56.5mm


• Installation dimensions: 160×149mm


• Dimensions of mounting holes: Φ5mm


• Terminal: 6AWG(16mm²)


• Recommended wire size: 10AWG(6mm²)


• Net weight: 0.97kg


• Operating temperature range: -25 ~+50


• Storage temperature range: -20 ~+70


• Relative humidity: ≤95%, NC


• Case: IP33 (protection against solid objects larger than 2.5 mm in diameter and against water drops at an angle of up to 60°)


• Degree of pollution: PD2

Charge controller EPEVER MPPT XTRA2210N G3 BLE 20A It's the perfect solution for those looking for efficient and reliable photovoltaic system management. Its high efficiency, advanced monitoring features, and robust design make it one of the best devices in its class. Thanks to MPPT technology and its versatility, this controller will satisfy even the most demanding users.

MC4 cabling and connectors

The photovoltaic kit comes with high-quality solar cables, enabling easy connection of the solar panel to the charge controller. The 4 mm², 2 x 5 meter cables ensure durability and UV resistance, ensuring a long installation life. Each kit also includes MC4 connectors, which enable quick and hermetic connection of components, minimizing energy loss. For additional flexibility, the cables can be extended as needed, adapting the system to individual needs.
This photovoltaic kit, based on high-efficiency monocrystalline panels, is the perfect solution for powering devices in the field and in home installations. Thanks to advanced MPPT technology, the charge controller maximizes solar energy utilization, providing up to 30% better efficiency. Solar cables and MC4 connectors guarantee safe and durable connections, enabling easy installation and minimizing energy loss.
