Choosing the right battery is a key decision when designing independent energy systems, both in solar installations and recreational vehicles.
Victron Energy has created a unique product that will work perfectly in the most difficult conditions.

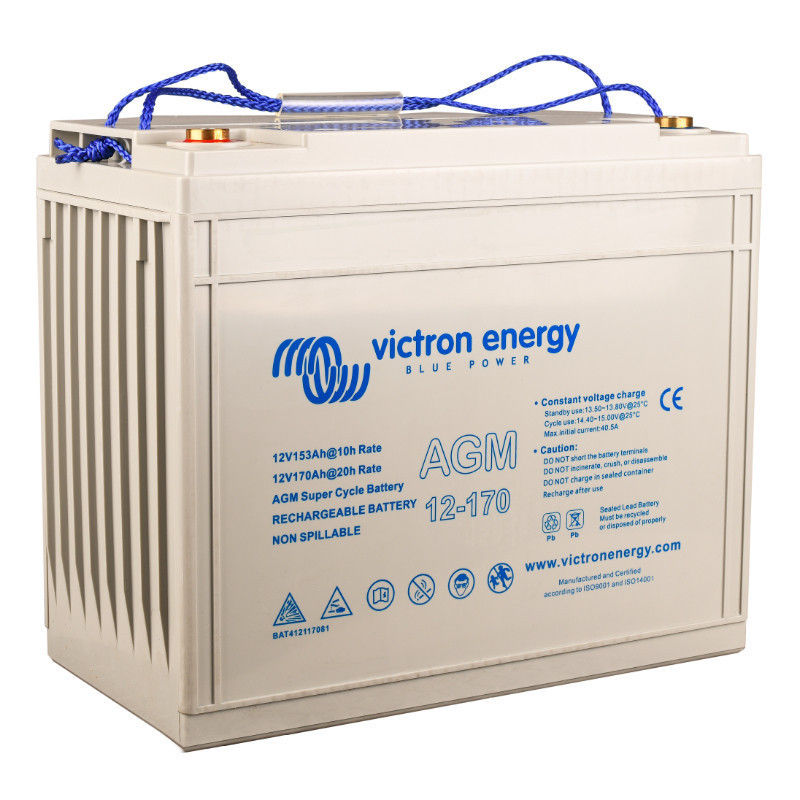

AGM Super Cycle battery 12V/170Ah It features advanced electrochemical technology that allows for repeated deep discharges while maintaining an extended lifespan. Its unique design ensures long-lasting operation, even in off-grid systems where stability and efficiency are paramount.
What sets this model apart? First and foremost, its ability to operate in various environments. Thanks
shock resistance and
stability in changing weather conditions, this battery is an ideal solution for owners of recreational vehicles, boats and backup power systems.
Low self-discharge at just 2% per month means the battery can be stored for extended periods without losing its full capacity. This is crucial for photovoltaic systems that may not be used for part of the year.
Technology
AGM Super Cycle used in this model guarantees durability even under extreme discharge cycles. Laboratory tests have confirmed that the battery can withstand up to 300 full discharge cycles to 100% DoD (Depth of Discharge). Modern electrolyte additives significantly reduce the risk of sulfation, allowing for longer and more efficient operation of the device. Thanks to this,
Victron Energy AGM Super Cycle 12V/170Ah is an excellent choice for UPS systems where power reliability is crucial.
VRLA and AGM Technology: Innovation in Action
One of the key features
Victron Energy AGM Super Cycle is the use of modern technology
VRLA This system, equipped with a valve to release excess gases, protects the battery from damage. When combined with
AGM (Absorbent Glass Mat) technology significantly reduces internal electrical resistance, making the battery exceptionally efficient in systems requiring rapid and intensive discharge. Examples of applications include inverters, thrusters, and winches, where reliability and high efficiency are key.
Another advantage of this model is its
low internal resistance, which allows for efficient operation even under conditions of intense current loads. This makes this battery ideal for use in photovoltaic systems where high power and efficiency are required on a daily basis.
Long service life in FLOAT mode and a designed lifespan of 12 years mean that investing in this model is a long-term benefit.
Technical specifications
- Parameters / Model: AGM 12-170 battery
- Operating voltage [V]: 12V
- Capacity [Ah]: 170 Ah
- Charging voltage cyclic operation [V]: 14.2 - 14.6 V
- Charging voltage standby [V]: 13.5 - 13.8 V
- Storage voltage [V]: 13.2 - 13.5 V
Installation and dimensions
- Dimensions WxHxD [mm]: 336 x 280 x 172 mm
- Weight [kg]: 45 kg
Battery life
- 1000 cycles at 40% discharge
- 700 cycles at 60% discharge
- 300 cycles at 100% discharge
- Design lifespan: 12 years (FLOAT mode)
Victron Energy 12V/170Ah AGM Super Cycle Battery This modern and durable battery is ideal for use in photovoltaic systems, recreational vehicles, and UPS systems. Thanks to advanced VRLA and AGM technology, low resistance, and exceptional deep discharge resistance, this battery offers the highest level of reliability.
