105W flexible panel kit for camper vans with MPPT controller

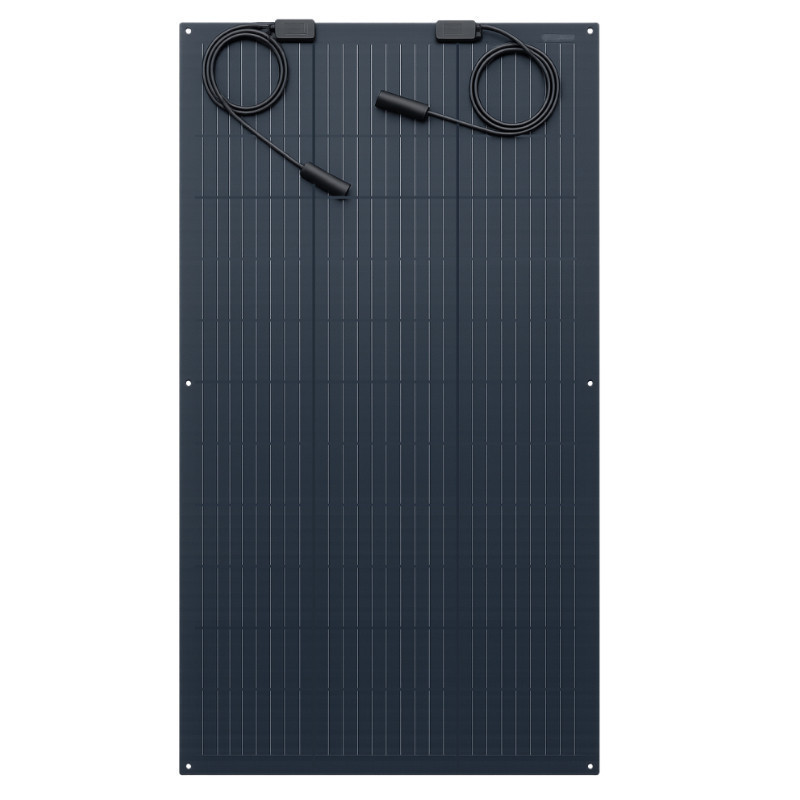

The 105W Flexible Solar Panel with MPPT Controller for Campervans is a comprehensive solution for charging batteries up to 110Ah, ideal for use in campers and caravans. The kit includes a 105W flexible solar panel, a 10A MPPT charge controller with phone management, and full cabling, making it incredibly easy to install and use.

Key features of the set:

• Energy independence - The kit provides access to energy in places remote from the power grid, allowing you to power 12V DC devices.


• Optimal charging - MPPT technology guarantees efficient charging of batteries, which extends their life and increases efficiency.


• Easy installation - Thanks to the included cabling and MC4 connectors, system installation is simple and quick, even for people without advanced technical knowledge.


• Resistance and durability - The system components are durable, resistant to changing weather conditions and ensure long-term operation in difficult conditions.


• Ecological solution - Powering your camper with solar energy is an eco-friendly solution that reduces your carbon footprint and promotes sustainable energy consumption.

The set includes:

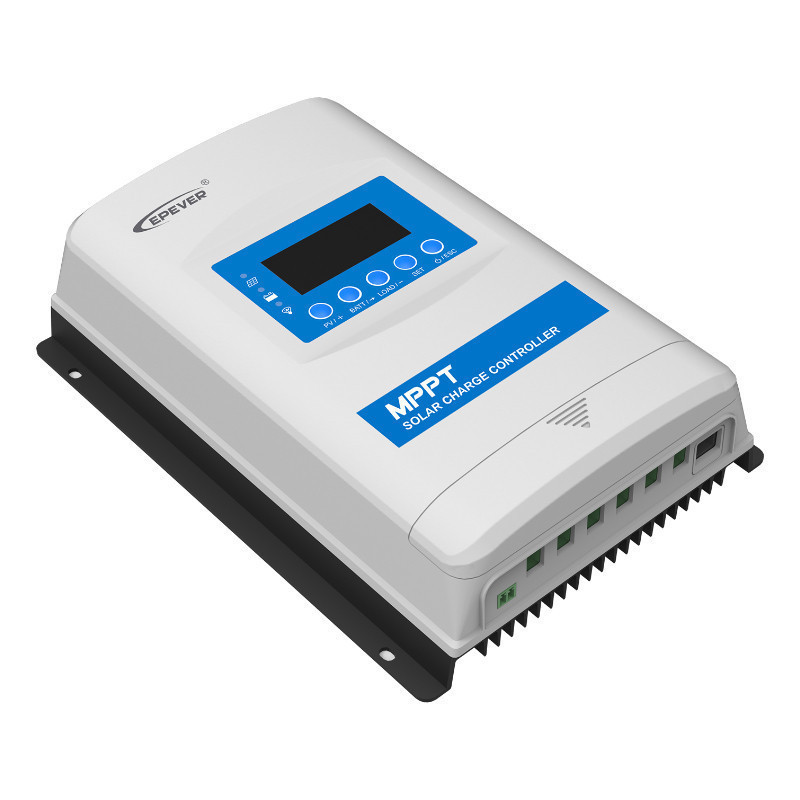

EPEVER MPPT XTRA1210N G3 BLE 10A Charge Controller

Technical Specifications:

• Model: XTRA1210N G3 BLE 10A charging controller


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 10A


• Rated discharge current: 10A


• Maximum PV open circuit voltage:



  • 100 V (at minimum operating temperature in the environment)


  • 92 V (at 25°C ambient temperature)






• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power:



  • 130W/12V


  • 260W/24V






• Maximum conversion efficiency: 98.20%


• Maximum load efficiency: 96.20%


• Static losses (communication port enabled):



  • ≤ 15mA (12V)


  • ≤ 9mA (24V)






• Static losses (communication port disabled):



  • ≤ 8mA (12V)


  • ≤ 6mA (24V)






• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (Default)


• Grounding type: Common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time:



  • Default: 60 sec


  • Range: 0~999 sec (0 sec: backlight is on all the time)






• Dimensions: 175×143×48 mm


• Mounting dimensions: 120×134 mm


• Dimensions of mounting holes: Φ5 mm


• Terminal: 12AWG (4mm²)


• Recommended wire size: 12AWG (4mm²)


• Net weight: 1.30 kg


• Operating temperature range: -25 ~ +50


• Storage temperature range: -20 ~ +70


• Relative humidity: ≤95%, NC


• Case: IP33 (3 - protection against solid objects larger than 2.5 mm, protection against water drops falling at an angle of up to 60° from the vertical)


• Degree of contamination: PD2

Charge controller EPEVER MPPT XTRA1210N G3 BLE 10A It's an excellent choice for those looking for efficient and reliable solutions for photovoltaic systems. Thanks to advanced MPPT technology and built-in Bluetooth, the device offers full control over the charging process and system monitoring. High efficiency and compatibility with various battery types make it ideal for a wide range of applications. Thanks to its robust design and safety features, you can be sure your system will operate smoothly for years to come.

MC4 cabling and connectors

The kits include a cable (2 x 5 meters, black and red) for connecting the solar panel to the regulator. An MC4 connector is crimped onto the cable, allowing for efficient connection of the panel to the charge regulator.
This kit is ideal for those looking for an easy-to-use, reliable, and eco-friendly power system for their camper or caravan.
