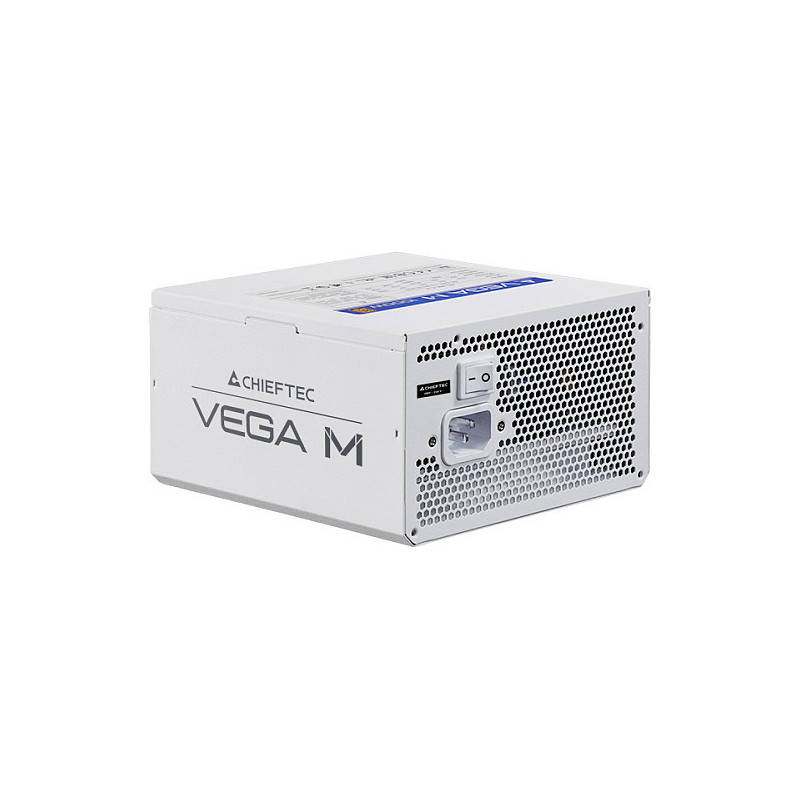

Chieftec Vega PPG-1000-CW power supply unit

Chieftec Vega PPG-1000-CW. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold

Power

Total power: 1000 W

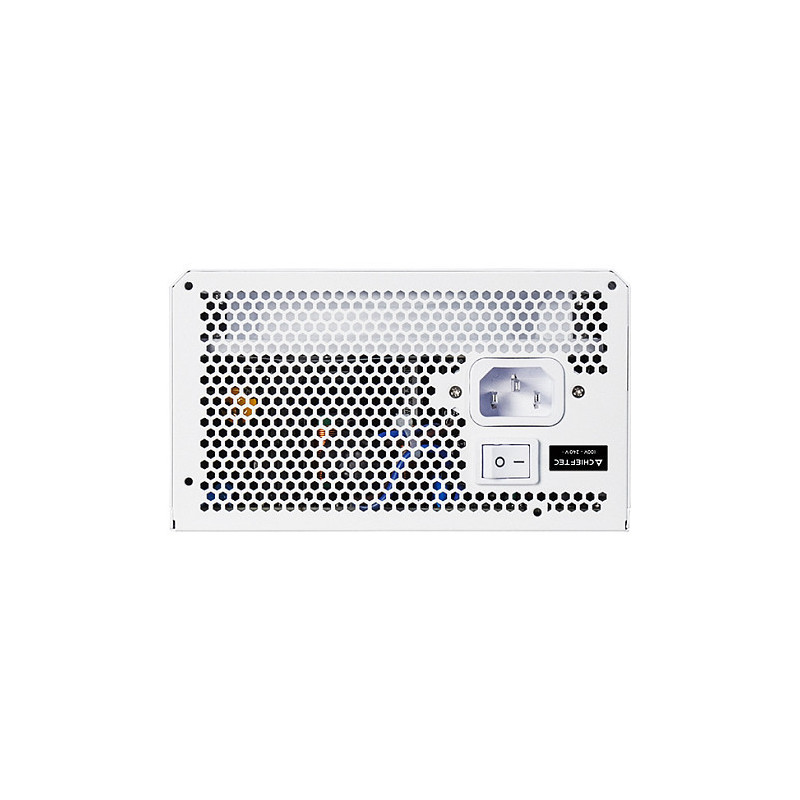

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12 A
Combined power (+3.3V): 100 W
Combined power (+12V): 1000 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.33 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over voltage, Overload, Short circuit, Surge and inrush, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 6
SATA power cable length: 150,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,400 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Number of EPS connectors: 2

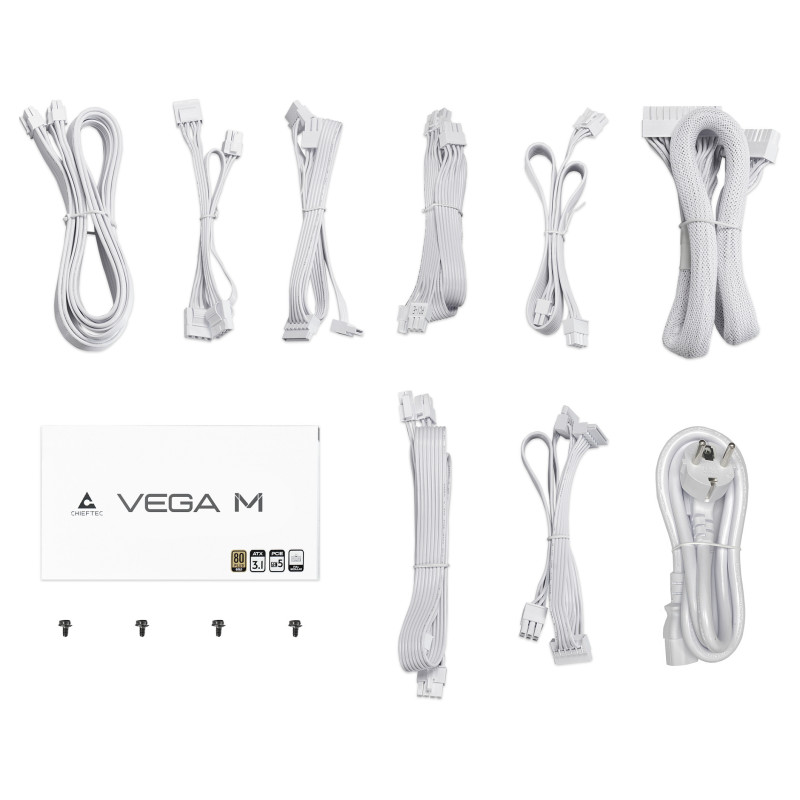

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB

Design

Product colour: White
Cooling type: Active

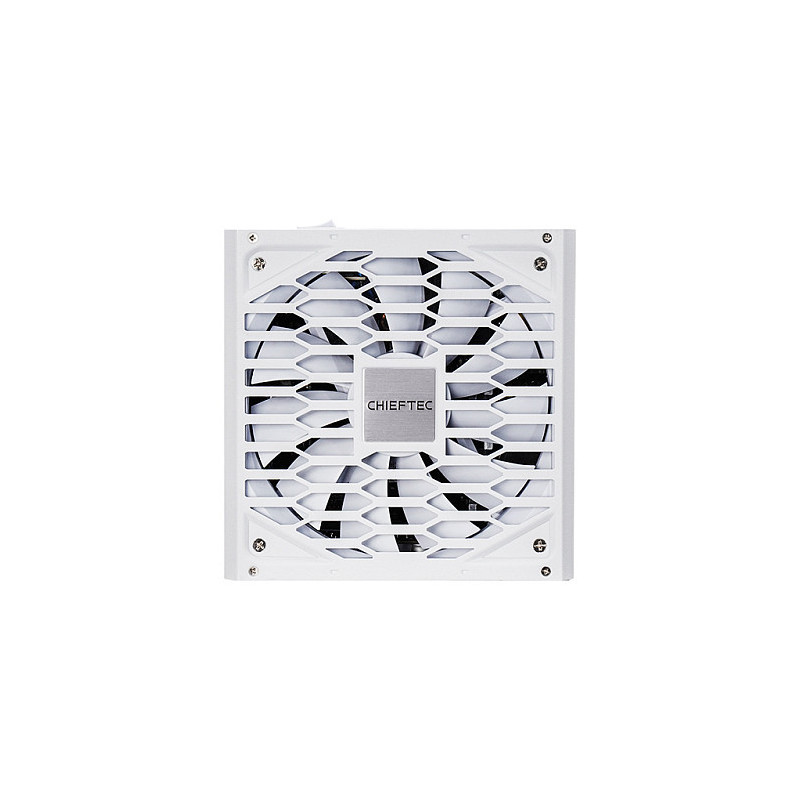

Fan diameter: 13.5 cm

Certificates

Certification: 80PLUS Gold

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 85 mm
