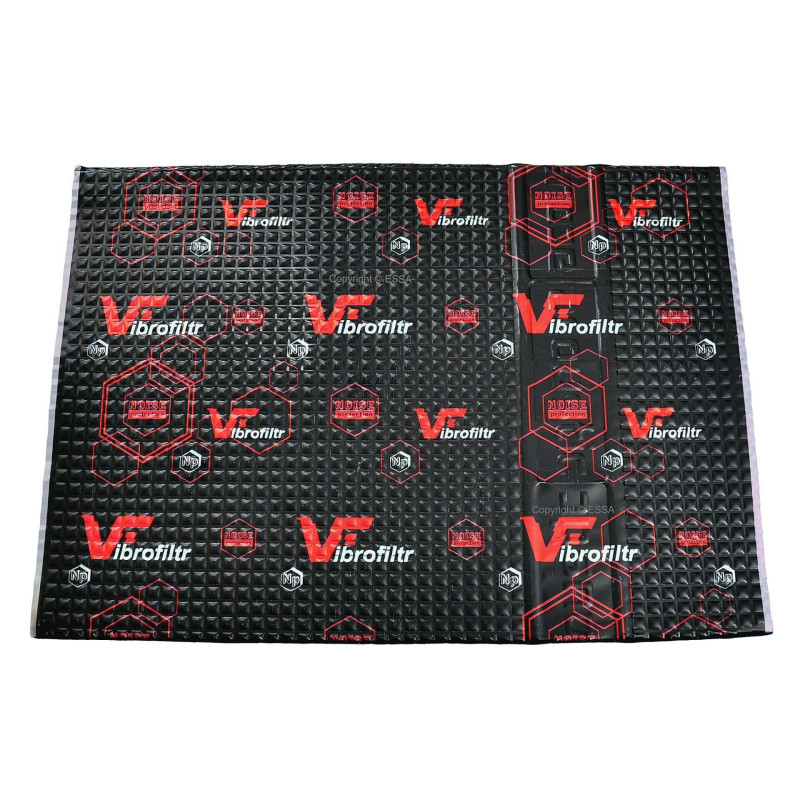

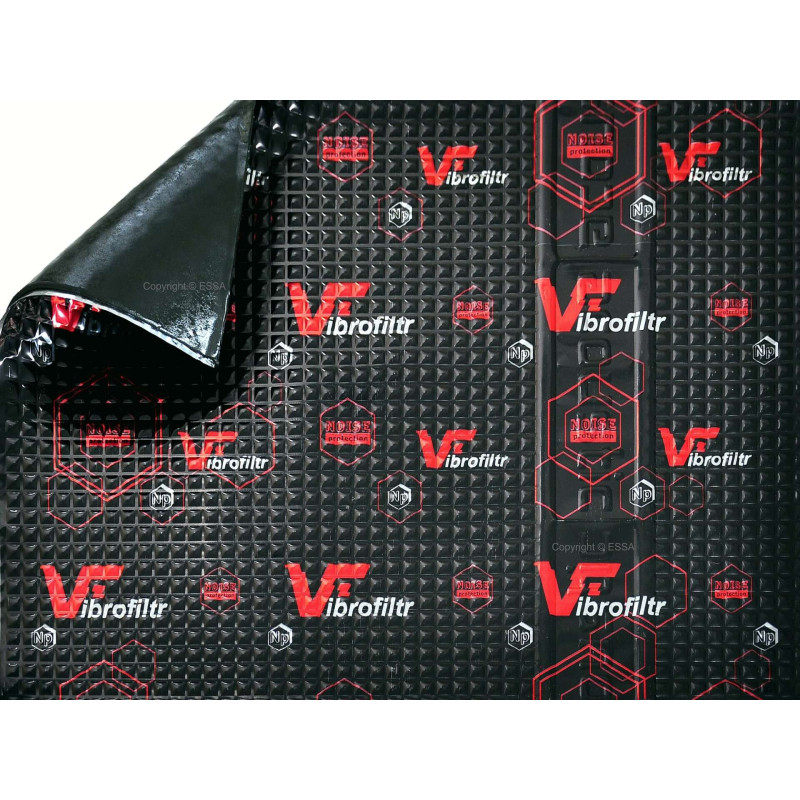

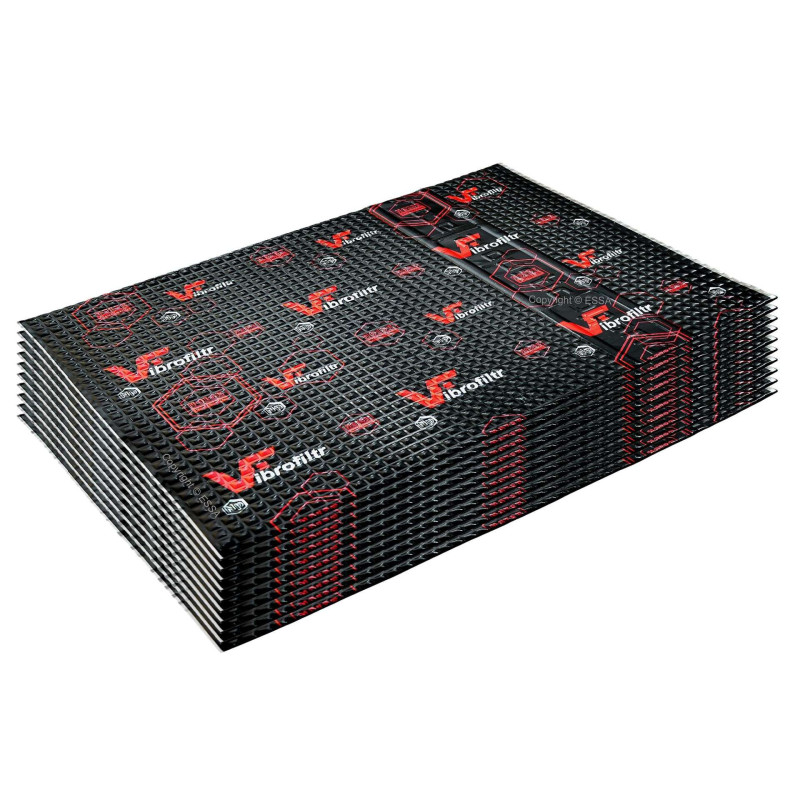

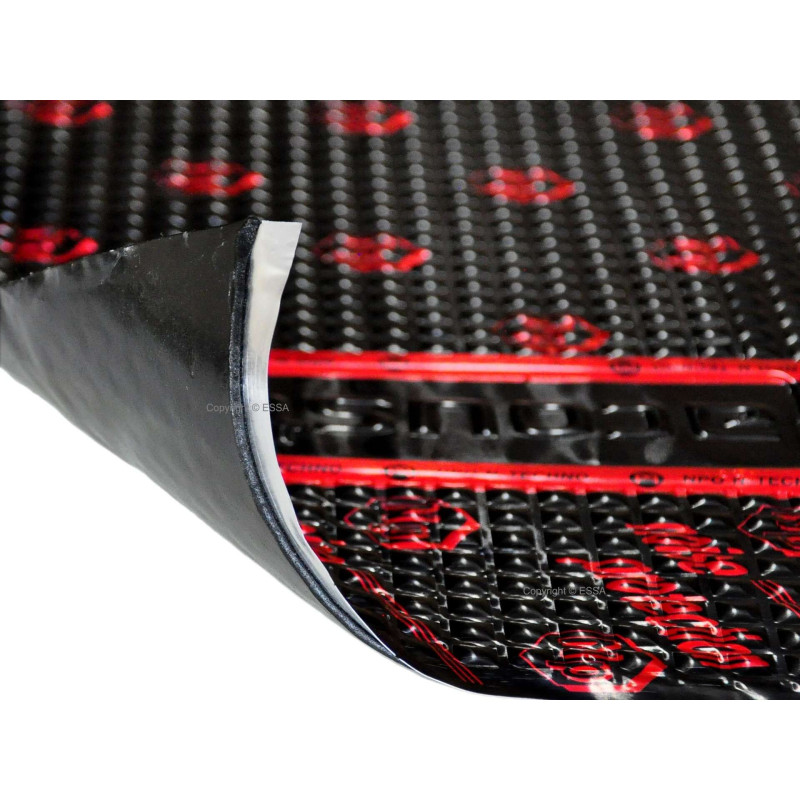

Vibrofiltr PRO 4.0 Box - damping mat, 10 pcs / 1.75 m2

Vibrofiltr PRO 4.0 Box - anti-vibration mat 4 mm 10 sheets / 1.75 m² Vibrofilter PRO 4.0 Box This professional, self-adhesive anti-vibration mat is designed to effectively dampen vibrations, noise, and acoustic resonances in your vehicle. It is the strongest and thickest material in the Vibrofiltr Noise Protection series, designed to mute body parts most susceptible to vibration and road noise. The mat is made of an advanced composite of butyl rubber, polymers, and 100µm-thick embossed aluminum foil. Thanks to its high mechanical loss factor, MLF = 0.60 It effectively absorbs vibration energy and limits resonances in metal body parts. Highest vibration dampening efficiency. Vibrofiltr PRO 4.0 is the most powerful anti-vibration mat in the Vibrofiltr range. Its 4 mm thickness, high surface mass, and 0.60 MLF coefficient make the material particularly suitable for lower and stationary body parts, which transmit the most noise into the vehicle interior. The product is particularly recommended for soundproofing the floor, wheel arches, center tunnel, lower trunk elements, engine compartment bulkhead, and windshield. Due to its heavy weight, it is not recommended for mounting this mat on moving or delicate elements, such as large door surfaces or thin panels. PRO version - strong adhesion and easier installation. The PRO version has increased initial viscosity and high final adhesion to the substrate after a self-vulcanization period. Deep square embossing improves the material's flexibility and facilitates installation on surfaces with more complex shapes. The Vibrofiltr PRO 4.0 mat does not require heating during installation, which distinguishes it from many thick soundproofing materials. The most comfortable installation is achieved at temperatures above +15°C. Anti-vibration mat and noise insulator. In addition to highly effective vibration dampening, the Vibrofiltr PRO 4.0 also acts as a sound insulator. This allows it to be used as a standalone soundproofing layer in areas where there is insufficient space for additional soundproofing foam. This is a good solution for surfaces that require maximum soundproofing but have limited space for the installation of multiple layers of materials. Key advantages of the Vibrofiltr PRO 4.0 Box

• professional anti-vibration mat, 4 mm thick,
• the highest damping efficiency in the Vibrofiltr PRO series,
• mechanical loss factor MLF = 0.60,
• 100 µm thick aluminum foil,
• very good absorption of mechanical vibrations,
• additional noise insulation,
• high initial viscosity and strong final adhesion,
• does not require heating during installation,
• waterproof, self-extinguishing and non-toxic material,
• does not contain bitumen, tar or asphalt,
• does not stain or emit unpleasant odors,
• has anti-corrosion and sealing properties,
• suitable for cars, machines and industrial equipment.

Application in the carVibrofiltr PRO 4.0 Box is best used on lower, stationary and more massive body elements, such as:

• car floor,
• wheel arches,
• central floor tunnel,
• lower elements of the trunk,
• engine compartment bulkhead wall,
• pit,
• elements particularly susceptible to the transmission of noise and vibrations.

The mat is also suitable for comprehensive car soundproofing, especially where the goal is to maximize the reduction of road noise, resonances, and vibrations. Applications outside the automotive industry: The product can also be used to soundproof:

• heavier machines,
• industrial equipment,
• aggregates,
• compressors,
• technical housings,
• metal elements exposed to resonances.

Installation: Before installation, the surface must be dry, clean, and very well degreased. The mat should be cut to the appropriate shape, the adhesive protective layer removed, and adhered to the prepared substrate. To fully utilize its dampening properties, the material should be pressed firmly against the surface, preferably using a roller. The mat should adhere perfectly to the substrate, free from air bubbles and voids. The flexible butyl polymer layer is self-vulcanizing, so the material's adhesion to the substrate increases over time. Basic parameters

• Product: self-adhesive anti-vibration mat
• Model: Vibrofiltr PRO 4.0 Box
• Series: Noise Protection
• Sheet thickness: 4.0 mm +/- 0.2 mm
• Aluminum foil thickness: 0.1 mm / 100 µm
• Dimensions of 1 sheet: 350 × 500 mm
• Area of 1 sheet: 0.175 m²
• Quantity per package: 10 sheets
• Packaging area: 1.75 m²
• Package weight
