Vibrofiltr ECO 4 - silencing and noise-insulating foam

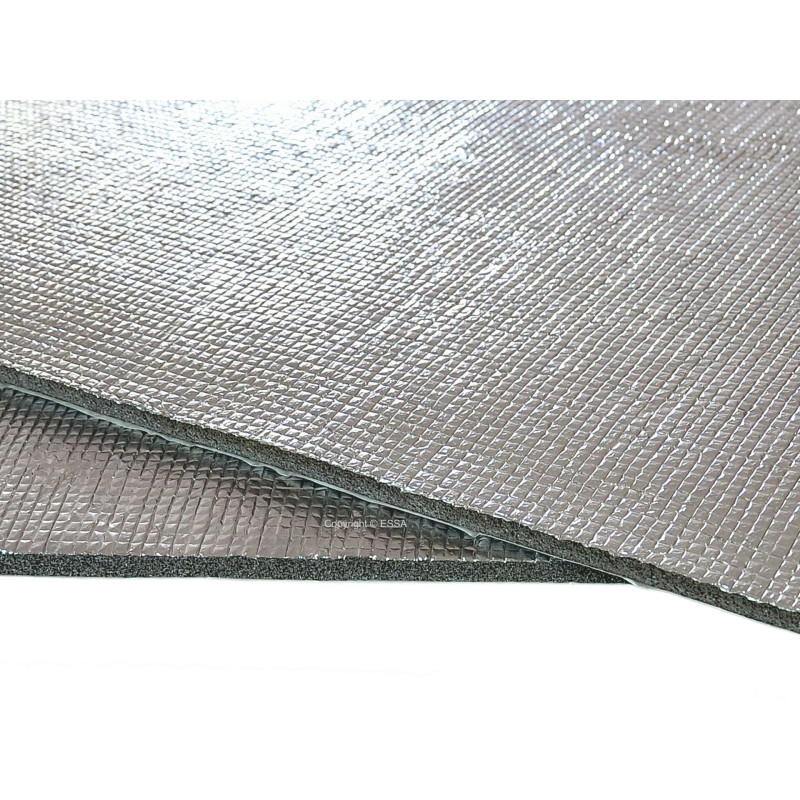

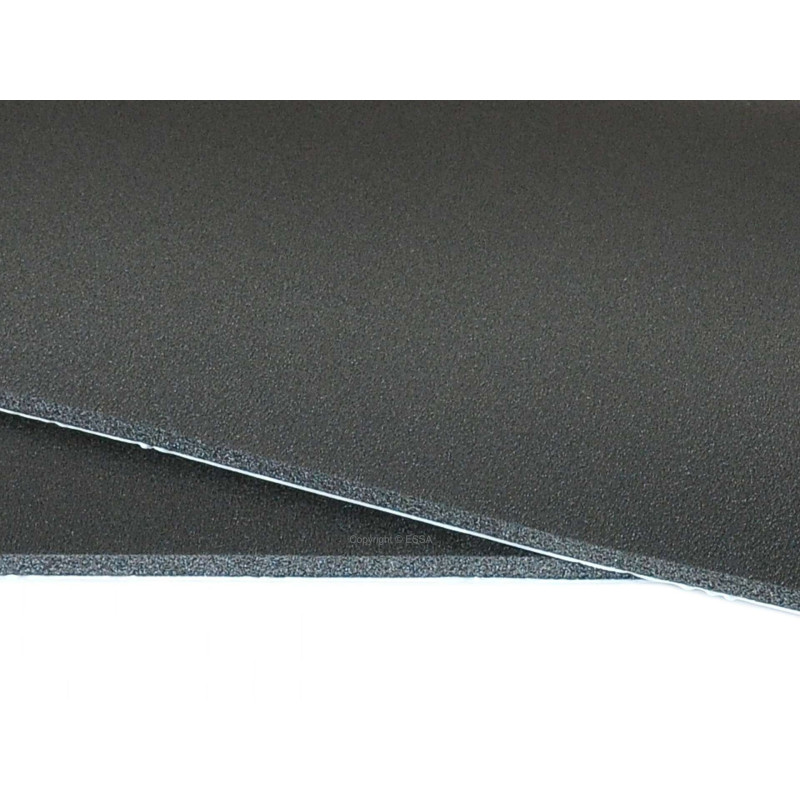

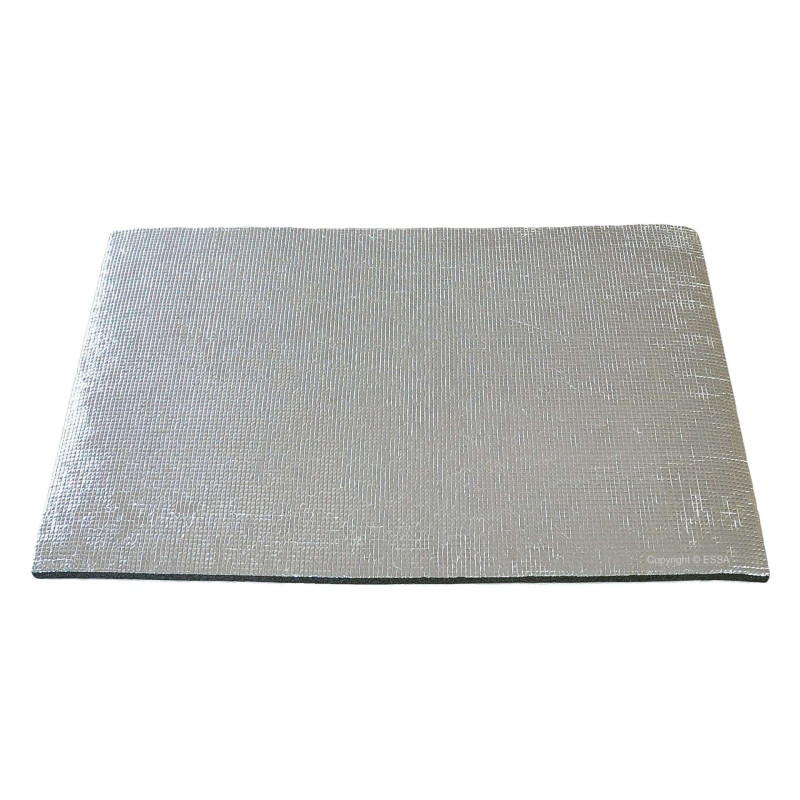

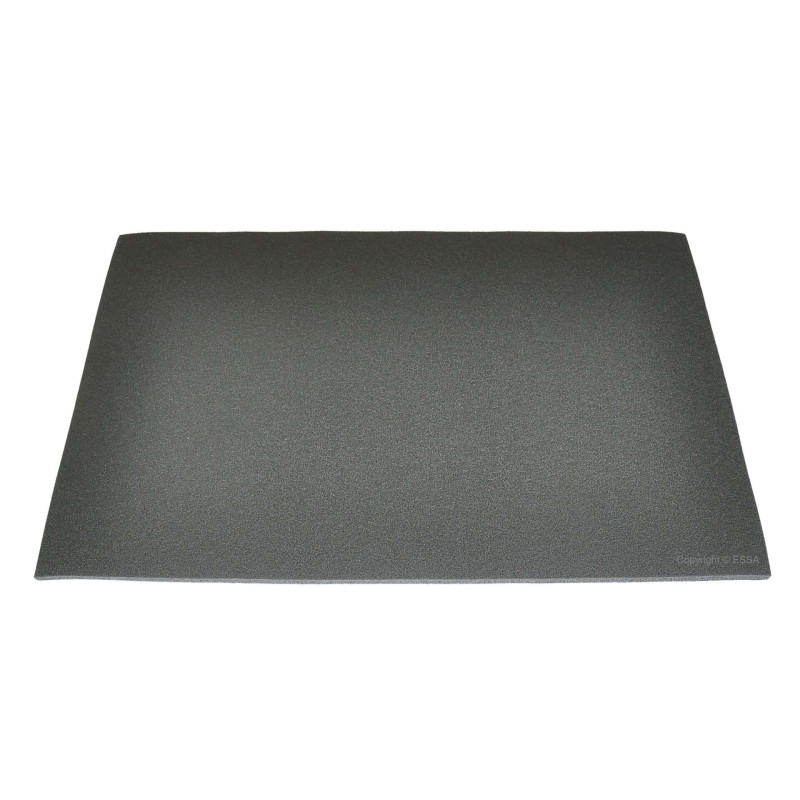

Vibrofiltr ECO 4 - self-adhesive thermo-acoustic mat 4 mm Vibrofilter ECO 4 This self-adhesive, very lightweight thermo-acoustic mat is made of foamed polyethylene. The material creates an effective thermal and acoustic barrier, helping to reduce noise and temperature transfer into the car interior. The mat has a closed-cell structure of varying sizes. This means it does not absorb moisture, is water and oil resistant, and also works well as a second layer of soundproofing after installing an aluminum-butyl mat. Lightweight acoustic and thermal insulation. The Vibrofiltr ECO 4 reduces road noise, wheel noise, mechanical sounds, and heat transfer. The material helps reduce cabin heat in the summer and slows down interior cooling in the winter. Its 4 mm thickness makes it suitable for applications where space is limited. It can be used under carpets, behind plastic panels, behind upholstery, and on many car body parts. Key advantages of the Vibrofiltr ECO 4

• self-adhesive thermo-acoustic mat, 4 mm thick,
• very light construction made of foamed polyethylene,
• closed cells of various sizes,
• good thermal insulation of the car cabin,
• effective reduction of road noise transmission,
• waterproof and oil-resistant material,
• does not absorb moisture,
• non-toxic and odorless product,
• easy installation on flat and slightly irregular surfaces,
• a good choice as a second layer for an aluminum-butyl mat,
• the price is for 1 sheet 50 x 75 cm.

In-Car Applications: Vibrofilter ECO 4 can be used inside a vehicle as a thin layer of noise and temperature insulation. The best results are achieved when installed on a previously bonded aluminum-butyl mat, which dampens vibrations and sheet metal resonances. This material is recommended for areas such as:

• inside of the door,
• trunk,
• roof,
• floor,
• wheel arches,
• fenders,
• trunk lid,
• surfaces under carpets,
• places behind plastic panels,
• body elements hidden behind the upholstery.

How to install the Vibrofilter ECO 4? Before installation, the surface should be dry, clean, and thoroughly degreased. The mat should be applied to body parts with flat or slightly irregular surfaces. Thanks to its flexible construction, the material easily adapts to many areas of the car. For best results, layer the mat. First, install the aluminum-butyl mat, which dampens sheet metal vibrations. Then, apply the Vibrofilter ECO 4 as a second layer, which insulates noise and temperature. Where space allows, two layers of 4 mm ECO foam can be used. This solution increases the effectiveness of acoustic and thermal insulation. Material Construction: The Vibrofilter ECO 4 is made of closed-cell expanded polyethylene. The material does not absorb moisture, making it suitable for under carpets and in areas exposed to periodic moisture. The mat is lightweight, odorless, non-toxic, and weather-resistant. It can be used in automotive applications, indoor spaces, and in the enclosures of industrial machinery and equipment. Technical Data

• Model: Vibrofilter ECO 4
• Material type: self-adhesive thermo-acoustic mat
• Thickness: 4.0 mm
• Base material: foamed polyethylene
• Structure: closed cells of various sizes
• Thermal conductivity: 0.036-0.40 W/m²
• Sheet dimensions: 500 x 750 mm
• Sheet area: 0.375 m²
• Sheet weight: 0.09 kg
• Surface weight: 0.25 kg/m²
• Bulk packaging: 30 sheets / 11.25 m²
• Recommended installation temperature: from +15°C to +30°C
• Operating temperature range: from -40°C to +80°C
• Resistance: water, oil, moisture and weather conditions
• Production: Ukraine
• Price applies to: 1 sheet 50 x 75 cm, i.e. 0.375 m²

Why choose Vibrofiltr ECO 4? Vibrofiltr ECO 4 is a good choice when you need a thin, lightweight, and affordable thermo-acoustic mat. The material helps reduce road noise, improves cabin thermal insulation, and resists moisture absorption. Combined with an aluminum-butyl mat, it creates an effective vehicle soundproofing system. The first layer dampens sheet metal vibrations, while Vibrofiltr ECO 4 isolates noise and temperature. It's a practical solution for doors, roof, floor, trunk, wheel arches, and under carpets.
