Ultrasonic blind spot assistant EPBS03

Ultrasonic blind spot assistant EPBS03

Ultrasonic blind spot assistant EPBS03 This practical system improves driving safety when changing lanes, overtaking, and navigating dense city traffic. This solution, known from premium cars, is now available in an affordable kit that can be retrofitted to many car models.

The EPBS03 system detects vehicles and other obstacles located in the so-called blind spot, i.e., the invisible zone in the side mirrors. This provides the driver with additional support in situations where it is easy to miss another car, motorcycle, or object next to the vehicle.

The sensors are mounted on the rear bumper sides. Separate sensors are responsible for the left and right sides, constantly monitoring the vehicle's surroundings. When the system detects a threat within range, 3 meters, starts LED warning light, which can be placed in any clearly visible place inside the vehicle. If the driver misses the warning and activates the turn signal, the system additionally activates sound signal.

A big advantage of the model EPBS03 are detachable sensors, which significantly simplify installation and subsequent servicing. If the sensor is damaged, for example after a minor collision, there is no need to disassemble the entire bumper. Simply replacing the sensor alone saves time and reduces repair costs.

The set is made of high-quality materials that ensure durability and reliability during everyday use. The sensor's design has been refined to ensure aesthetic installation and high operational efficiency. The angled interior of the collar allows for precise adjustment of the sensor's angle, and the thin collar, only 1/8" thick, allows for precise adjustment of the sensor's angle. 1.5 mm It doesn't stick out from the bumper. The inner housing of the transducer is made of aluminum, which further enhances the durability of the element.

The system also offers three-stage volume control warning signal:

• off,
• quiet,
• loud.

Installing the kit is simple and requires no specialized training. Additionally, the sensors can be painted any color, making them virtually invisible once installed and better matching the car's appearance.

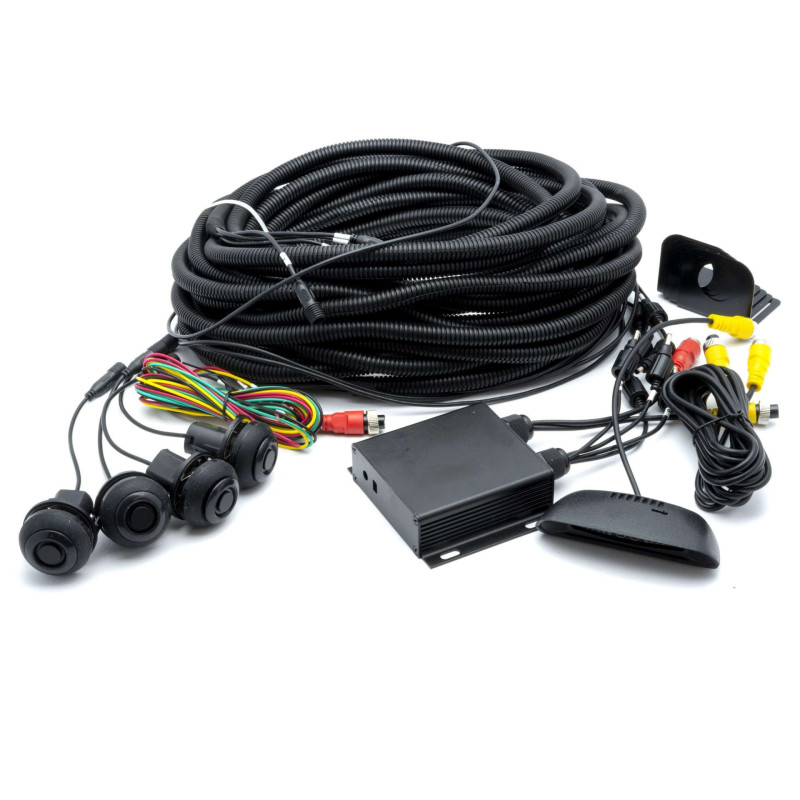

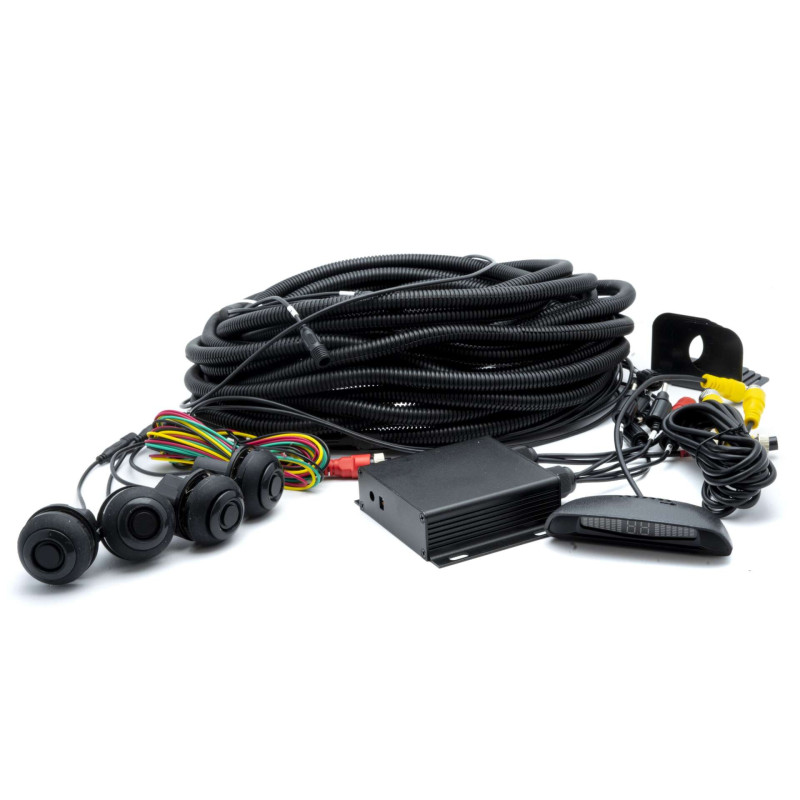

Kit contents

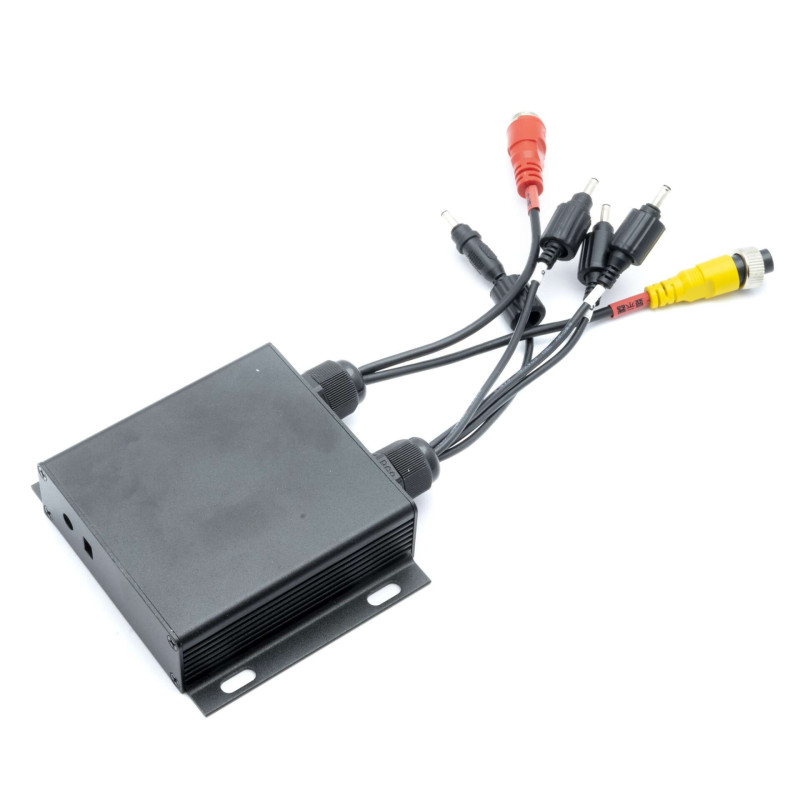

• blind spot assistant control unit,
• 2 ultrasonic sensors,
• 2 LED lights,
• buzzer,
• foraminifera,

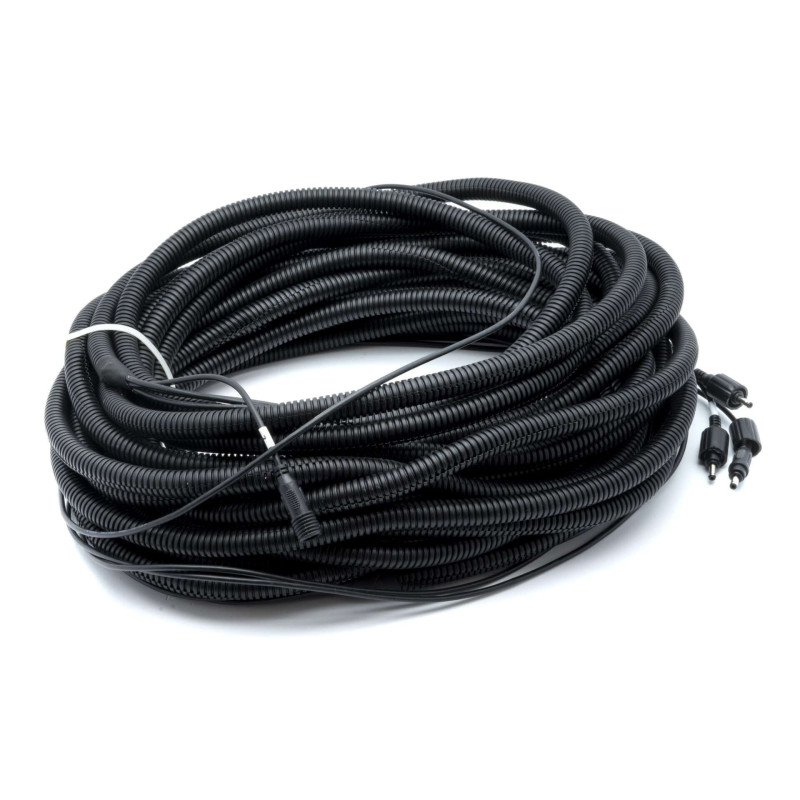

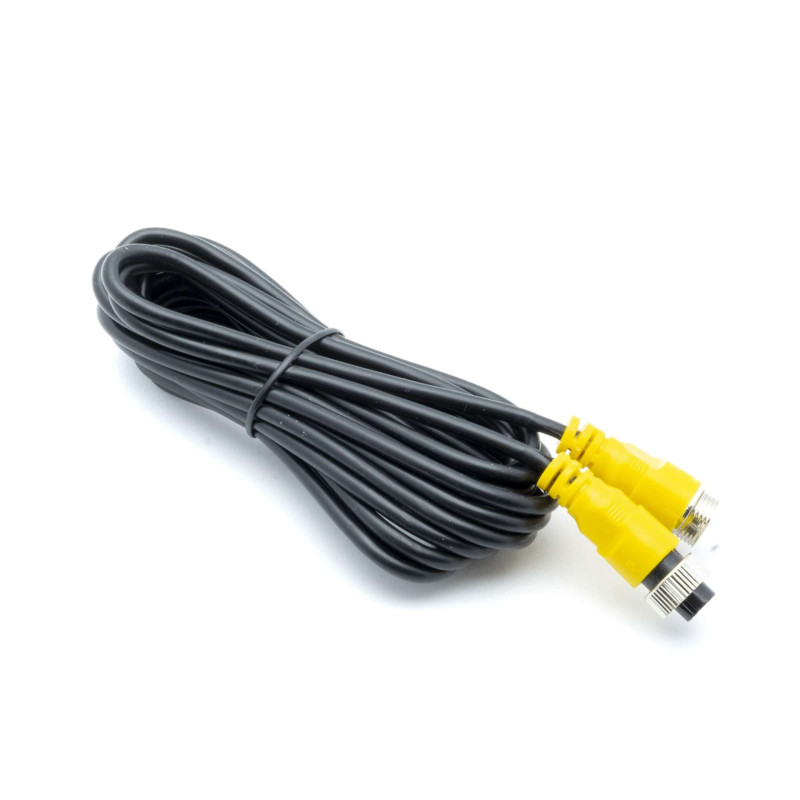

• wiring.

Technical specifications

Model: EPBS03
Power supply: 12V DC
Power consumption: > 4W
Operating temperature: from -30°C to +70°C
Obstacle detection range: 3 m
Number of sensors: 2
Sensor diameter: 22 mm

The most important advantages

• detecting obstacles in the blind spot,
• light and sound warnings,
• operating range up to 3 meters,
• detachable sensors
