CTK WaveFix PU 15 - premium soundproofing foam

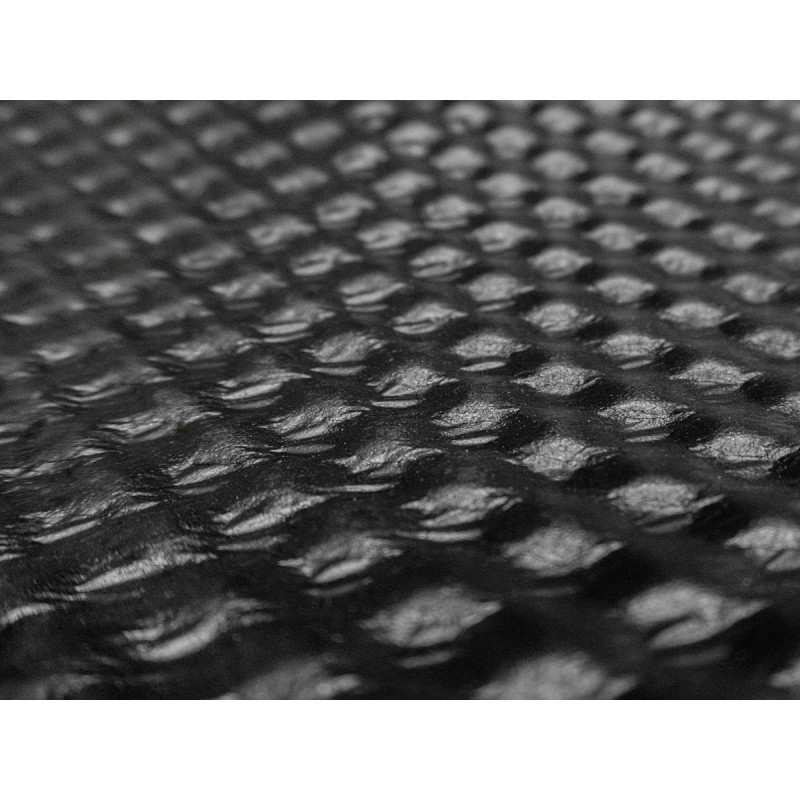

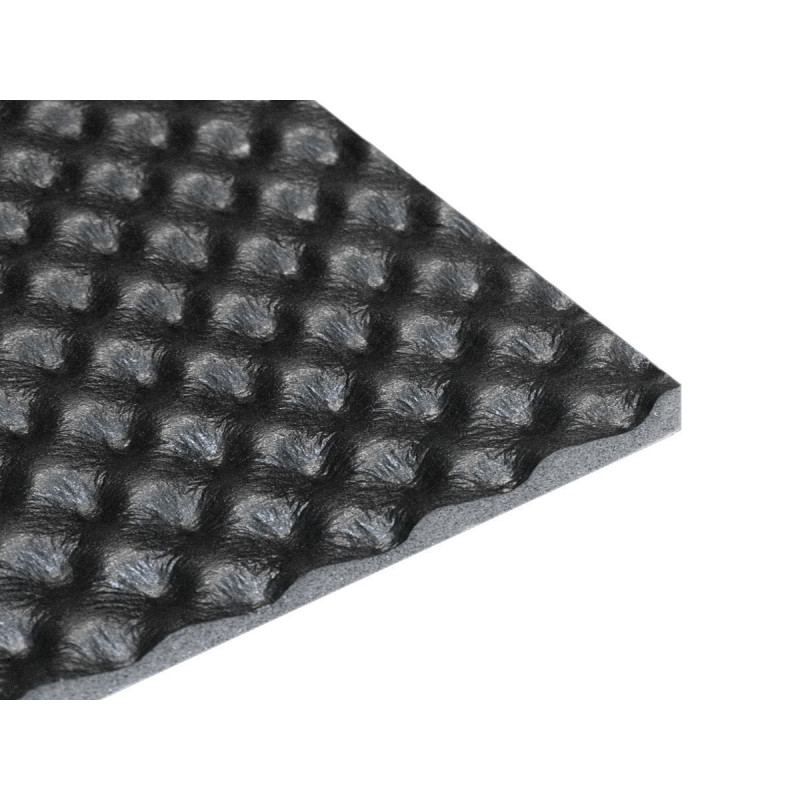

CTK WaveFix PU 15 - Premium self-adhesive sound-absorbing mat CTK WaveFix PU 15 This is an improved version of the WaveFix foam mat, designed for effective car interior soundproofing. The material absorbs and disperses noise very well in the mid- and high-frequency range, reducing hums, whistling, resonances, and sounds originating behind upholstery elements. The mat is made of specialized polyurethane with a shape memory effect. Additionally, it has a latex impregnation and an outer black polyurethane film, which improves acoustic properties and increases moisture resistance. This allows the CTK WaveFix PU 15 to act as both a sound-absorbing material and a partial noise-insulating material. The improved version of the WaveFix foam, the CTK WaveFix PU 15, has an 8/15 mm thick corrugated surface. The "wave" profiling increases the active volume of the sound-absorbing layer. As a result, the mat absorbs more sound than standard flat foams of similar thickness. The internal structure of the material consists of open and partially closed cells. The open cells absorb sound within the foam, while the outer polyurethane film acts as a thin acoustic membrane. It reflects some of the noise back towards the foam layer, where it is partially absorbed again. Shape memory effect. CTK WaveFix PU 15 foam slowly returns to its original shape when compressed. This allows it to effectively fill gaps and open spaces between body and upholstery elements. It does not excessively push out plastic panels, reducing the risk of them deforming or detaching from their mounts. The material can act as a soft, shock-absorbing spacer. It helps reduce cracks, creaks, and resonances in plastic interior components such as door panels, pillars, headliner, cockpit, center tunnel console, and trunk components. Key benefits of CTK WaveFix PU 15

• improved premium sound-absorbing mat,
• self-adhesive layer for easy installation,
• corrugated polyurethane foam 8/15 mm,
• very good noise absorption in medium and high frequencies,
• external polyurethane foil resistant to moisture,
• latex impregnation protecting the material against aging,
• shape memory effect and slow expansion after compression,
• reduction of noise, whistling, crackling and upholstery resonances,
• easy adjustment to flat and irregular surfaces,
• non-toxic, odorless and safe for health,
• sale per single sheet 50 x 40 cm.

In-Car Applications: CTK WaveFix PU 15 is designed for installation inside the vehicle cabin. It works best between panels and upholstery elements, where sound absorption and reduction of plastic part resonance are needed. The material can be used on, among other things:

• the back side of the door panels,
• A, B and C pillar covers,
• roof behind the headliner,
• engine bulkhead on the cabin side,
• rear inner wheel arches,
• trunk sides,
• rear fender area,
• spaces behind the upholstery panels.

How to install CTK WaveFix PU 15? For the most effective sound insulation on metal bodywork components, the CTK WaveFix PU 15 mat is best installed as the final acoustic layer. First, apply an aluminum-butyl mat, which dampens sheet metal vibrations. Then, add thermo-acoustic foam, and finally, adhere WaveFix PU 15 as a noise-absorbing layer. Before installation, the surface should be dry, clean, and degreased. The mat is self-adhesive, making its application quick and easy. The material can be easily cut to the desired shape. Technical Data

• Producer: CTK
• Model: WaveFix PU 15
• Material type: Premium self-adhesive sound-absorbing mat
• Thickness: wave 8/15 mm
• Base material: specialized polyurethane impregnated with latex preparation
• Outer shell: black, moisture-resistant polyurethane foil
• Structure: open and partially closed cells
• Sheet dimensions: 500 x 400 mm
• Sheet area: 0.20 m²
• Sheet weight: 0.17 kg
• Surface weight: 0.85 kg/m²
• Bulk packaging: 10 sheets / 2.0 m²
• Recommended installation temperature: from +10°C to +40°C
• Operating temperature range: from -40°C to +100°C
• Installation: places not exposed to strong direct water impact
• Price applies to: 1 sheet 50 x 40 cm

Why choose CTK WaveFix PU 15? CTK WaveFix PU 15 is a very good choice for professional interior soundproofing.
