Ctk wavefix 35 - premium soundproofing foam

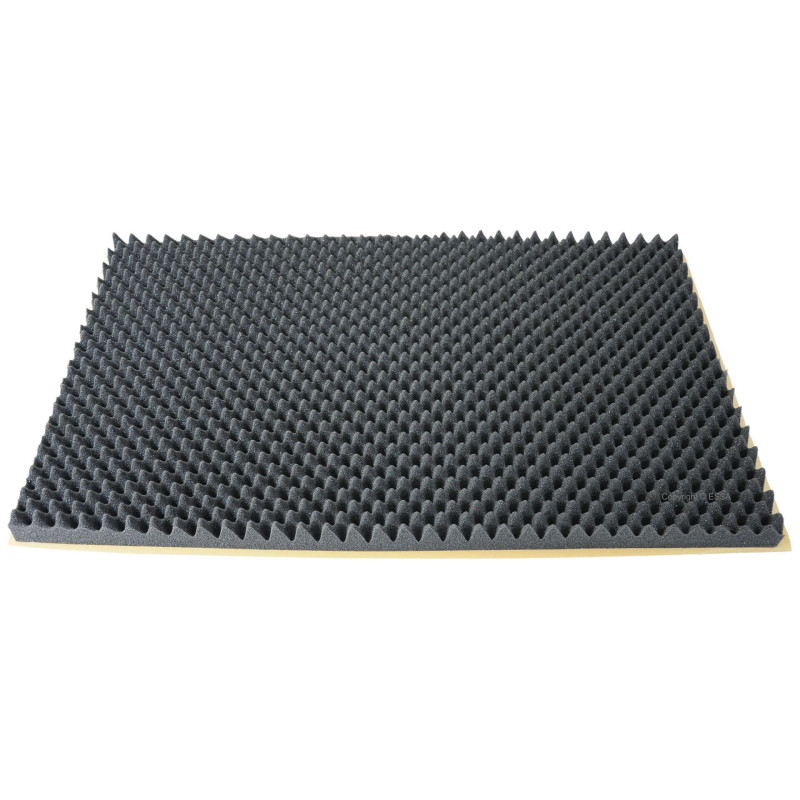

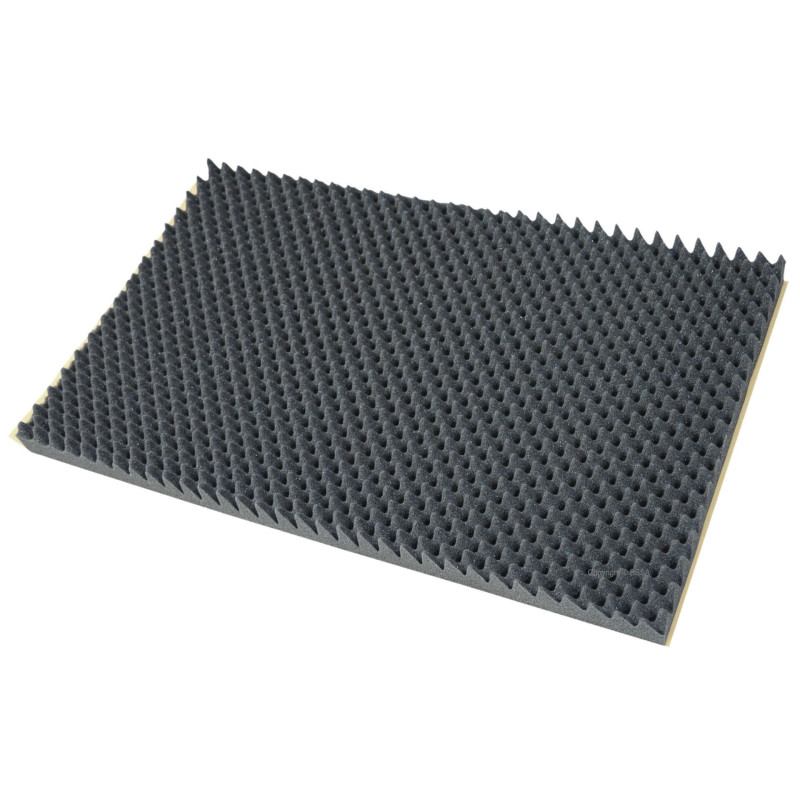

CTK WaveFix 35 - Premium sound-absorbing mat CTK WaveFix 35 This premium, self-adhesive sound-absorbing mat is designed to effectively soundproof car interiors. The material effectively absorbs noise in the mid- and high-frequency range, helping to reduce hums, whistling, resonances, and sounds originating behind upholstery elements. The mat is made of specialized polyurethane with a shape memory effect. The material has a porous structure with a combination of open and partially closed cells. This allows the CTK WaveFix 35 to act as both a sound absorber and a partial noise and heat insulator. Effective noise absorption: The CTK WaveFix 35 has a 15/35 mm thick corrugated surface. The "wave" profiling increases the active sound-absorbing surface. This allows the mat to absorb more sound than standard flat-surface materials. The material achieves its best effectiveness above 500 Hz. However, noise reduction begins at around 100 Hz. This means the foam performs well at dampening road noise, whistling sounds, the resonance of plastic panels, and sounds coming from behind the upholstery. Shape memory effect: CTK WaveFix 35 foam slowly returns to its original shape after compression. This allows it to thoroughly fill gaps and open spaces between bodywork and upholstery components. It doesn't force the plastic panels too much, reducing the risk of them deforming or slipping out of their latches. The material also acts as a soft, shock-absorbing spacer. It helps reduce cracks, creaks, and resonances from interior components such as door panels, headliner, pillars, dashboard, center tunnel console, and tailgate trim. Key benefits of CTK WaveFix 35

• Premium self-adhesive sound-absorbing mat,
• very high sound absorption - up to 90%,
• effective noise reduction in the medium and high frequency band,
• operation from about 100 Hz,
• wavy surface that increases sound absorption efficiency,
• polyurethane with shape memory effect,
• reduction of noise, whistling, crackling and upholstery resonances,
• easy installation on flat and irregular surfaces,
• resistance to air moisture and UV radiation,
• non-toxic, odorless and safe for health,
• sale per single sheet 50 x 40 cm.

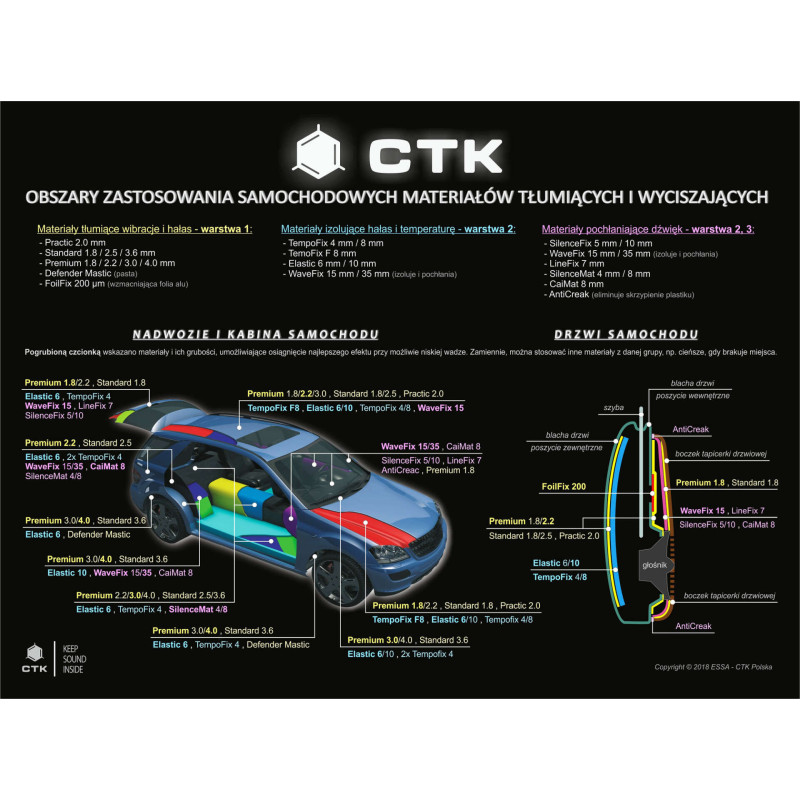

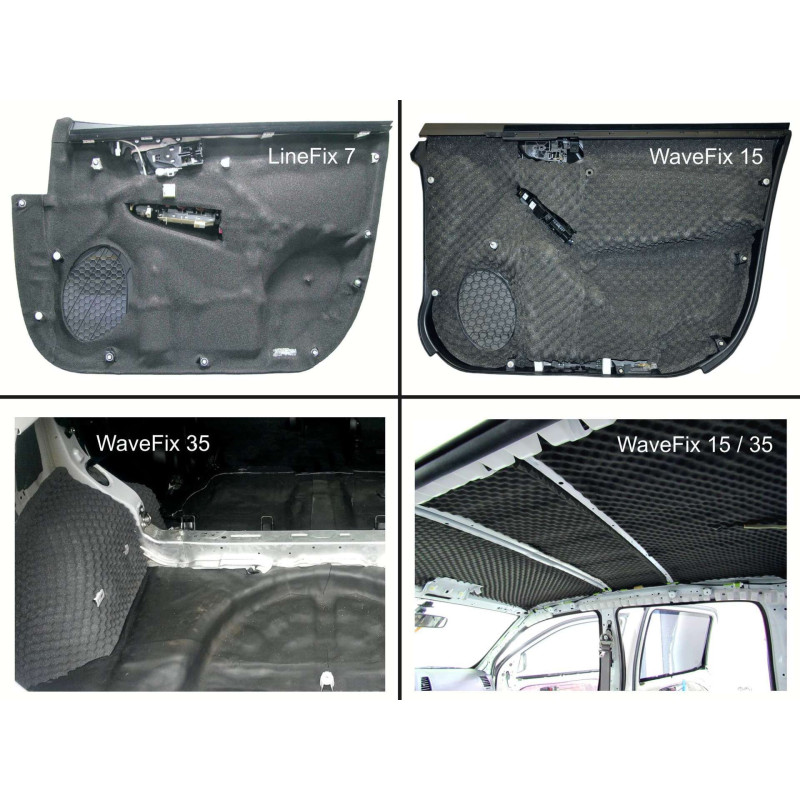

In-car use: The CTK WaveFix 35 is designed for installation in dry areas inside the vehicle cabin. It works best behind plastic panels, upholstery, headliners, dashboards, and in the trunk. The material can be used on, among other things:

• the back side of the door panels,
• A, B and C pillar covers,
• roof behind the headliner,
• dashboard elements,
• center tunnel console,
• engine bulkhead on the cabin side,
• rear inner wheel arches,
• trunk sides,
• rear fender area,
• trunk lid upholstery.

How to install CTK WaveFix 35? When installing on metal body parts, CTK WaveFix 35 is best used as the final acoustic layer. First, use an aluminum-butyl mat, which dampens vibrations and resonances from the sheet metal. Then, apply thermo-acoustic foam, and finally, adhere CTK WaveFix 35 as a sound-absorbing layer. Before installation, the surface should be dry, clean, and degreased. The mat is self-adhesive, making application quick and easy. The material can be easily cut to the shape of the selected element. This is not an ordinary acoustic sponge. CTK WaveFix 35 is not a standard, low-density, low-efficiency technical sponge. It is a specialized sound-absorbing mat designed for professional vehicle soundproofing. Its structure, impregnation, and profiled surface are designed to effectively reduce noise in the vehicle interior. Technical data

• Producer: CTK
• Model: WaveFix 35
• Material type: Premium self-adhesive sound-absorbing mat
• Thickness: wave 15/35 mm
• Base material: specialized polyurethane with shape memory effect
• Structure: open and partially closed cells
• Sound absorption level: up to 90%
• Most effective action: above 500 Hz
• Noise reduction starts: from about 100 Hz
• Sheet dimensions: 500 x 400 mm
• Sheet area: 0.20 m²
• Sheet weight: 0.27 kg
• Surface weight: 1.35 kg/m²
• Bulk packaging: 5 sheets / 1.00 m²
• Recommended installation temperature: from +10°C to +3
