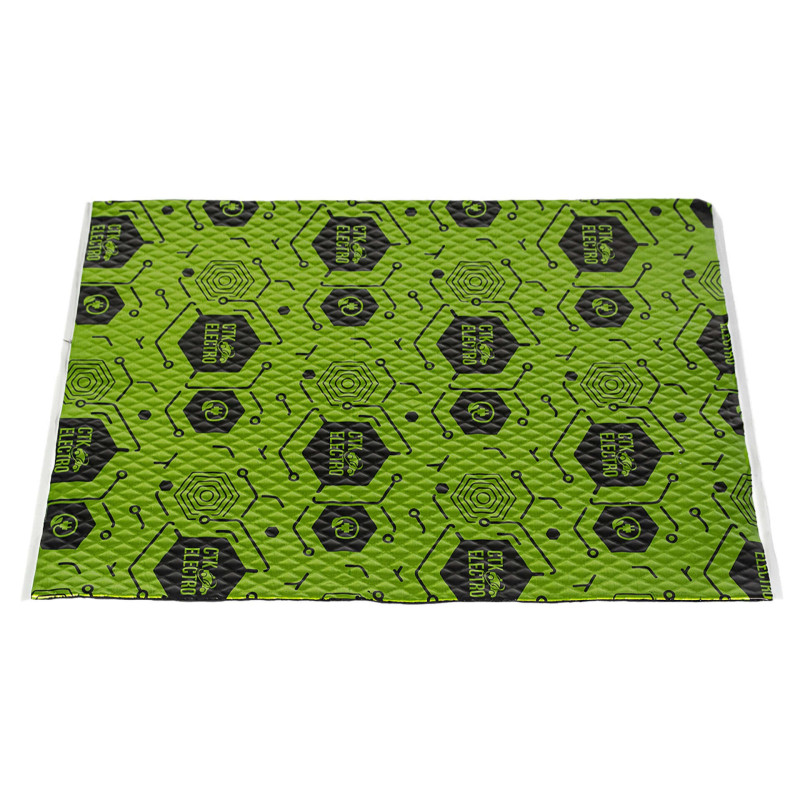

CTK Electro 2.0 Box - lightweight damping mat 16 pcs / 3 m2

CTK Electro 2.0 Box - lightweight anti-vibration mats for electric cars 2 mm / 16 sheets CTK Electro 2.0 Box This is a high-quality, lightweight anti-vibration mat designed to effectively dampen vibrations, noise, and acoustic resonances in electric and hybrid cars, as well as any vehicle where the low weight of additional soundproofing materials is important. The package includes: 16 sheets measuring 370 × 500 mm, which gives a total area 2.96 m² The material is made from an innovative composite of high-quality butyl rubber, specialized polymers, and a 100 µm-thick aluminum foil. This allows the CTK Electro 2.0 to combine excellent damping performance with low weight, high flexibility, and easy installation. A lightweight mat for electric and hybrid cars. Reducing additional weight is particularly important in electric and hybrid cars. The CTK Electro 2.0 was designed with these applications in mind. The mat effectively dampens vibrations from bodywork components, while remaining lighter than many classic butyl mats with similar performance. The material's surface weight is only 2.81 kg/m², therefore CTK Electro 2.0 is a good choice for comprehensive car soundproofing, where both the acoustic effect and the lowest possible weight of the entire installation are important. Effective vibration damping - MLF = 0.38 CTK Electro 2.0 has a mechanical loss factor MLF = 0.38, which determines the material's ability to absorb vibration energy. The higher the MLF value, the more effectively the mat reduces vibrations and bodywork resonances. Thanks to the combination of a lightweight butyl-polymer composite with a 100 µm aluminum foil, the mat performs well on doors, roof, floors, trunks, wheel arches, fenders, hoods, trunk lids, plastics, and upholstery elements. High adhesion and easy installation. CTK Electro mats are self-adhesive, flexible, and easy to apply. The material adapts well to both flat and profiled surfaces. It does not require heating during standard installation, and the highest comfort of work is achieved at ambient temperatures above +10°C. The butyl layer has self-vulcanizing properties. This means that after several or several dozen hours after installation, the material's adhesion to the substrate further increases, creating a stable and durable bond. Key advantages of the CTK Electro 2.0 Box

• lightweight premium anti-vibration mat,
• designed for electric and hybrid cars,
• effective damping of vibrations, noise and resonances,
• total thickness 2.0 mm,
• 100 µm thick aluminum foil,
• vibration damping factor MLF = 0.38,
• low surface weight of 2.81 kg/m²,
• high initial adhesion to the substrate,
• even stronger bond after the self-vulcanization period,
• flexible structure for easy assembly,
• does not require heating,
• waterproof and anti-corrosion,
• without bitumen, tar and asphalt,
• non-toxic and odorless,
• suitable for automotive and indoor use.

In-car useCTK Electro 2.0 Box can be used on, among others:

• door,
• roof,
• trunk,
• floor,
• outer wheel arches,
• inner wheel arches,
• fenders,
• engine hood,
• trunk lid,
• plastic interior elements,
• upholstery elements,
• surfaces susceptible to resonance.

This product also works very well for installing car audio systems. Soundproofing doors with CTK Electro 2.0 mat helps reduce sheet metal vibrations, improve the stability of the mounting surface, and achieve better speaker performance. Installation: Before installation, the surface should be dry, clean, and very well degreased. Cut the sheet to the desired shape, peel off the adhesive backing, and adhere the mat to the prepared surface. After applying, press the material firmly against the entire surface, preferably using a roller. The mat should adhere completely to the surface without air bubbles. The most comfortable installation is achieved at temperatures above +10°C. Basic parameters

• Product: lightweight self-adhesive anti-vibration mat
• Model: CTK Electro 2.0 Box
• Total thickness: 2.0 mm +/- 0.2 mm
• Aluminum foil thickness: 0.1 mm / 100 µm

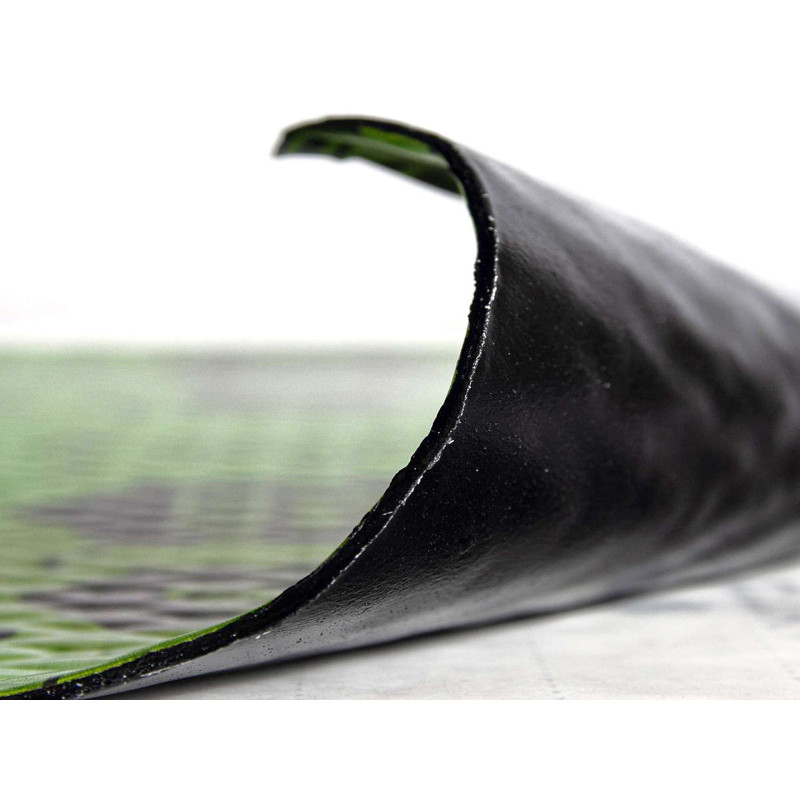

• Material: composite of butyl rubber, specialized polymers and aluminum
• Mechanical loss factor MLF: 0.38

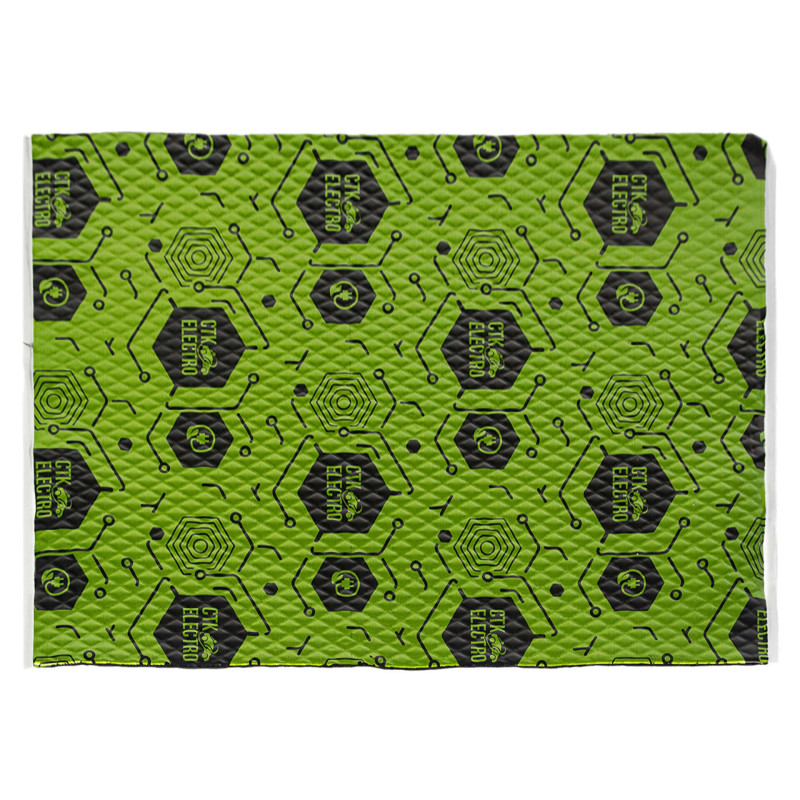

• Dimensions of 1 sheet: 370 × 500 mm
• Area of 1 sheet: 0.185 m²
• Quantity per package: 16 sheets
• Total packaging area: 2.96 m²
• Net weight of the package: 8.32 kg
• Surface weight: 2.81 kg/m²
• Recommended installation temperature: from +10°
