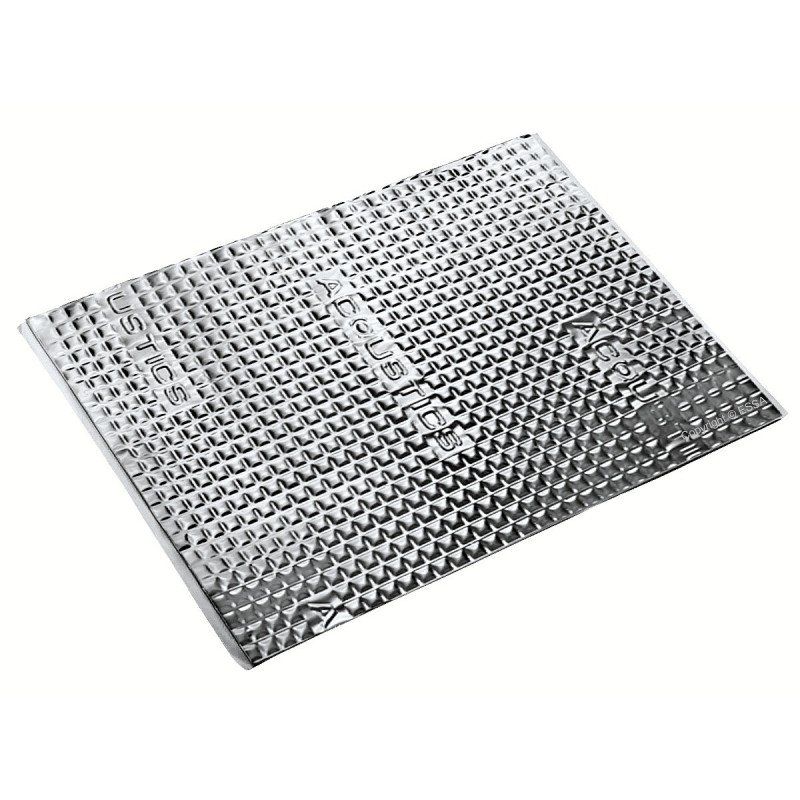

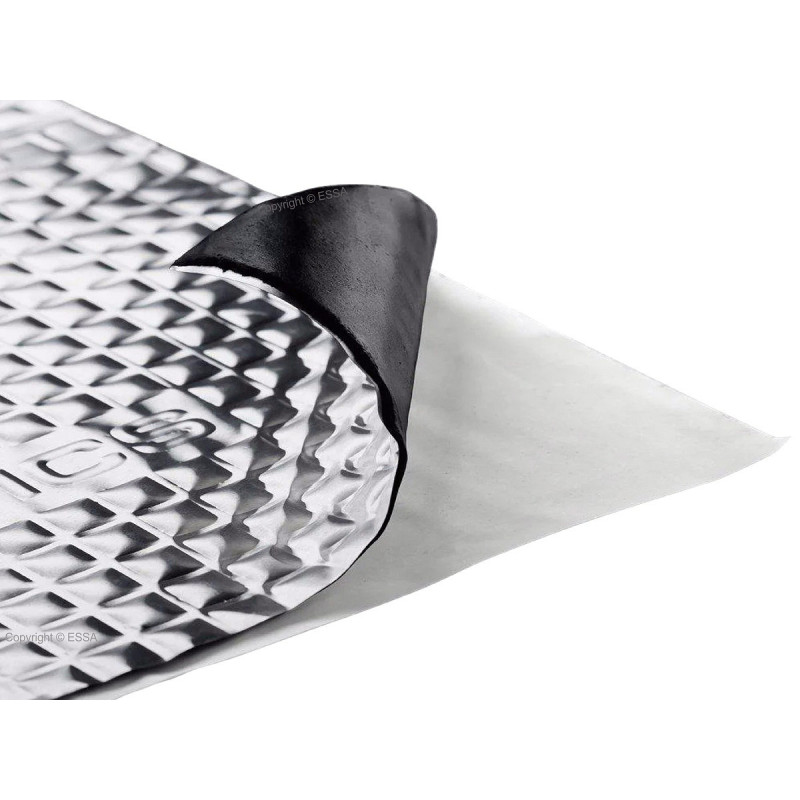

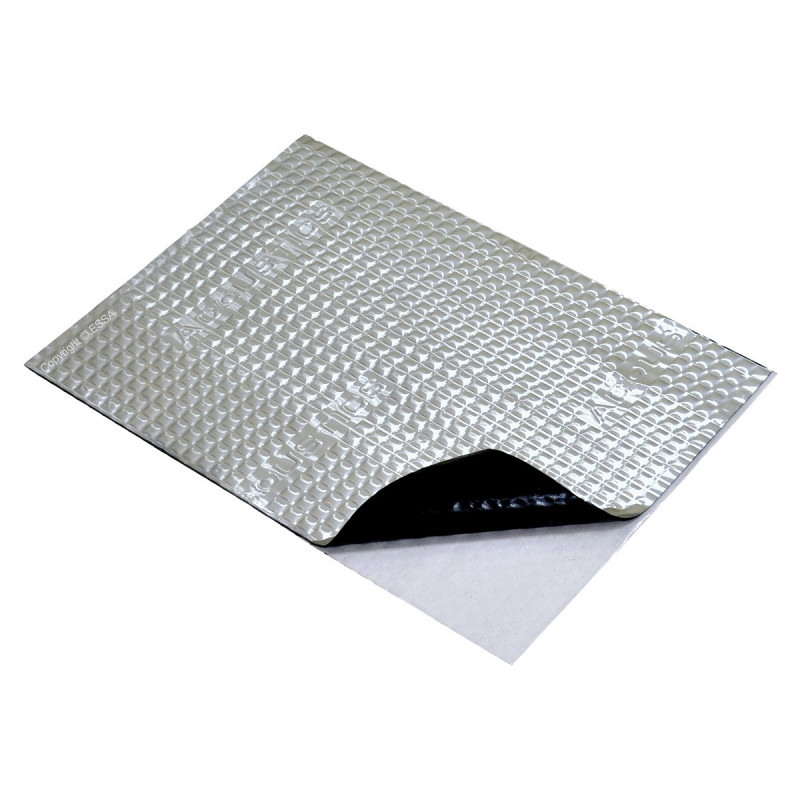

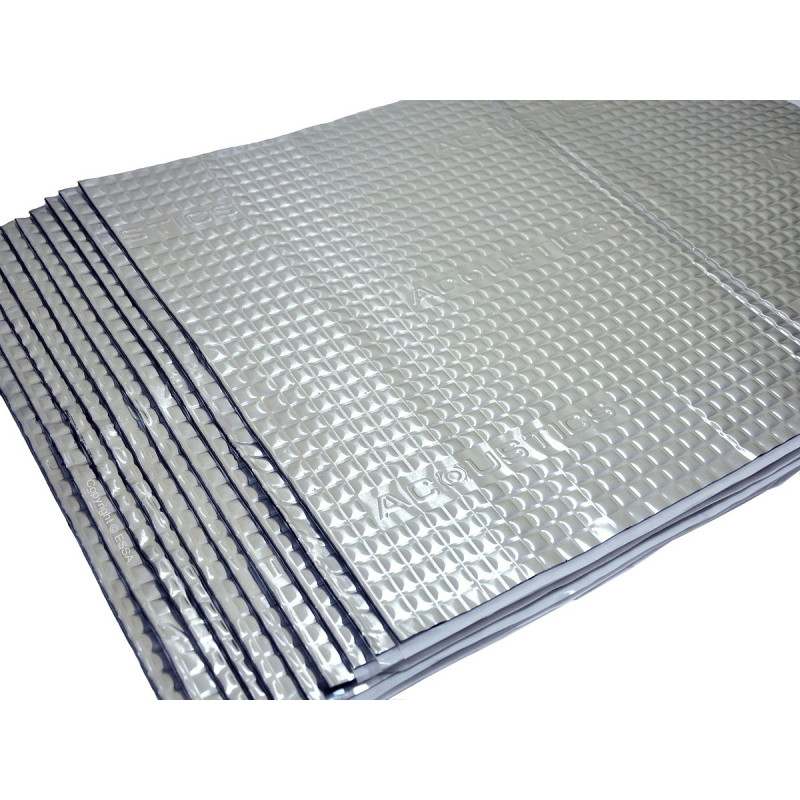

Ctk acoustics 1.6 box - damping mat 17 pcs / 3.15 m2

CTK Acoustics 1.6 Box - economical aluminum-butyl mats 1.6 mm / 17 sheets CTK Acoustics 1.6 Box This is a set of high-quality, highly flexible, self-adhesive, economy-class aluminum-butyl mats designed for basic vibration and acoustic resonance damping. This product is suitable for soundproofing car body parts, upholstery, yachts, machinery, industrial equipment, computer cases, consumer electronics, and household appliances. The package contains: 17 sheets measuring 370 × 500 mm, which gives a total area 3,145 m² The mat is thick 1.6 mm and the outer aluminum layer has a thickness 60 µm The CTK Acoustics 1.6 Box is a good choice for affordable, basic soundproofing of a larger vehicle surface. The economical CTK Acoustics 1.6 Box is designed for those looking for basic soundproofing at a reasonable price. This 17-sheet set allows for soundproofing a larger area than individual mats, making it ideal for work on doors, trunk, roof, tailgate, engine cover, or upholstery. The material reduces sheet metal and plastic resonances, reduces vibrations in thin body parts, and helps improve acoustic comfort in the vehicle interior. This economical solution is best suited for less advanced soundproofing jobs and for restoring factory sound insulation. The CTK Acoustics Universal Aluminum-Butyl Mat is a two-layer anti-vibration material. The damping layer is made of butyl rubber, while the external embossed aluminum foil mechanically strengthens the mat and protects the butyl layer. The aluminum foil has a thickness of 60 µm Improves material stiffness and supports vibration damping. Thanks to its flexible structure, the mat adapts well to flat, slightly contoured, and more complex surfaces. Basic vibration and resonance reduction. Mechanical loss factor. MLF = 0.21 indicates basic vibration dampening effectiveness. The mat helps reduce resonances between bodywork, upholstery, and plastic components, as well as reduce noise transmitted through selected body parts. The CTK Acoustics 1.6 Box is a good choice when simple and inexpensive soundproofing of specific car components is needed. If the goal is maximum soundproofing, professional car audio installation, or high performance with the lowest possible weight, it's worth considering more advanced CTK professional or premium mats. Car Applications: The CTK Acoustics 1.6 Box can be used on, among other things:

• car doors,
• roof,
• sides and fenders in the trunk,
• trunk lid,
• engine cover,
• plastic interior elements,
• upholstery elements,
• surfaces susceptible to resonance,
• places after sheet metal repairs requiring additional insulation.

The mat can be used as a first layer of soundproofing, reducing vibrations in sheet metal or plastic components. In simple installations, it improves ride comfort and reduces unwanted resonances. Applications Outside the Automotive Industry: The CTK Acoustics 1.6 Box can also be used outside the car. The mats are suitable for soundproofing:

• yachts and boats,
• machines,
• aggregates,
• industrial equipment,
• computer cases,
• air conditioning devices,
• TV and radio equipment,
• household appliances,
• metal sinks,
• shower trays,
• bathtubs.

Thanks to its waterproof and sealing properties, the material can be used in many places where thin metal or plastic surfaces vibrate. CTK Acoustics 1.6 Box in car audio. CTK Acoustics 1.6 mats can be used in less advanced car audio installations. They are effective when the goal is to improve overall cabin acoustics, reduce door resonances, or reduce upholstery vibrations. Soundproofing doors with aluminum-butyl mats helps reduce sheet metal vibrations and improve the stability of the surface around the speakers. However, it should be remembered that CTK Acoustics 1.6 is an economical material. For more demanding audio systems, it is better to choose mats with a higher MLF, thicker aluminum foil, or a better efficiency-to-weight ratio. Key advantages of the CTK Acoustics 1.6 Box

• a set of 17 economy-class aluminum-butyl mats,
• total packaging area 3,145 m²,
• good price-quality ratio,
• total thickness 1.6 mm,
• 60 µm thick aluminum foil,
• vibration damping factor MLF = 0.21,
• flexible and easy to install,
• self-adhesive layer based on butyl rubber,
• reduces vibrations and resonances of body parts,
• works well on doors, roof,
