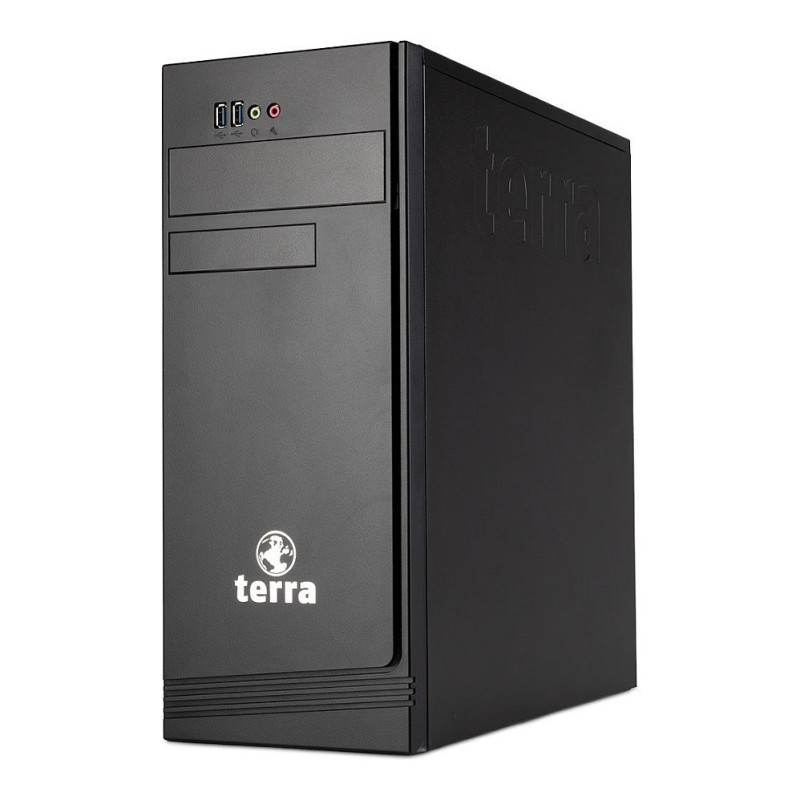

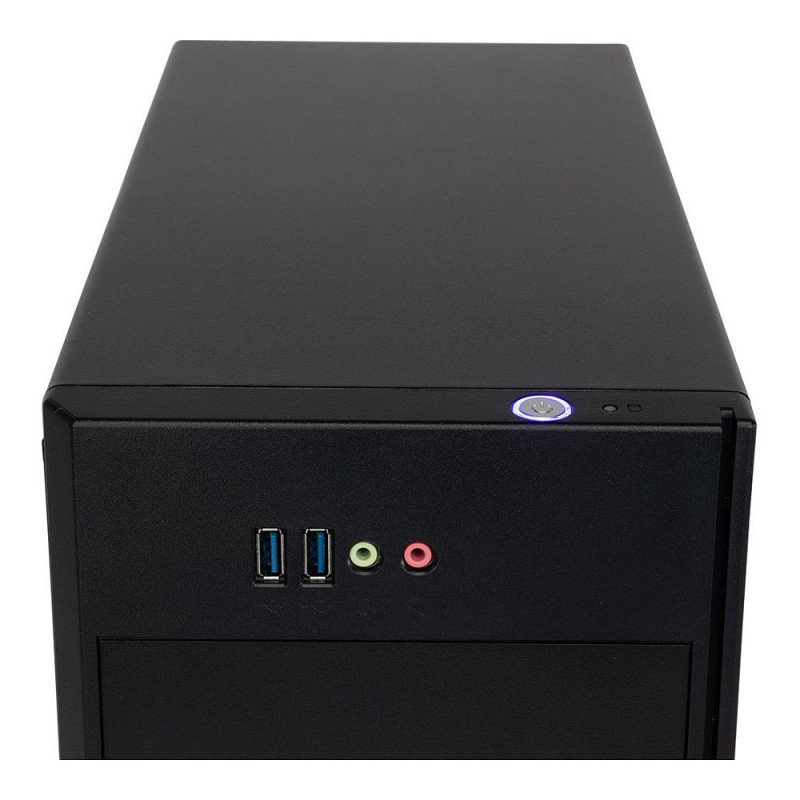

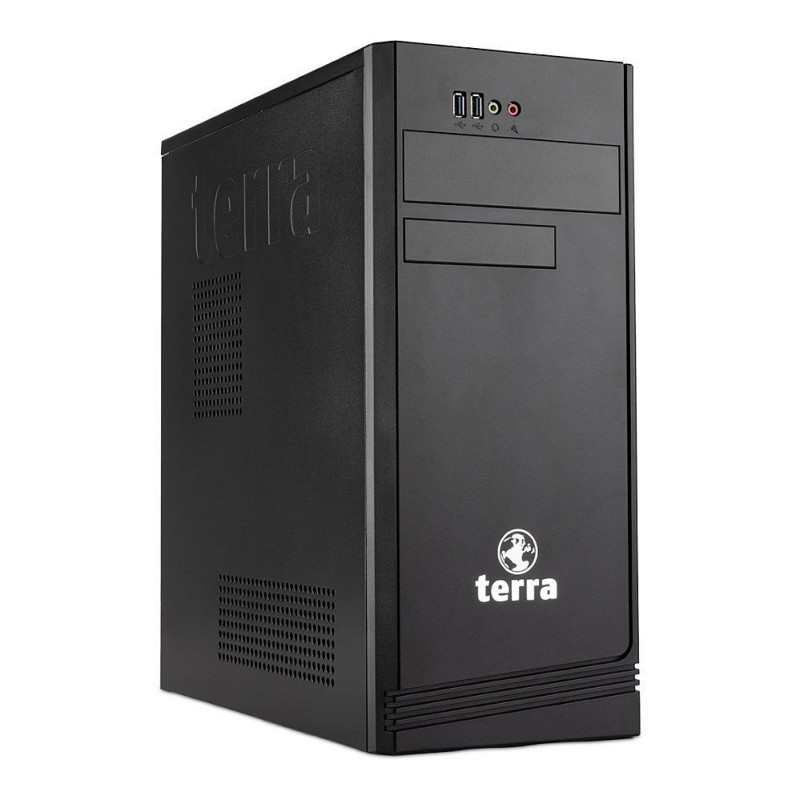

TERRA PC-BUSINESS 7000

TERRA PC-BUSINESS 7000. Processor frequency: 4.2 GHz, Processor family: AMD Ryzen™ 7, Processor model: 8700G. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 780M. Operating system installed: Windows 11 Pro. Power supply: 400 W. Chassis type: Midi Tower. Product type: PC. Weight: 8 kg. Product colour: Black

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor generation: AMD Ryzen 8000 Series
Processor model: 8700G
Processor cores: 8
Processor threads: 16
Processor boost frequency: 5.1 GHz
Processor frequency: 4.2 GHz
Processor cache: 16 MB
Processor cache type: L2 & L3
Number of processors installed: 1
Processor socket: Socket AM5
Processor base power: 65 W

Neural processor unit (NPU)

Neural processor unit (NPU): AMD Ryzen AI
NPU performance up to: 16 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 96 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x DIMM
Memory clock speed: 4800 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives supported: 6
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Feature: RAID support
RAID levels: 1, 0, 10

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 780M
Number of external displays supported: 4
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 1
Graphics card DVI-D ports quantity: 1
Graphics card VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: DVI port
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
PS/2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Number of rear USB ports: 6
Number of front USB ports: 2
Number of front audio ports: 2

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1

Design

Chassis type: Midi Tower
Product colour: Black
Cooling type: Active

Performance

Market positioning: Business
Motherboard chipset: AMD A620
Audio output channels: 8.0 channels
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Sound pressure level: 24 dB

Software

Operating system installed: Windows 11 Pro
Compatible operating systems: Windows 10, Windows 11
Bundled software: 1 Monat Testversion für neue Microsoft 365 Kunden

Power

Power supply: 400 W
Power supply input voltage: 230 V
Power supply input frequency: 50 Hz
Power consumption (typical): 26 W
Power consumption (standby): 1.5 W
80 PLUS certification: 80 PLUS Bronze

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Weight & dimensions

Width: 180 mm
Depth: 420 mm
Height: 435 mm
Weight: 8 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Cables included: AC
Feature: Manual

Keyboard

Keyboard connectivity: Wired
Keyboard language: German

Audio

Audio system: High Definition Audio

Other features

Motherboard manufacturer: ASUS Pro A620M-C-CSM 24-7 ready
Expansion slots: 1x PCIe 4.0 x16¦ 2x PCI 3.0 x1¦ 1x PCI
Storage options: 2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports ¦ Supports SATA & PCIe Raid 0/1/10
Resolution description: DisplayPort 1.2 max. 4096 x 2304@60Hz ¦ HDMI 2.1 max. 4096 x 2160@60Hz ¦ D-Sub (VGA) max. 1920 x 1200@60Hz
Locale: German
Power consumption (off): 0.25 W
