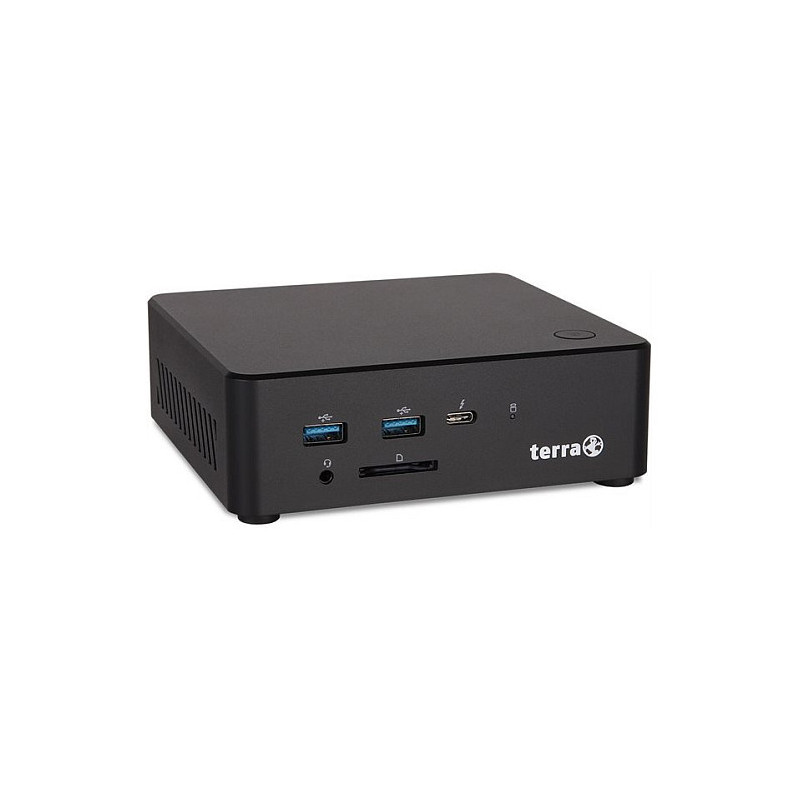

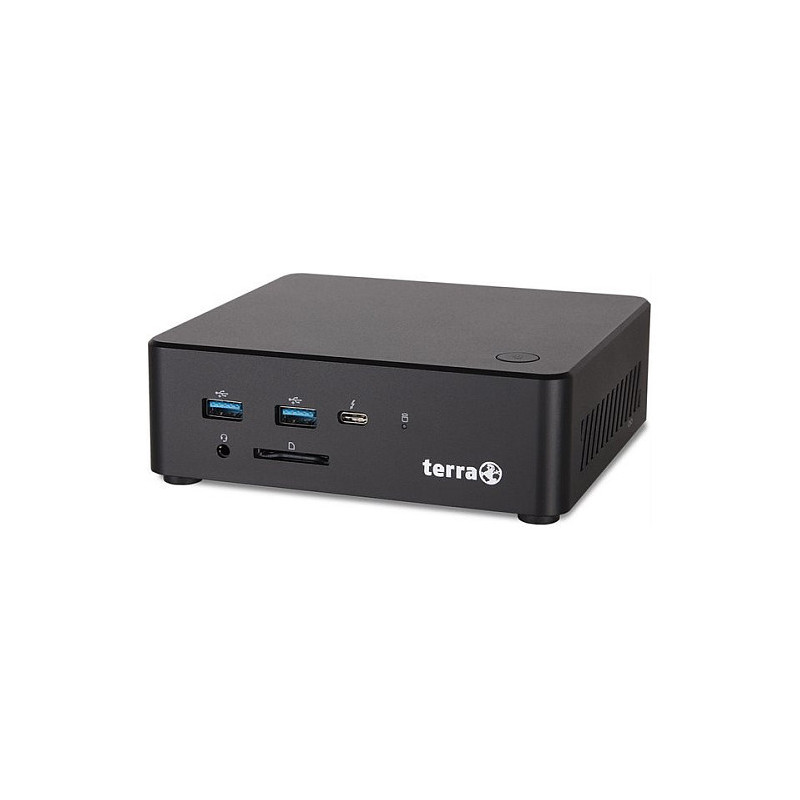

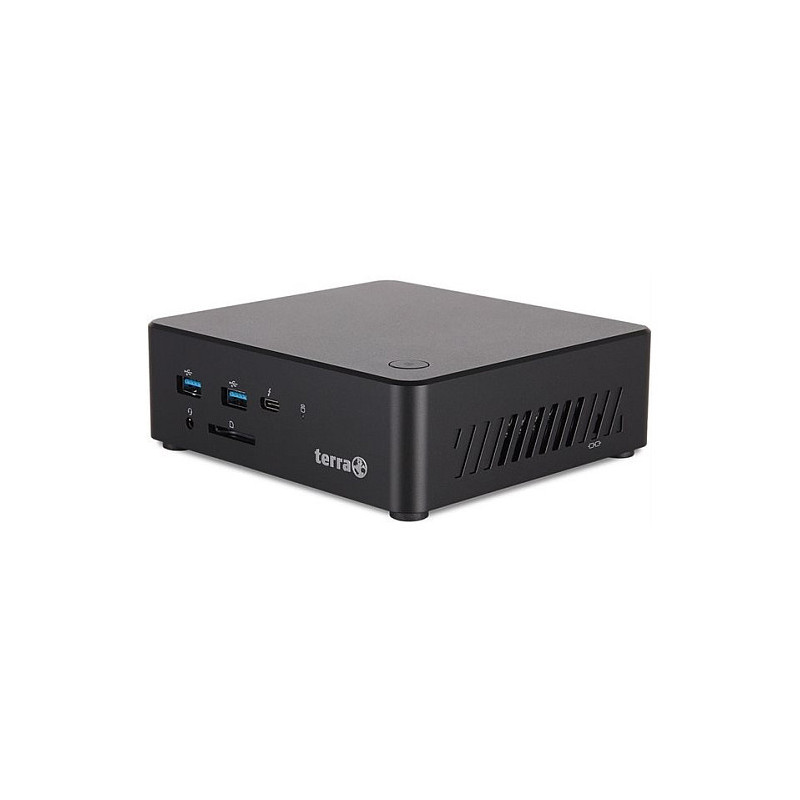

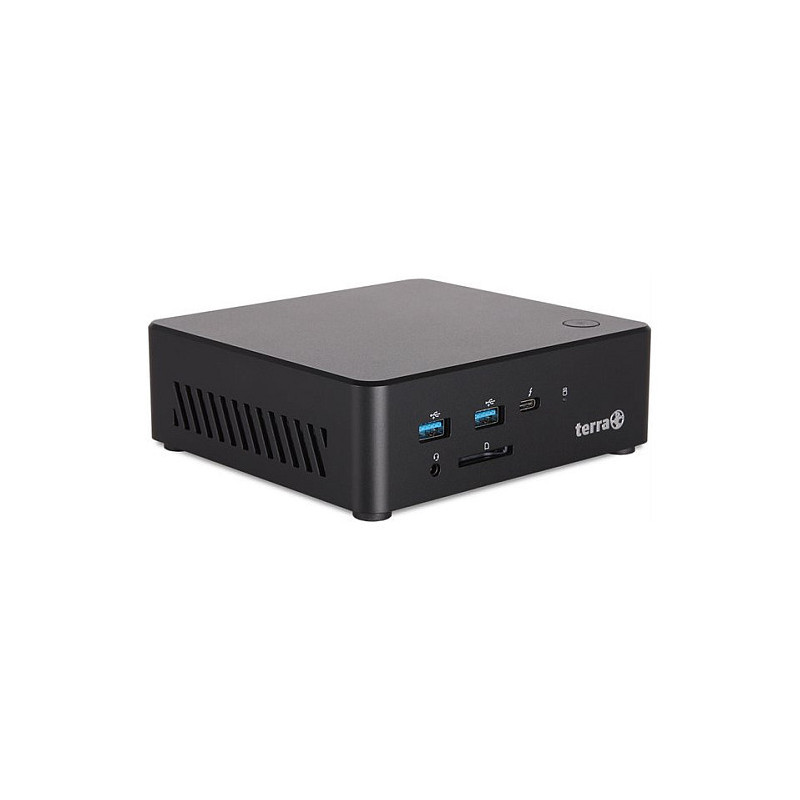

TERRA Micro 7000C GREENLINE

TERRA Micro 7000C GREENLINE. Processor family: Intel® Core™ i7, Processor model: i7-1355U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 500 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Micro PC. Product type: Mini PC. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 13th gen Intel® Core™ i7
Processor model: i7-1355U
Processor cores: 10
Processor threads: 12
Processor boost frequency: 5 GHz
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 55 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Feature: Card reader integrated

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card model: Intel Iris Xe Graphics

Performance

Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
LAN controller: Realtek RTL8111H, Realtek RTL8125-BG
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.2

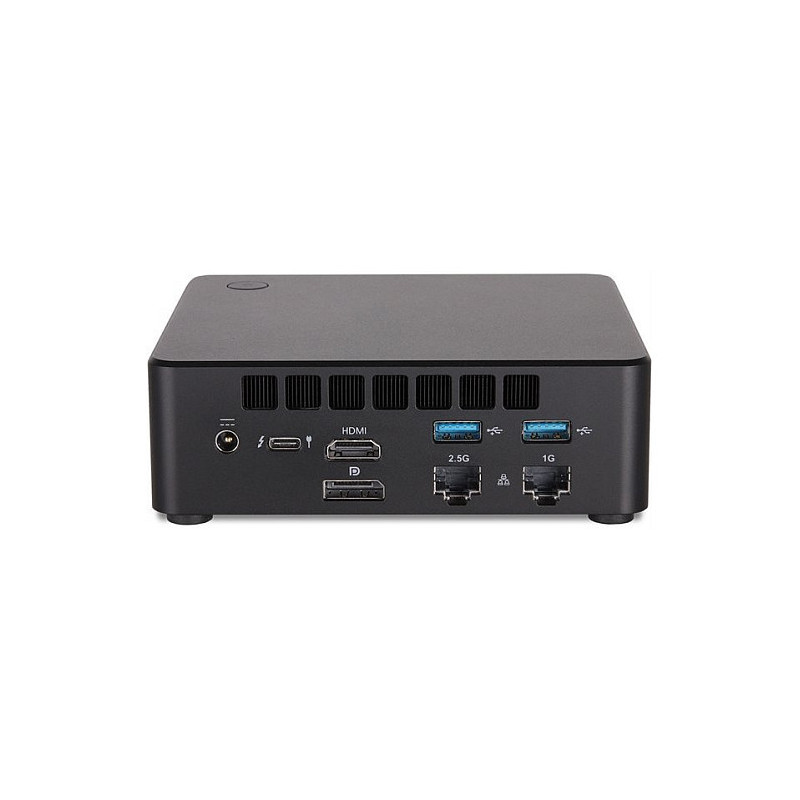

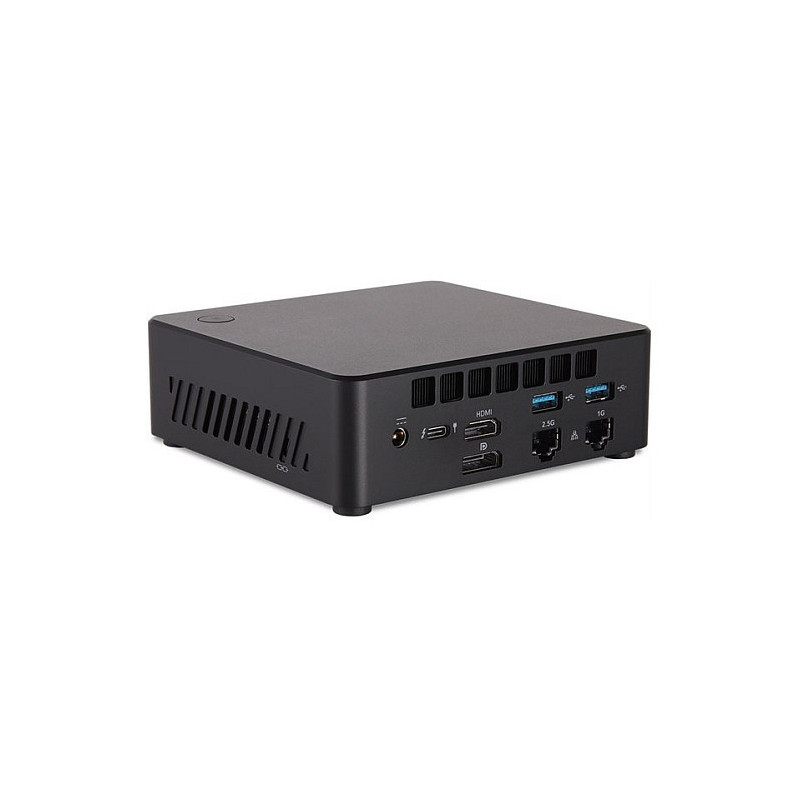

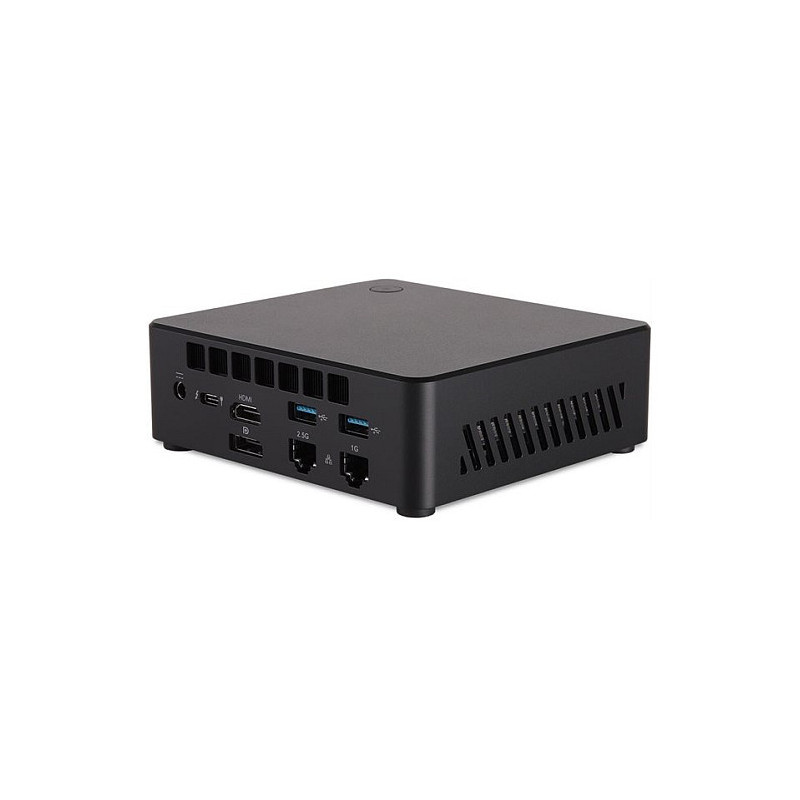

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 2
DisplayPorts quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Headphone outputs: 1

Power

Power supply: 65 W

Design

Chassis type: Micro PC
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Weight & dimensions

Width: 130 mm
Depth: 140 mm
Height: 48.3 mm
Weight: 650 g
