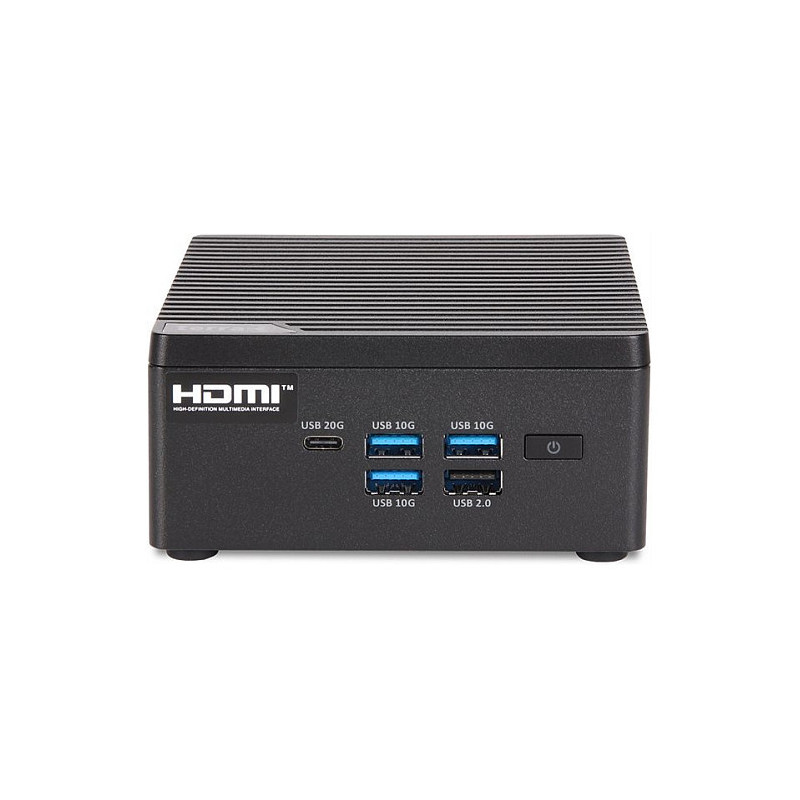

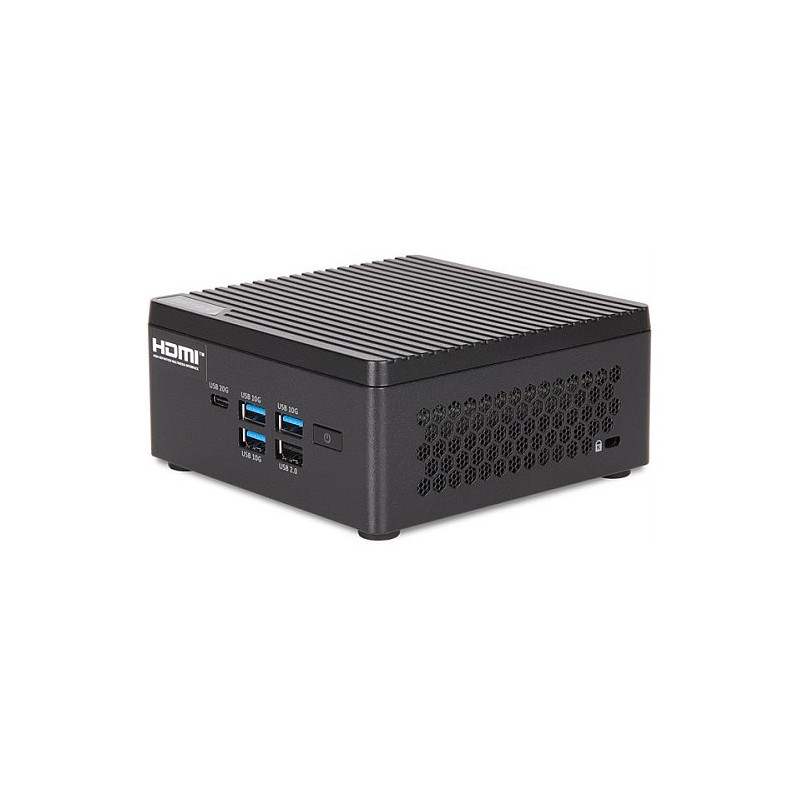

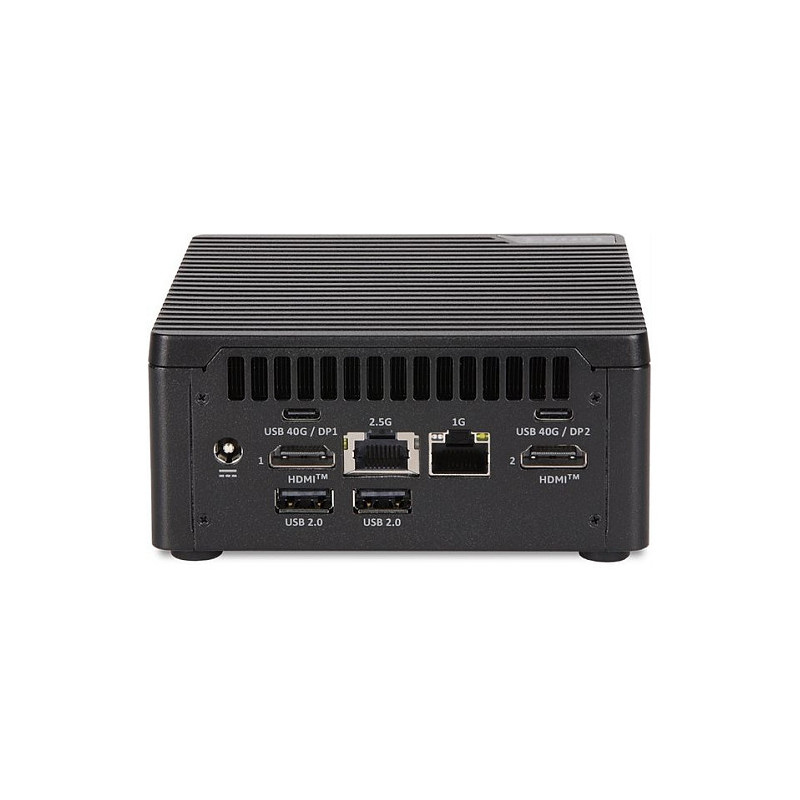

TERRA Micro 6100V1

TERRA Micro 6100V1. Processor family: Intel Core Ultra 5, Processor model: 125H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 500 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 600 g. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 125H
Processor threads: 18
Processor cache type: Smart Cache

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory: 16 GB
Maximum internal memory: 96 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 500 GB
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
LAN controller: Intel® I219-V, Intel I226-V
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

USB 2.0 ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Design

Chassis type: Micro PC
Feature: VESA mounting
Product colour: Black

Performance

Market positioning: Business
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0

Software

Operating system installed: Windows 11 Pro

Power

Power supply: 120 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Weight & dimensions

Width: 115 mm
Depth: 115 mm
Height: 50.6 mm
Weight: 600 g
