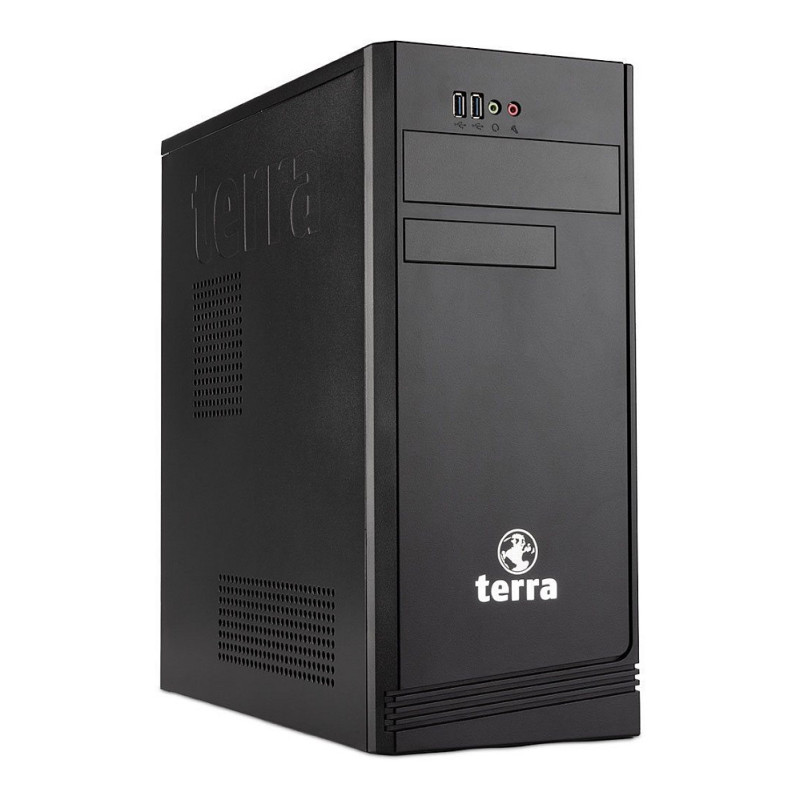

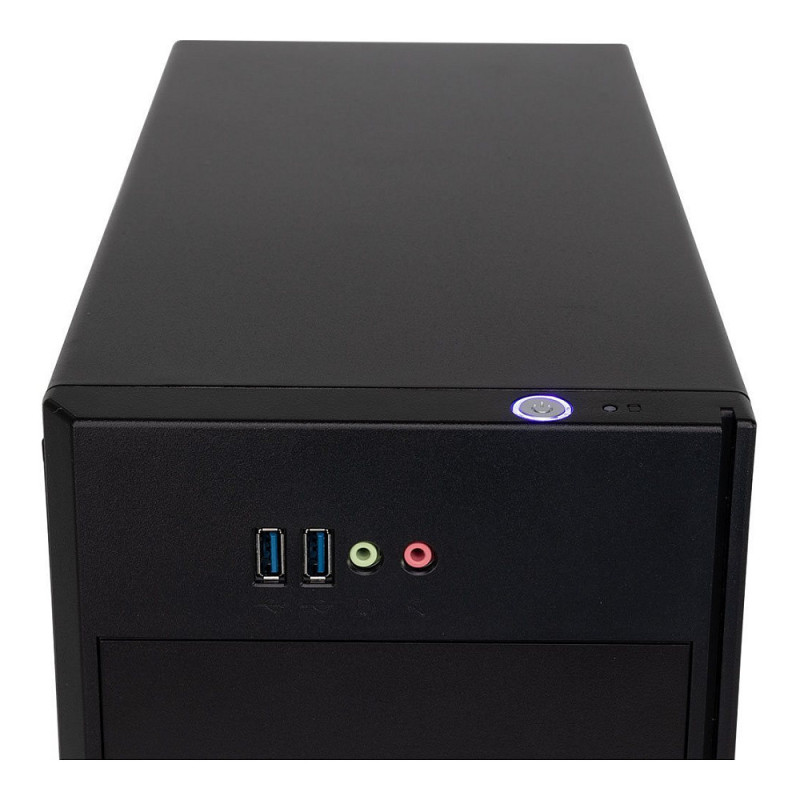

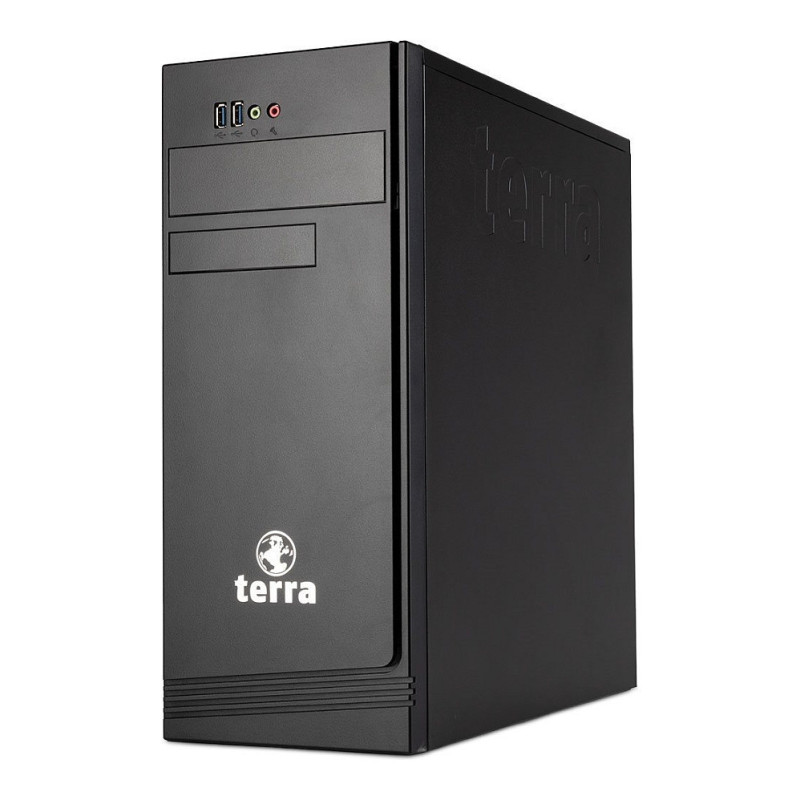

TERRA 1000163 PC / workstation

TERRA 1000163. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro. Power supply: 450 W. Chassis type: Midi Tower. Product type: PC. Weight: 8 kg

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: Intel® Core™ i7 (14th gen)
Processor model: i7-14700
Processor cores: 20
Processor boost frequency: 5.4 GHz
Processor cache: 33 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: LGA 1700

Memory

Internal memory: 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 4800 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
SSD capacity: 1 TB
Feature: NVMe
SSD form factor: M.2
Storage options: 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10¦ • 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support
Feature: RAID support
RAID levels: 5, 1, 0, 10

Graphics

Feature: On-board graphics card
On-board graphics card model: Intel UHD Graphics 770
Resolution description: HDMI 4K @60Hz ¦ DP 4K @60Hz

Performance

Market positioning: Industry
Motherboard chipset: Intel Q670
Product type: PC
Audio output channels: 8.0 channels
Sound pressure level: 22.7 dB

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s

Ports interfaces

DisplayPorts quantity: 4
Feature: Line-in

Expansion slots

Expansion slots: 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x1 Gen3 "open slot", 1x PCIe x1 Gen3

Power

Power supply: 450 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz
Power consumption (standby): 1.4 W
Power consumption (off): 0.17 W
Power consumption (long idle): 14 W
80 PLUS certification: 80 PLUS Bronze

Design

Chassis type: Midi Tower

Software

Operating system installed: Windows 11 Pro
Compatible operating systems: Windows 10, Windows 11

Audio

Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Weight dimensions

Width: 180 mm
Depth: 420 mm
Height: 435 mm
Weight: 8 kg

Packaging content

Feature: Mouse included
Feature: Keyboard included
Cables included: AC

Keyboard

Keyboard language: German

Features

Motherboard manufacturer: Kontron K3842-Q1

Other features

Locale: German
