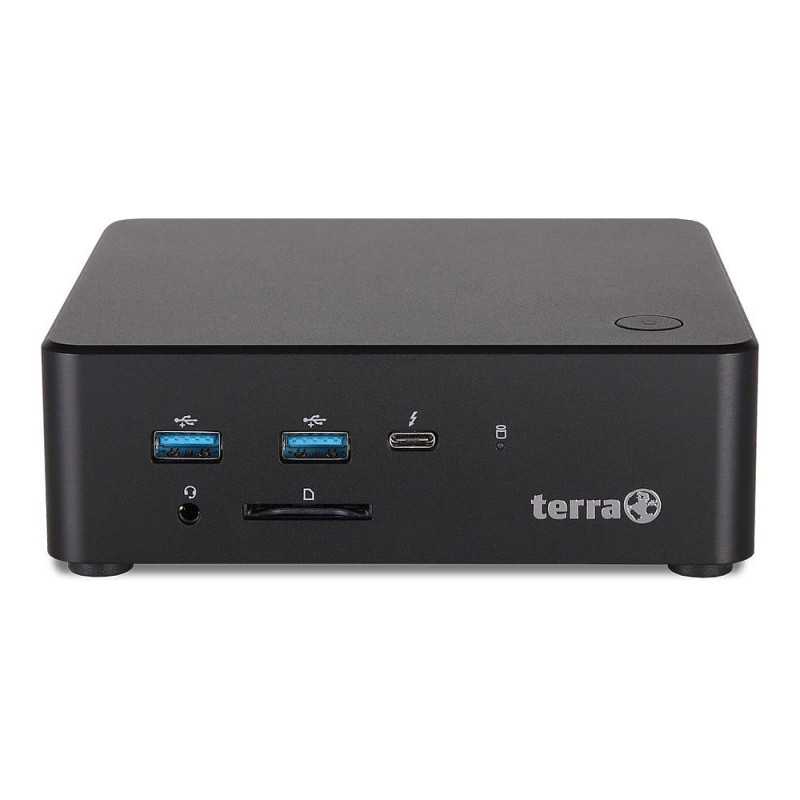

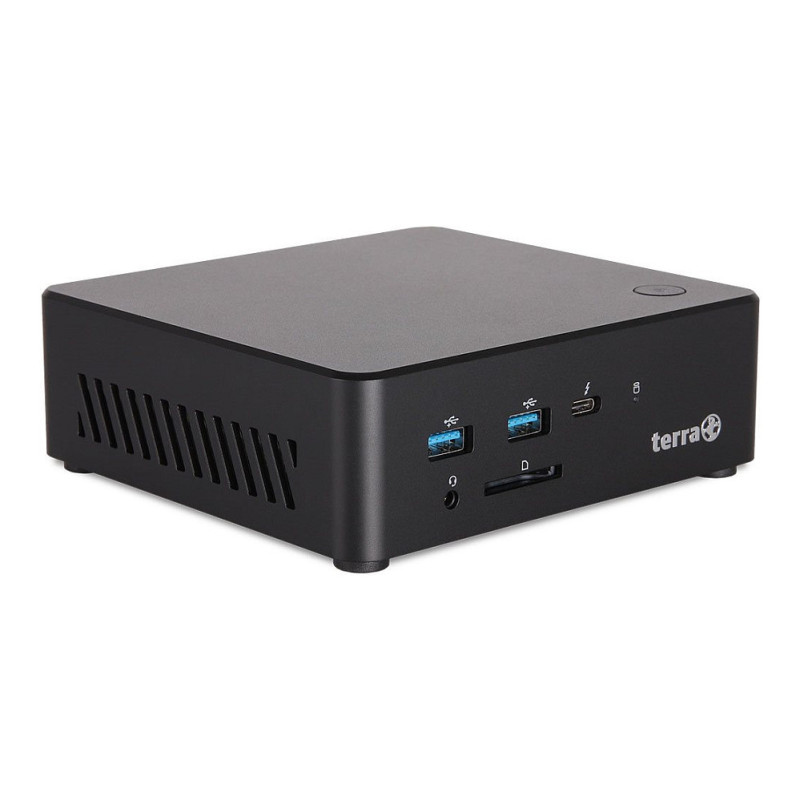

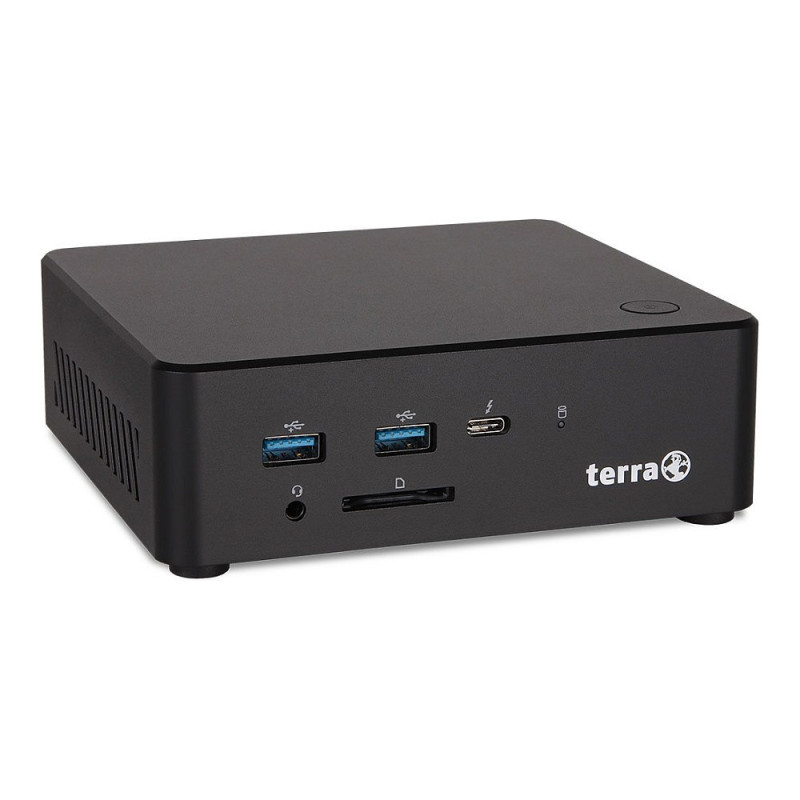

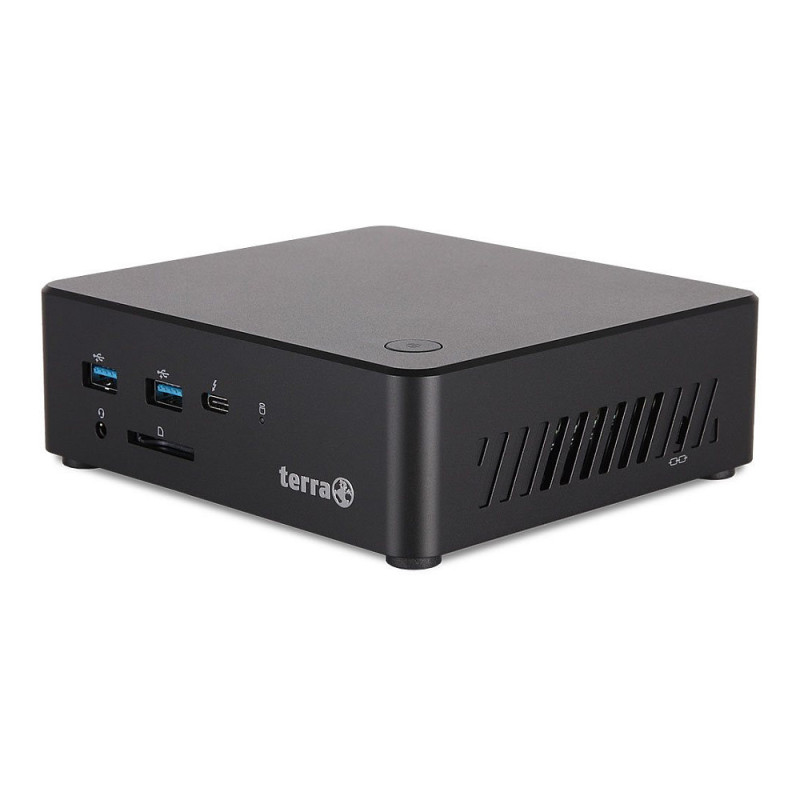

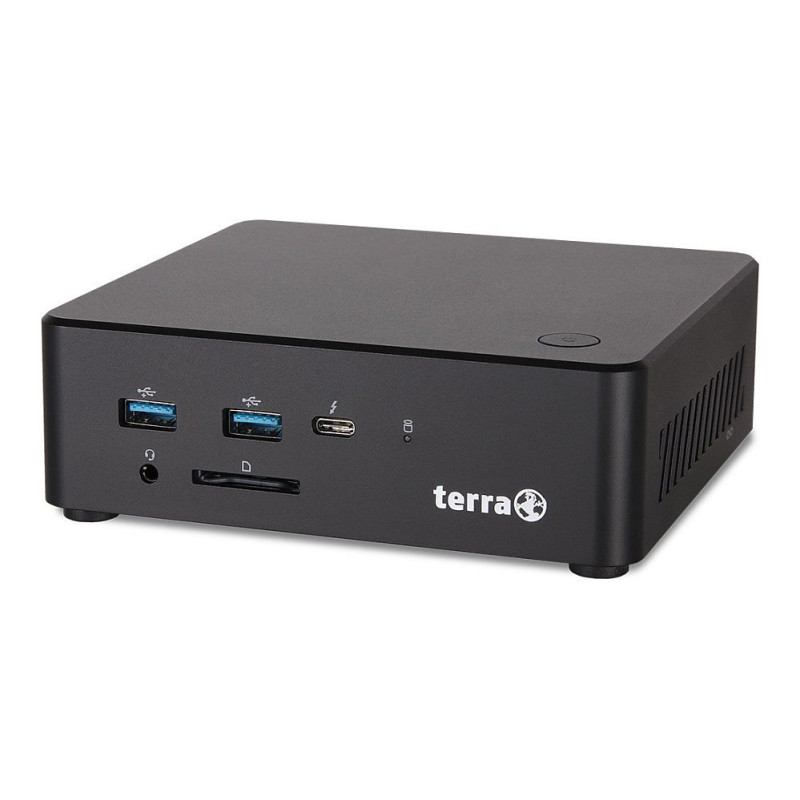

TERRA 1000099 PC / workstation

TERRA PC-Micro 5000C GREENLINE. Processor family: Intel® Core™ i3, Processor model: i3-1315U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 500 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Iris Xe Graphics. Wi-Fi. Power supply: 65 W. Chassis type: Micro PC. Product type: PC. Weight: 650 g. Product colour: Black

TERRA Ultra compakt PC-Micro with unique silver Design: Space saving and with low power consumption. Powered by 13th Gen. Intel Core i3 Processor and performant M.2- SSD PCIe Storage.

The silver-coloured PC integrates perfectly, both in predominantly dark and in white-designed work environments. Enjoy the advantages of the small form factor. For ergonomic working, we recommend the use of wireless keyboard-mouse combinations. Included: VESA Mounting Kit.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: Intel Core i3-13xxx
Processor model: i3-1315U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Processor cache: 10 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 15 W
Maximum turbo power: 55 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Number of storage drives supported: 2
SSD capacity: 500 GB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
Feature: Card reader integrated
Storage options: 2x M.2 2280 PCIe Gen4x4

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Iris Xe Graphics
On-board graphics card model: Intel Iris Xe Graphics
Resolution description: HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K)
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 1

Performance

Market positioning: Medical
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
LAN controller: Realtek RTL8111H, Dragon RTL8125BG
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Bluetooth
Bluetooth version: 5.2

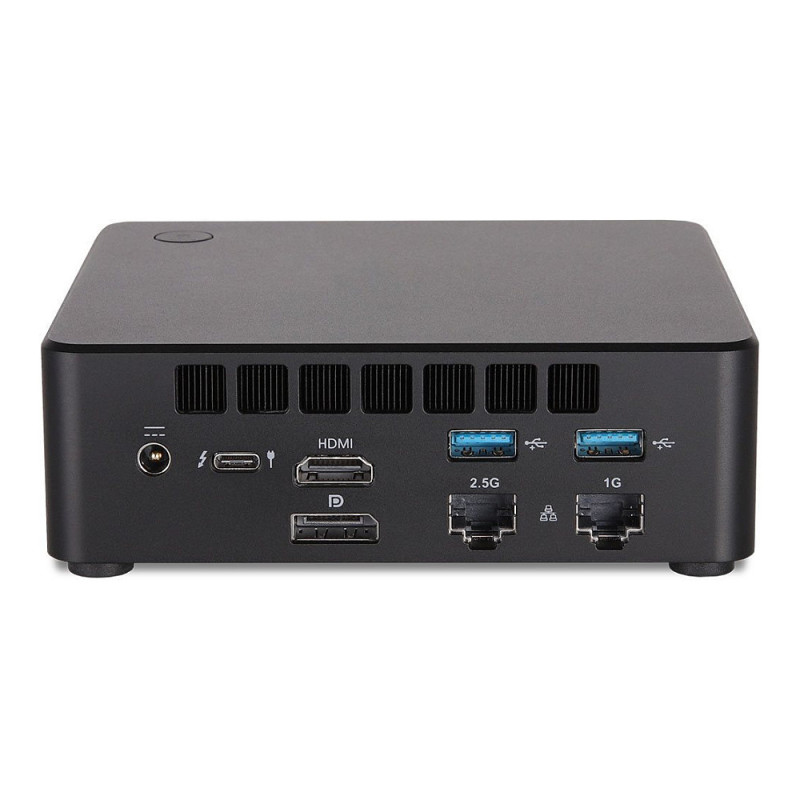

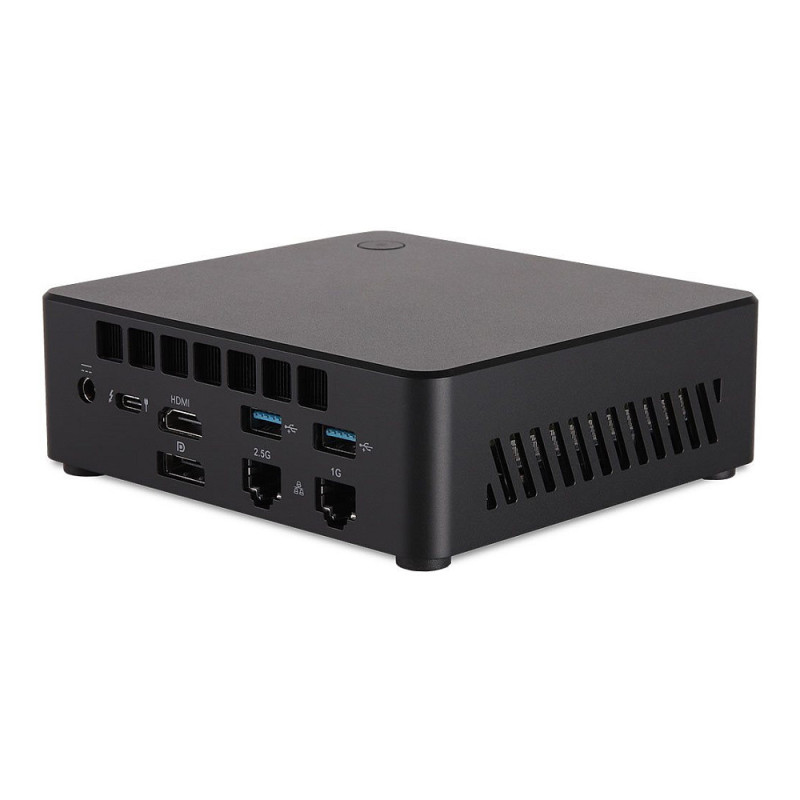

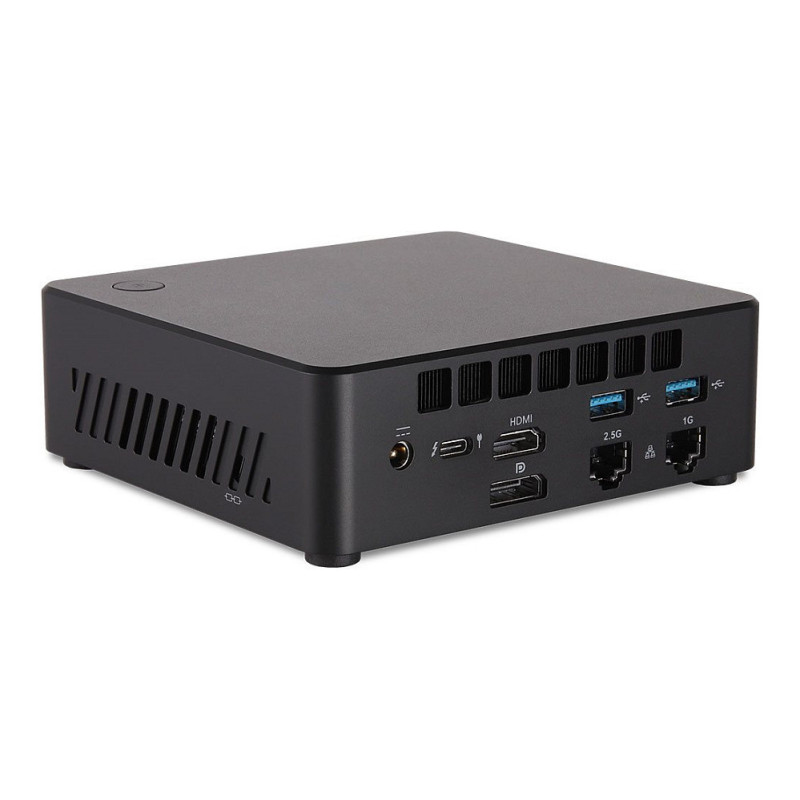

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: Intel® Thunderbolt 4
Thunderbolt 4 ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2
Feature: Combo headphone/mic port
Feature: DC-in jack

Power

Power supply: 65 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz
Power consumption (typical): 15 W
Power consumption (standby): 2.6 W
Power consumption (off): 0.4 W
Power consumption (max): 67 W

Design

Chassis type: Micro PC
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Cooling type: Active

Software

Operating system installed: No
Compatible operating systems: Windows 11 (64-Bit)
Pre-installed software: 1 month trial version for new Microsoft® 365 user

Audio

Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 10 - 75%

Weight & dimensions

Width: 130 mm
Depth: 140 mm
Height: 48.3 mm
Weight: 650 g

Packaging content

Cables included: AC
Feature: VESA mount included
Feature: Manual
Feature: AC adapter included

Sustainability

Sustainability certificates: ENERGY STAR

Other features

Locale: International repository
