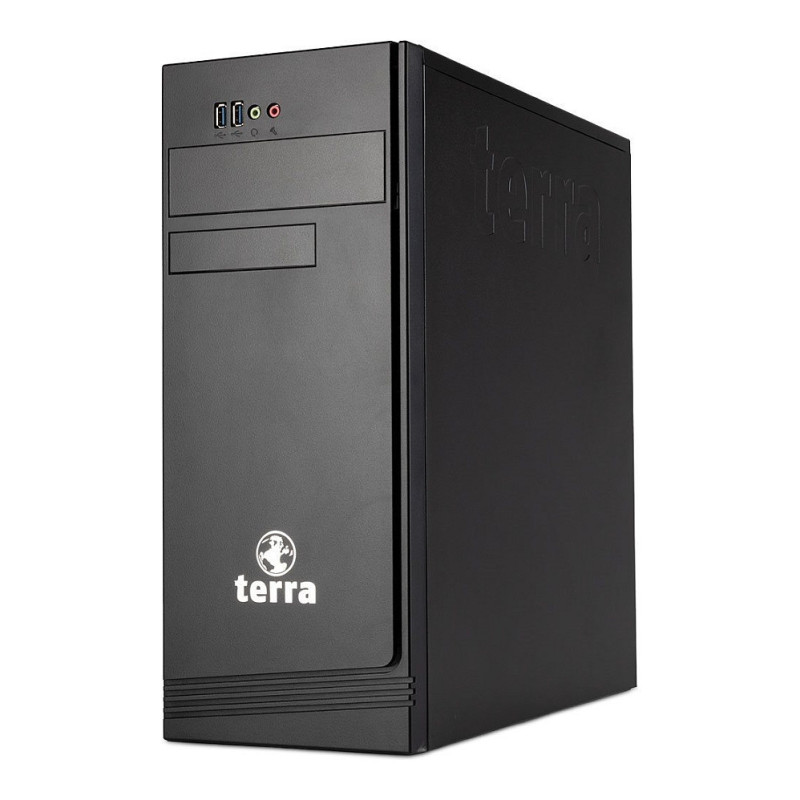

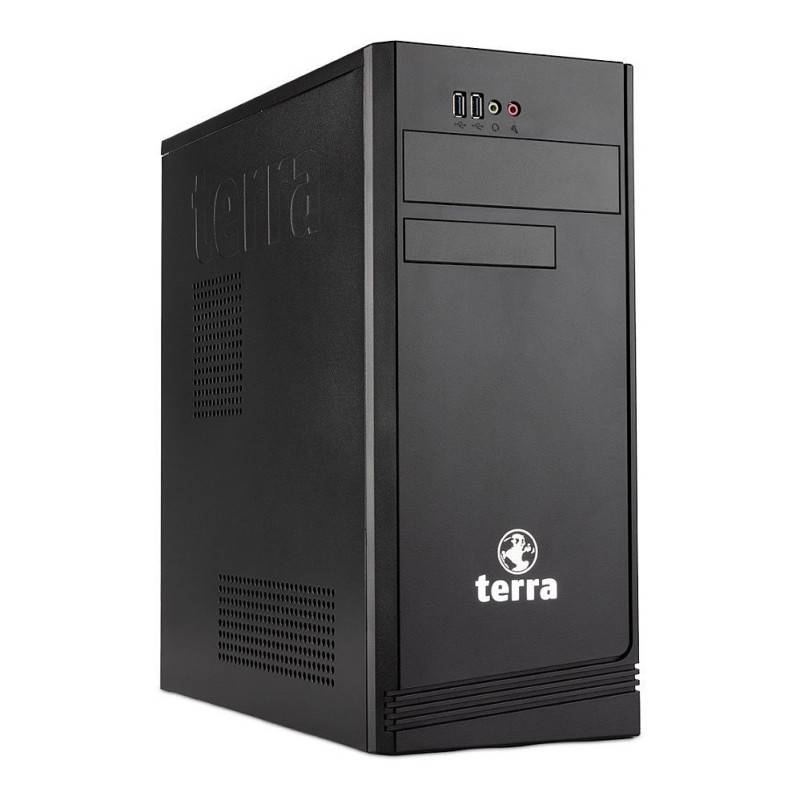

TERRA 1000079 PC / workstation

TERRA 1000079. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Power supply: 350 W. Chassis type: Midi Tower. Product type: PC. Weight: 8 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: LGA 1851 (Socket V1)
Processor base power: 65 W
Maximum turbo power: 182 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to: 13 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 256 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 8 GB
Memory slots: 4x DIMM
Memory clock speed: 4800 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Number of storage drives supported: 6
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
Feature: RAID support
RAID levels: 5, 1, 0, 10

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Number of external displays supported: 3
Resolution description: 1x HDMI, max. 4096x2160@60 Hz ¦ 2x DP, max. 3840x2160@144 Hz
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 2

Performance

Market positioning: Business
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1 channels
Sound pressure level: 22.7 dB

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000,2500 Mbit/s

Ports & interfaces

USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Line-out
Feature: Microphone in
PS/2 ports quantity: 1
Number of front audio ports: 2
Number of rear audio ports: 3

Expansion slots

PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Expansion slots: 1x PCIe 5.0 x16 slot ¦ 2x PCIe 4.0 x1 slots

Power

Power supply: 350 W
Power supply input voltage: 230 V
Power supply input frequency: 50 Hz
Power consumption (typical): 24.85 W
Power consumption (standby): 2.25 W
Power consumption (off): 0.24 W
80 PLUS certification: 80 PLUS Bronze

Design

Chassis type: Midi Tower
Product colour: Black
Cooling type: Active

Software

Operating system installed: Windows 11 Pro
Compatible operating systems: Windows 10, Windows 11

Audio

Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 18 - 28 °C
Operating relative humidity (H-H): 10 - 80%

Weight & dimensions

Width: 180 mm
Depth: 420 mm
Height: 435 mm
Weight: 8 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Cables included: AC
Feature: Manual

Keyboard

Keyboard connectivity: Wired
Keyboard language: German

Features

Motherboard manufacturer: Gigabyte B860M DS3H

Other features

Locale: German
