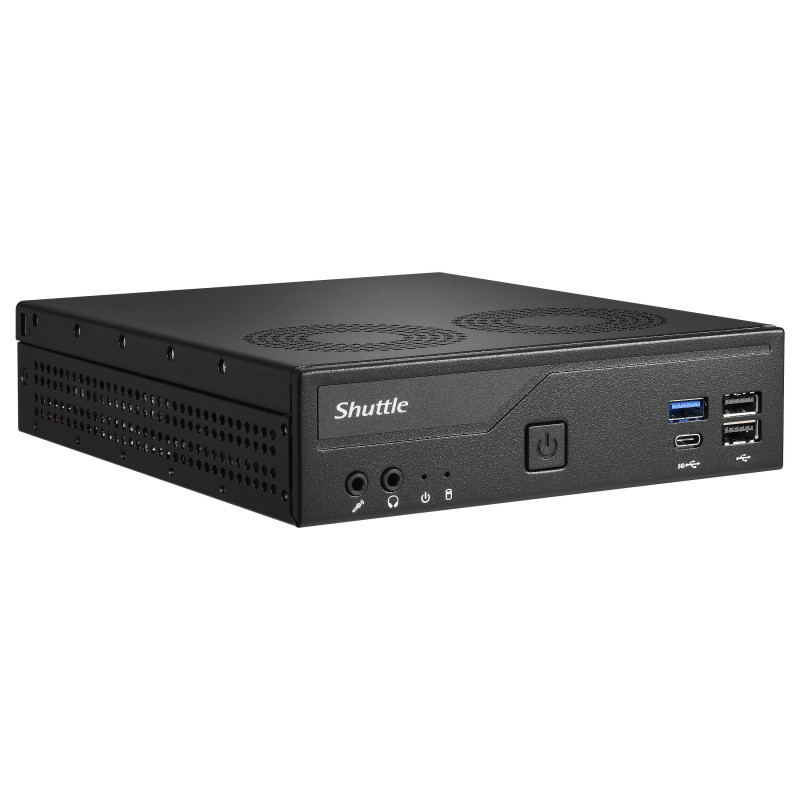

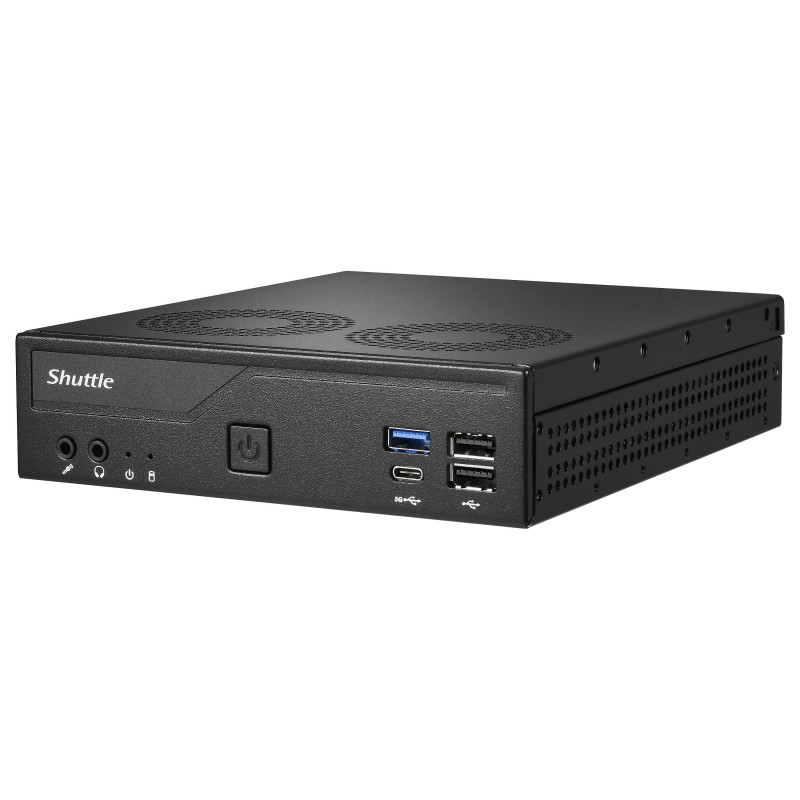

Shuttle XPС slim DH610V2 PC / workstation barebone

Shuttle XPС slim DH610V2. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: HDD SSD. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W

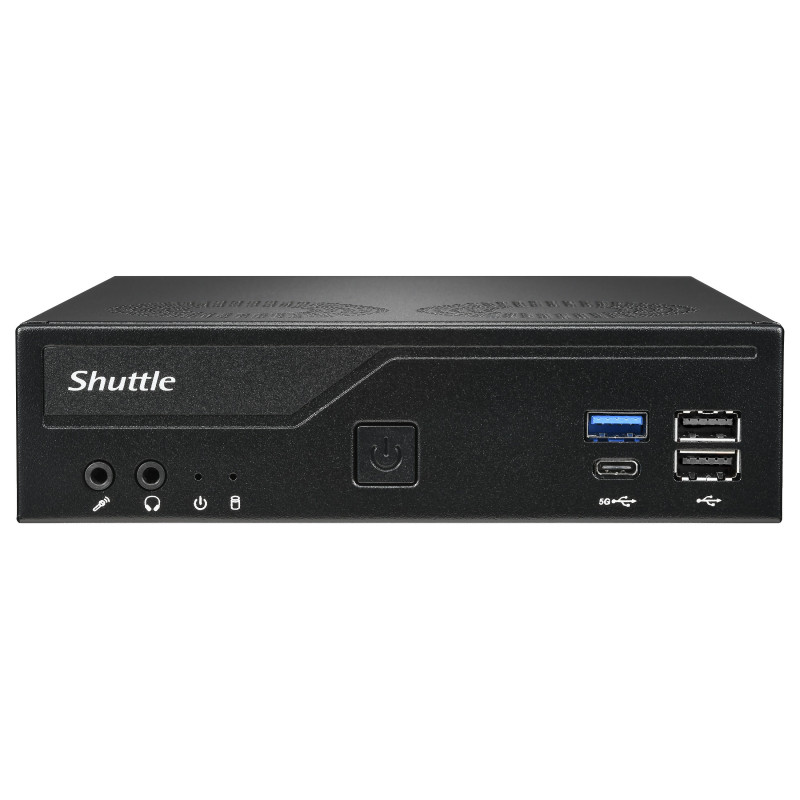

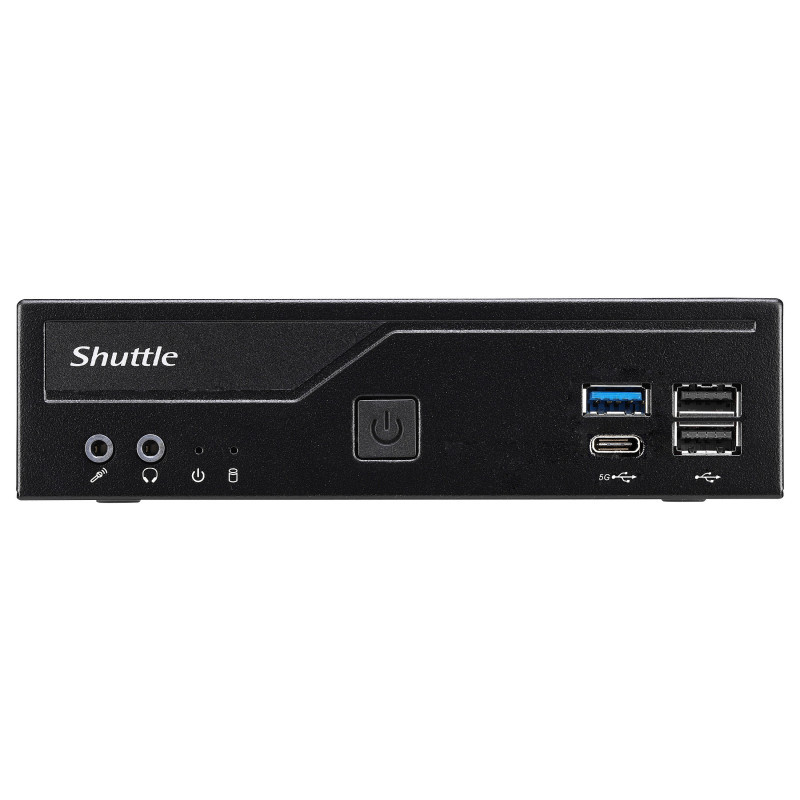

The Shuttle XPC slim Barebone DH610V2 with H610 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH610V2 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

Processor

Built-in processor: No

Memory

Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
ECC: No
Non-ECC: Yes

Storage

Storage drives installed: No
Supported storage drive types: HDD SSD
Storage drive sizes supported: 2.5,M.2
NVMe: Yes

Graphics

On-board graphics card: Yes

Audio

Built-in speaker(s): No

Network

Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Intel I226, Intel I219V

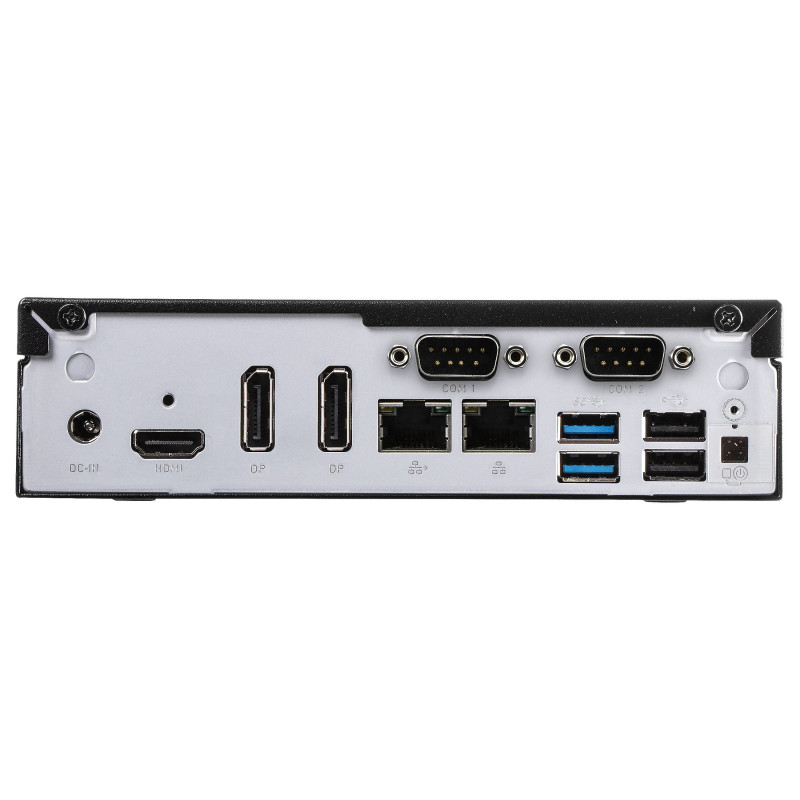

Ports interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 1.4
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
DC-in jack: Yes

Design

Chassis type: 1.35L sized PC
Product colour: Black

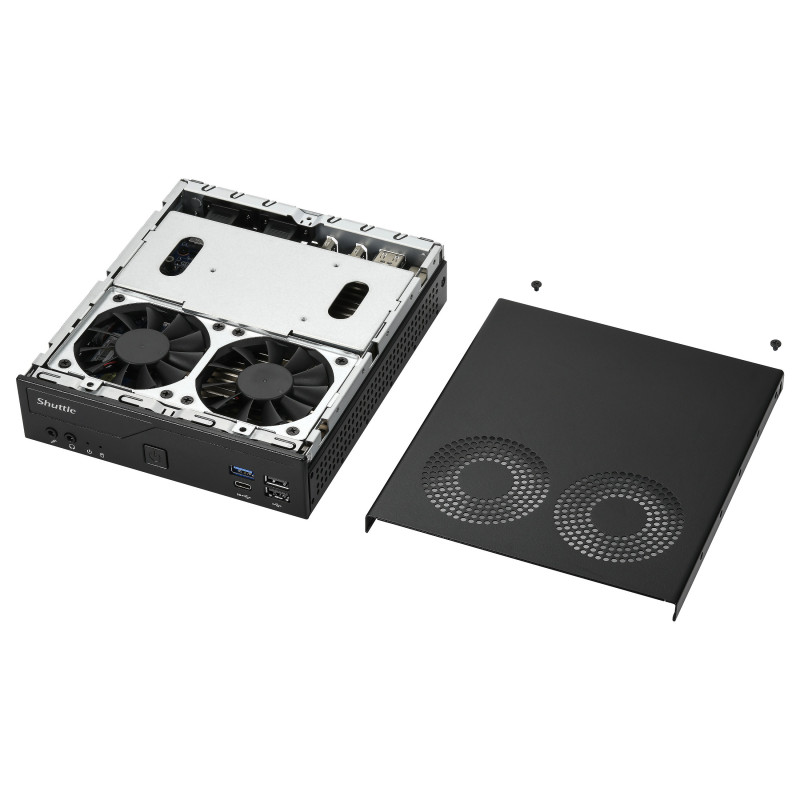

Cooling type: Active
On/off switch: Yes
LED indicators: Power, HDD
Housing material: Metal
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone

Performance

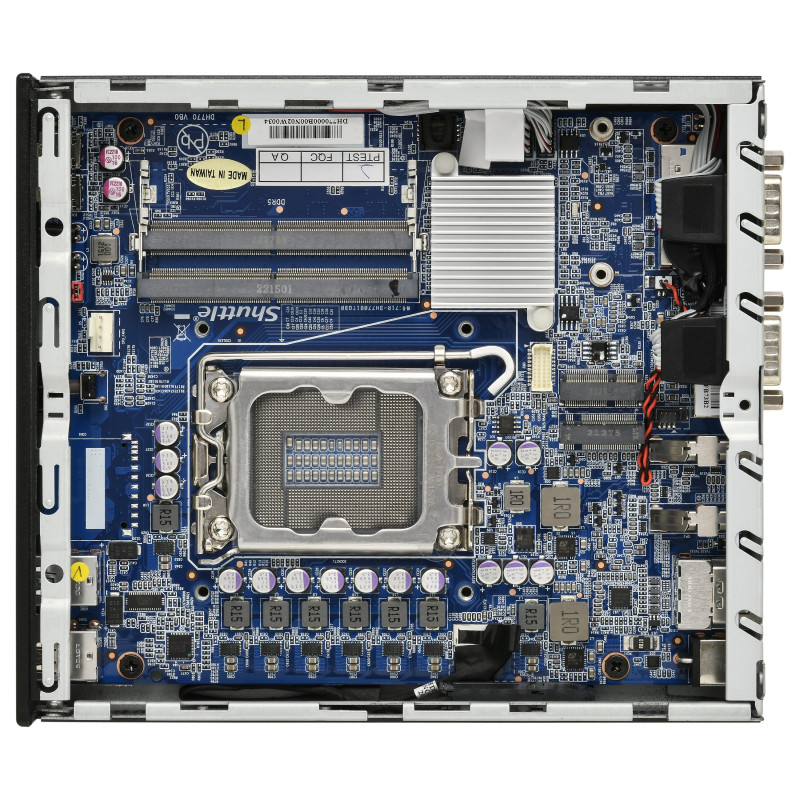

Motherboard chipset: Intel H610
Processor socket: LGA 1700
Number of processors supported: 1
BIOS type: AMI
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI, ETL, CB, RoHS

Software

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes

Sustainability

Sustainability certificates: ENERGY STAR, ErP

Power

Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 165 mm
Depth: 190 mm
Height: 43 mm
Weight: 1.3 kg
Package weight: 2.1 kg

Packaging content

Power cord included: Yes
AC adapter included: Yes
Quick start guide: Yes
Drivers included: Yes
