Shuttle Slim PC DH810

Shuttle Slim PC DH810, S1851, 1x HDMI (2.1), 1x DP, 1x USB-C (DP), 1x 2.5", 2x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24/7 permanent operation, incl. VESA. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. Processor socket: LGA 1851 (Socket V1), BIOS type: EFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: HDD SSD, Storage drive interface: M.2, PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W

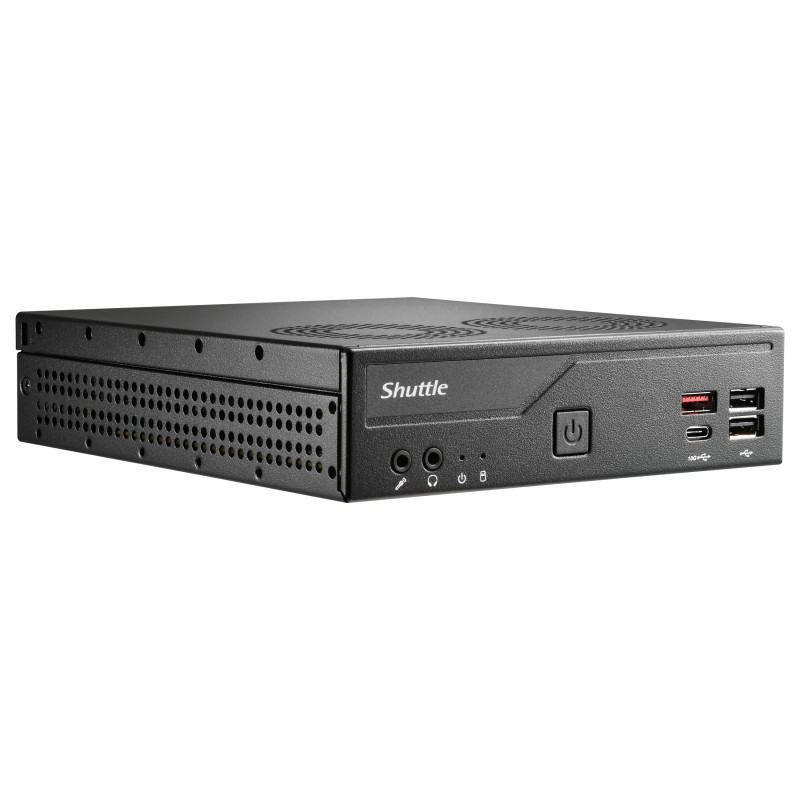

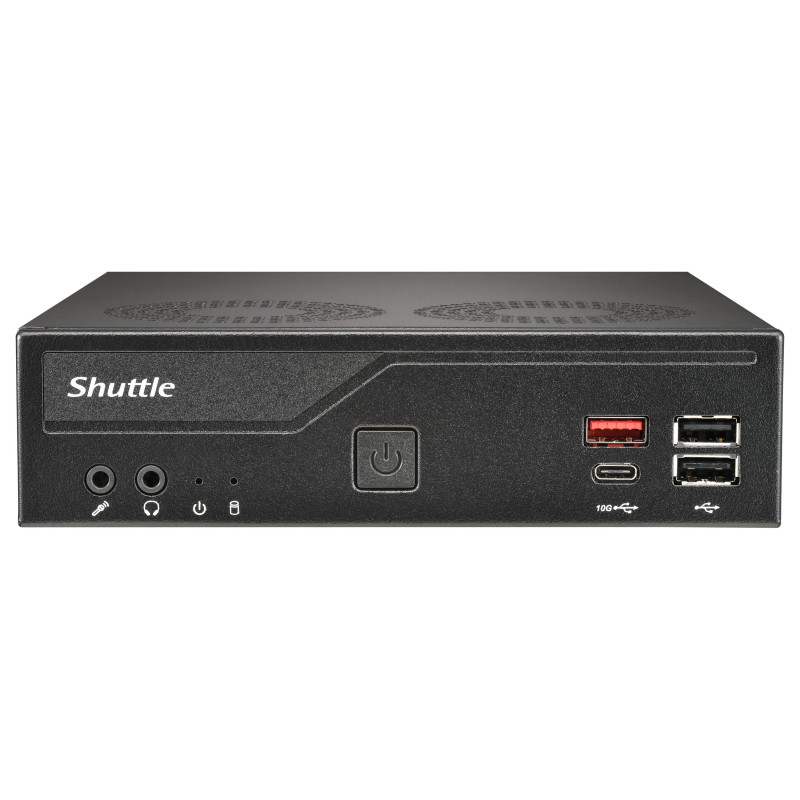

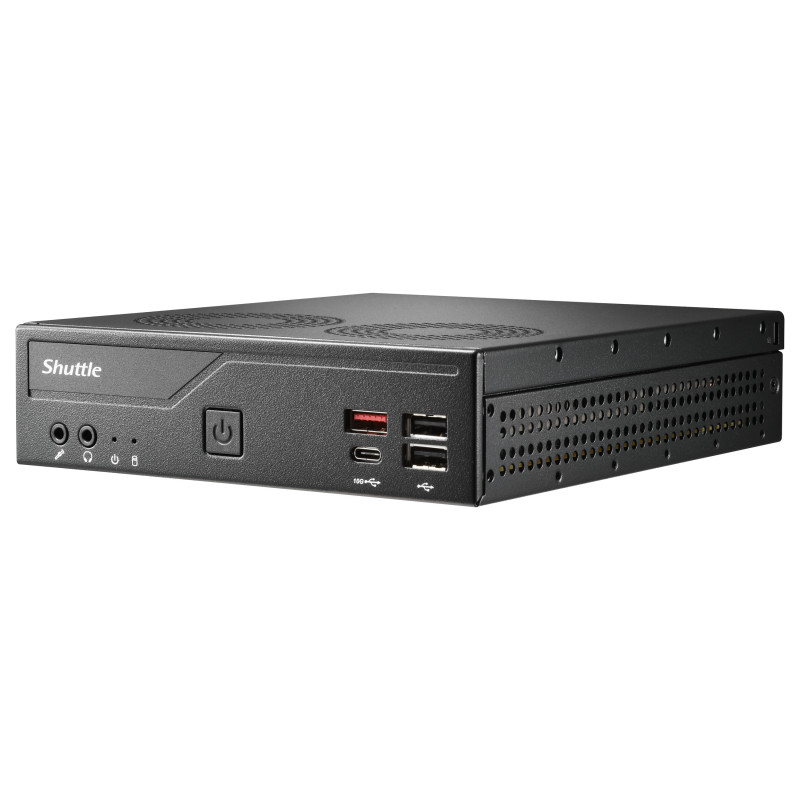

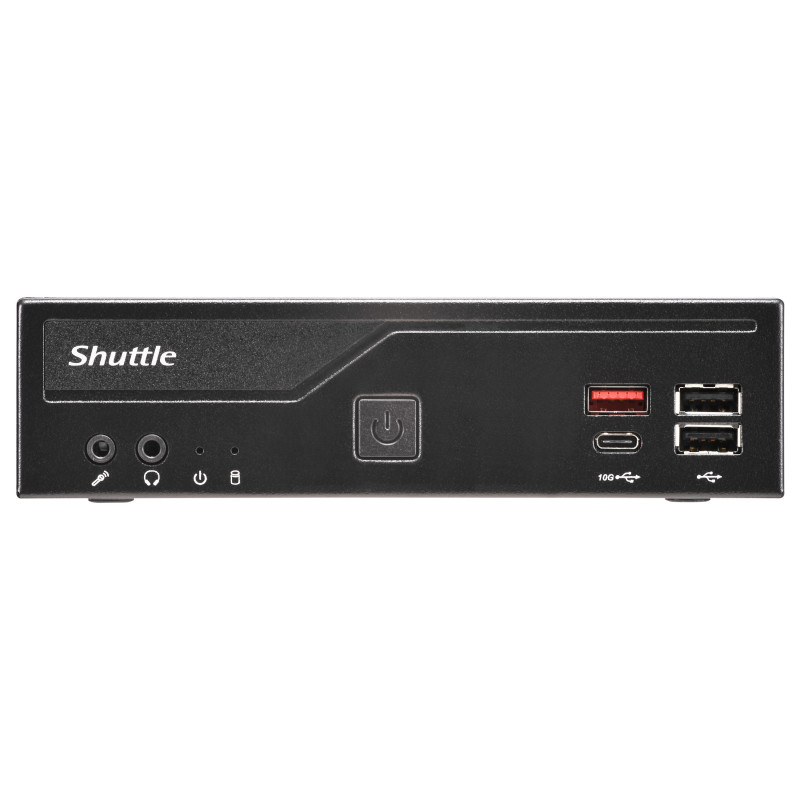

The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, "Arrow Lake-S") with an integrated AI accelerator (NPU). Three independent display outputs - HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 - deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC

Storage

Supported storage drive types: HDD SSD
Storage drive sizes supported: 2.5"
SSD form factor: M.2
Storage drive interface: M.2, PCI Express, Serial ATA
Feature: NVMe
Number of storage drives supported: 2

Graphics

Feature: On-board graphics card

Performance

Processor socket: LGA 1851 (Socket V1)
Number of processors supported: 1
BIOS type: EFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 2.0 channels
Audio chip: Realtek ALC888S

Network

Feature: Ethernet LAN
LAN controller: Intel® I219, Intel I226

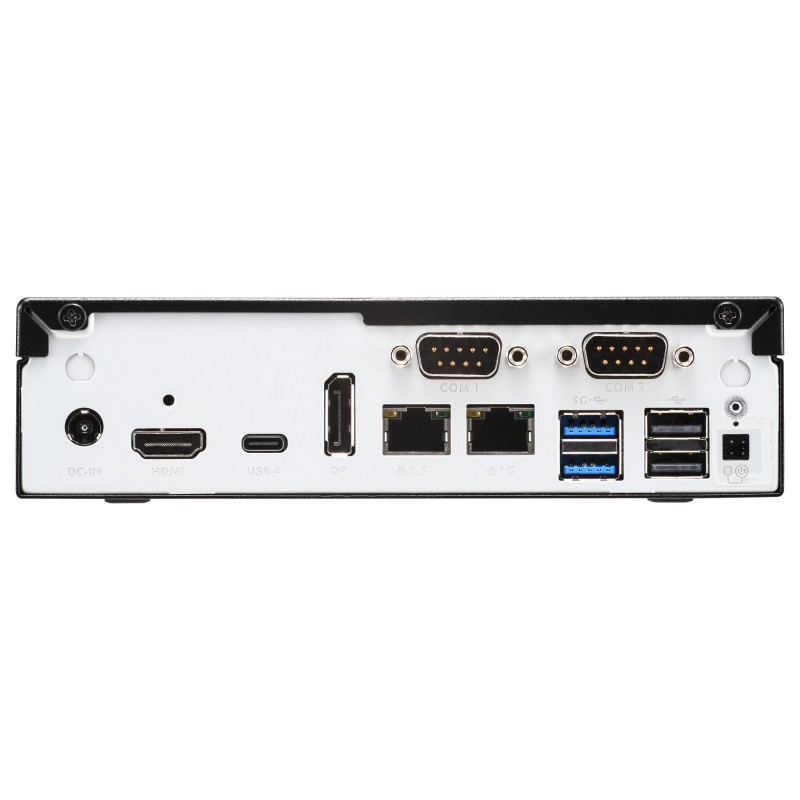

Ports interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 2x2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
Feature: DC-in jack

Design

Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Active
LED indicators: HDD, Power
Housing material: Metal
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product type: Mini PC barebone

Technical details

Compliance certificates: BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI

Logistics data

Harmonized System (HS) code: 84733080

Software

Windows operating systems supported: Windows 11
Linux operating systems supported: Yes

Sustainability

Sustainability certificates: ENERGY STAR, ErP

Power

Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 165 mm
Depth: 190 mm
Height: 43 mm
Weight: 1.3 kg
Package weight: 2.1 kg

Packaging content

Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
