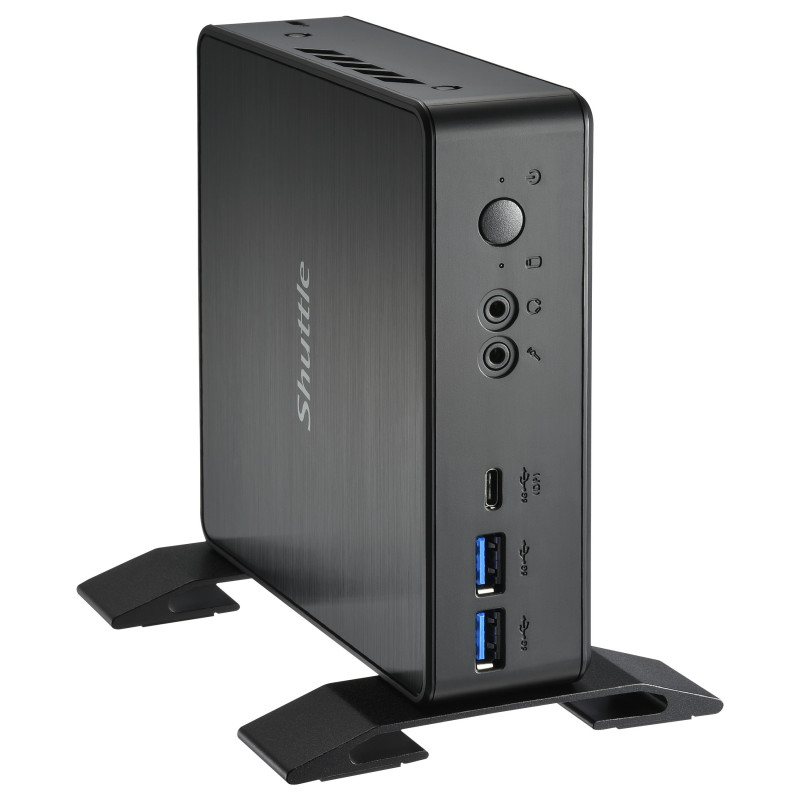

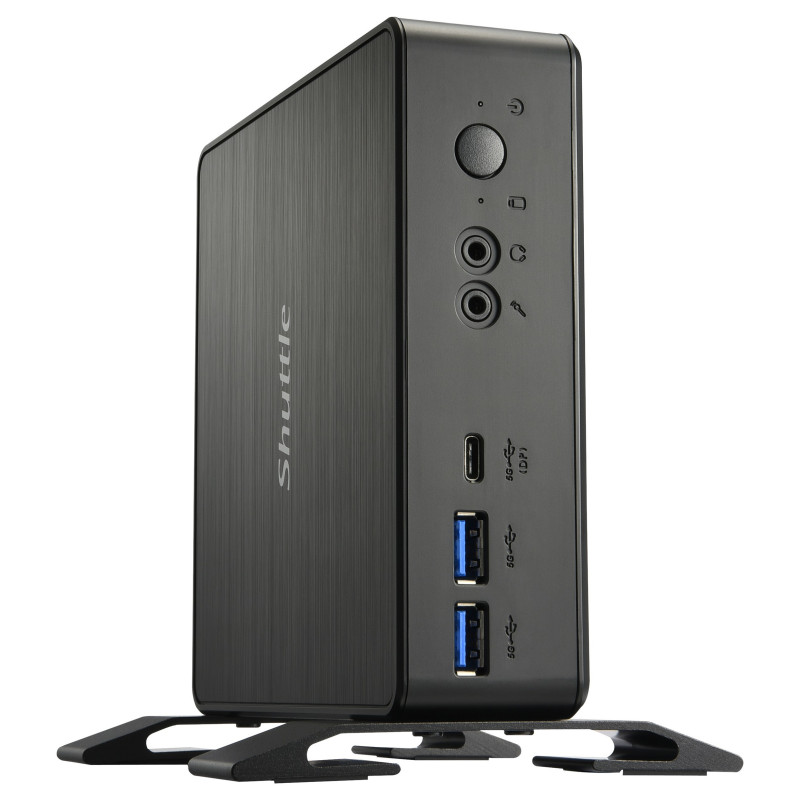

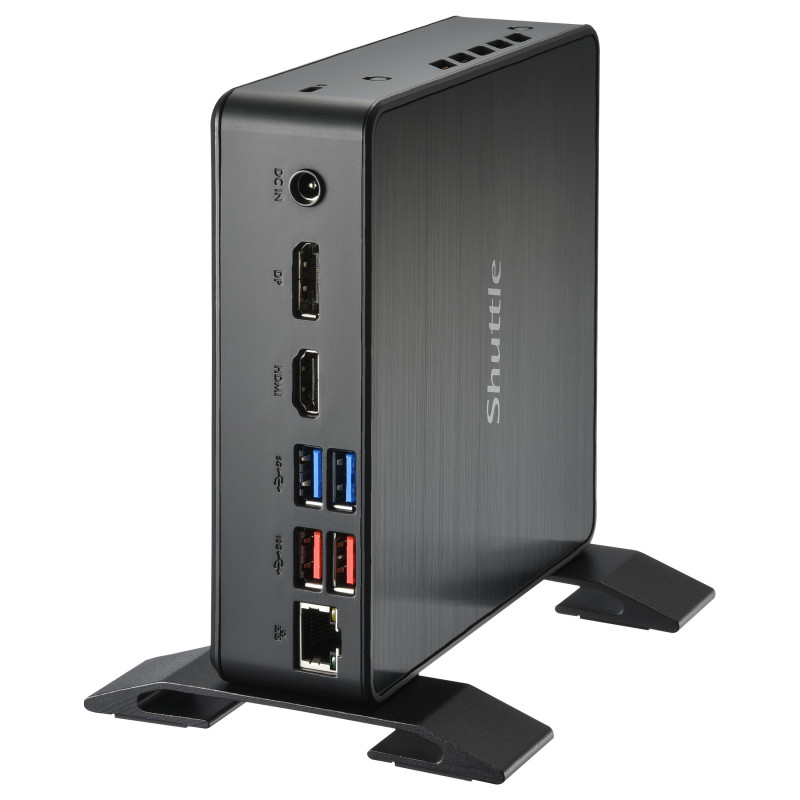

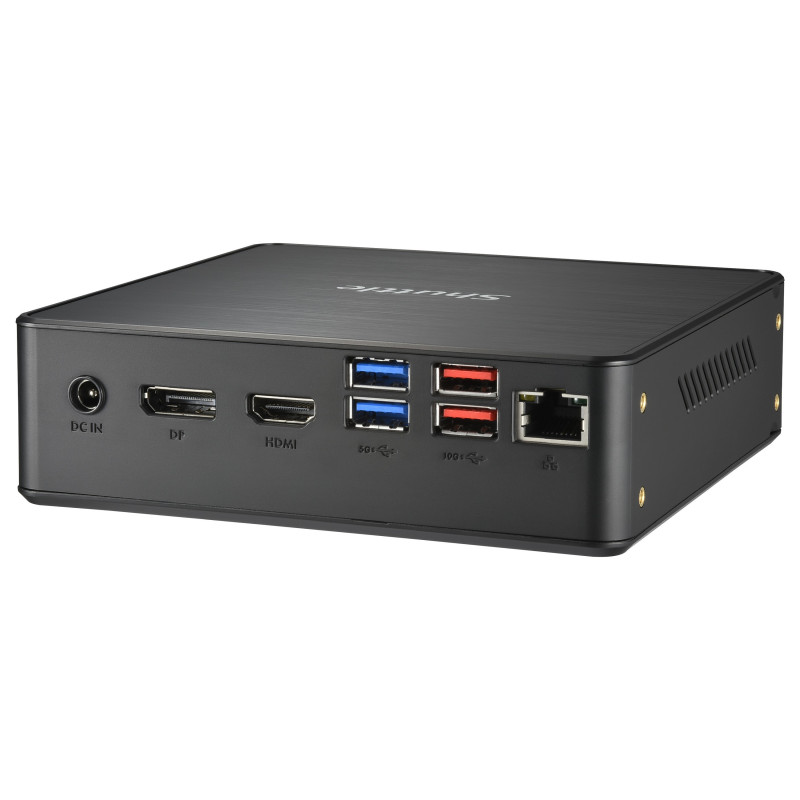

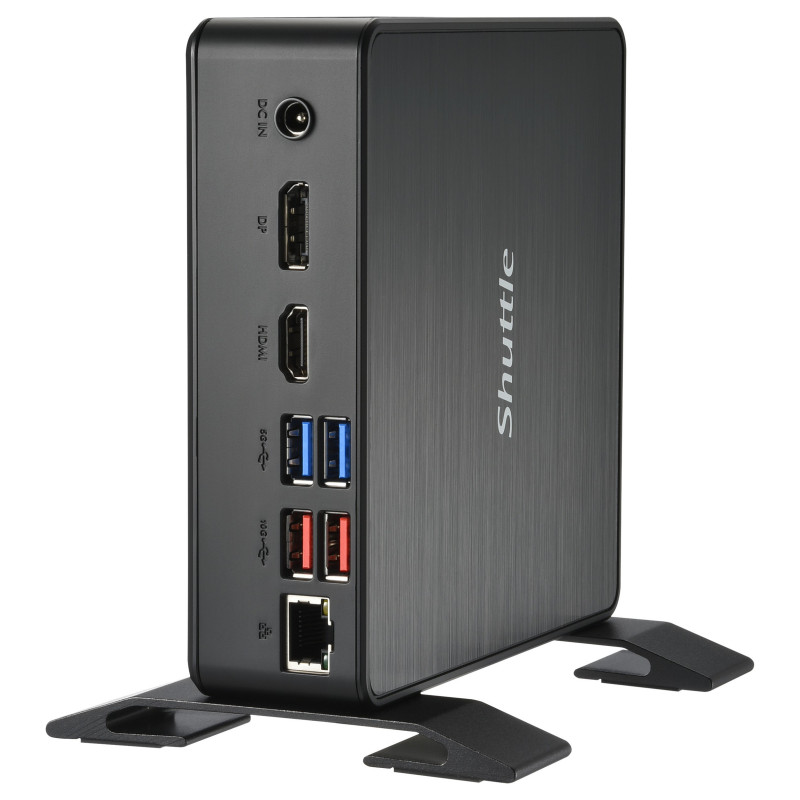

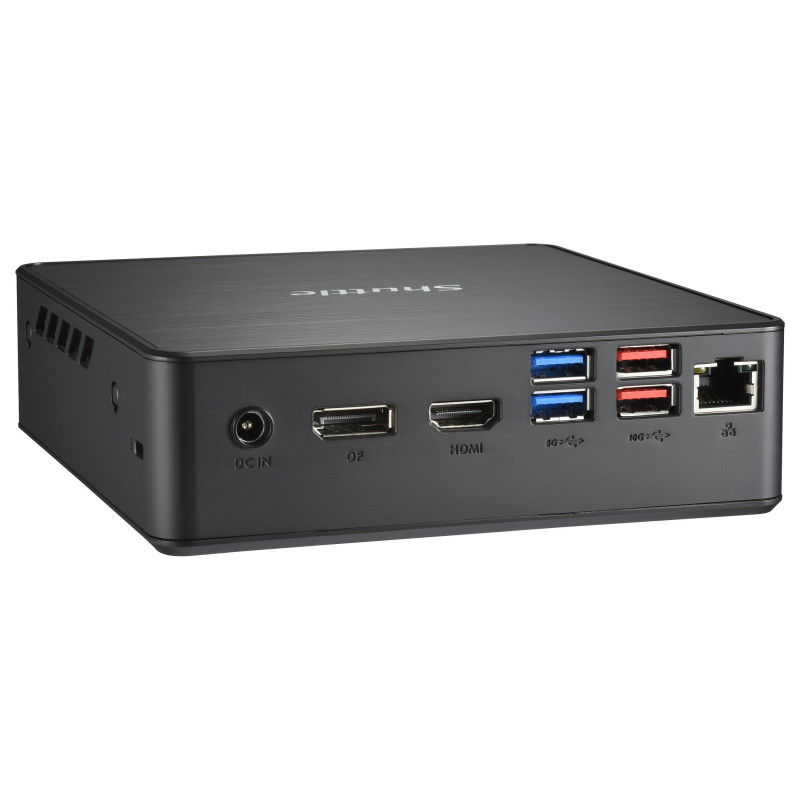

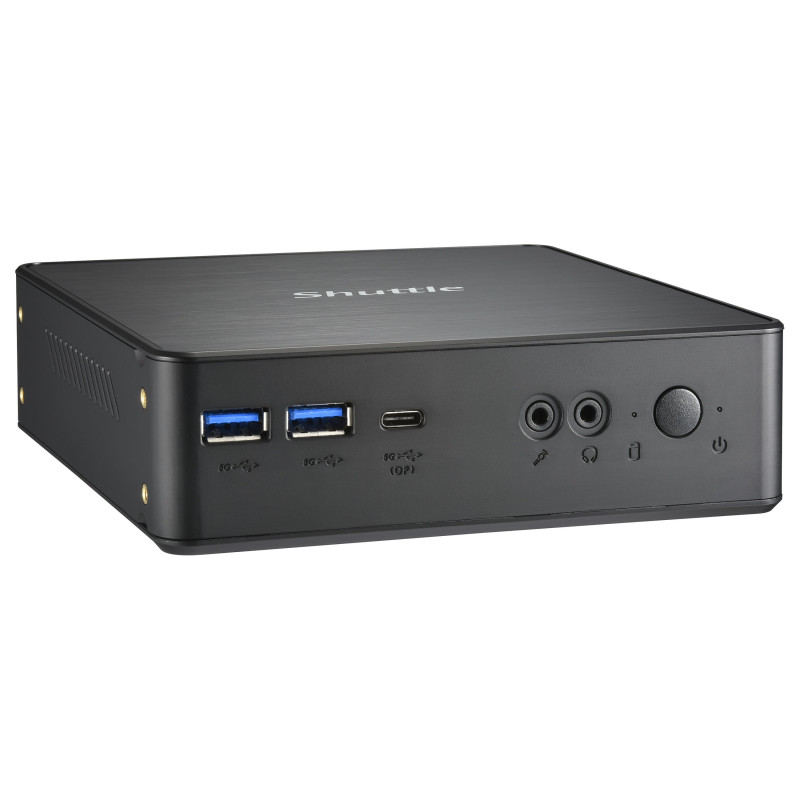

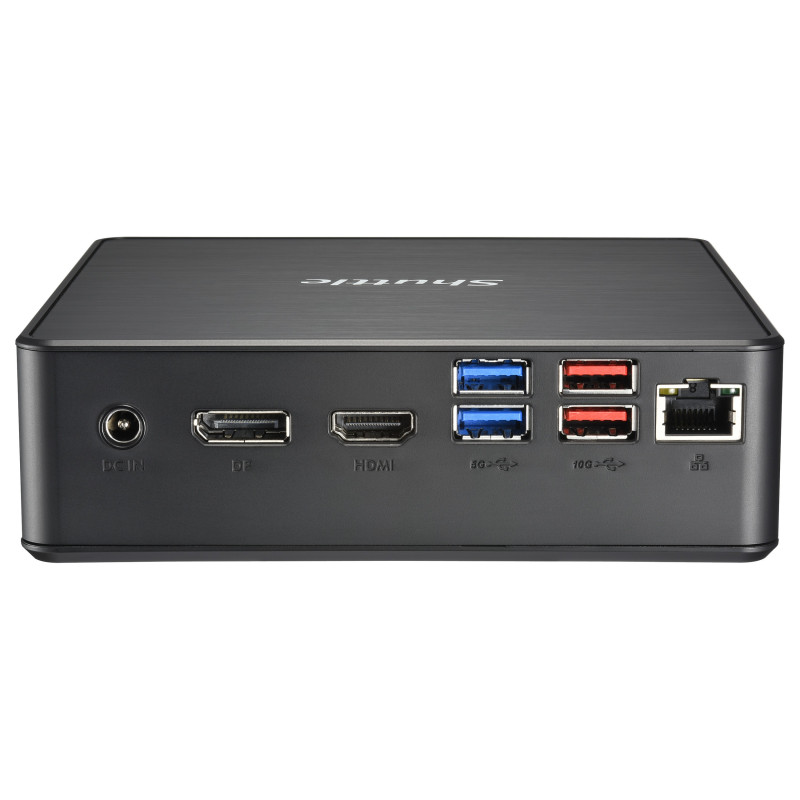

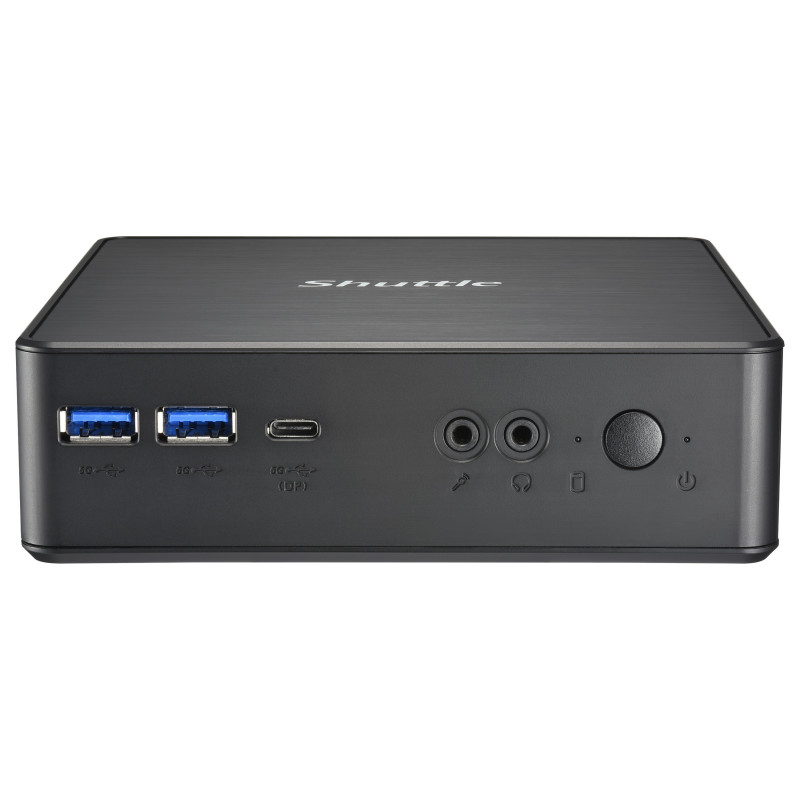

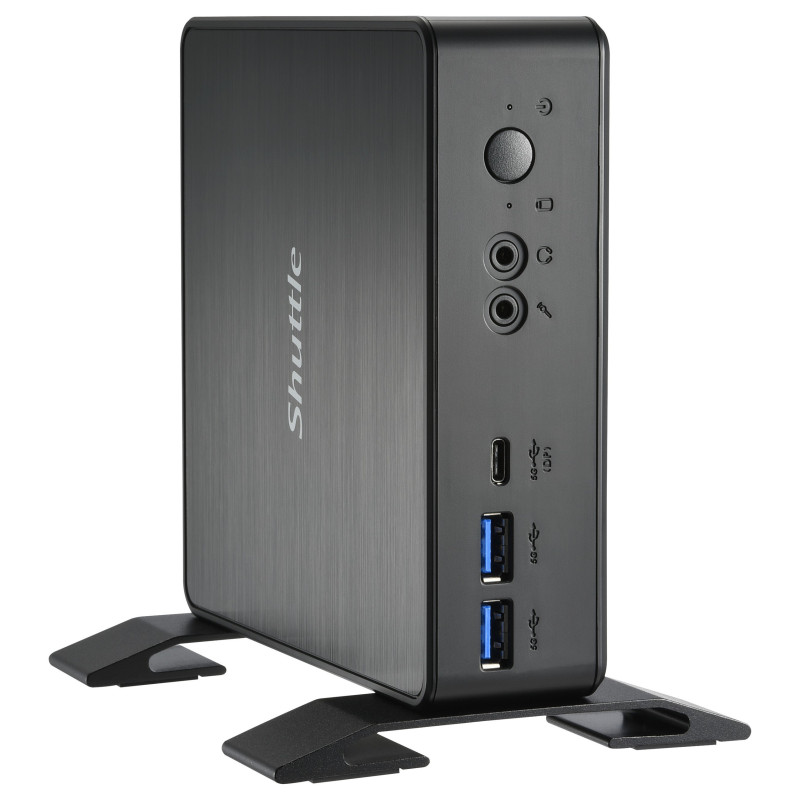

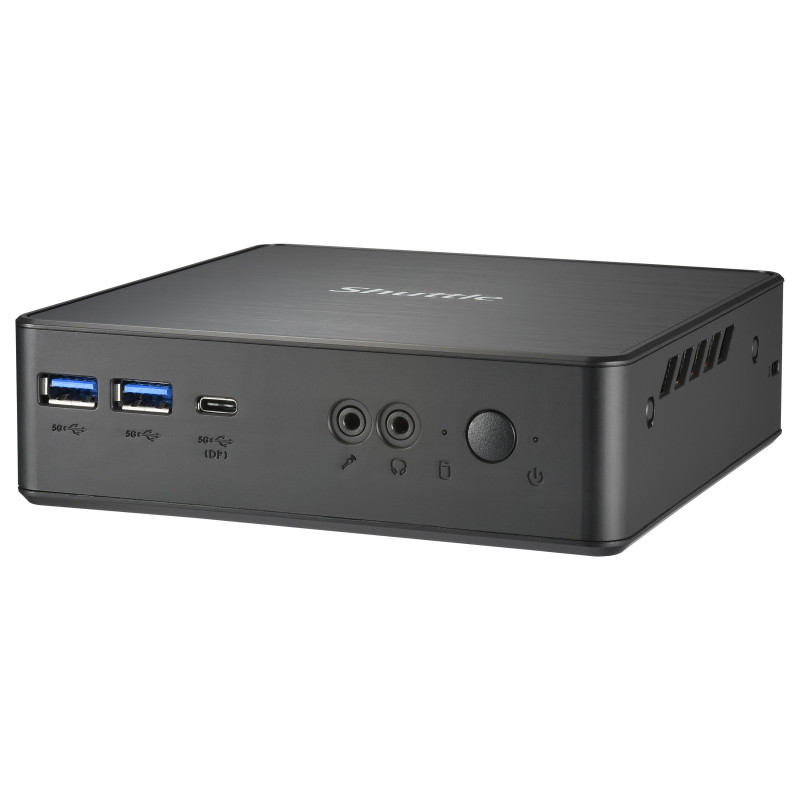

Shuttle NC40U PC / workstation barebone

Shuttle XPC Nano PC NC40U, Intel Celeron 7305U, 1x HDMI, 1x DP,1xUSB-C/DP, 6x USB3.2, 1x 2.5" bay, 2x M.2, 1x LAN, RAID, 24/7 permanent operation, incl. VESA Stand. Chassis type: 0.84L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Cooling type: Active. Power supply: 65 W
Many ports and high performance in nano format
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.

Processor

Processor manufacturer: Intel
Processor family: Intel® Celeron®
Processor model: 7305
Processor cores: 5
Processor threads: 5
Processor frequency: 1.1 GHz
Performance cores: 1
Efficient cores: 4
Built-in processor: Yes
Processor cache: 8 MB

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.2 V
ECC: No
Non-ECC: Yes

Storage

Supported storage drive types: HDD SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
NVMe: Yes
Number of storage drives supported: 3
Card reader integrated: No

Graphics

On-board graphics card: Yes
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics
Maximum resolution: 7680 x 4320 pixels

Audio

Built-in speaker(s): No

Network

Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Intel® I219

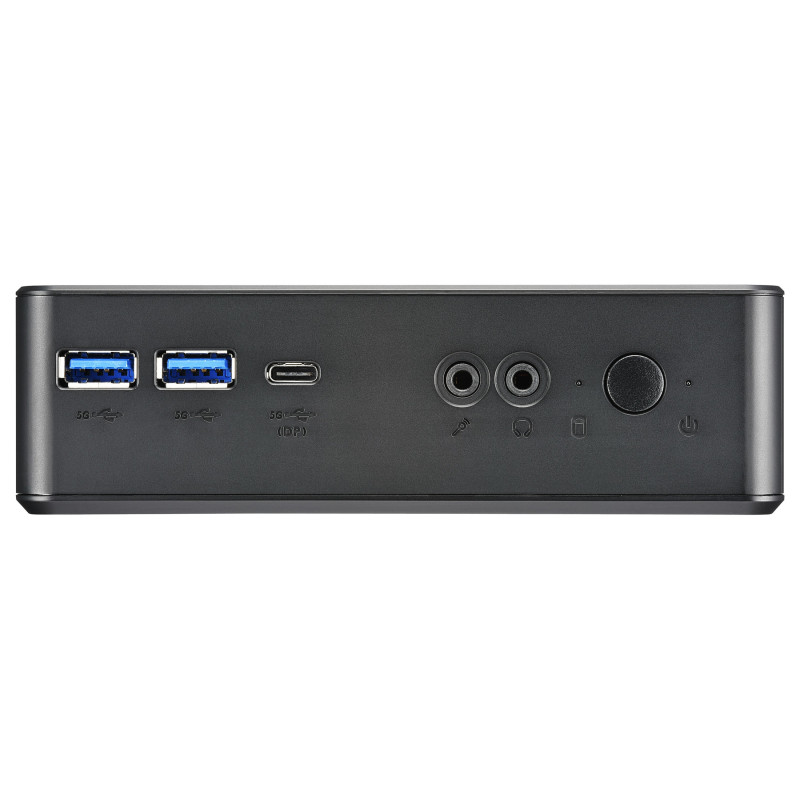

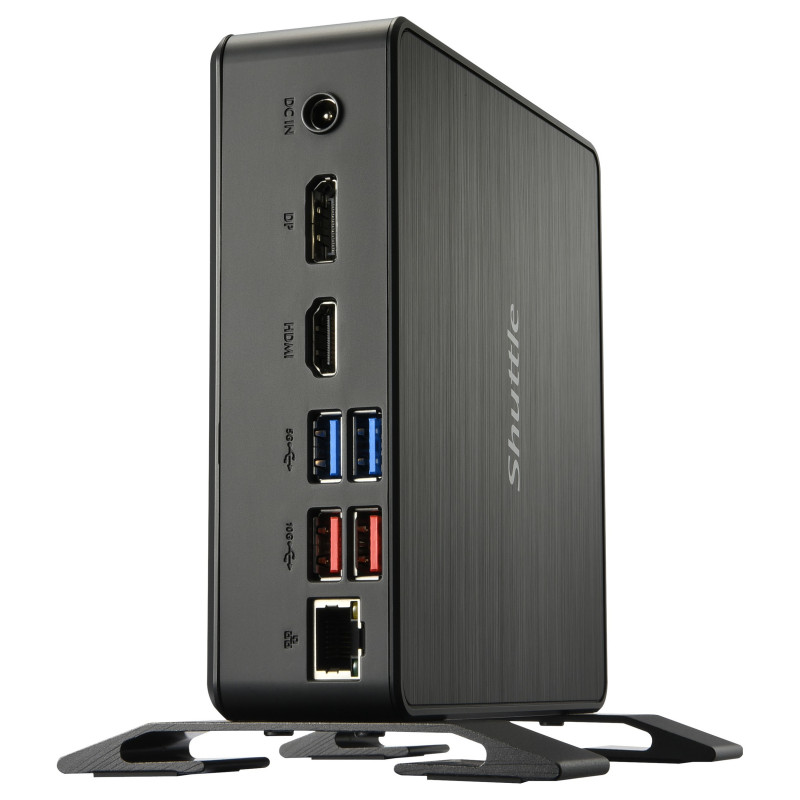

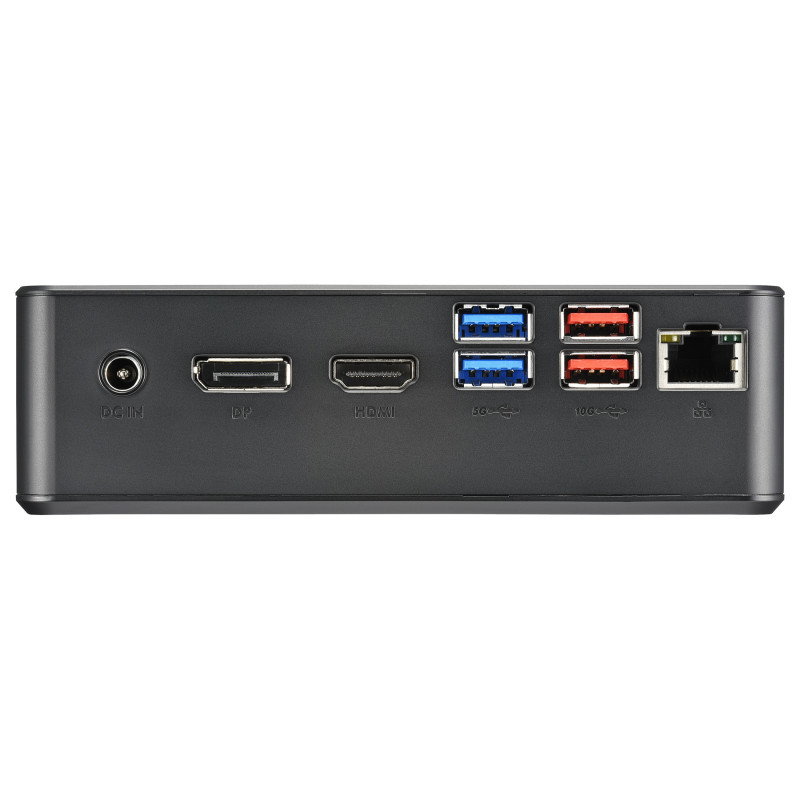

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Expansion slots

PCI Express slots version: 3.0, 4.0
Number of M.2 (M) slots: 2

Design

Chassis type: 0.84L sized PC
Product colour: Black
Cooling type: Active
On/off switch: Yes
LED indicators: HDD, Power
Housing material: Plastic
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone
Safety: CB IEC60950/62368, cTUVus (UL 62368)

Performance

Motherboard chipset: Intel SoC
Number of processors supported: 1
BIOS type: AMI
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Harmonized System (HS) code: 84733080

Software

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes
Operating system installed: No

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP

Power

Power supply type: External AC adapter
Power supply: 65 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 3.42 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 142 mm
Depth: 142 mm
Height: 42 mm
Weight: 400 g
Package weight: 1.2 kg

Packaging content

Power cord included: Yes
AC adapter included: Yes
Quick start guide: Yes
Drivers included: Yes
