Shuttle Nano PC NE10N

Shuttle Nano PC NE10N, Intel N 100, 1x HDMI, 1x DP, 6x USB, 1x LAN, fanless, 24/7 permanent operation, incl. VESA. Chassis type: 0.6L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC, BIOS type: EFI AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 1, Maximum internal memory: 16 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 1. Cooling type: Passive. Power supply: 65 W

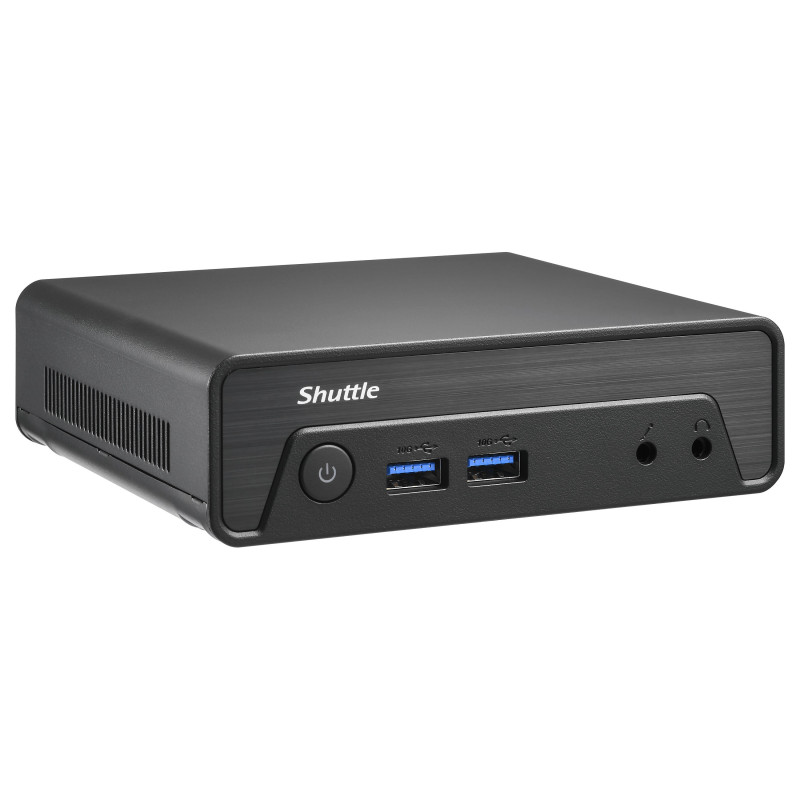

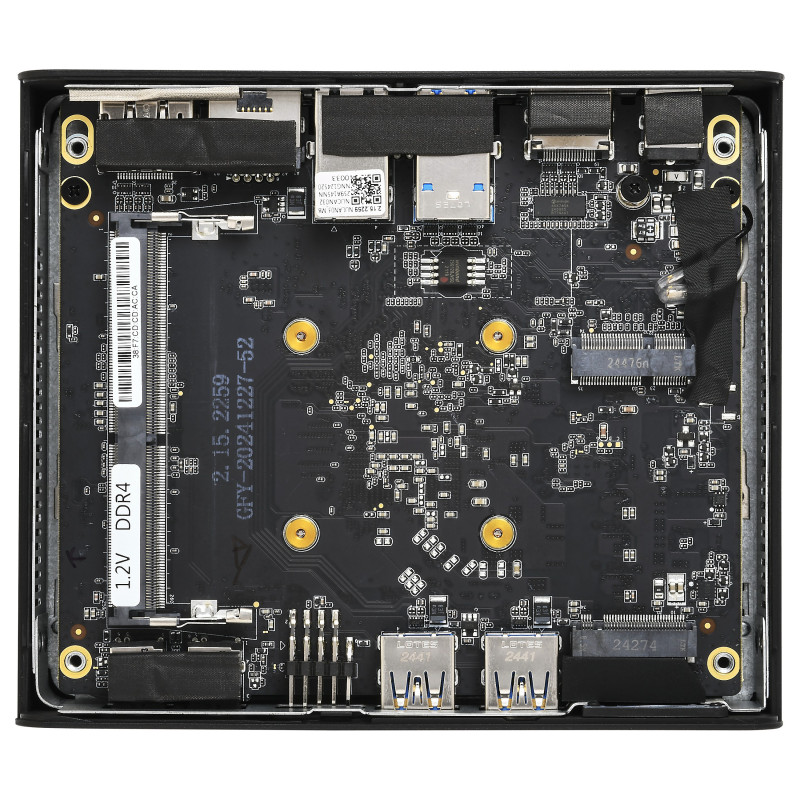

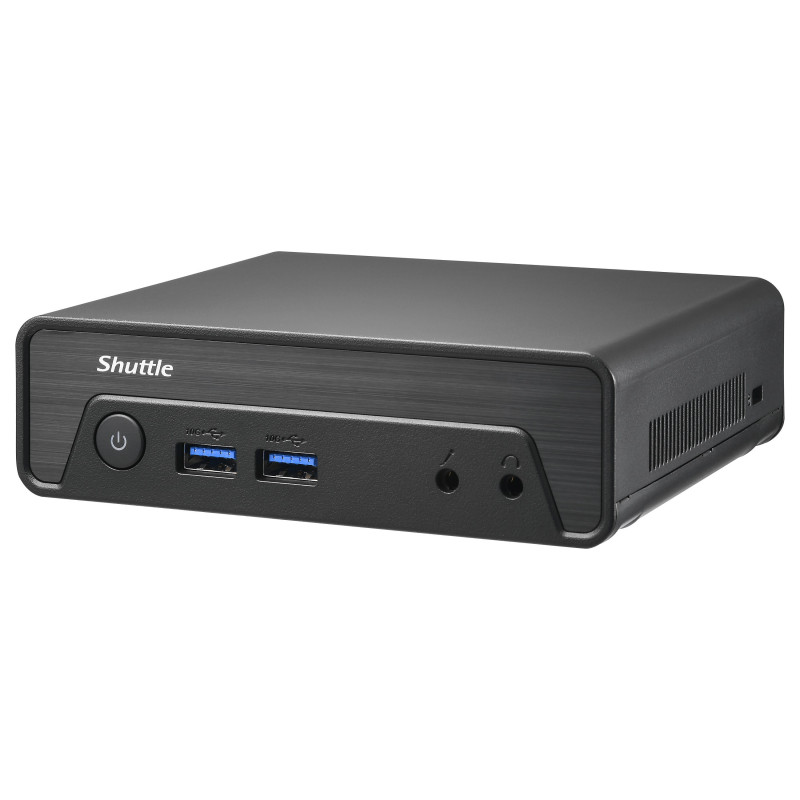

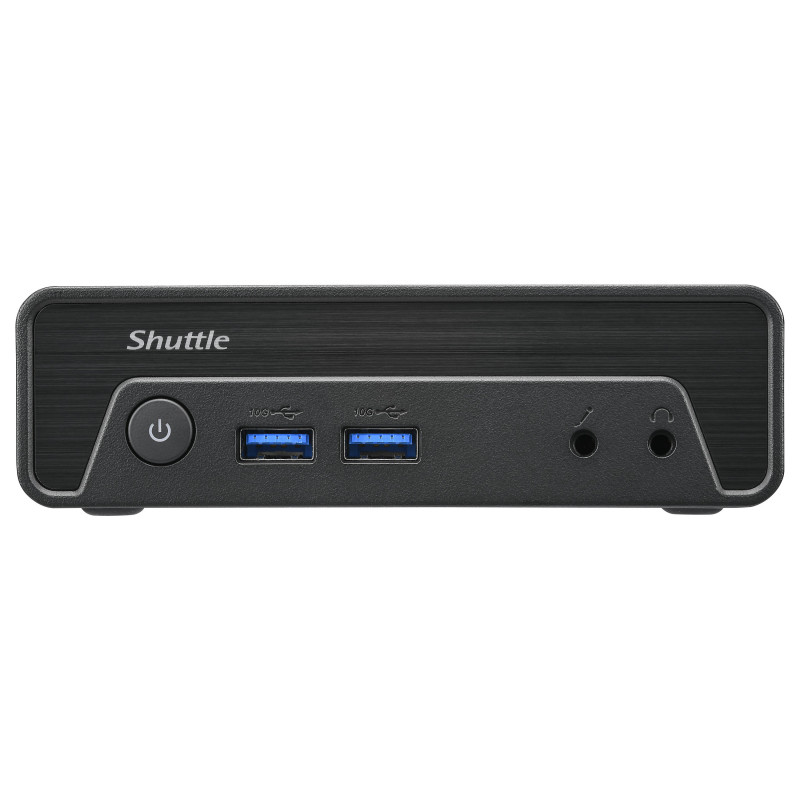

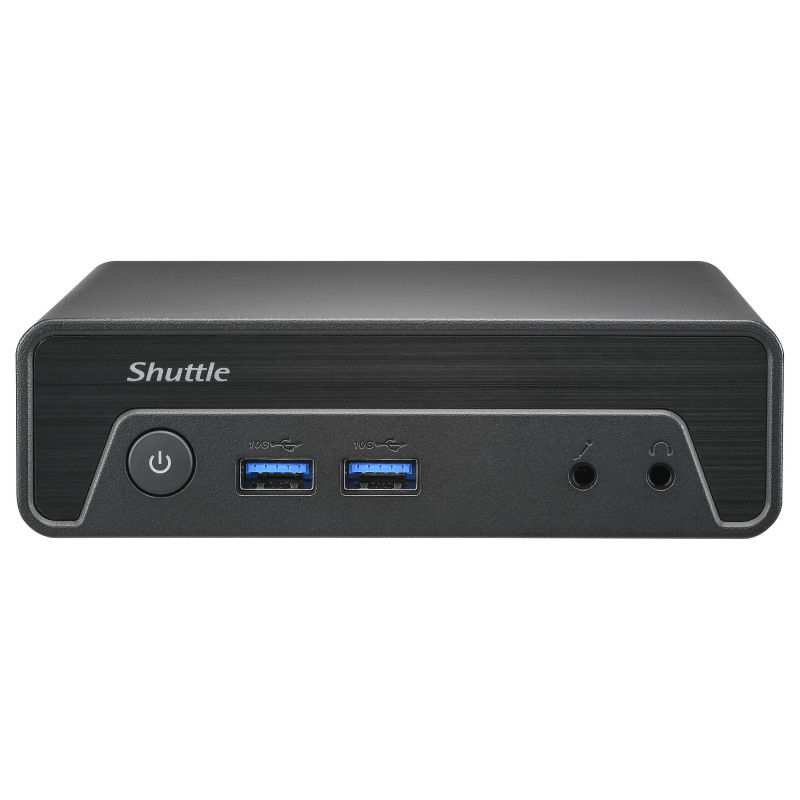

The fanless Shuttle XPC nano Barebone NE10N comes with powerful and efficient 12th generation Intel N100 processor, codenamed "Alder Lake-N". Despite the nano format with only 600 ml volume, it offers enormous connection variety and expansion options. Thus, up to two UHD displays (4K/60Hz) and up to six USB devices can be connected, and one M.2-2280 NVMe SSD card and one DDR4 module can be installed. The NE10N is ideal for Digital Signage, POS, control, office or even multimedia.

Processor

Processor manufacturer: Intel
Processor model: N100
Processor cores: 4
Processor threads: 4
Processor boost frequency: 3.4 GHz
Feature: Built-in processor
Processor cache: 6 MB

Memory

Memory slots type: SO-DIMM
Number of memory slots: 1
Maximum internal memory: 16 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Single-channel
Memory voltage: 1.2 V
Feature: Non-ECC

Storage

Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express, Serial ATA

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics

Performance

Motherboard chipset: Intel SoC
Number of processors supported: 1
BIOS type: EFI AMI
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Senary SN6141

Network

Feature: Ethernet LAN

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Design

Chassis type: 0.6L sized PC
Product colour: Black
Cooling type: Passive
LED indicators: Yes
Housing material: Plastic
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI

Logistics data

Harmonized System (HS) code: 84733080

Software

Windows operating systems supported: Windows 11
Linux operating systems supported: Yes

Sustainability

Sustainability certificates: ENERGY STAR, ErP

Power

Power supply type: External AC adapter
Power supply: 65 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 3.42 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 135 mm
Depth: 115 mm
Height: 39 mm
Weight: 600 g
Package weight: 1.5 kg

Packaging content

Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
