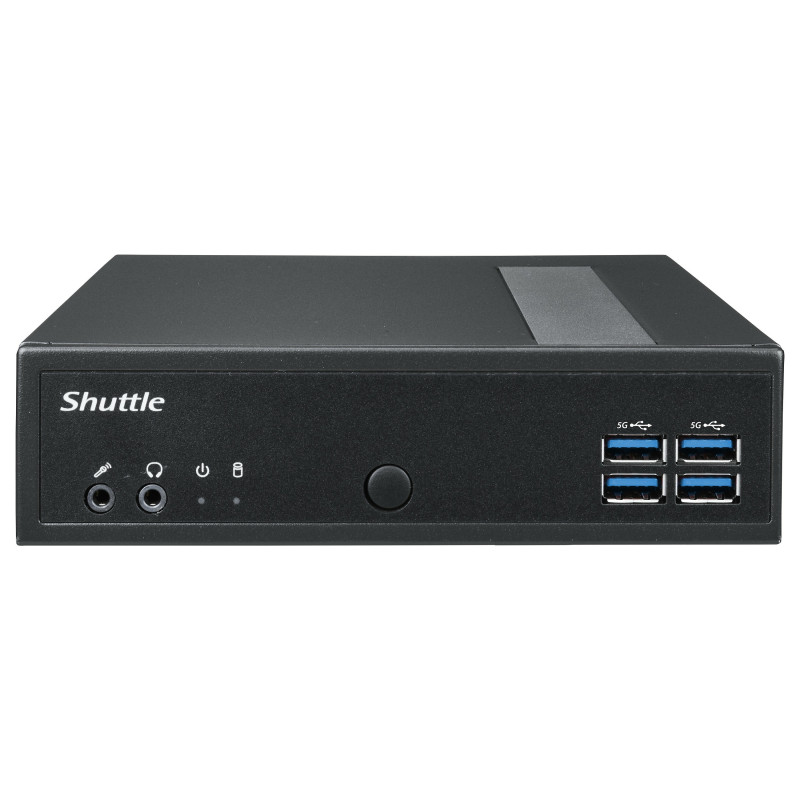

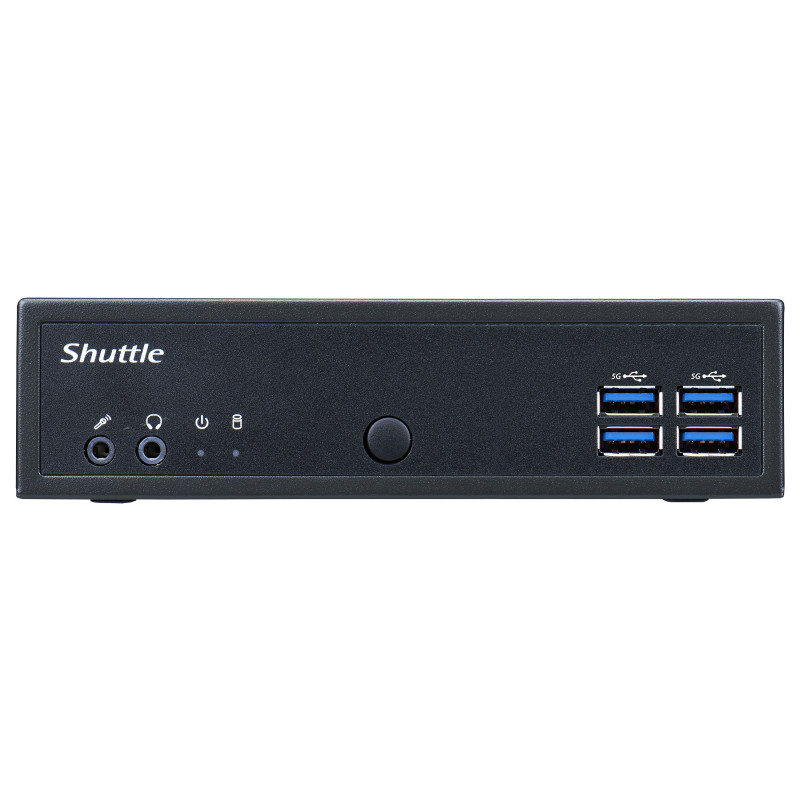

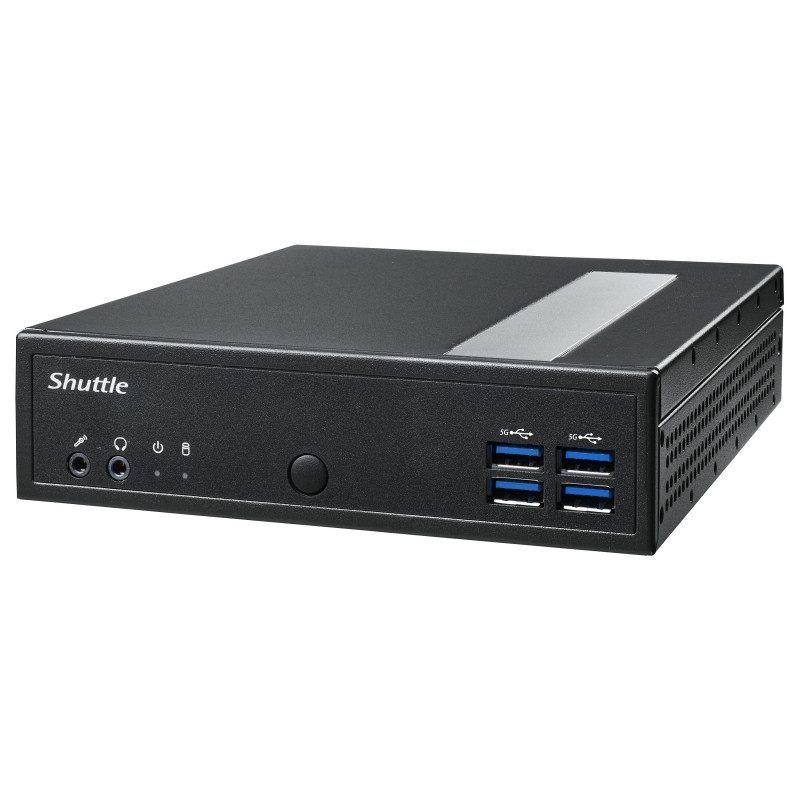

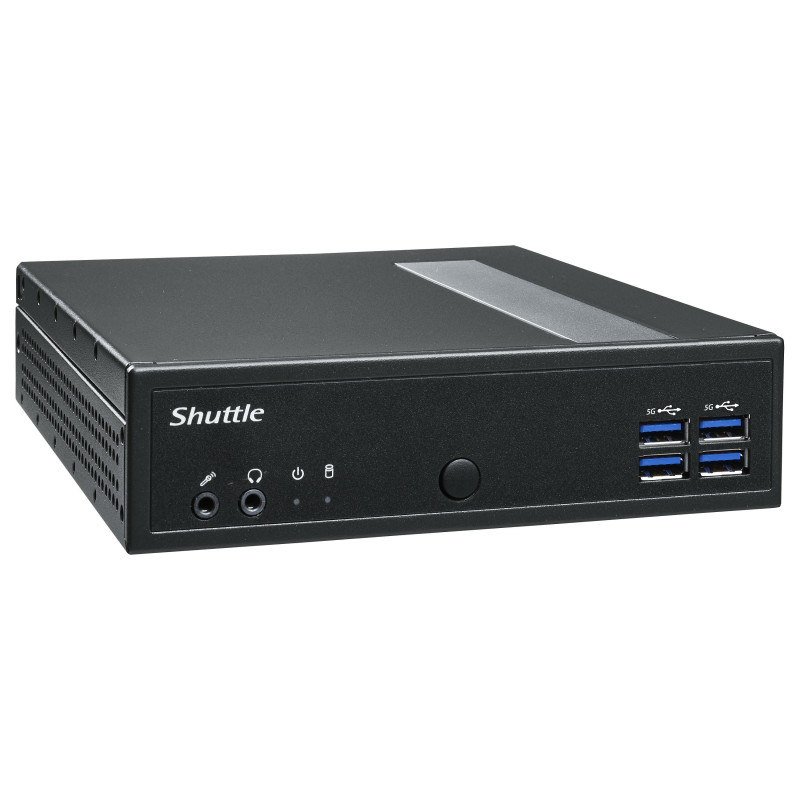

Shuttle DL40N PC / workstation barebone

Shuttle XPC slim Barebone DL40N, Intel N150, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 1, Maximum internal memory: 16 GB. Supported storage drive types: HDD SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Passive. Power supply: 65 W
Silence meets performance. The Shuttle XPC slim Barebone DL40N is the sophisticated successor to the proven DL30N, engineered for environments where reliability and silence are non-negotiable. Powered by the energy-efficient Intel "Twin Lake-N" N150 processor, this fanless 1.35-litre PC is the ideal foundation for slimline workstations, robust edge computing, or high-availability client/server setups.
Connectivity is at the heart of the DL40N. Featuring dual Intel 2.5G LAN ports for high-speed networking and an optional 4G upgrade, it ensures seamless integration even in mobile or remote applications. The integrated Intel UHD Graphics supports hardware acceleration for 4K video playback across three independent displays (HDMI, DisplayPort, VGA), making it a versatile choice for digital signage and multi-monitor office environments.
Designed for 24/7 continuous operation and encased in a durable metal chassis, the DL40N remains noiseless when paired with an SSD. Whether it's for industrial control, point-of-sale, or silent office use - the DL40N delivers professional-grade performance in a compact, maintenance-free form factor.

Processor

Processor manufacturer: Intel
Processor model: N150
Processor cores: 4
Processor threads: 4
Processor boost frequency: 3.6 GHz
Built-in processor: Yes
Processor cache: 6 MB
Thermal Design Power (TDP): 6 W
ECC supported by processor: No

Memory

Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 1
Maximum internal memory: 16 GB
Supported memory clock speeds: 4800 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Single-channel
Memory voltage: 1.1 V
ECC: No
Non-ECC: Yes

Storage

Storage drives installed: No
Supported storage drive types: HDD SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
NVMe: Yes
Number of storage drives supported: 2
Card reader integrated: No

Graphics

On-board graphics card: Yes
Graphics card family: Intel
On-board graphics card model: Intel® Graphics
Discrete graphics card model: Not available
Maximum resolution: 4096 x 2160 pixels
Number of displays supported: 3

Audio

Built-in speaker(s): No

Network

Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Intel I226-LM

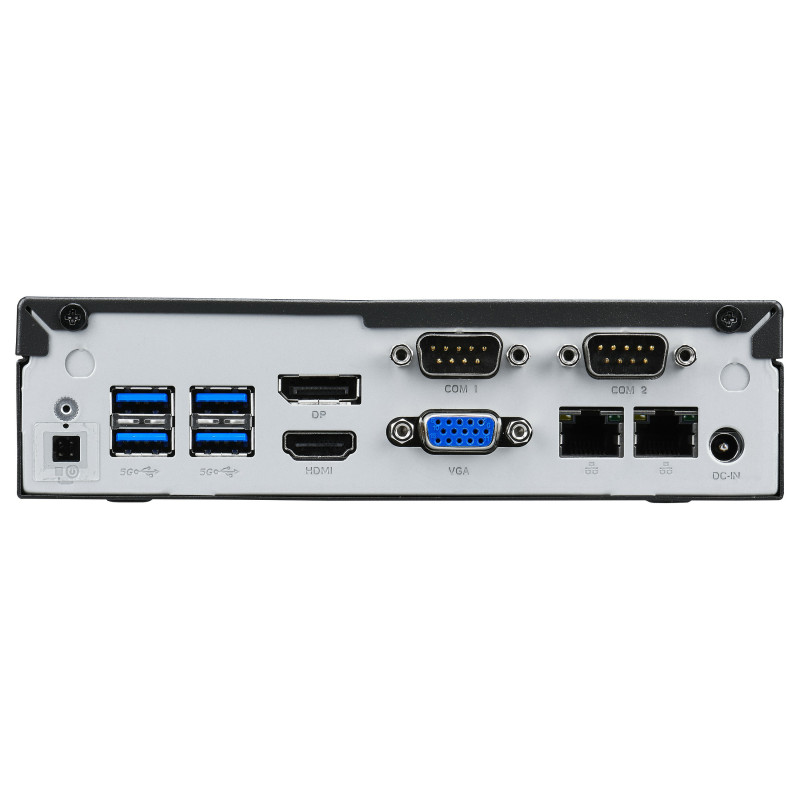

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 8
HDMI ports quantity: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
Serial ports quantity: 2
DC-in jack: Yes

Design

Chassis type: 1.35L sized PC
Product colour: Black
Cooling type: Passive
On/off switch: Yes
LED indicators: HDD, Power
Housing material: Steel
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Panel mounting interface: 100 x 75 mm
Product type: Mini PC barebone

Performance

Number of processors supported: 1
BIOS type: UEFI AMI
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI

Logistics data

Harmonized System (HS) code: 84733080

Software

Windows operating systems supported: Windows 10, Windows 11 x64
Linux operating systems supported: Yes
Operating system installed: No

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP

Power

Power supply type: External AC adapter
Power supply: 65 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 3.42 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 165 mm
Depth: 190 mm
Height: 43 mm
Weight: 800 g
Package weight: 2.1 kg

Packaging content

Power cord included: Yes
AC adapter included: Yes
Quick start guide: Yes
Drivers included: Yes
