Shuttle All-In-One Barebone X50V9U3

Shuttle All-In-One Barebone X50V9U3, 15.6" Single-Touch-Screen (resistive), Intel i3-1315U, Wifi, IP54, fanless, 24/7 permanent operation. Chassis type: All-in-One, Product type: All-in-One PC barebone. Motherboard chipset: Intel SoC, BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Bluetooth version: 4.2. Cooling type: Passive. Power supply: 90 W

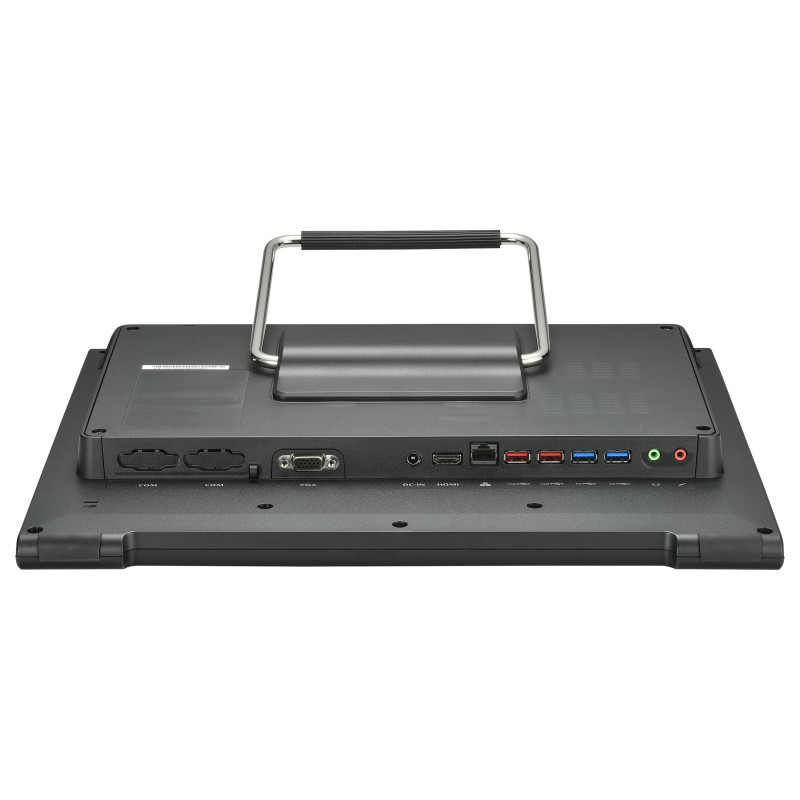

The Shuttle XPC all-in-one X50V9U3 is the latest addition to the X50 Series and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture helps improve on power consumption and computing power. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: Intel Core i3-13xxx
Processor model: i3-1315U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Feature: Built-in processor
Processor cache: 10 MB

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5200 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Feature: Non-ECC

Storage

Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
Storage drive interface: PCI Express, Serial ATA III
Feature: NVMe
Number of storage drives supported: 3

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics

Performance

Motherboard chipset: Intel SoC
Number of processors supported: 1
BIOS type: UEFI AMI
Feature: Built-in camera
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC888S

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1366 x 768 pixels
Feature: Touchscreen
HD type: HD
Aspect ratio: 16:9
Display brightness: 220 cd/m²

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
RMS rated power: 2 W

Network

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model: Realtek RTL8821CE
Feature: Ethernet LAN
Feature: Wi-Fi
LAN controller: Intel® I219
Feature: Bluetooth
Bluetooth version: 4.2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0b
VGA (D-Sub) ports quantity: 1
Feature: Microphone in
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Design

Chassis type: All-in-One
Product colour: Black
Cooling type: Passive
Feature: On/off switch
LED indicators: HDD, Power
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Product type: All-in-One PC barebone

Technical details

Compliance certificates: BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI

Logistics data

Harmonized System (HS) code: 84714100

Software

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Yes

Sustainability

Sustainability certificates: ENERGY STAR

Power

Power supply type: External AC adapter
Power supply: 90 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 4.74 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 391 mm
Depth: 42 mm
Height: 327 mm
Weight: 3.5 kg
Package weight: 4.2 kg

Packaging content

Feature: Power cord included
Feature: AC adapter included
Feature: Quick start guide
Feature: Drivers included
