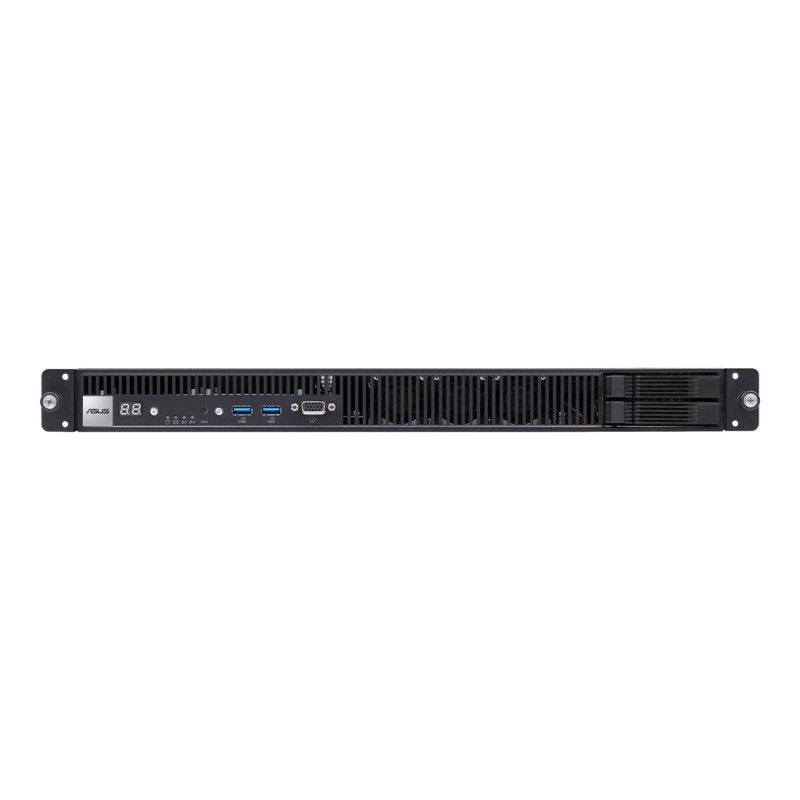

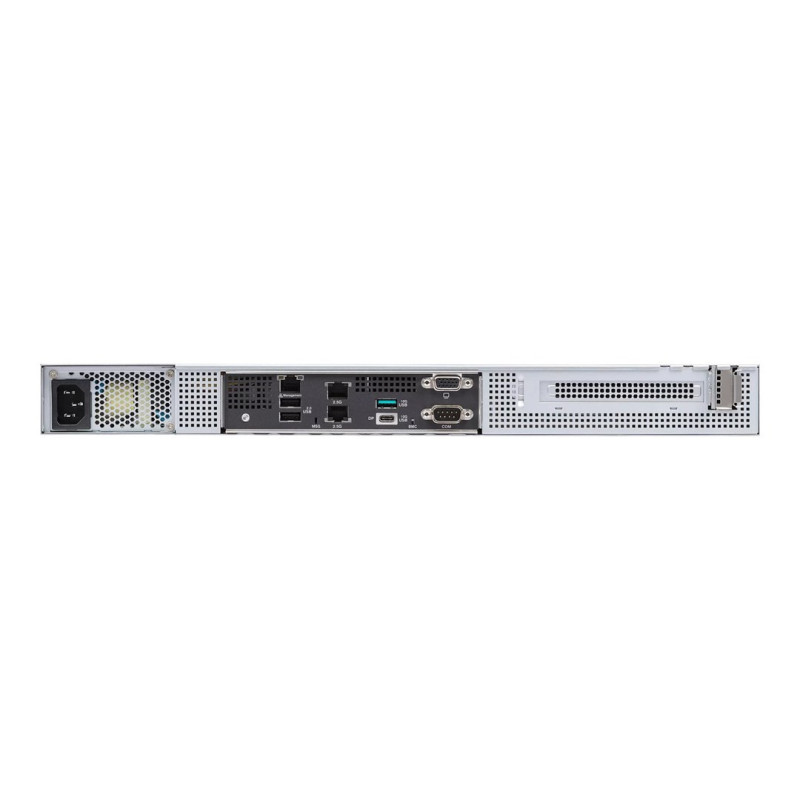

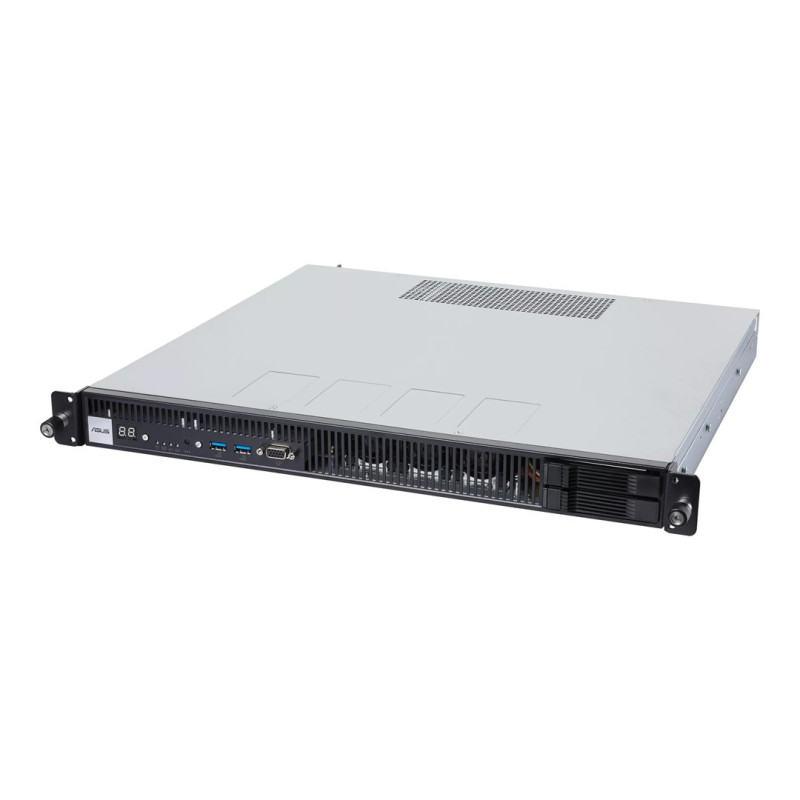

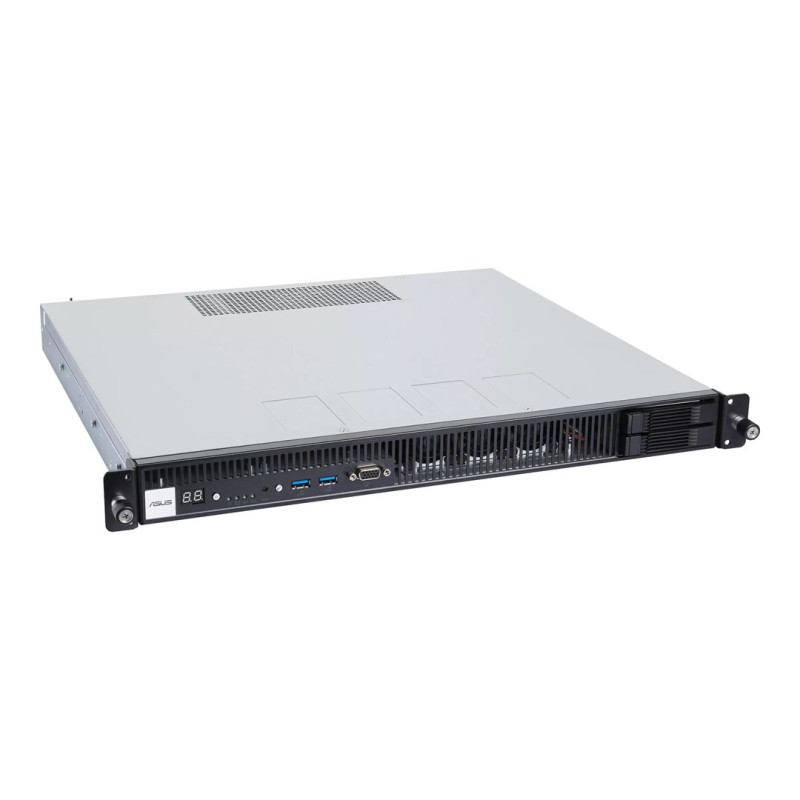

Platform Asus Rack ( 1U ) AMD ExpertCenter Pro ER100
Product reference:
3-4711636149068
Platform Asus Rack ( 1U ) AMD ExpertCenter Pro ER100
Platform Asus Rack ( 1U ) AMD ExpertCenter Pro ER100
Product reference:
3-4711636149068
Platform Asus Rack ( 1U ) AMD ExpertCenter Pro ER100
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 19
business days
| Processor | |
|---|---|
| Compatible processor series | AMD EPYC 4004, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD EPYC 4005 |
| Processor socket | Socket SP5 |
| Number of processors supported | 2 |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Features | |
| Integrated BMC with IPMI | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Memory | |
| Supported RDIMM clock speeds | 5600 MHz |
| Number of DIMM slots | 4 |
| Maximum RDIMM memory | 192 GB |
| Supported memory types | DDR5 UDIMM |
| Supported DIMM module capacities | 32GB, 16GB, 48GB, 8GB |
| Design | |
| Certification | BSMI, CE, CB, RCM, FCC(Class A), ISED |
| LED indicators | Yes |
| Chassis type | Rack (1U) |
| Number of fans | 8 fan(s) |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Gold |
| Input current | 4 - 8 A |
| Number of main power supplies | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 438.5 mm |
| Height | 43.2 mm |
| Weight | 9.62 kg |
| Depth | 409 mm |
| Network | |
| Ethernet LAN | Yes |
| Number of LAN controllers | 2 |
| Ethernet LAN data rates | 100, 1000, 10, 2500 Mbit/s |
| Packaging data | |
| Package weight | 12.4 kg |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express slots version | 5.0 |
| Storage | |
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5 |
| Number of 2.5" bays | 4 |
| Supported storage drive types | HDD & SSD |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| COM ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 connectors | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
