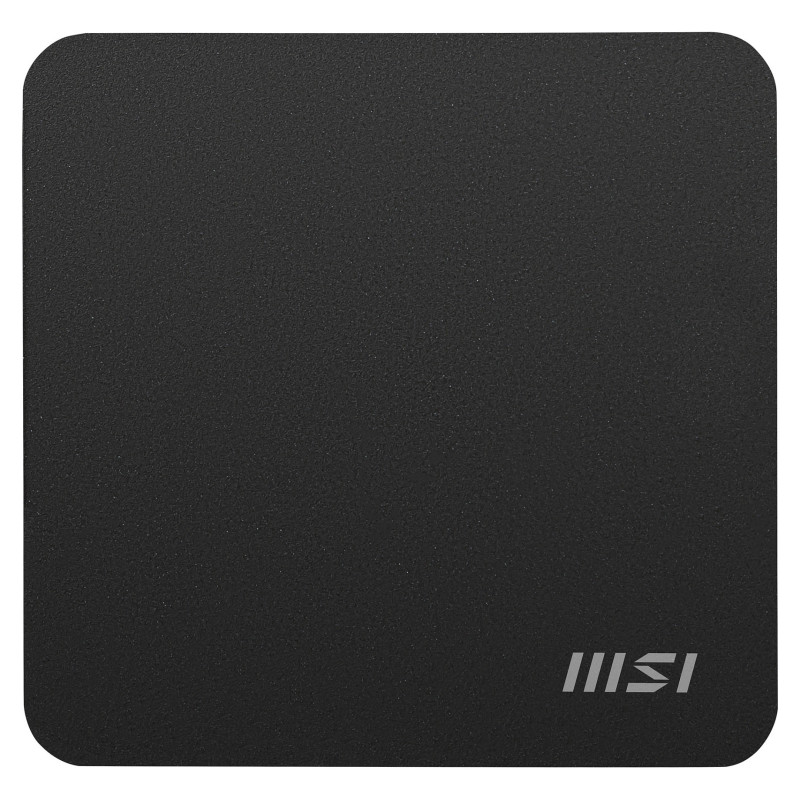

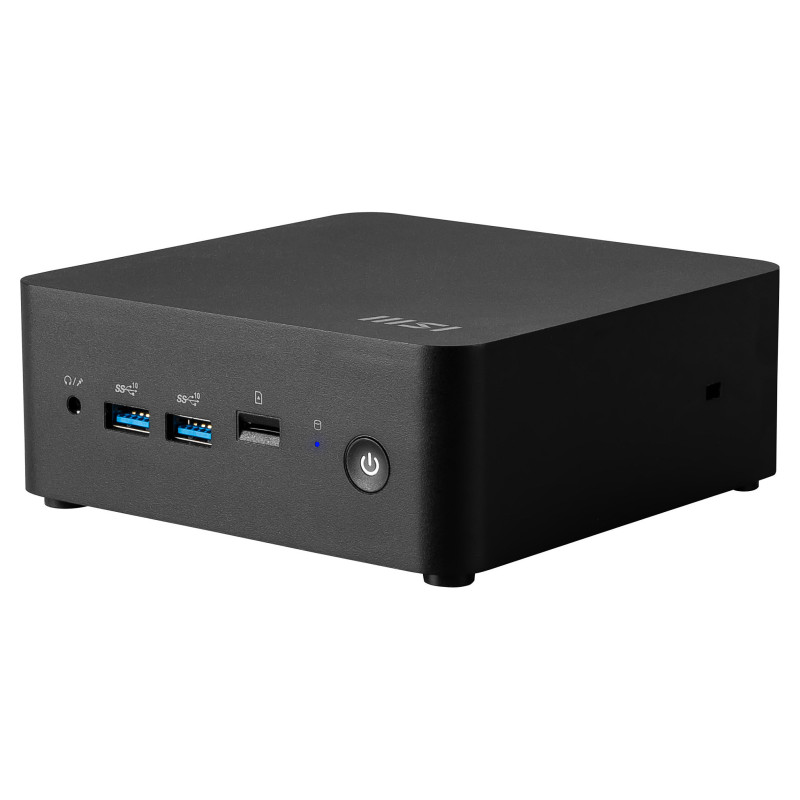

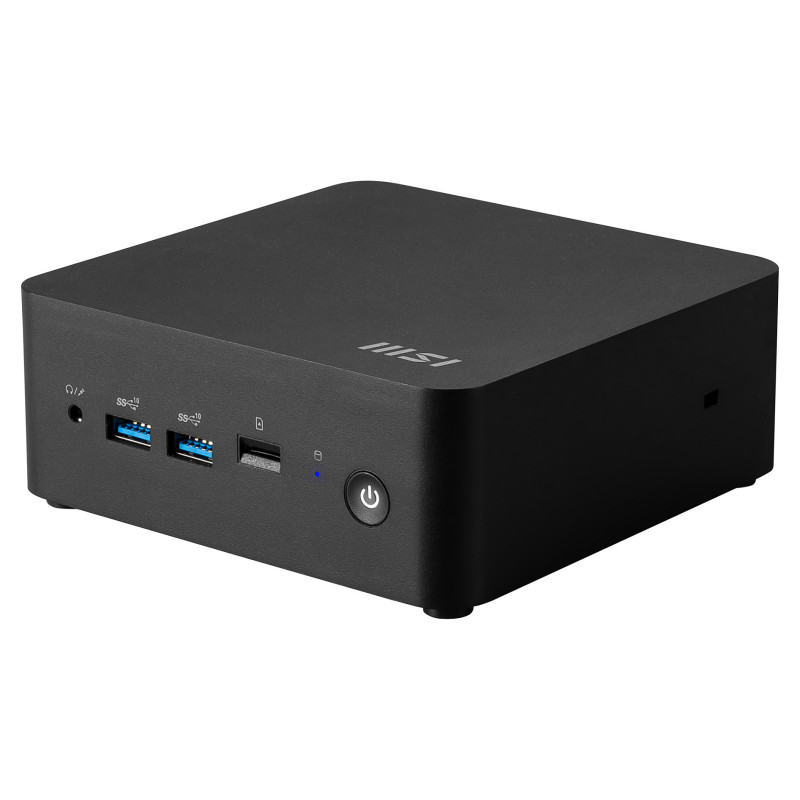

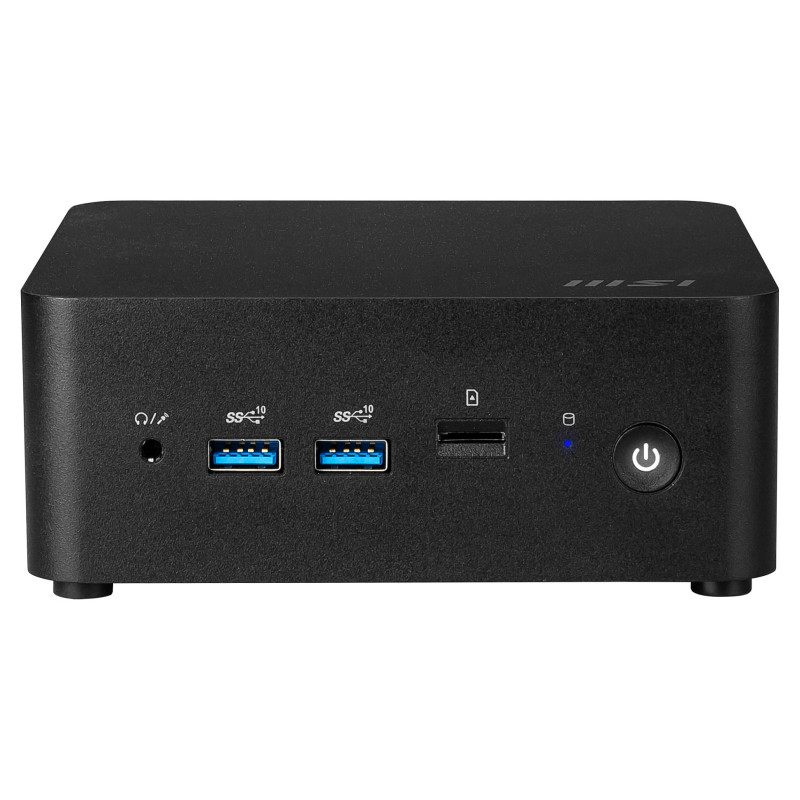

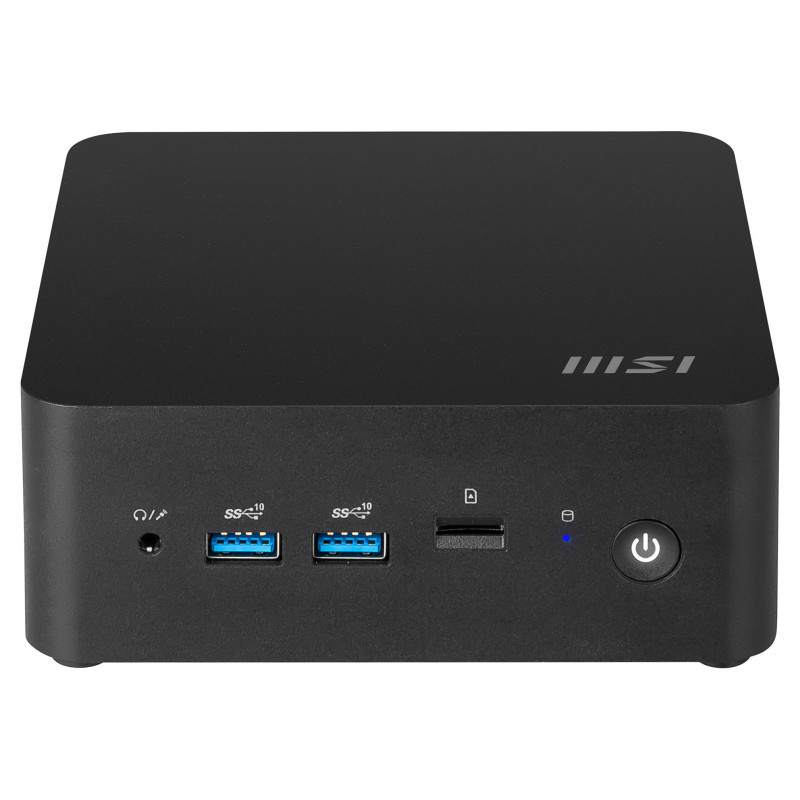

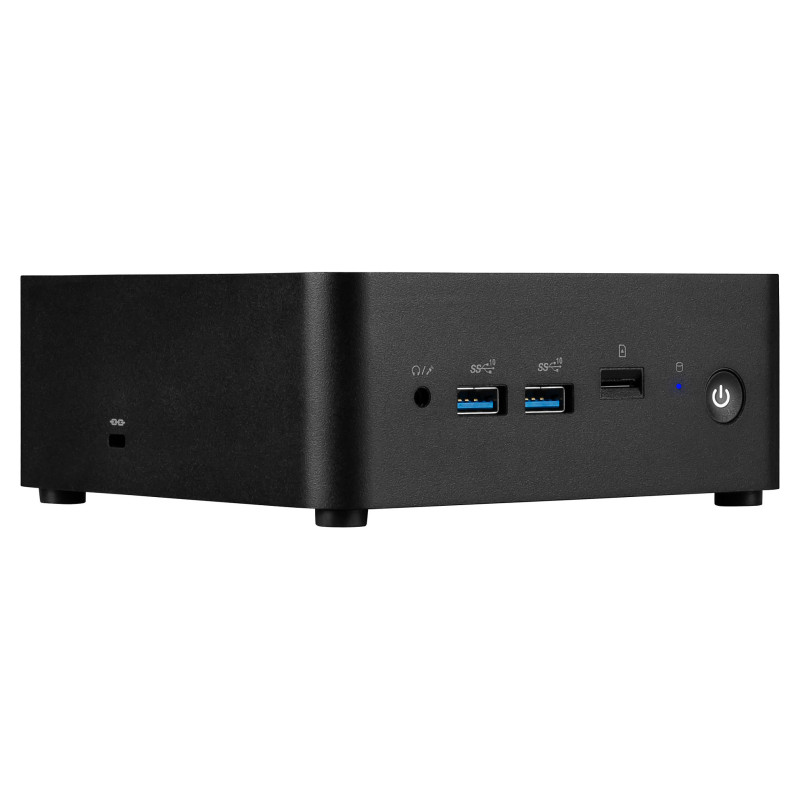

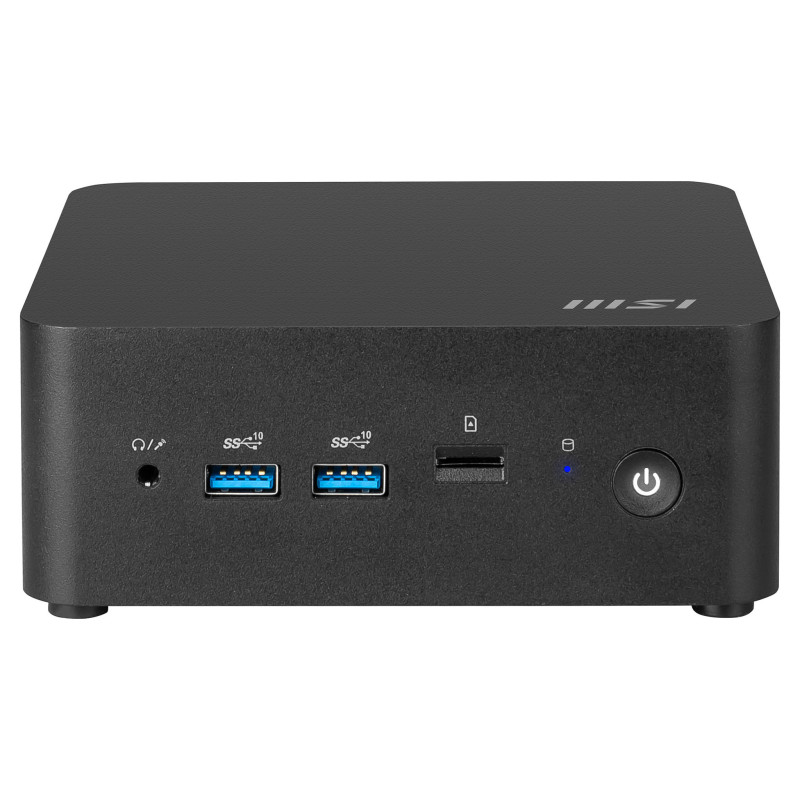

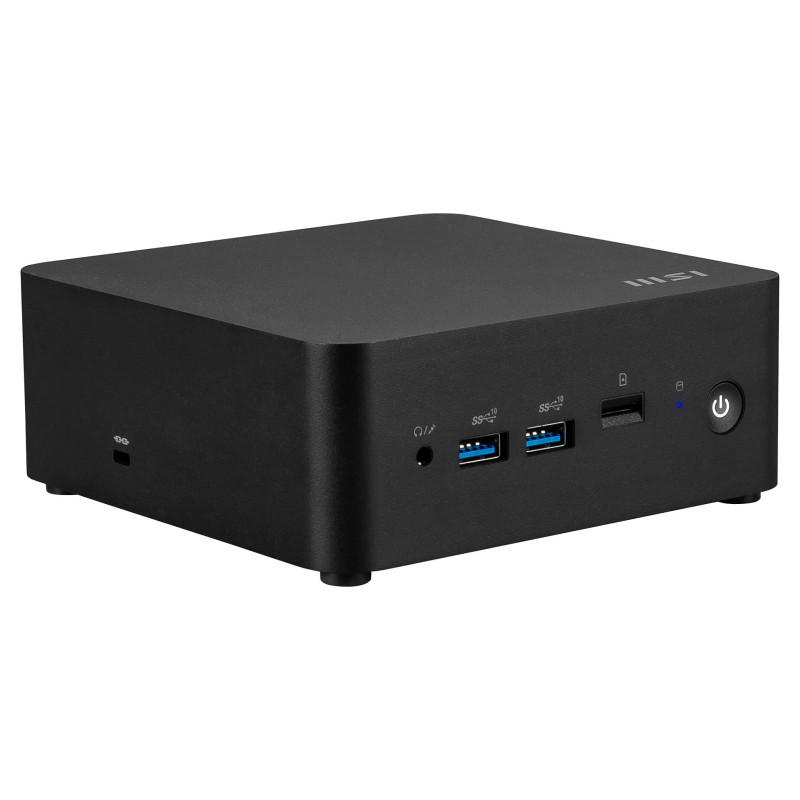

MSI Cubi NUC 1M-024BEU

MSI Cubi NUC 1M-024BEU. Chassis type: 0.84L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W

Processor

Processor manufacturer: Intel
Processor family: Intel Core 7
Processor generation: Intel Core (Series 1)
Processor model: 150U
Processor cores: 10
Processor threads: 12
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core base frequency: 1.8 GHz
Efficient-core base frequency: 1.2 GHz
Feature: Built-in processor
Processor cache: 12 MB

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5200 MHz
Supported memory types: DDR5-SDRAM

Storage

Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5,M.2
SSD form factor: M.2
Storage drive interface: M.2
Feature: NVMe
Number of storage drives supported: 3
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Number of displays supported: 4

Performance

Motherboard form factor: NUC
Motherboard chipset: Intel SoC
Number of processors supported: 1
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Feature: Ethernet LAN
Feature: Wi-Fi
LAN controller: Intel I226-V
Feature: Bluetooth
Bluetooth version: 5.3

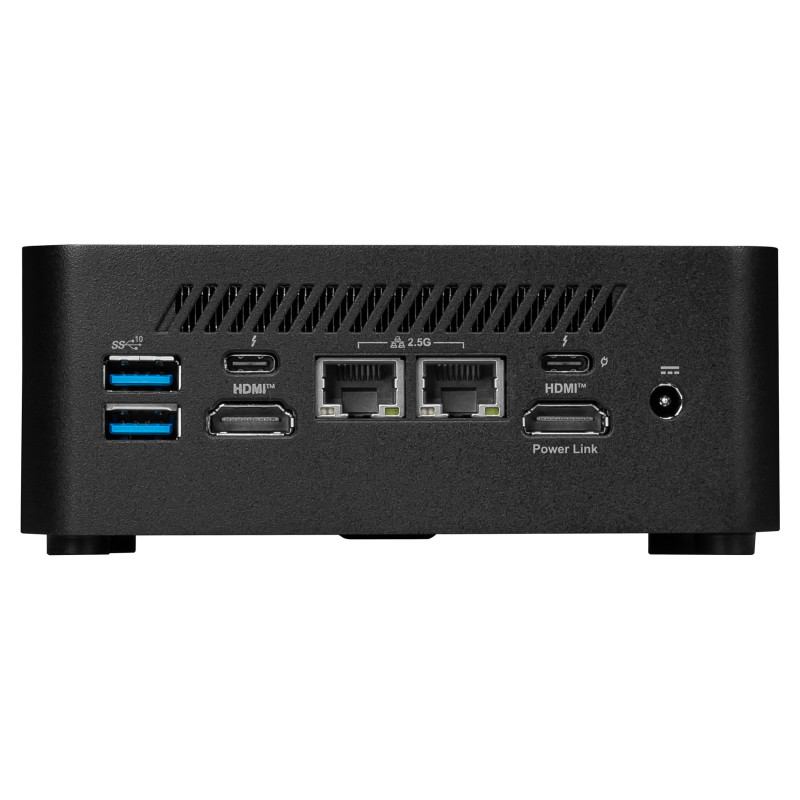

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 2
HDMI version: 1.4b/2.1
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Thunderbolt 4 ports quantity: 2
Feature: DC-in jack

Expansion slots

Number of M.2 (M) slots: 2

Design

Chassis type: 0.84L sized PC
Product colour: Black
Cooling type: Active
Feature: On/off switch
Housing material: Plastic

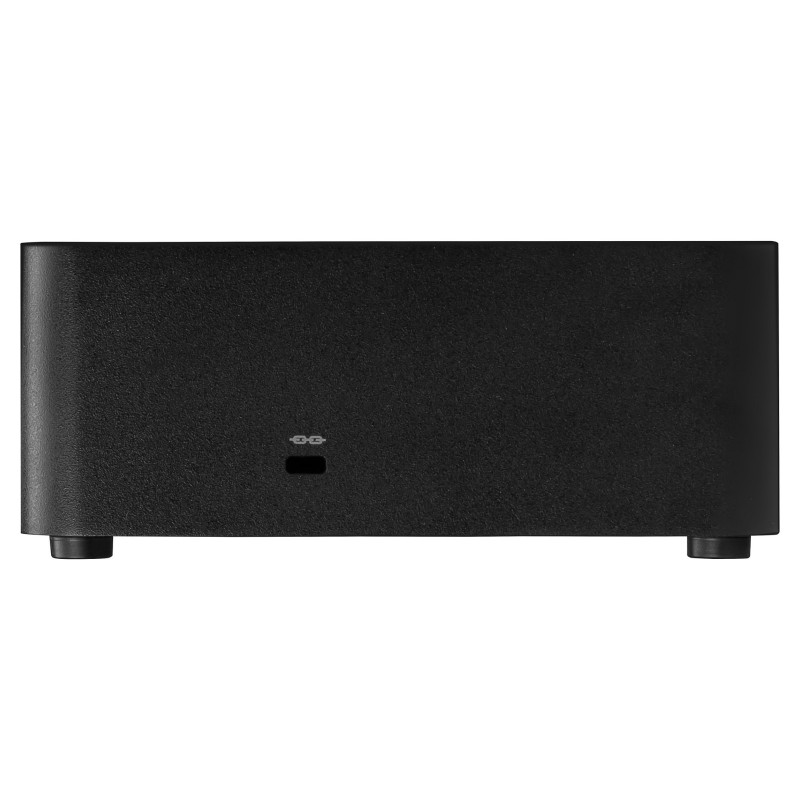

Feature: Cable lock slot
Cable lock slot type: Kensington

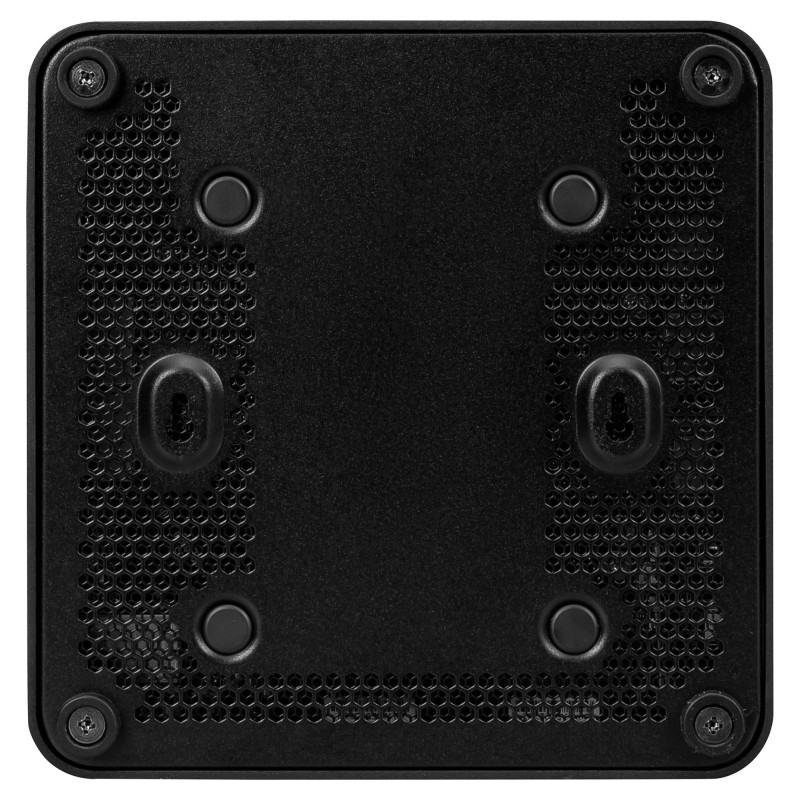

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Product type: Mini PC barebone

Certificates

Certification: FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Software

Operating system installed: No

Power

Power supply type: External AC adapter
Power supply: 120 W

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 132.5 mm
Depth: 135.6 mm
Height: 50.1 mm
Weight: 0.625 g
Package width: 205 mm
Package depth: 220 mm
Package height: 94 mm
Package weight: 1.45 g

Packaging content

Feature: AC adapter included

Other features

Warranty period: 2 year(s)
