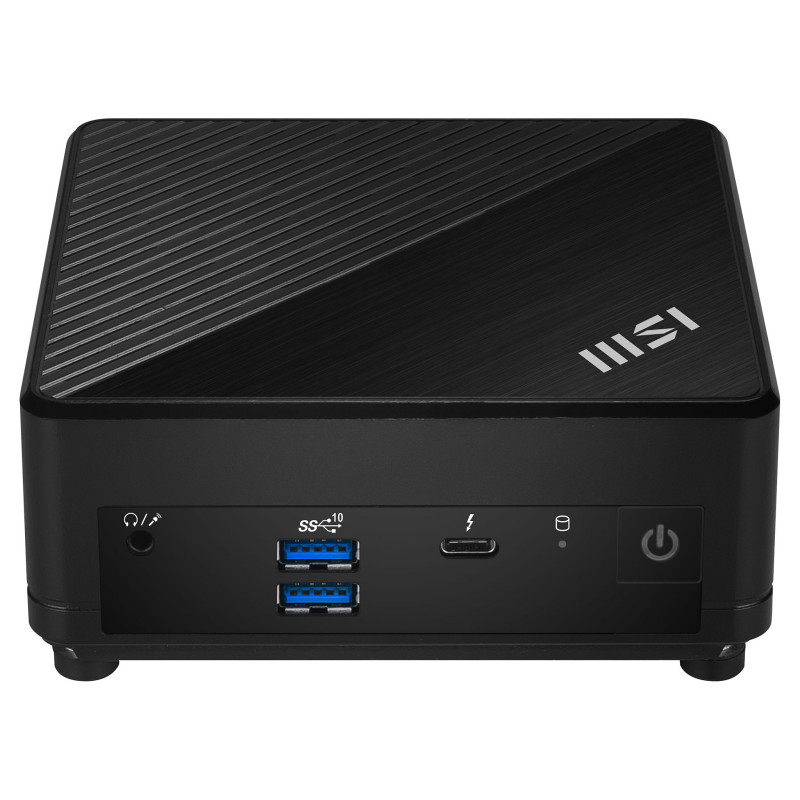

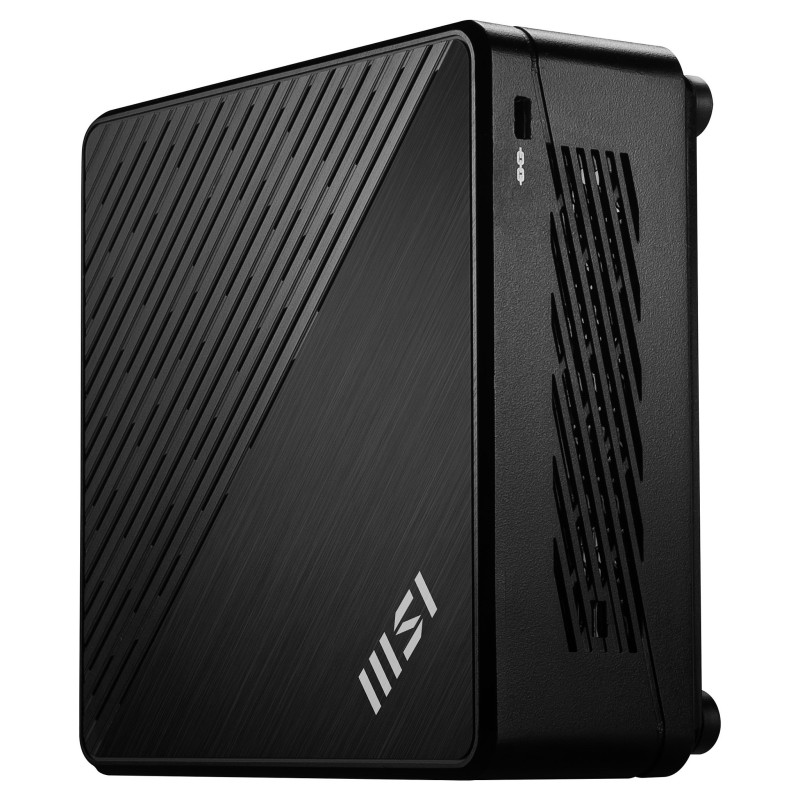

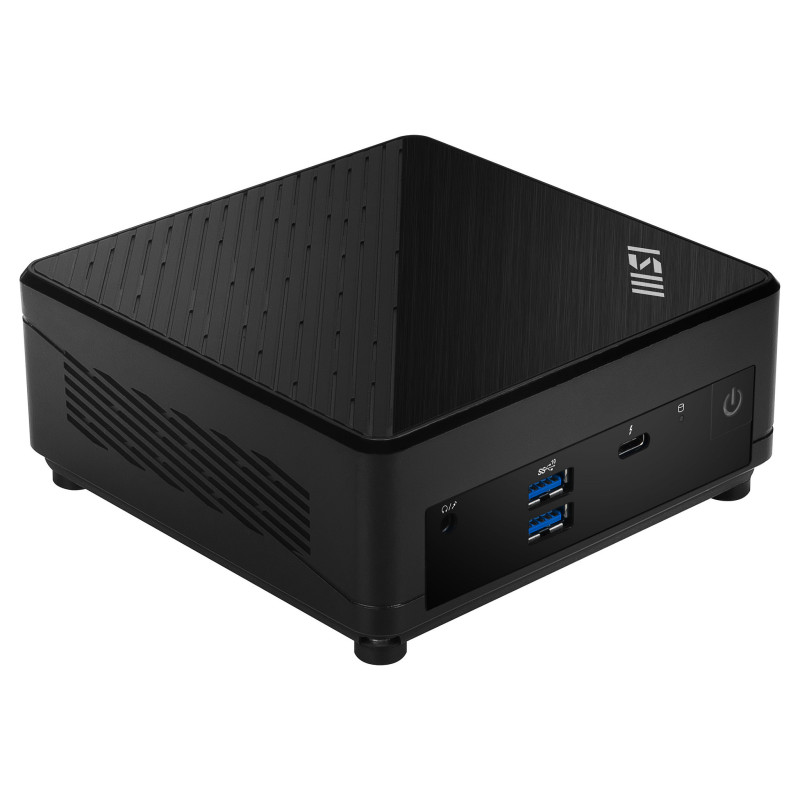

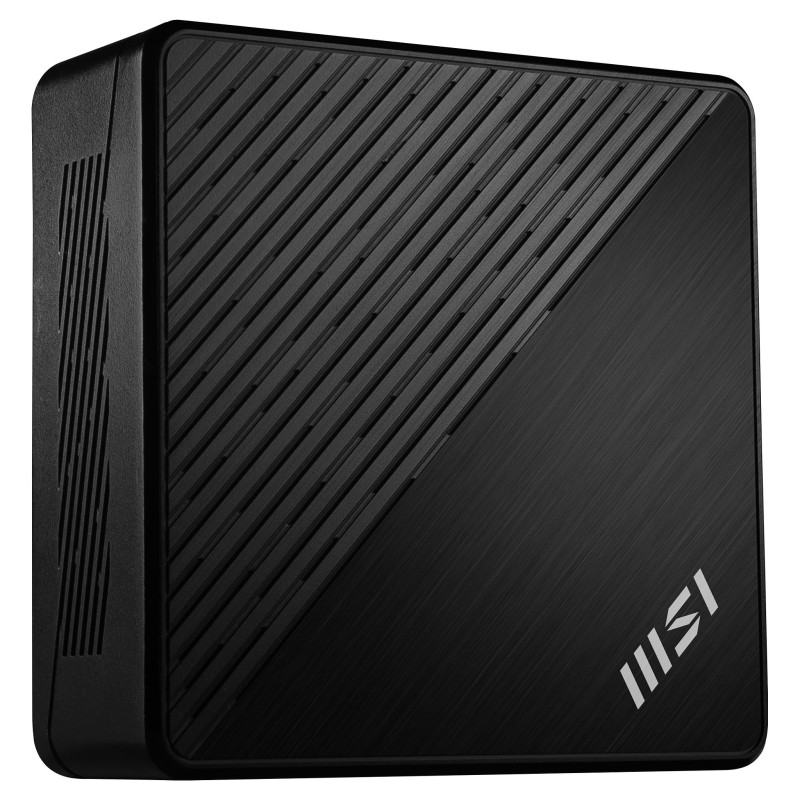

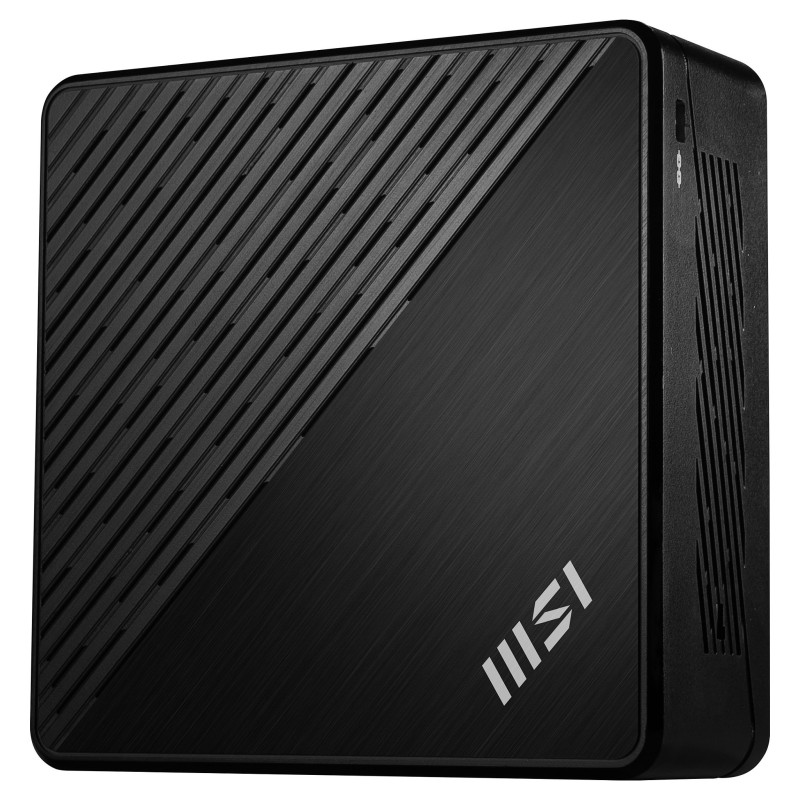

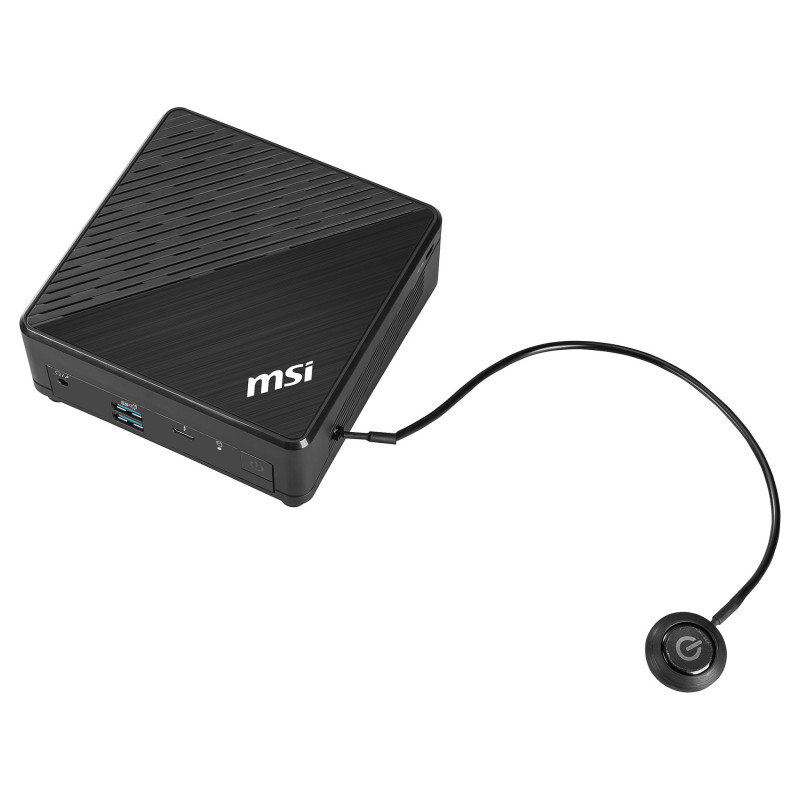

MSI Cubi 5 12M-262BEU

MSI Cubi 5 12M-262BEU. Chassis type: 0.66L sized PC, Product type: Mini PC barebone. Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD SSD. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Power supply: 65 W
Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.
BOLT TO THE NEXT POWER
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all - delivering the fastest, most versatile connection to any dock, display, or data device NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content data at home or in the office, enhancing your efficiency.
MSI Cloud Center
FAST, SECURE WIRELESS BACKUP
Fast, secure, and wireless backup download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
STABLE POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.

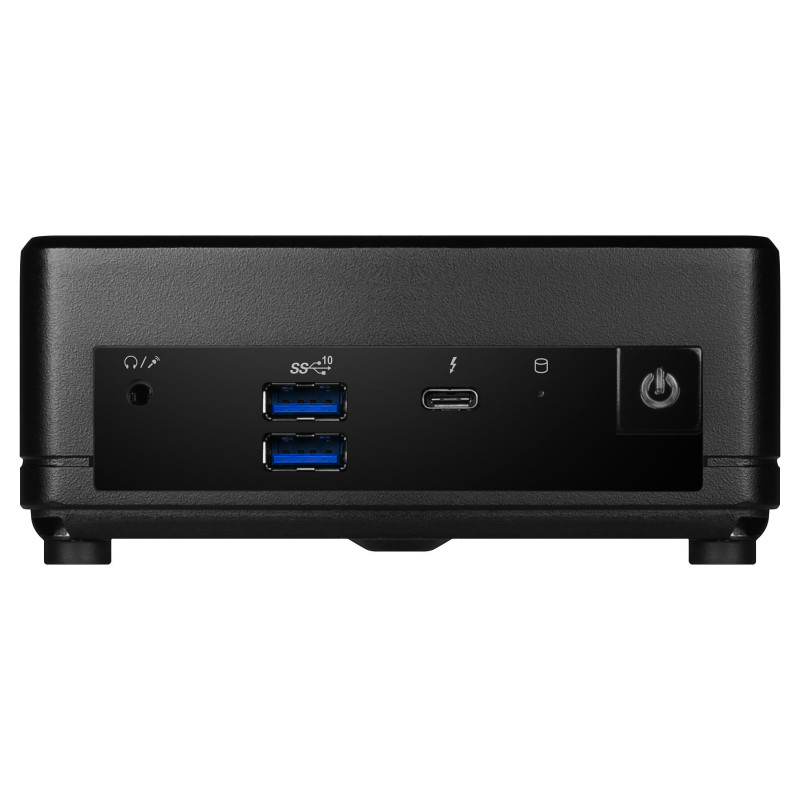

USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.
DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data passwords by encryption keys for advanced security.
EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5" HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.

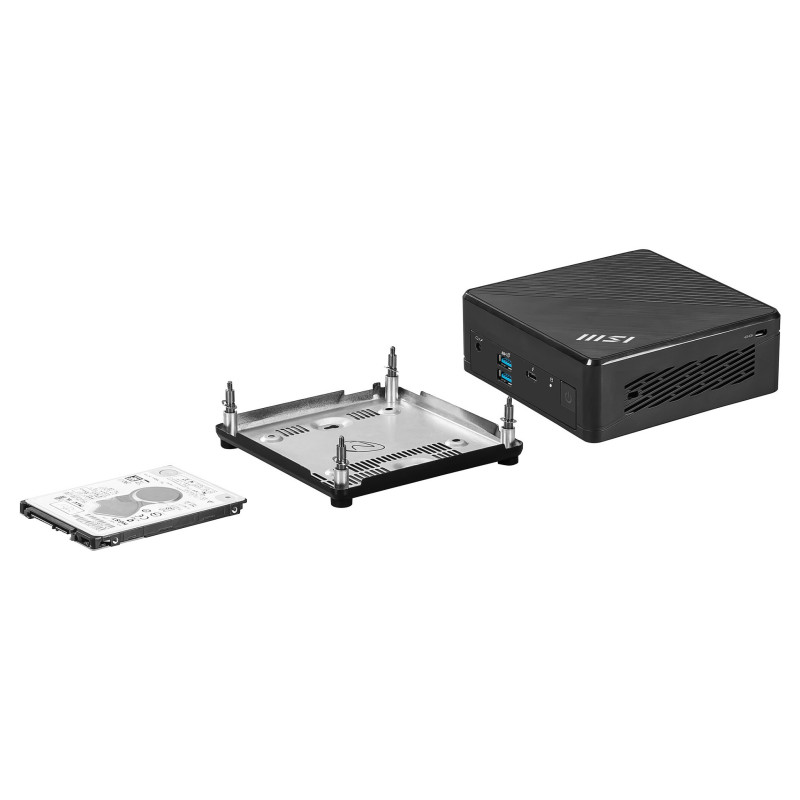

VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

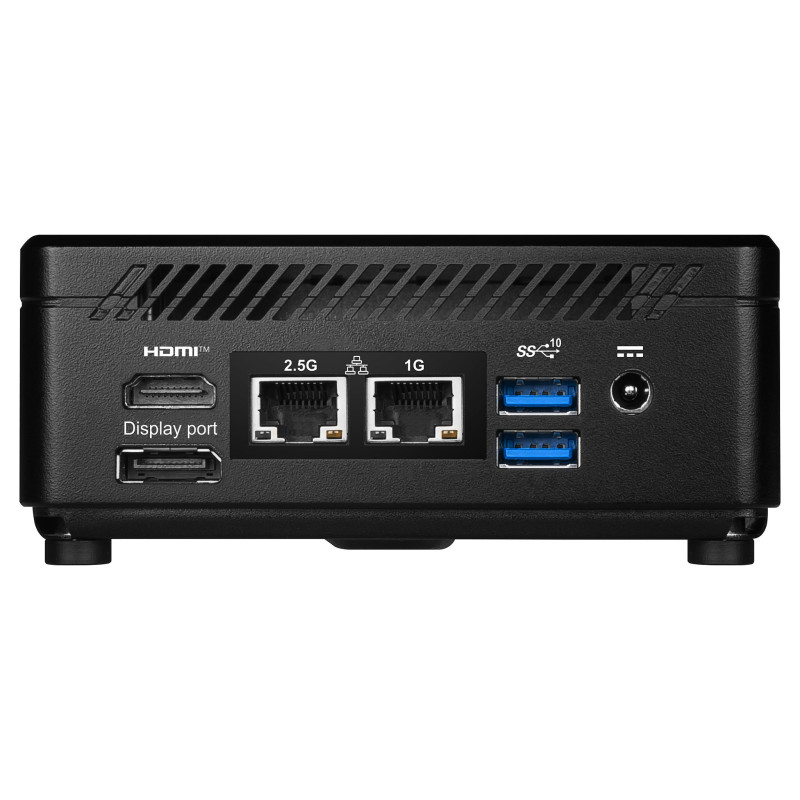

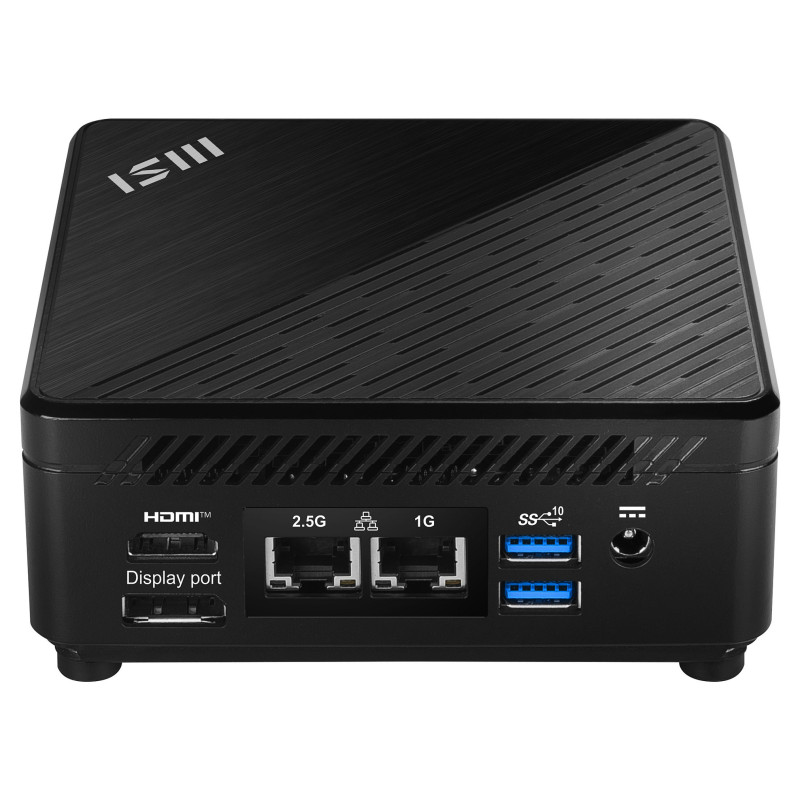

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won't need an adaptor or a dock.
Successful Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant hotel facilitation, shopping mall navigation projects, school university developments and professional office projects.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: 12th gen Intel® Core™ i3
Processor model: i3-1215U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.4 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Feature: Built-in processor
Processor lithography: 14 nm
Processor cache: 10 MB
Processor cache type: Smart Cache
Thermal Design Power (TDP): 15 W

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB

Storage

Supported storage drive types: HDD SSD
Storage drive sizes supported: 2.5,M.2
Number of storage drives supported: 2

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics
Discrete graphics card model: Not available

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel_Wi-Fi____MIAI_7__ AX211
Feature: Ethernet LAN
Feature: Wi-Fi
Feature: Bluetooth
Bluetooth version: 5.3

Ports interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 2
Thunderbolt 4 ports quantity: 1

Expansion slots

PCI Express slots version: 3.0

Design

Chassis type: 0.66L sized PC
Product colour: Black
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Product type: Mini PC barebone

Certificates

Certification: FCC(Class B)CB/CEUL(CUL)BSMIVCCIRCM(C-Tick)

Software

Operating system installed: No

Power

Power supply type: External AC adapter
Power supply: 65 W

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 124 mm
Depth: 124 mm
Height: 53.7 mm
Weight: 590 g
Package width: 221 mm
Package depth: 506 mm
Package height: 469 mm
Package weight: 1.33 kg

Other features

Warranty period: 3 year(s)
