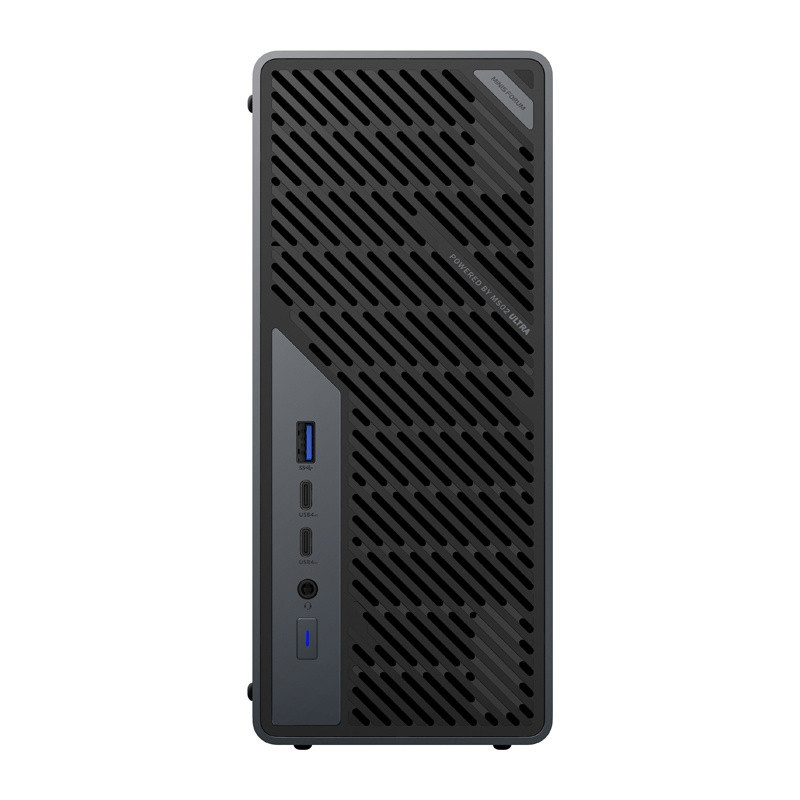

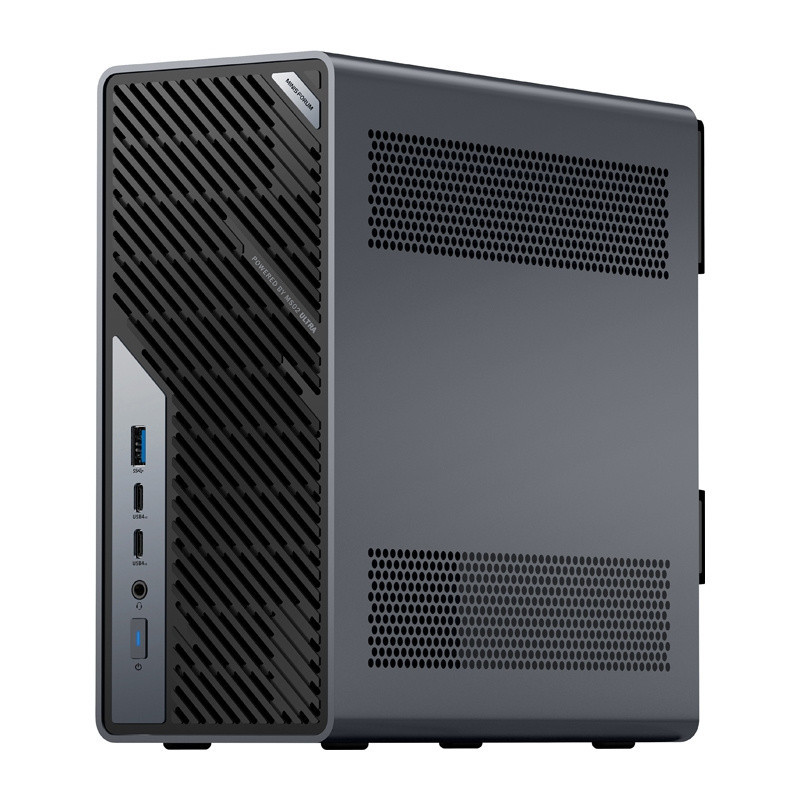

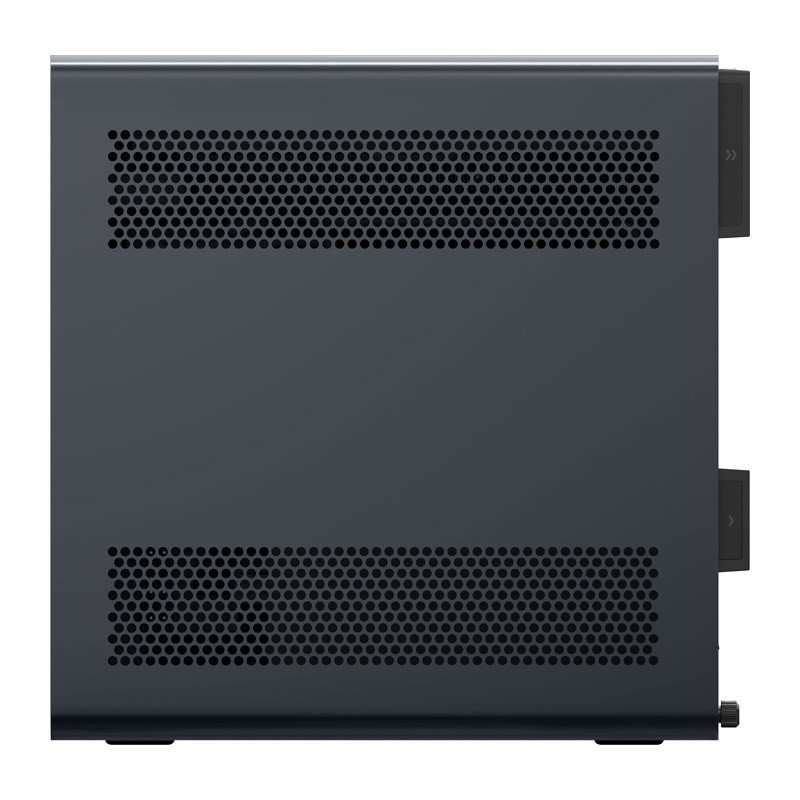

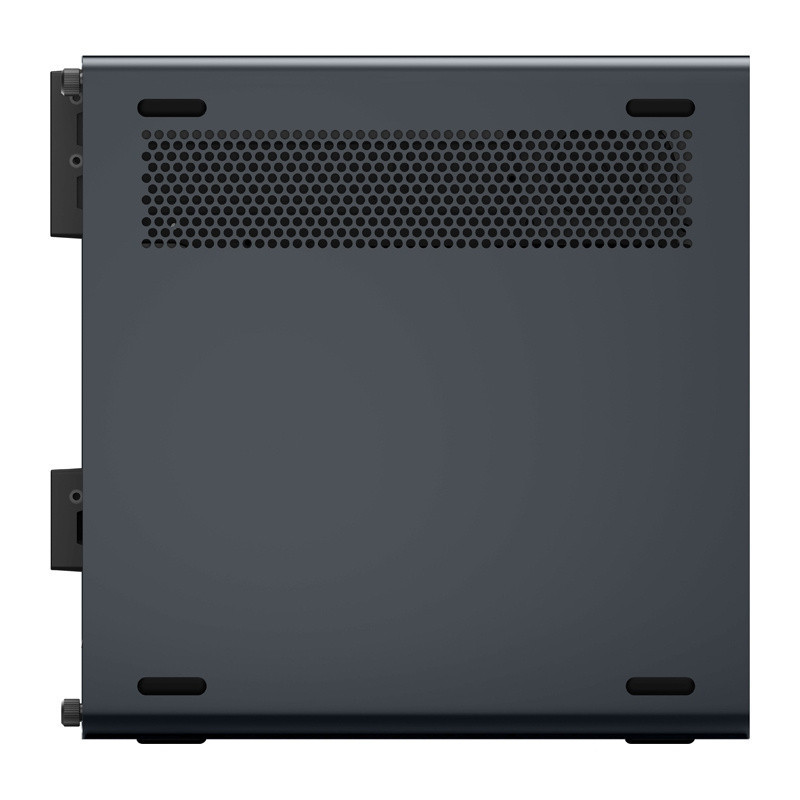

Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Black
Product reference:
14-4897118836968
MINISFORUM MS-02U-235HX is a barebone mini PC designed for demanding tasks, featuring an Intel Core Ultra 5 235HX processor with 14 cores and support for up to 256GB DDR5 RAM. It offers extensive connectivity options, including dual high-speed LAN ports and multiple USB4 ports, as well as the ability to connect up to three 8K displays.
Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Black
Product reference:
14-4897118836968
MINISFORUM MS-02U-235HX is a barebone mini PC designed for demanding tasks, featuring an Intel Core Ultra 5 235HX processor with 14 cores and support for up to 256GB DDR5 RAM. It offers extensive connectivity options, including dual high-speed LAN ports and multiple USB4 ports, as well as the ability to connect up to three 8K displays.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX Barebone
MINISFORUM MS-02U-235HX is a barebone mini PC designed for demanding use cases, featuring an Intel Core Ultra 5 235HX processor with 14 cores and supporting up to 256GB DDR5 RAM. It offers extensive connectivity options, including dual high-speed LAN ports and multiple USB4 ports, as well as the ability to support up to three 8K displays.
- Powerful Intel Core Ultra 5 235HX processor with 14 cores, ensuring exceptional multitasking and performance.
- Supports up to 256GB DDR5 RAM and dual M.2 NVMe SSDs for fast and expandable storage options.
- Advanced connectivity options including dual 10GbE and 2.5GbE LAN ports, Wi-Fi 7, and multiple USB4 ports.
- Compact design with efficient cooling system, ideal for demanding use cases such as virtualization and content creation.
Features | |
|---|---|
| Product type | Mini Workstation (Barebone) |
| Brand | MINISFORUM |
| Model | MS-02 Ultra 235HX |
Specifications | |
| Processor | Intel Core i5-2350HX |
| Number of nuclei | 14 (6 performance cores + 8 efficiency cores) |
| Maximum turbo frequency | Up to 5.1 GHz |
| Cache | 24MB Intel Smart Cache |
| Graphics chip | Intel Graphics |
| RAM slots | 4 × DDR5 SO-DIMMs |
| Maximum RAM capacity | 256GB |
| SSD slots | 2 × M.2 2280 PCIe 4.0 x4 NVMe |
| Maximum SSD capacity | Up to 8TB per slot |
| Wireless connectivity | Wi-Fi 7, Bluetooth 5.4 |
| LAN ports | 1 × 10GbE RJ45, 1 × 2.5GbE RJ45 |
| Front ports | 2 × USB4 V2 Type-C, 1 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm audio jack |

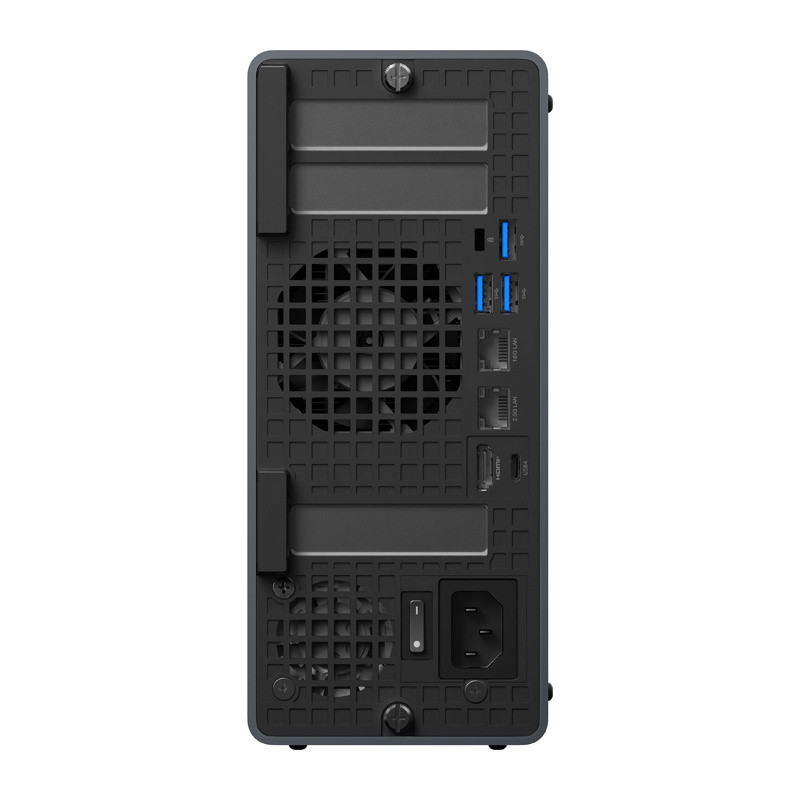

| Rear ports | 1 × USB4 Type-C, 1 × HDMI 2.1 FRL, 3 × USB 3.2 Gen 2 Type-A |
| Power source | 1U 350W MAX, AC 100-240V |
| Cooling system | Heat sink with six heat pipes and phase change material (PCM) |
| Dimensions | 221.5 × 97 × 225 mm |
| Weight | 3.25 kg |
| Length | 300mm |
| Height | 250mm |
| Width | 120mm |
| Weight | 3900 grams |
