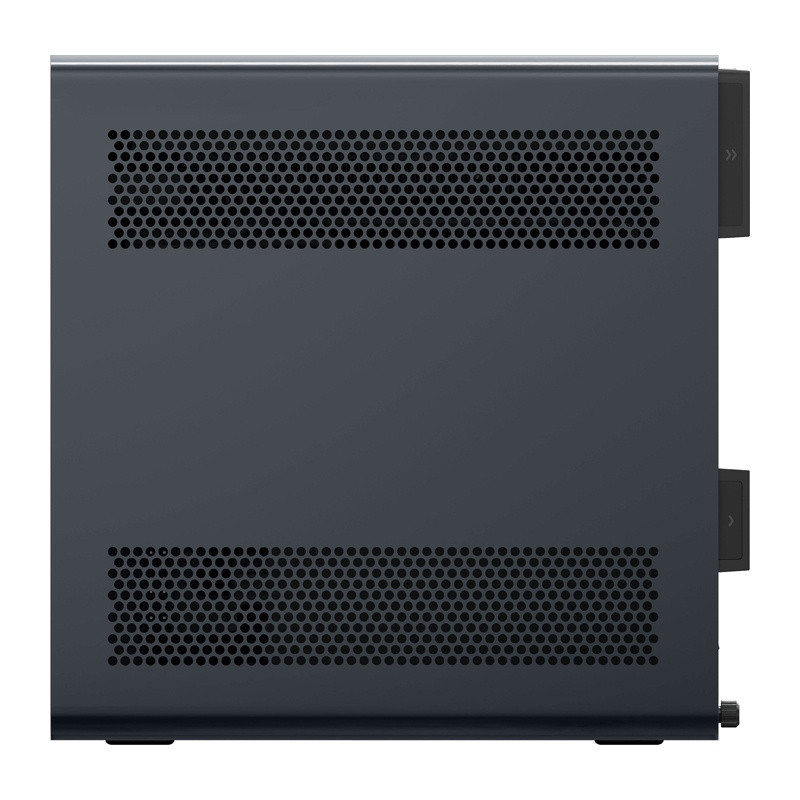

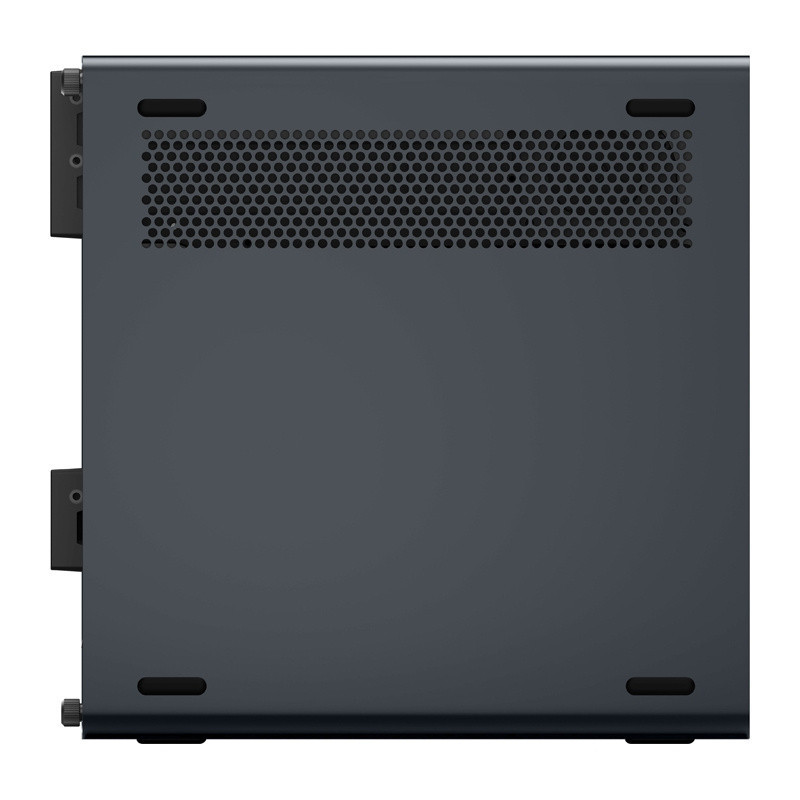

Mini PC - MINIS FORUM MS-02U-235HX, Intel Core Ultra 5, 235HX, Barebone, Black
Product reference: 14-4897118836968

The MINISFORUM MS-02U-235HX is a barebones mini PC designed for demanding applications, supporting up to 256GB DDR5 RAM and dual M.2 NVMe SSDs for fast storage. It features an Intel Core Ultra 5 235HX processor with 14 cores, advanced connectivity options including 10GbE and Wi-Fi 7, and the ability to drive multiple 8K displays.

Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Juoda
Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Juoda
Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Juoda
Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Juoda
Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Juoda
Mini PC - MINISFORUM MS-02 Ultra 235HX Intel Core Ultra 5 235HX, 14 Cores, 256GB DDR5, Juoda

Mini PC - MINIS FORUM MS-02U-235HX, Intel Core Ultra 5, 235HX, Barebone, Black

Product reference: 14-4897118836968

The MINISFORUM MS-02U-235HX is a barebones mini PC designed for demanding applications, supporting up to 256GB DDR5 RAM and dual M.2 NVMe SSDs for fast storage. It features an Intel Core Ultra 5 235HX processor with 14 cores, advanced connectivity options including 10GbE and Wi-Fi 7, and the ability to drive multiple 8K displays.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
723,77 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

MINIS FORUM MS-02U-235HX, Intel Core Ultra 5, 235HX, Barebone, Black


The MINISFORUM MS-02U-235HX is a barebone mini PC designed for demanding tasks, supporting up to 256 GB DDR5 RAM and two M.2 NVMe SSDs for fast storage. It features a Intel Core Ultra 5 235HX processor with 14 cores, advanced connectivity options including 10GbE and Wi-Fi 7, as well as the ability to connect multiple 8K displays.


  • Powerful Intel Core Ultra 5 235HX processor with AI support for high-performance multitasking and advanced applications.
  • Expandable design supporting up to 256GB DDR5 RAM and two M.2 NVMe SSD slots, allowing for storage of up to 16 TB data.
  • Robust connectivity options, including two fast LAN ports, Wi-Fi 7, and multiple HDMI and USB ports, allowing for a variety of peripheral connections.
  • An efficient cooling system and compact design ensure stable performance for demanding tasks in a mini workstation format.

Features

Product type Mini Workstation (Barebone)
Brand MINISFORUM
Model MS-02 Ultra 235HX

Specifications

Processor Intel Core Ultra 5 235HX
Number of nuclei 14 (6 performance cores + 8 efficiency cores)
Maximum turbo frequency Up to 5.1 GHz
Cache 24 MB Intel Smart Cache
Graphics chip Intel Graphics
RAM sockets 4 × DDR5 SO-DIMM
Maximum capacity of RAM 256GB
SSD slots 2 × M.2 2280 PCIe 4.0 x4 NVMe
Maximum SSD capacity Up to 8 TB per socket
Wireless connection Wi-Fi 7, Bluetooth 5.4
LAN ports 1 × 10GbE RJ45, 1 × 2.5GbE RJ45

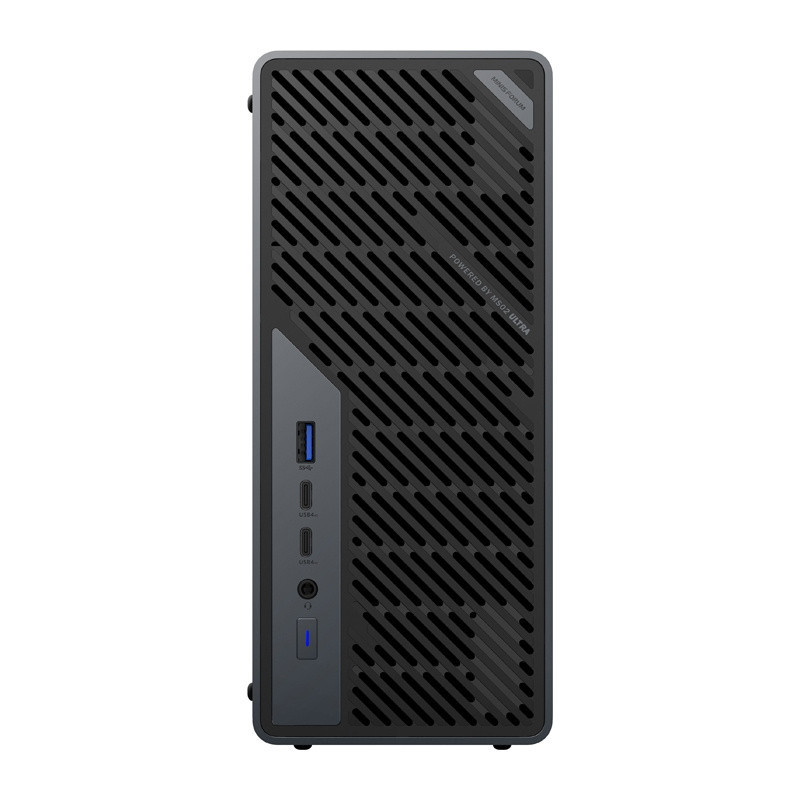

Front ports 2 × USB4 V2 Type-C, 1 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm audio connector

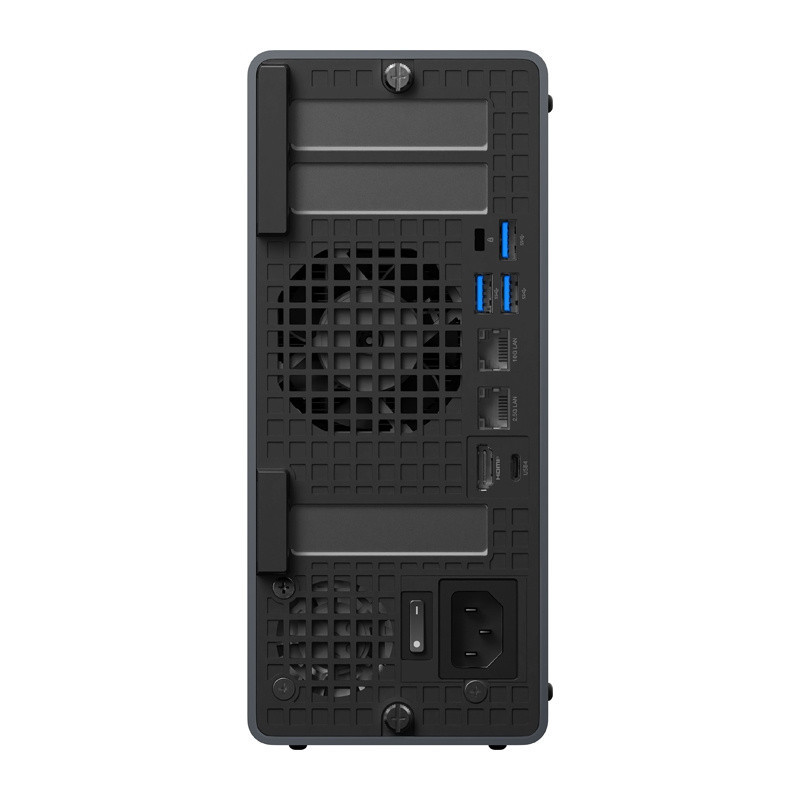

Rear ports 1 × USB4 Type-C, 1 × HDMI 2.1 FRL, 3 × USB 3.2 Gen 2 Type-A
Power source 1U 350 W MAX, AC 100-240 V
Cooling system Heat dissipation system with six heat pipes and phase change material (PCM)
Dimensions 221.5 × 97 × 225 mm
Weight 3.25 kg

Height250mm
Length300mm
Weight3900 grams
Width120mm
