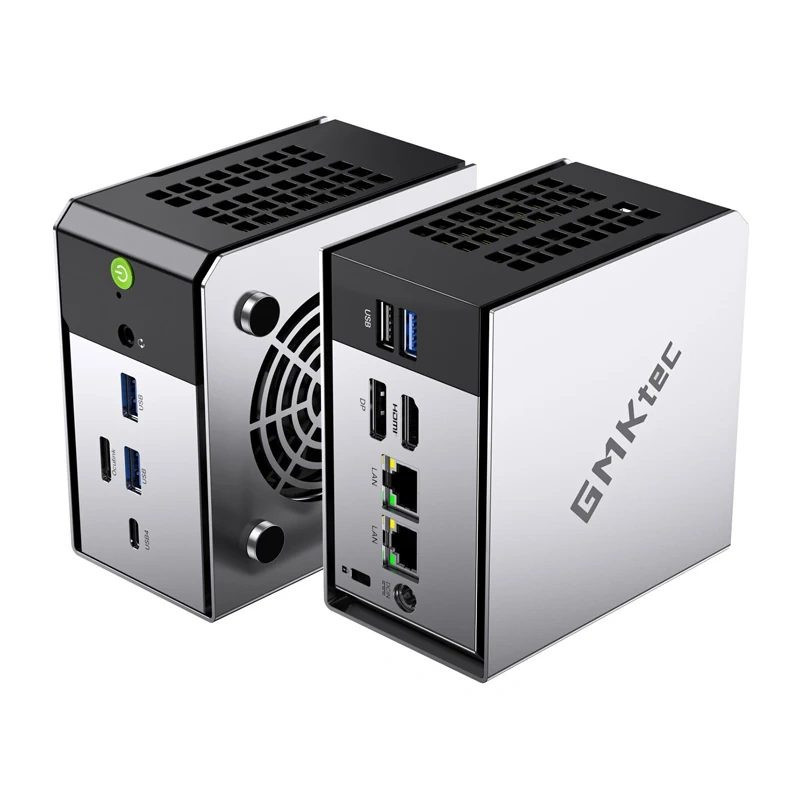

GMKtec The M8 mini PC with an AMD Ryzen 5 PRO 6650H processor, 16 GB LPDDR5 RAM and 1 TB PCIe SSD runs Windows 11 Pro. The device is equipped with HDMI, DisplayPort, USB4, two 2.5G LAN ports, Wi-Fi 6E, Bluetooth 5.2 and an OCuLink connector for an external video processor.
GMKtec The M8 mini PC with an AMD Ryzen 5 PRO 6650H processor, 16 GB LPDDR5 RAM and 1 TB PCIe SSD runs Windows 11 Pro. The device is equipped with HDMI, DisplayPort, USB4, two 2.5G LAN ports, Wi-Fi 6E, Bluetooth 5.2 and an OCuLink connector for an external video processor.
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
The GMKtec M8 mini PC is equipped with an AMD Ryzen 5 PRO 6650H processor, 16 GB LPDDR5 RAM and a 1 TB PCIe SSD. The computer runs Windows 11 Pro. Connections: HDMI, DisplayPort, USB4, two 2.5G LAN devices, Wi-Fi 6E, Bluetooth 5.2 and OCuLink for connecting an external graphics card.
Product Information | |
|---|---|
| Product Type | Mini PC |
| Brand | GMKtec |
| Model | M8 |
| Operating System | Pre-installed Windows 11 Pro; Linux supported |
Processor and graphics | |
| Processor | AMD Ryzen 5 PRO 6650H |
| Processor cores/threads | 6 cores/12 threads |
| Maximum processor frequency | Up to 4.5 GHz |
| Processor cache | 16 MB L3 cache |
| Graphics | Integrated AMD Radeon 660M graphics |
Memory and storage | |
| Memory type | LPDDR5 |
| Memory speed | 6,400 MT/s |
| Memory installation | Onboard memory |
| Onboard storage | 1 TB M.2 2280 PCIe 3.0 SSD |
| Storage expansion | Two M.2 2280 PCIe 4.0 x4 slots; each supports up to 8TB drives |
| eMMC storage | Not included |
| 2.5-inch drive support | Not supported |
Display and connectivity | |
| Video outputs | 1 × HDMI 2.0, 1 × DisplayPort 1.4, 1 × USB4 with DisplayPort support |
| Maximum Display configuration | Up to three simultaneous displays |
| USB ports | 3 × USB-A 3.2 Gen 2, 1 × USB-A 2.0, 1 × USB4 |
| USB4 features | Data transfer rates up to 40 Gbps, Power Delivery and DisplayPort support |
| Ethernet | 2 × RJ45 2.5G Ethernet ports |
| Wireless Connectivity | Wi-Fi 6E with 2.4 GHz, 5 GHz, and 6 GHz bands |
| Bluetooth | Bluetooth 5.2 |
| Audio connectivity | 1 × 3.5 mm CTIA headphone jack |
| External graphics support | OCuLink PCIe Gen4 x4 interface for compatible external graphics card |
Design and power | |
| Dimensions | 110 × 108 × 64 mm |
| Weight | 482 g |
| Case materials | Metal and plastic |
| Cooling system | Two fans with copper heat pipes |
| Operating modes | 28 W Quiet mode, 35 W Balanced mode, and 40 W High Performance mode |
| Power supply | 100 W adapter, 20 V / 5 A |
| Mounting | VESA mount supported |
| Security | Kensington lock slot and TPM 2.0 support |
Terms of Use | |
| Operating temperature | 0°C to 40°C |
| Storage temperature | 0°C to 40°C |
| Operating humidity | 35-80% relative humidity, non-condensing |
| Safety warning | Use the mini PC with the included power adapter on a stable and well-ventilated surface. Do not block the ventilation openings, protect the device from liquids and excessive heat, and do not connect incompatible accessories. |
| Height | 100 mm |
| Length | 200 mm |
| Weight | 600 g |
| Width | 150 mm |
