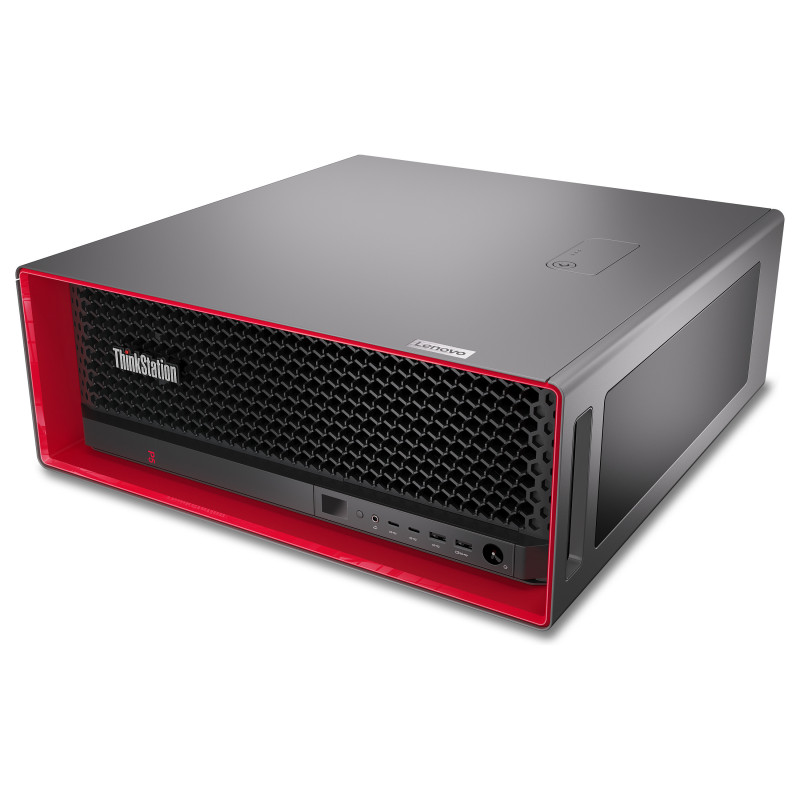

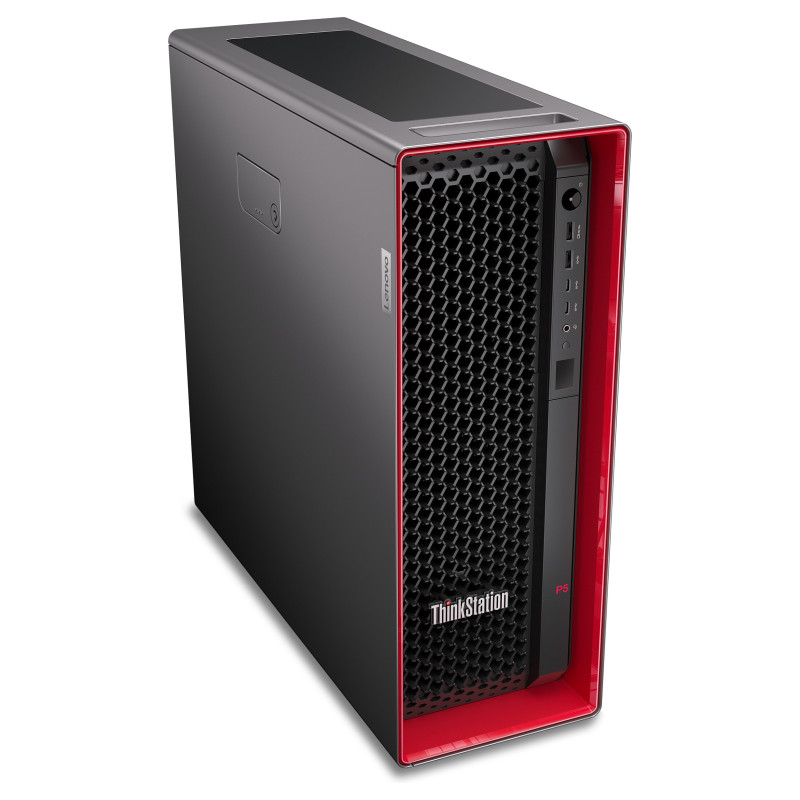

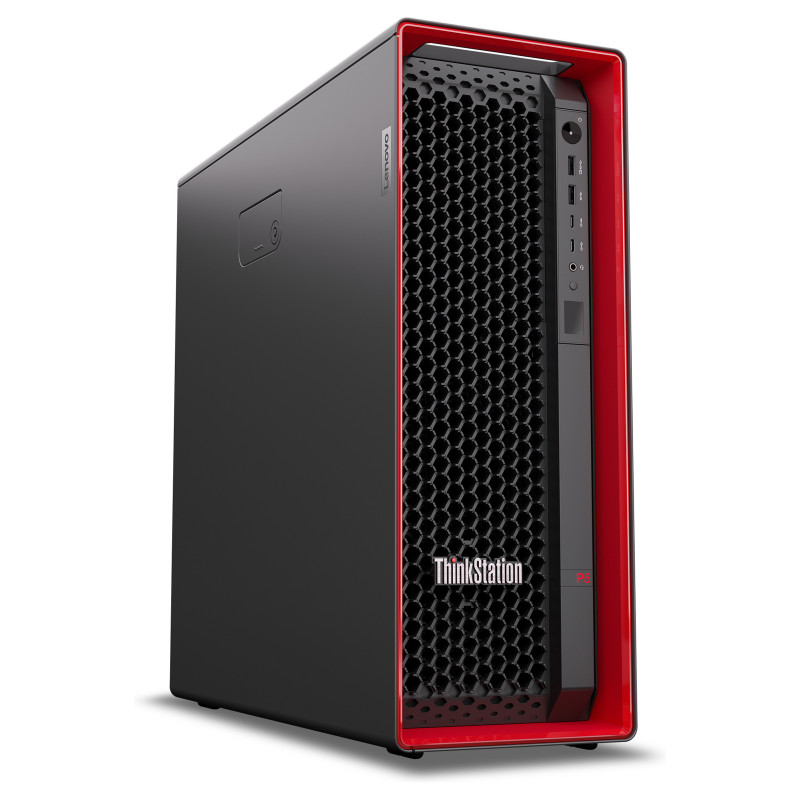

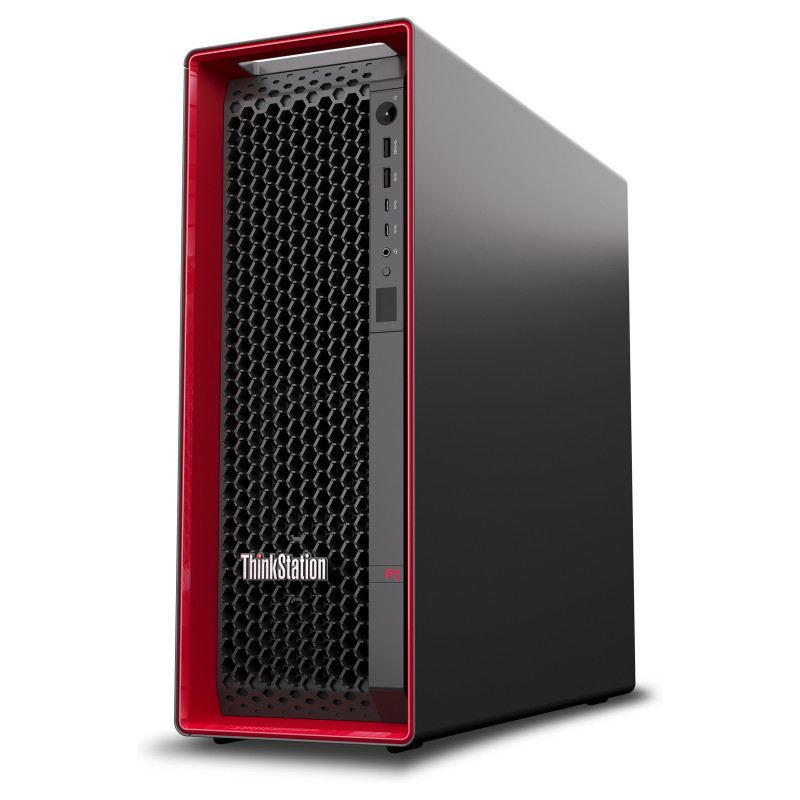

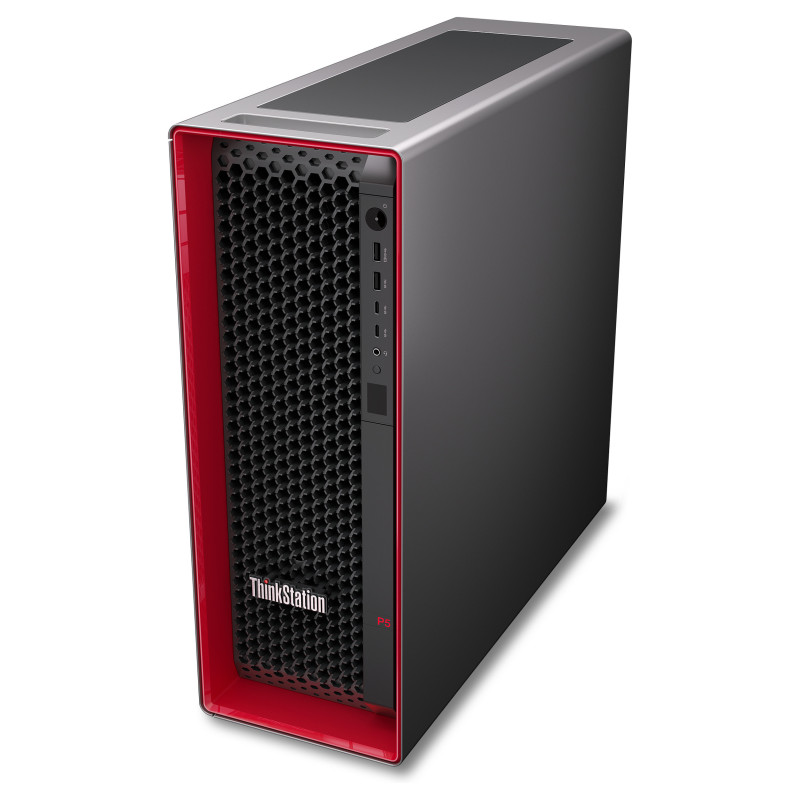

Lenovo ThinkStation P5 Gen 2

Lenovo ThinkStation P5 Gen 2. Processor frequency: 2.7 GHz, Processor family: Intel® Xeon®, Processor model: 634. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 1 TB, Storage media: SSD. Operating system installed: Windows 11 Pro for Workstations. Power supply: 750 W. Product type: Workstation. Weight: 19 kg

Processor

Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: 634
Processor cores: 12
Processor threads: 24
Processor boost frequency: 4.6 GHz
Processor frequency: 2.7 GHz
Processor cache: 48 MB

Memory

Internal memory: 32 GB
Maximum internal memory: 1 TB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 32 GB
Memory slots: 8x DIMM
Memory clock speed: 6400 MHz
Memory channels: Quad-channel

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 5.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Feature: Self-Encrypting Drive (SED)

Graphics

Discrete graphics card model: Not available

Performance

Motherboard chipset: Intel W890
Feature: Trusted Platform Module (TPM)
Product type: Workstation
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Ethernet interface type: 2.5 Gigabit Ethernet

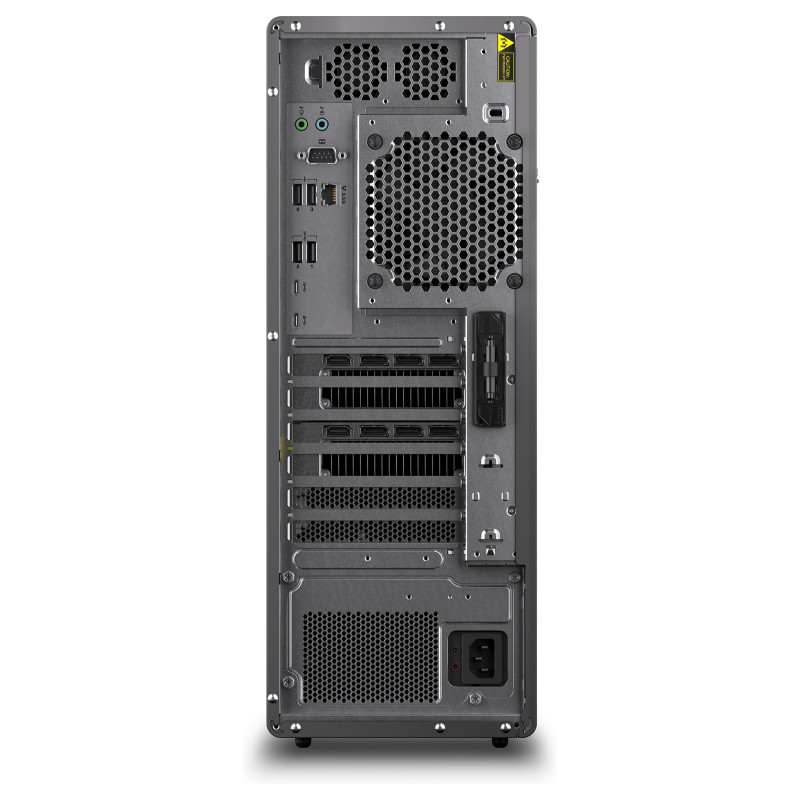

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Line-in

Power

Power supply: 750 W
80 PLUS certification: 80 PLUS Platinum

Design

Feature: Cable lock slot
Cable lock slot type: Kensington

Software

Operating system language: German
Operating system installed: Windows 11 Pro for Workstations

Audio

Audio chip: Realtek ALC897-Q
Audio system: High Definition Audio

Weight & dimensions

Width: 165 mm
Depth: 453.9 mm
Height: 440 mm
Weight: 19 kg

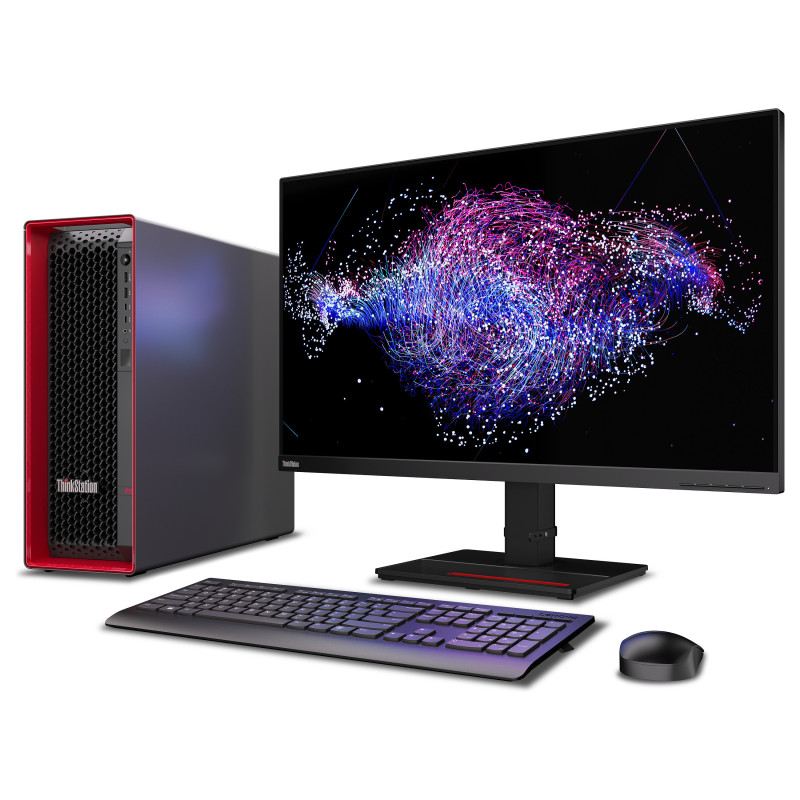

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Keyboard

Keyboard connectivity: Wired
