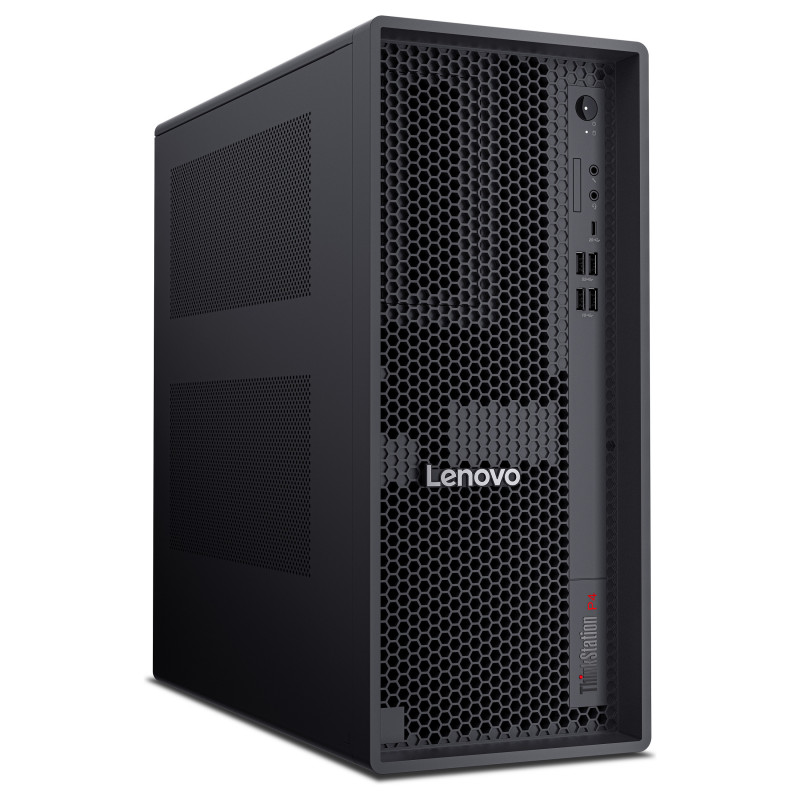

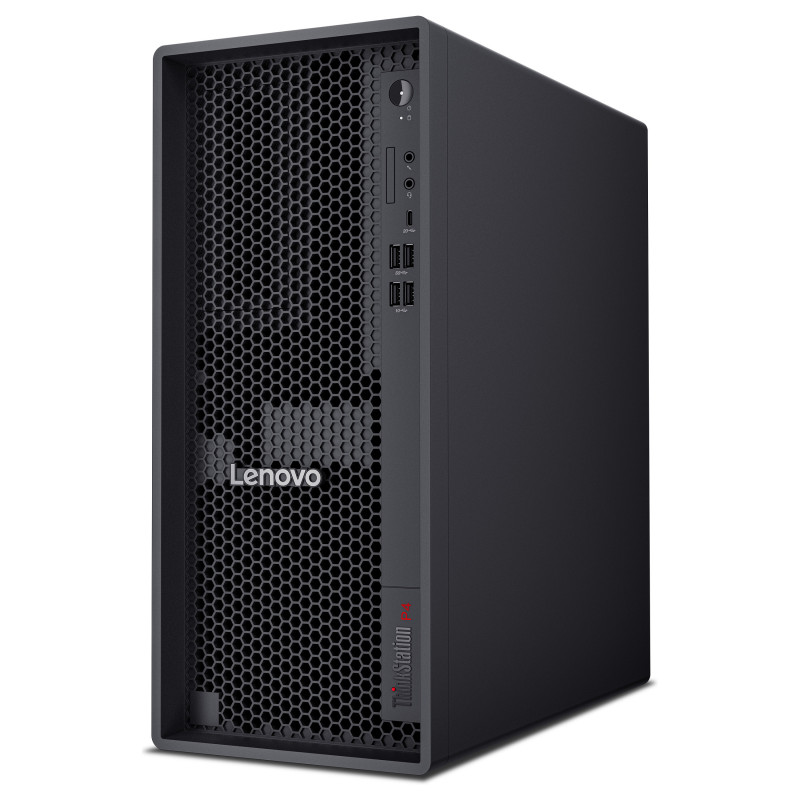

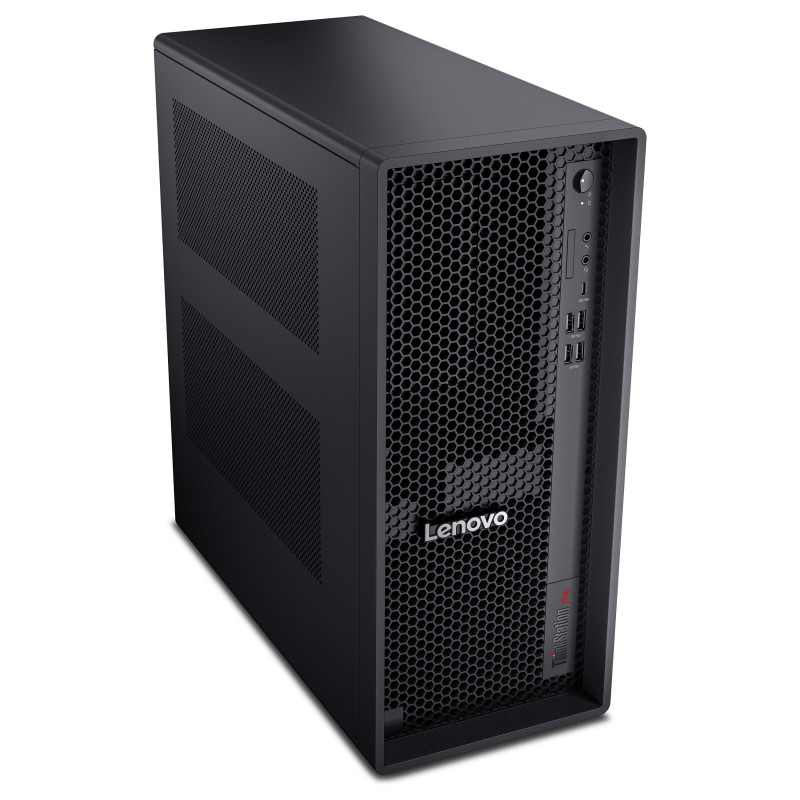

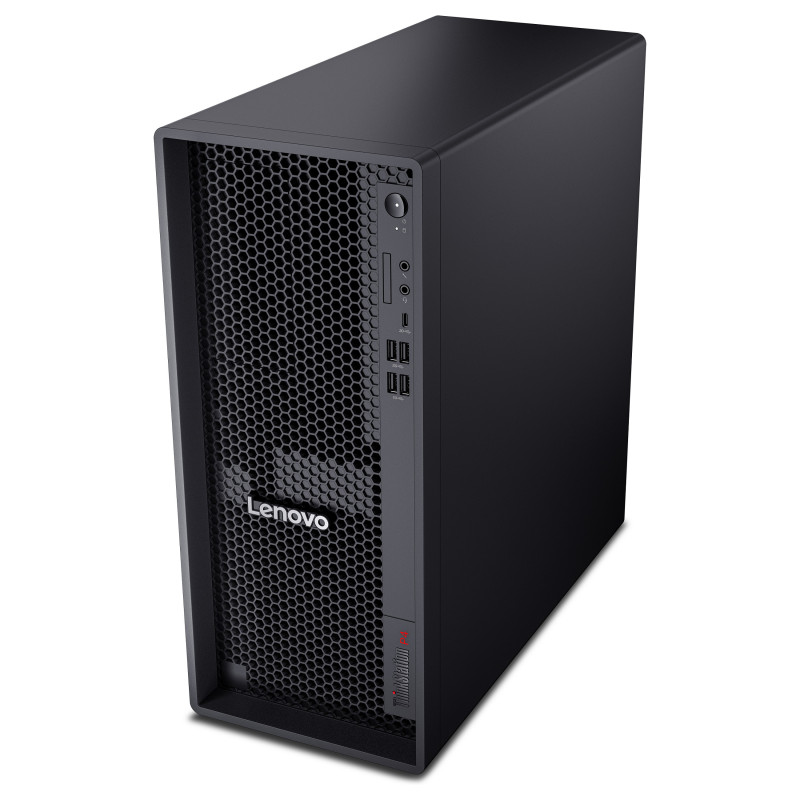

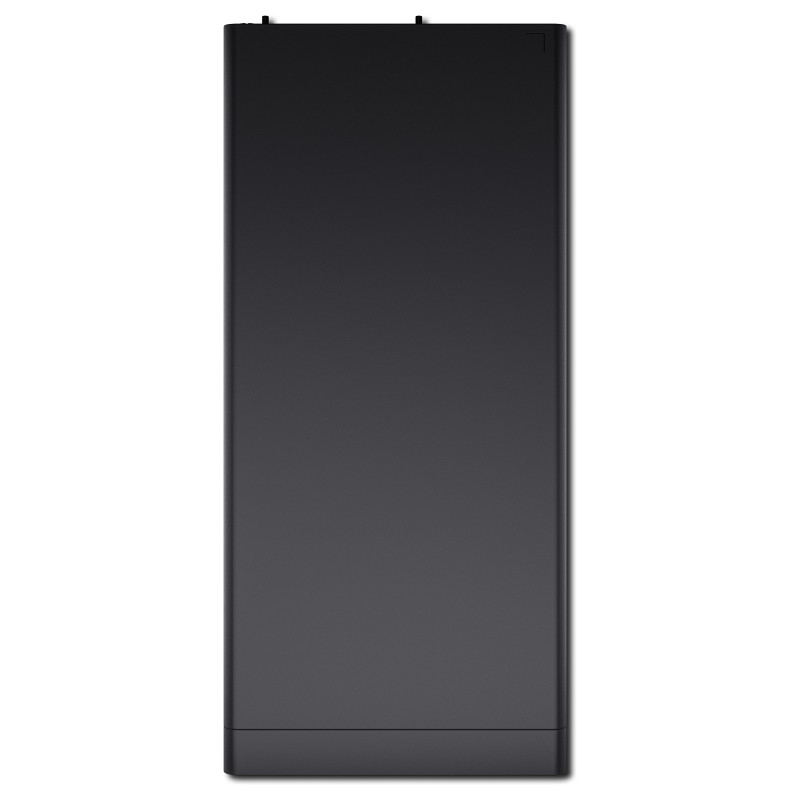

Lenovo ThinkStation P4

Lenovo ThinkStation P4. Processor frequency: 3.8 GHz, Processor family: AMD Ryzen™ 7 PRO, Processor model: PRO 9755. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: AMD Radeon. Operating system installed: Windows 11 Pro. Power supply: 750 W. Product type: Workstation. Weight: 8.75 kg

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7 PRO
Processor model: PRO 9755
Processor cores: 8
Processor threads: 16
Processor boost frequency: 5.4 GHz
Processor frequency: 3.8 GHz
L2 cache: 8 MB
L3 cache: 32 MB
Processor cache type: L2 & L3

Memory

Internal memory: 64 GB
Maximum internal memory: 256 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 32 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 5.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Feature: Self-Encrypting Drive (SED)
Feature: Card reader integrated

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card memory: 16 GB
Discrete graphics memory type: GDDR7
Number of discrete graphics cards: 1
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon Graphics
On-board graphics card model: AMD Radeon

Performance

Motherboard chipset: AMD PRO 675
Feature: Trusted Platform Module (TPM)
Product type: Workstation
Trusted Platform Module (TPM) version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Ethernet interface type: 2.5 Gigabit Ethernet

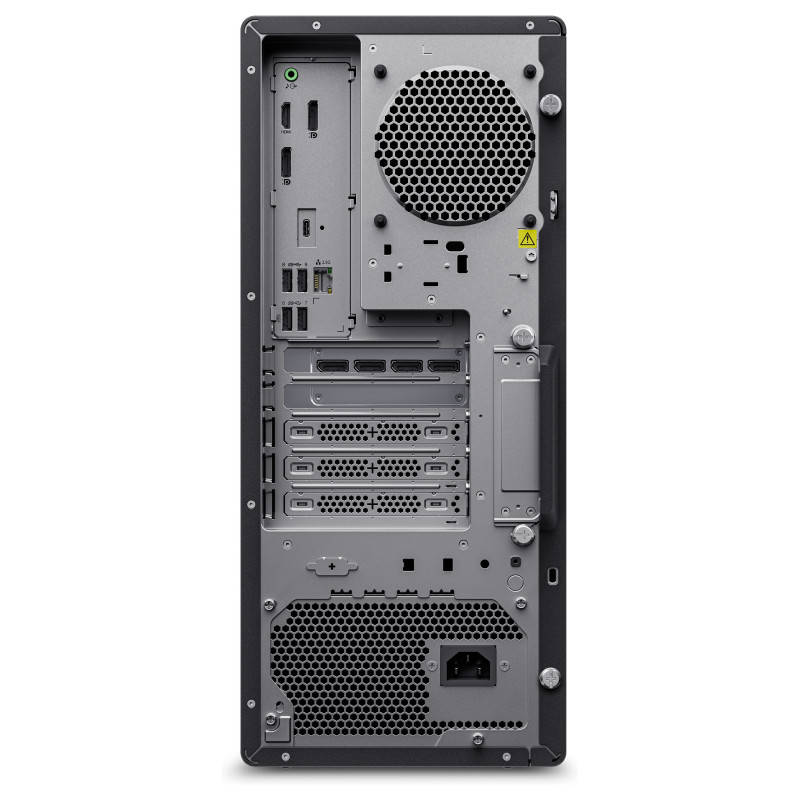

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Microphone in

Power

Power supply: 750 W
80 PLUS certification: 80 PLUS Platinum

Design

Feature: Cable lock slot
Cable lock slot type: Kensington

Software

Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Lenovo AI Now

Audio

Audio chip: Realtek ALC623
Audio system: High Definition Audio

Weight & dimensions

Width: 180 mm
Depth: 401.5 mm
Height: 415 mm
Weight: 8.75 kg

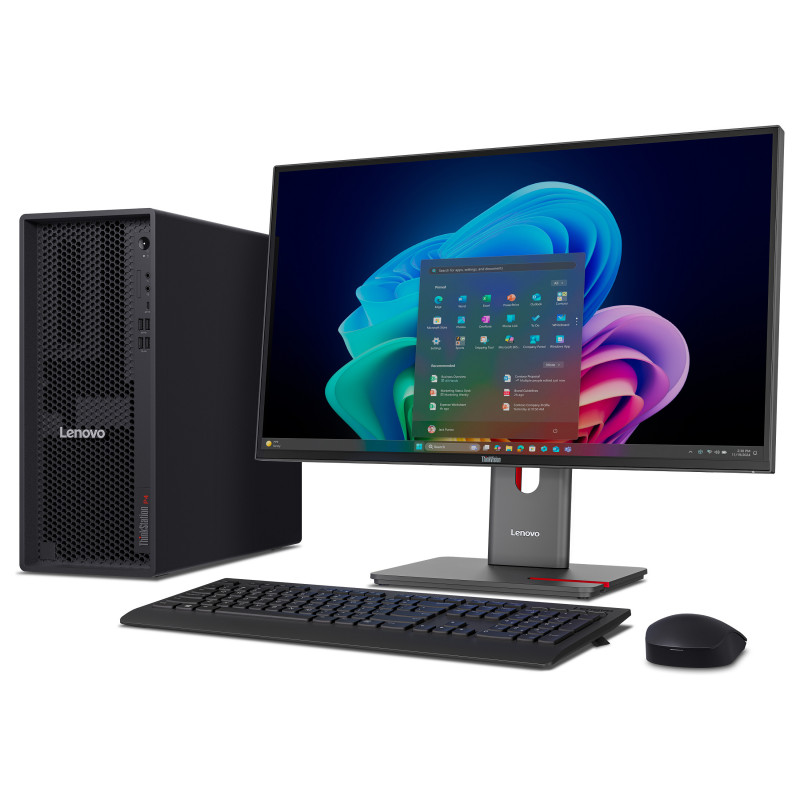

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Keyboard

Keyboard connectivity: Wired
