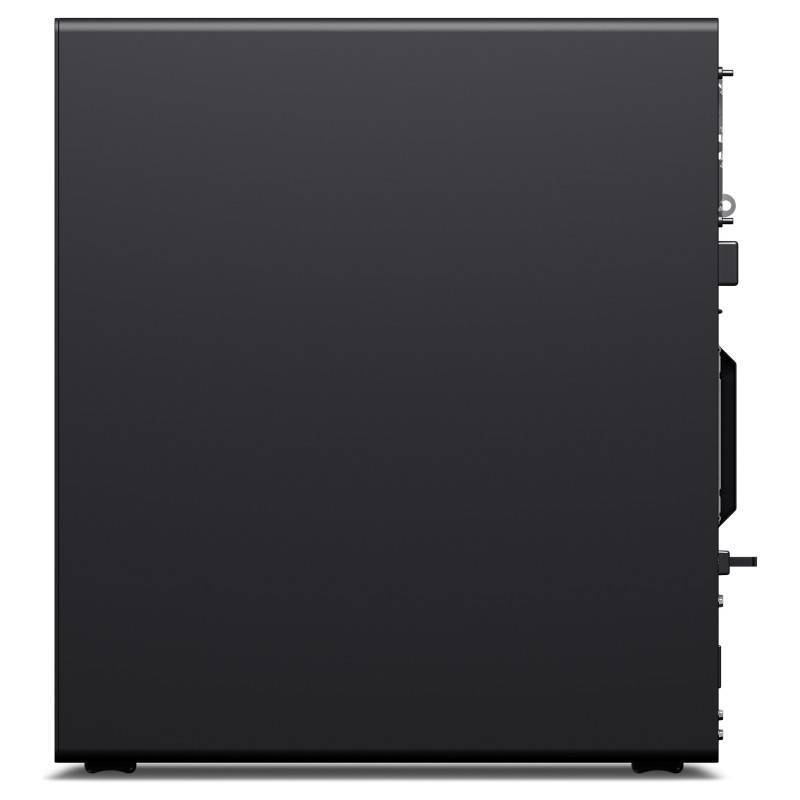

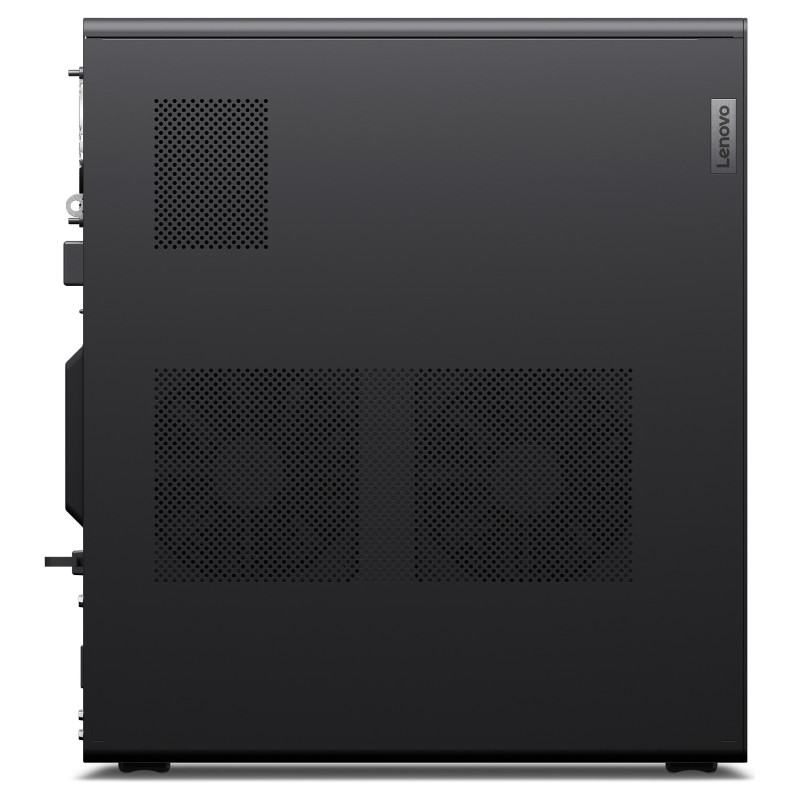

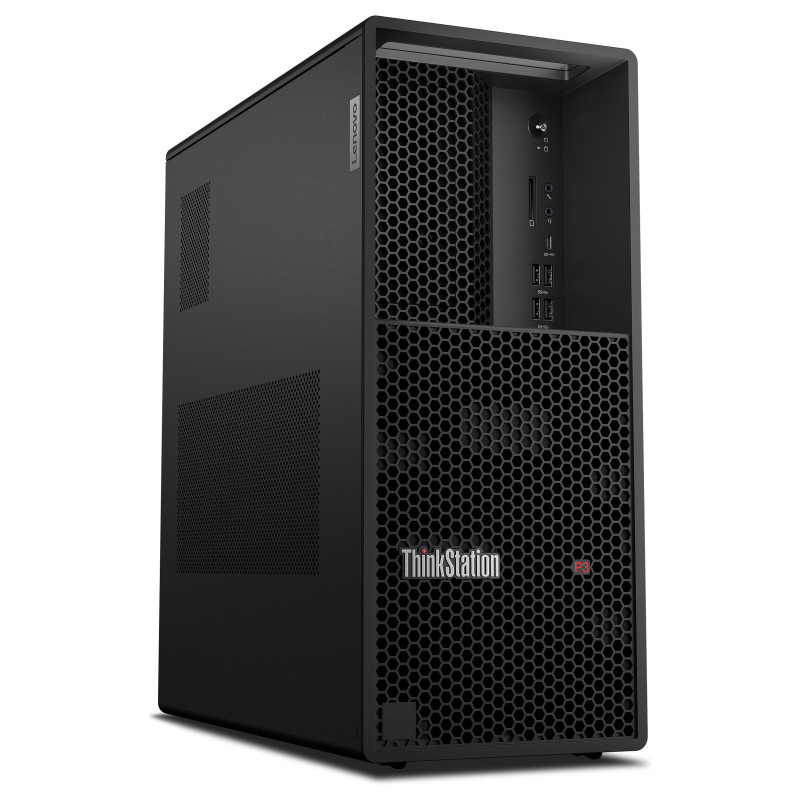

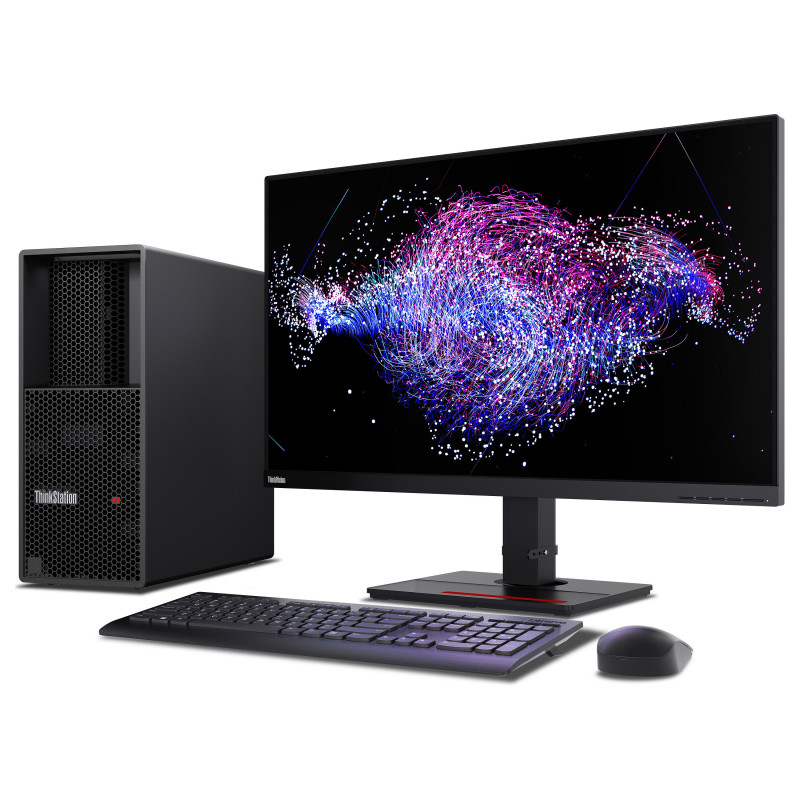

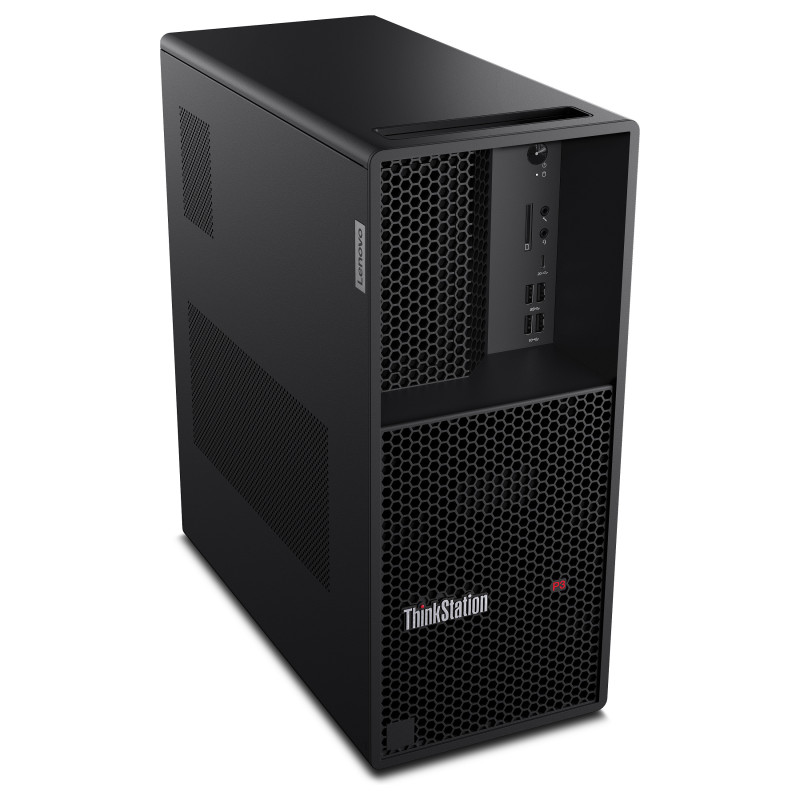

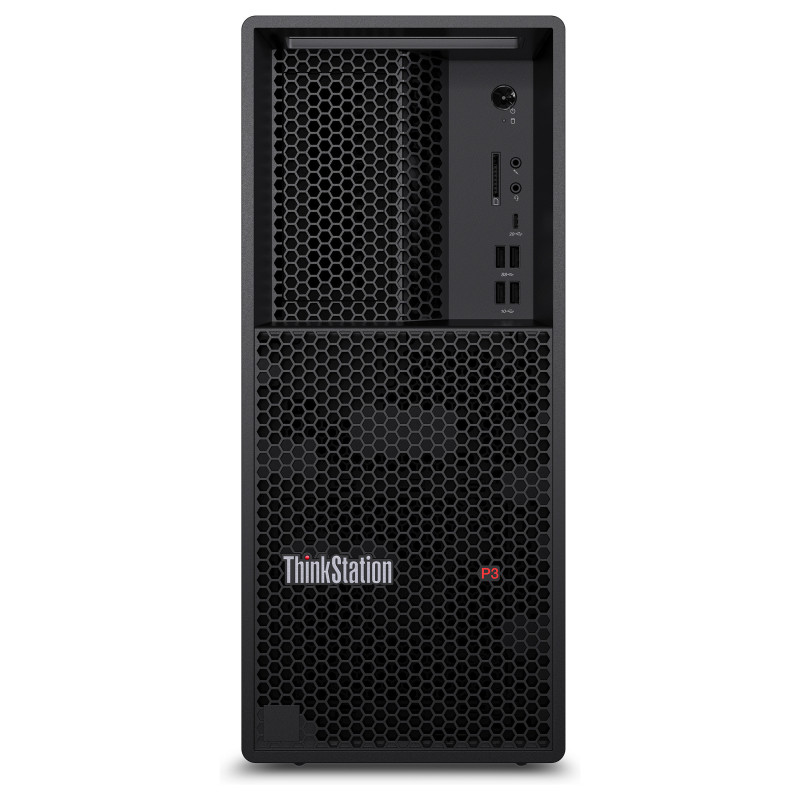

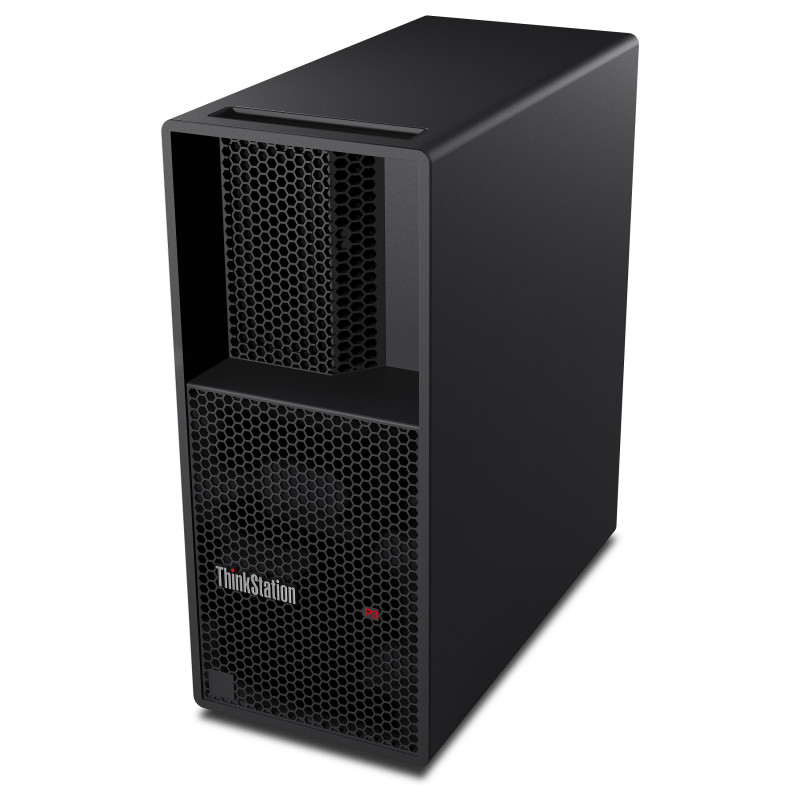

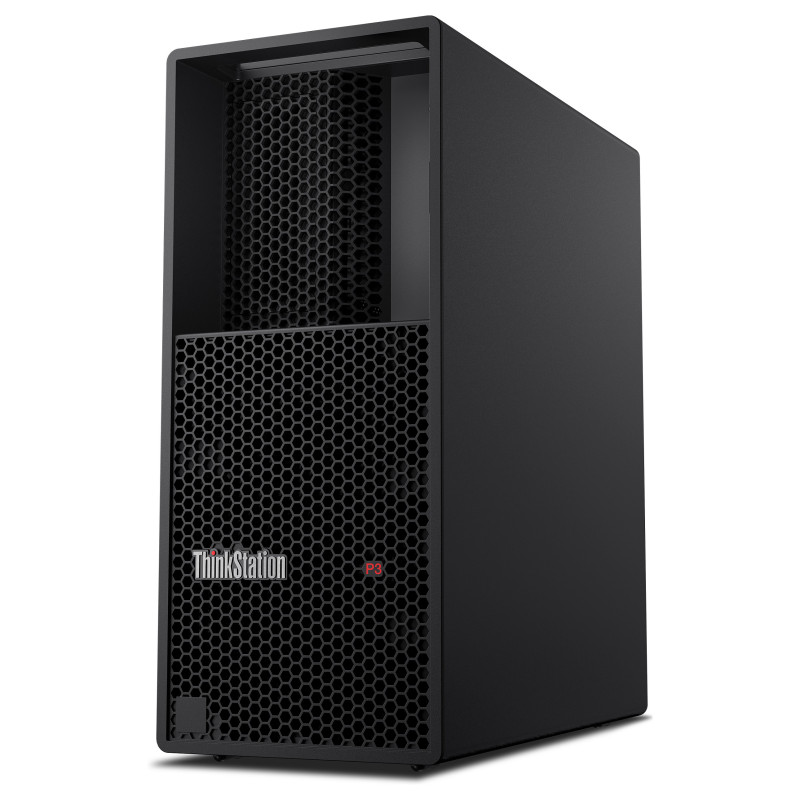

Lenovo ThinkStation P3 Tower Gen 2

Lenovo ThinkStation P3 Tower Gen 2. Processor family: Intel Core Ultra 9, Processor model: 285K. Internal memory: 48 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 750 W. Chassis type: Tower. Product type: Workstation. Weight: 14.4 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285K
Processor cores: 24
Processor threads: 24
Processor boost frequency: 5.7 GHz
Performance cores: 8
Efficient cores: 16
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 3.7 GHz
Efficient-core base frequency: 3.2 GHz
Processor cache: 36 MB
Processor cache type: Smart Cache
Processor base power: 125 W
Maximum turbo power: 250 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 36 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 48 GB
Maximum internal memory: 256 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 48 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Card reader integrated: No

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel W880
Trusted Platform Module (TPM): Yes
Product type: Workstation

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: No

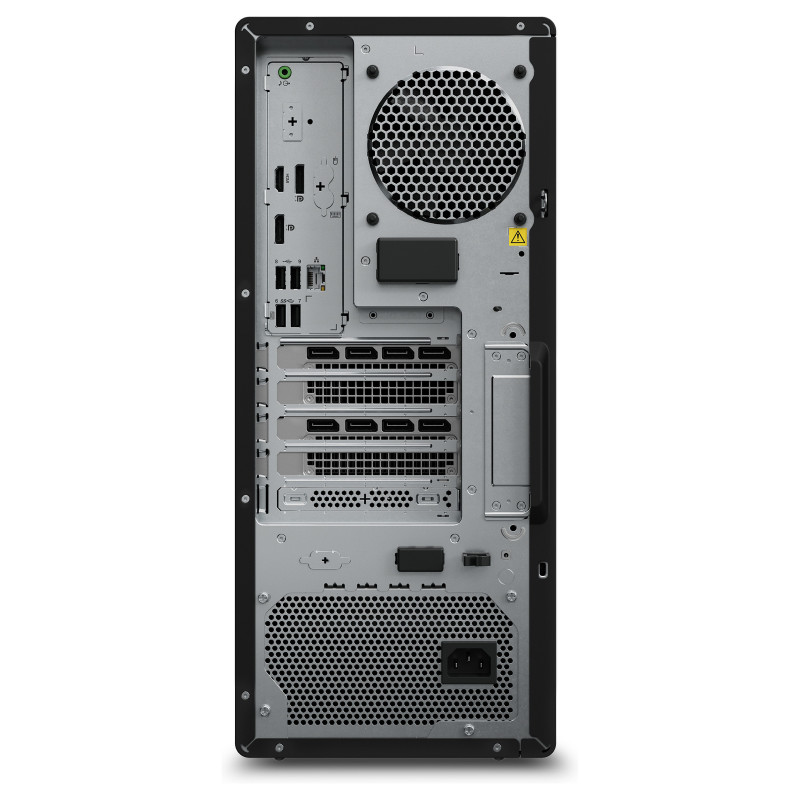

Ports interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
Line-out: Yes
Microphone in: Yes

Power

Power supply: 750 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Design

Chassis type: Tower
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Display

Display included: No

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio

Weight dimensions

Width: 180 mm
Depth: 370 mm
Height: 415 mm
Weight: 14.4 kg

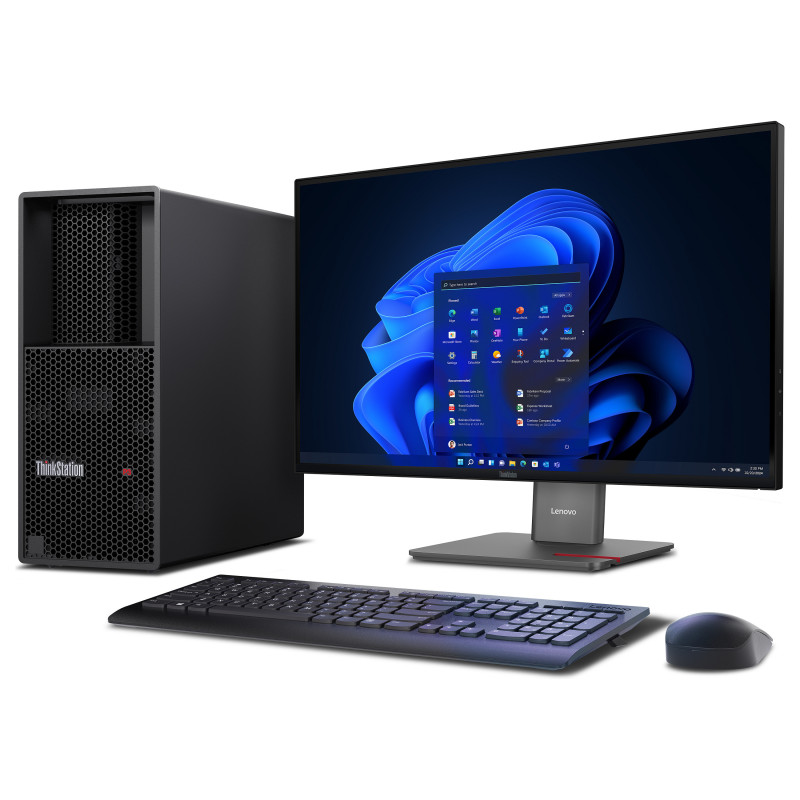

Packaging content

Mouse included: Yes
Mouse connectivity: Wired
Keyboard included: Yes

Keyboard

Keyboard connectivity: Wired
